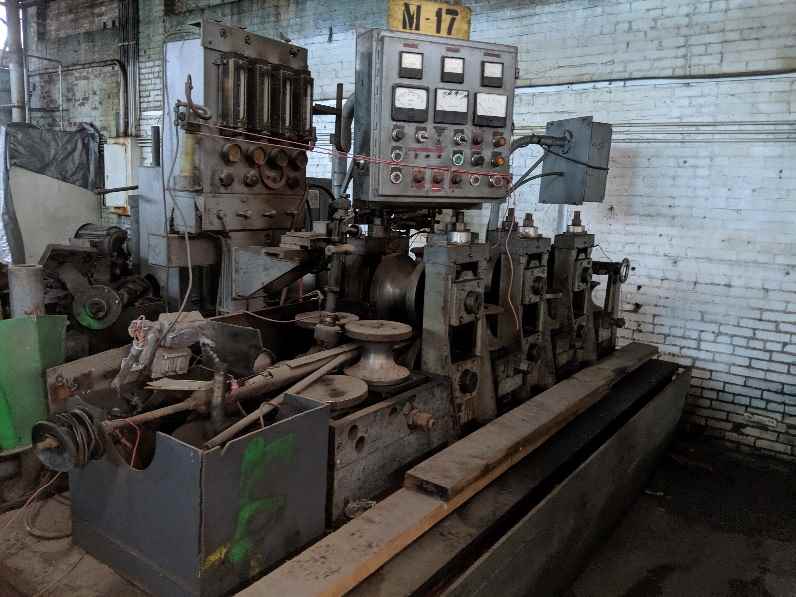

5" (127 mm) Turek & Heller #W-35 TIG tube mill, #3826

UTUBE NUMBER: 3826
MANUFACTURER: TUREK & HELLER
MODEL NUMBER: W-35
SERIAL NUMBER: MC3960.BC

SPECIFICATIONS:
Line Direction: Right to Left
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 3″ (76 mm)
Maximum Line Speed: 30 FPM Gear In no Load
Maximum D/T Ratio: 50:1
Minimum D/T Ratio: 10:1

GEARBOX DATA:
Roll Space Forming: 15″ (381 mm)
Minimum Vertical Center: 7″ (177.8 mm)
Maximum Vertical Center: 12-1/2″ (317.5 mm)
Forming Horizontal Centers: 24″ (609.6 mm)
Fin Horizontal: 24″ (609.6 mm)
Fin Sizing: 15″ (381 mm)
R.S 9.5″

ENTRY EQUIPMENT:
Maximum Strip Width: 17″ (431.8 mm)
Minimum Strip Width: 9.5″ (240 mm)

FORMING MILL:
6-Roll Entry Guide
(6) Driven Breakdown Stands
(3) Idle Side Rolls

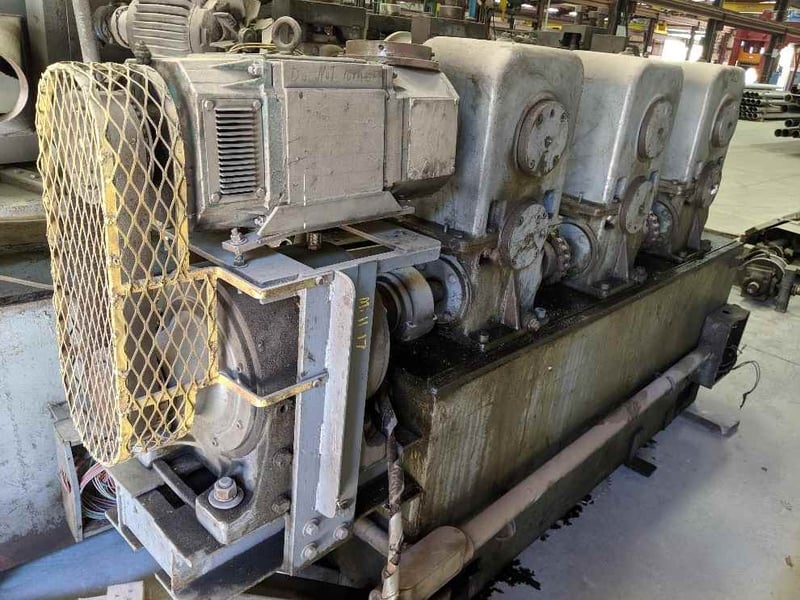

15HP D.C. Forming (47:1 Speed Reducer)
(3) Driven Fin Passes (on weld base)
(3) Idle Side Rolls (on weld base)

WELDING SECTION:
4-Roll Weld Pressure Unit
Cooling Section 14″ (355 mm)
Cyclomatic Magnetic ARC Control

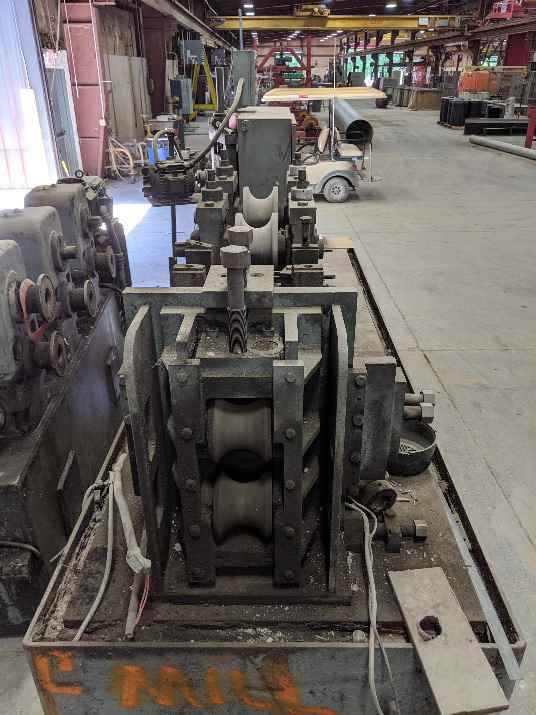

SIZING MILL:
(3) Driven Sizing Stands
(2) Idle Side Rolls
(4) Roll Turkshead
15HP D.C. Sizing (38:1 Speed Reducer)

5″ Current Tooling on Mill

NOTES:
No Electrics
9.5″ Base to Lower Spindle
Missing Most Driveshafts
Missing (1) 15HP D.C Sizing Drive Motor

OVERALL DIMENSIONS: 40′ x 5′ x 6′
APPROXIMATE WEIGHT: 35,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
