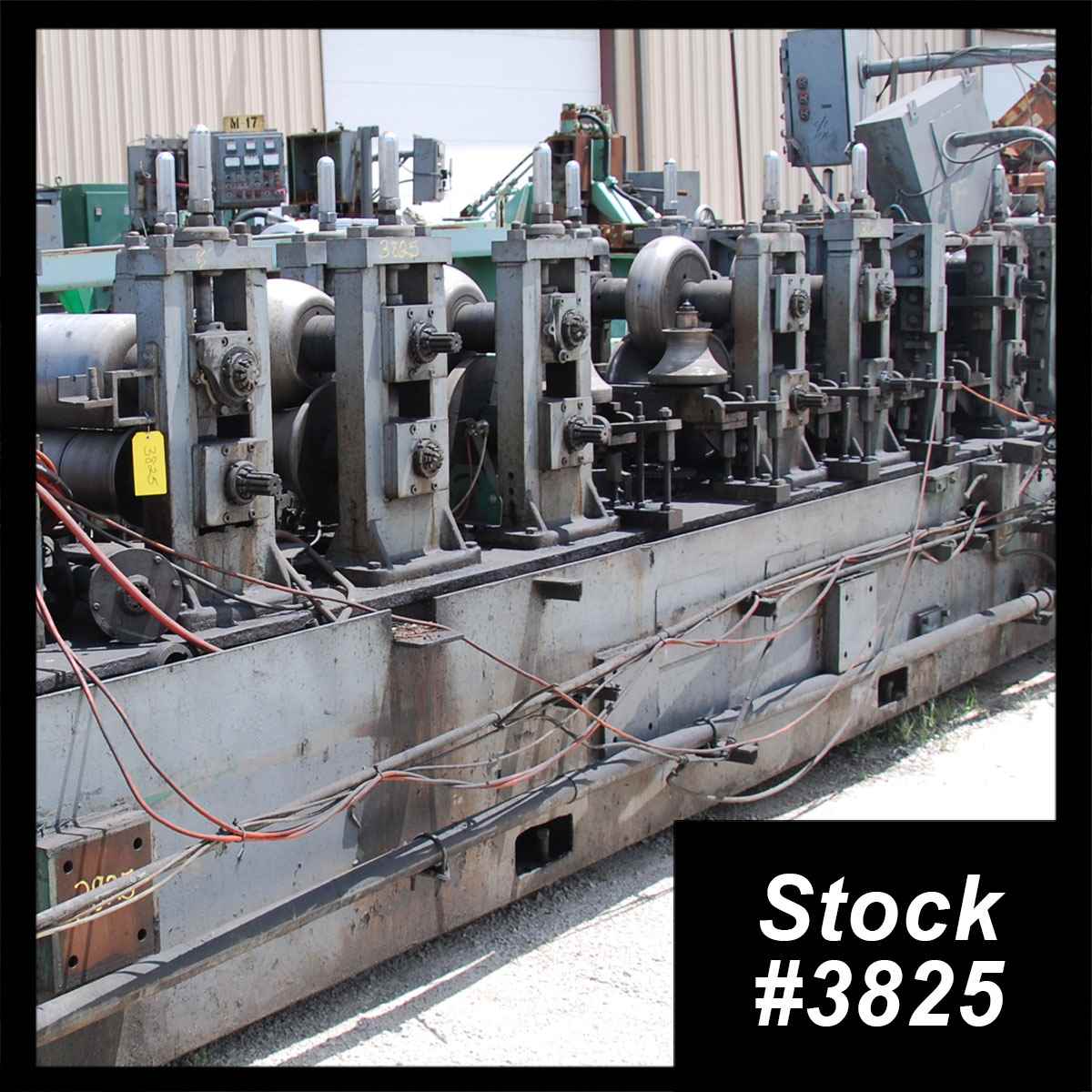

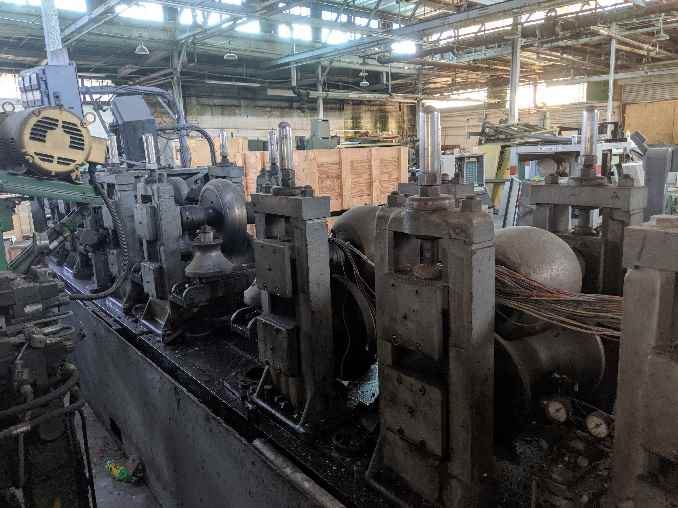

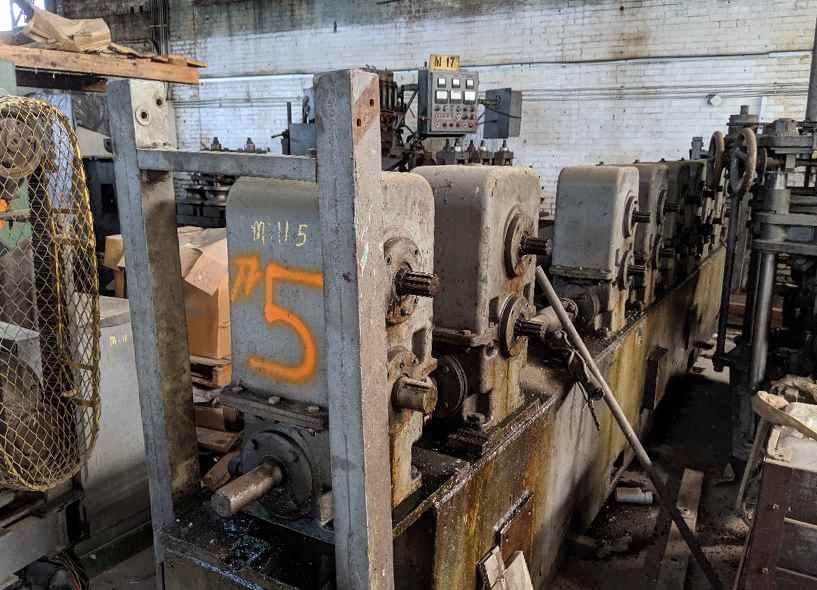

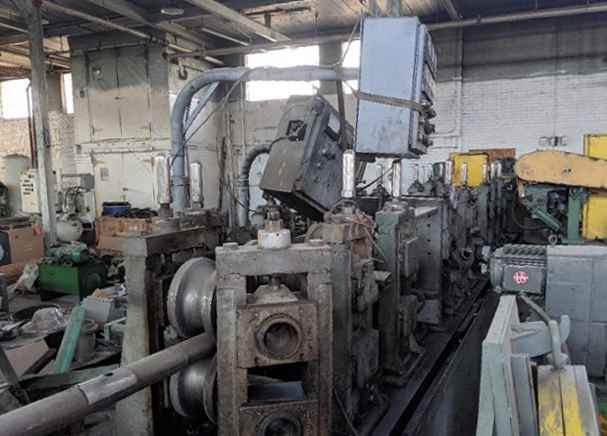

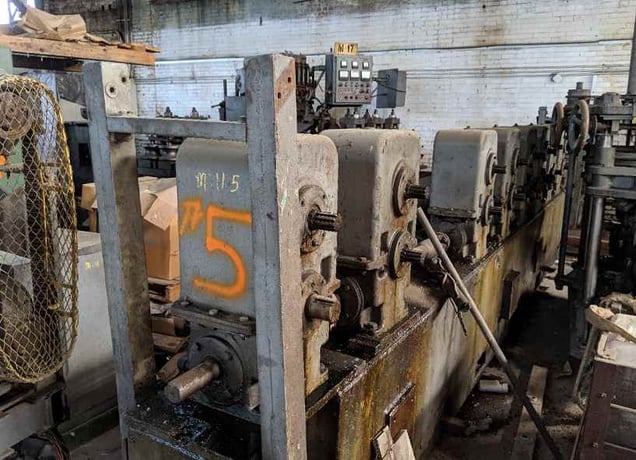

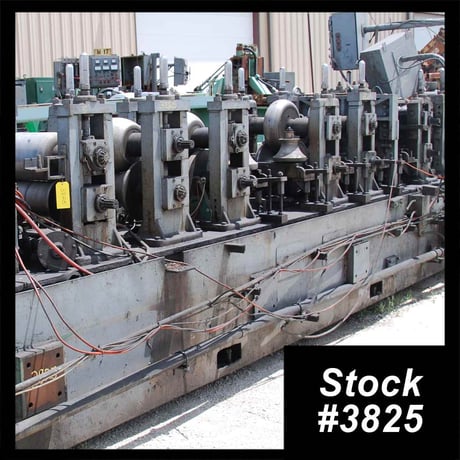

5" (127 mm) Turek & Heller #W-35 TIG tube mill, #3825

UTUBE NUMBER: 3825
MANUFACTURER: TUREK & HELLER
MODEL NUMBER: W-35

SPECIFICATIONS:
Line Direction: Right to Left
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 2″ (50.8 mm)
Maximum Line Speed: 30 FPM Gear In no Load
Maximum D/T Ratio: 50:1
Minimum D/T Ratio: 10:1

GEAR BOX DATA:
Roll Space Forming: 18″ (457.2 mm)
Minimum Vertical Center: 7″ (177.8 mm)
Maximum Vertical Center: 12-1/2″ (317.5 mm)
Forming Horizontal Centers: 24″ (609.6 mm)
Fin Horizontal: 24″ (609.6 mm)
Fin Sizing: 17″ Roll Space (431.8 mm)
(1) Idle O.G. Pass

ENTRY EQUIPMENT:
Maximum Strip Width: 18″ (457.2 mm)
Minimum Strip Width: 6″ (152.4mm)

FORMING MILL:
(1) 4-Roll Entry Guide
(3) Driven Breakdown Stands
(2) Idle Side Rolls (Cluster)
(4) Driven Fin Stands
(4) Idle Side Rolls

15HP D.C. Forming (45:1 Forming Reduction)

WELDING SECTION:
(1) 2-Roll Weld Pressure Unit
(1) Cooling Section 14″ (355 mm)
2-Roll Turkshead

SIZING MILL:
(2) Driven Sizing Stands (1 Missing)
(2) Idle Side Rolls
15HP D.C. Sizing (38:1)
3 Gearboxes are Damaged
3.5″ Spindle Diameter

3.812″ Tooling on Mill

NOTES:
No Electrics
9.5″ Base to Lower Spindle
Missing Most Driveshafts

OVERALL DIMENSIONS: 42′ x 5′ x 6′
APPROXIMATE WEIGHT: 45,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
