Description

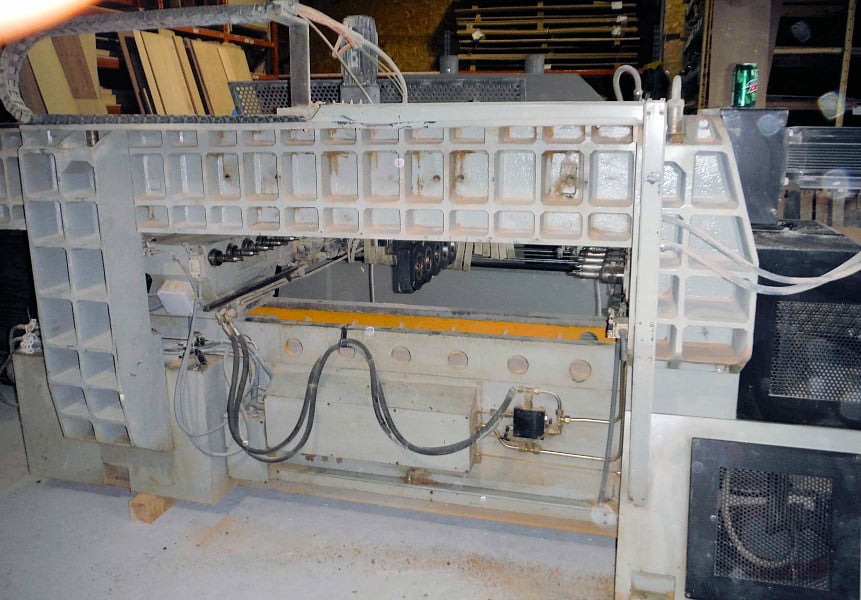

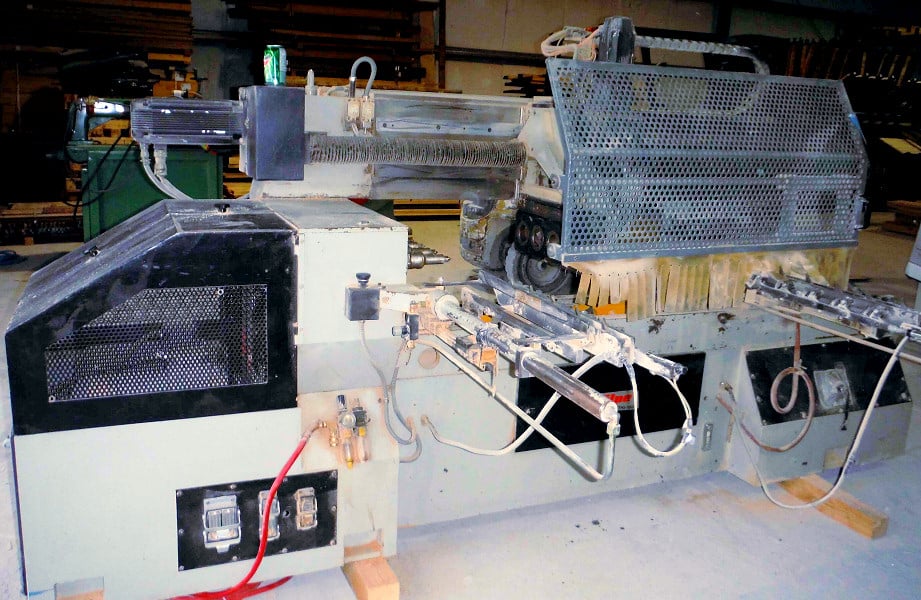

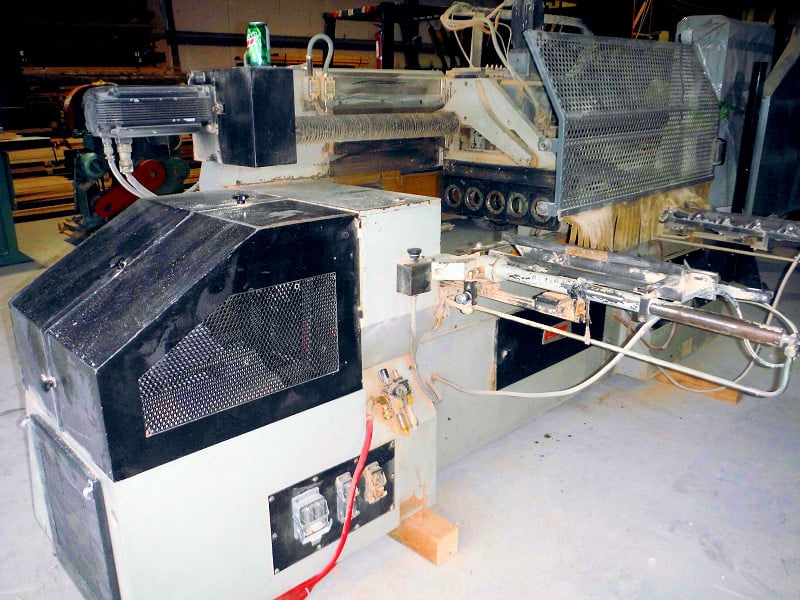

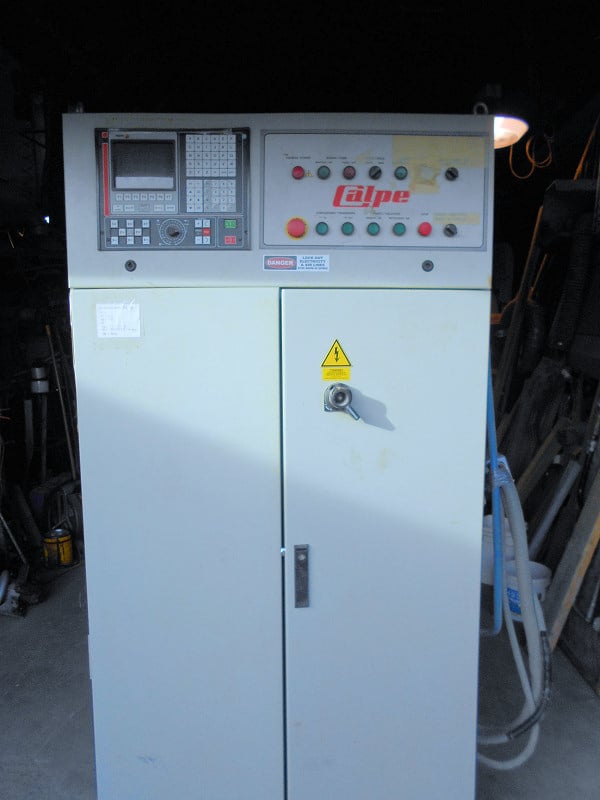

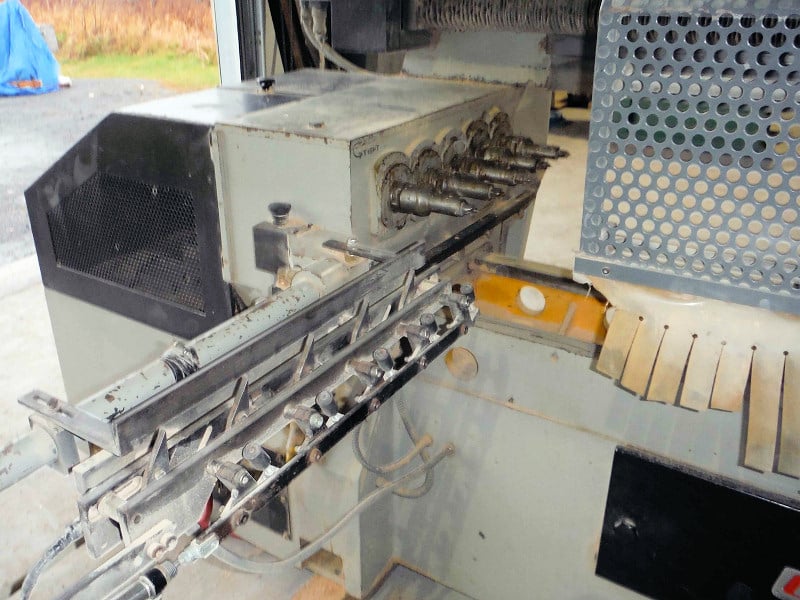

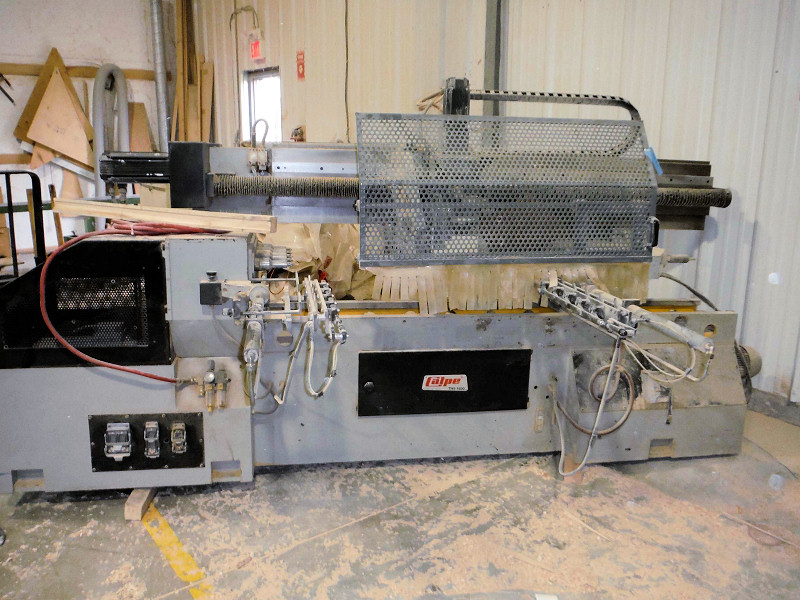

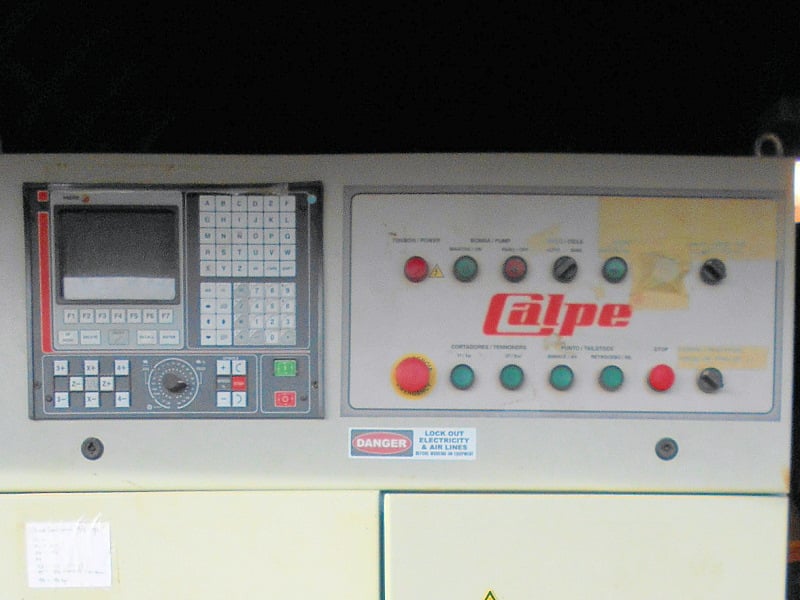

CALPE TH5-1600 Heavy-Duty High-Production, Fully Automatic CNC Lathe: General Description: -- Multi-Spindle cutting simultaneously, (5) spindles using V-type gouge knives. -- 63" (1,600 mm) Max. distance between centers; 5-1/2" (140 mm) max. swing diameter between spindles. -- CNC Controlled with 2.95" (75 mm) travel for depth of cut. Motors/Speeds: -- Servo controlled CNC drives: -- CNC controlled electronic variable speed head drives the movement of the (5) gouge tools. -- CNC controlled feed speed carriage, variable up to 50 FPM (15 MPM). -- (1) Head stock variable speed drive for the (5) spindles, up to 6,000 RPM, approx 10 HP. -- Fast return travel of up to 590 IPM (15,000 mm/Min). 2 HP approx hydraulic drive -- Loading device & tail stock powered by hydraulic pump with 2 HP - 1,750 RPM motor; No. 5 Morse taper on main spindle shaft. Features: -- Automatic loading & unloading device; carriage mounted with linear guides providing high precision movement. -- Full CNC controller with on-screen CAD programming for all products.Matching CALPE L6-1600, record number LC-010996 spindle sander is available at additional cost at same facility.
