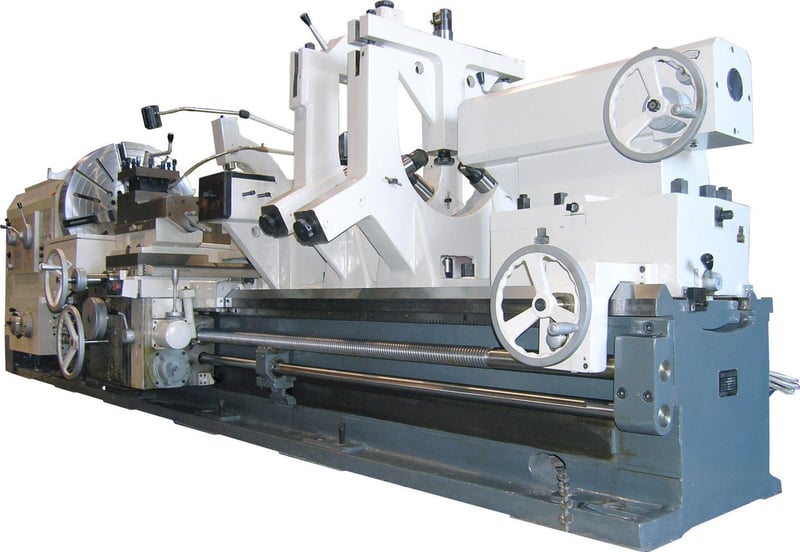

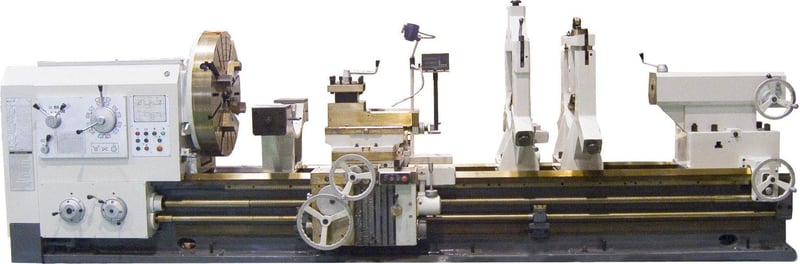

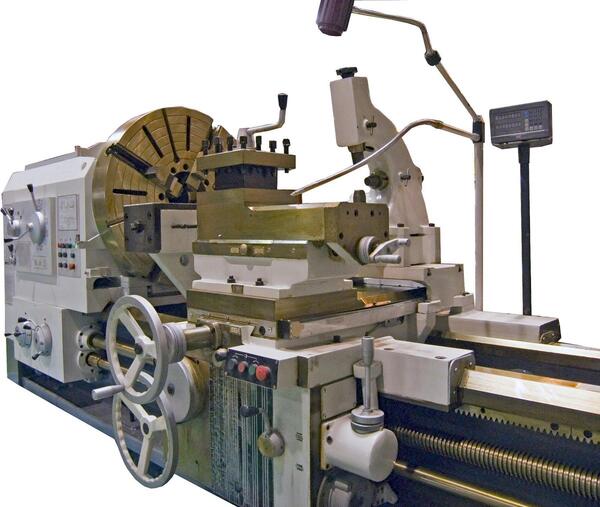

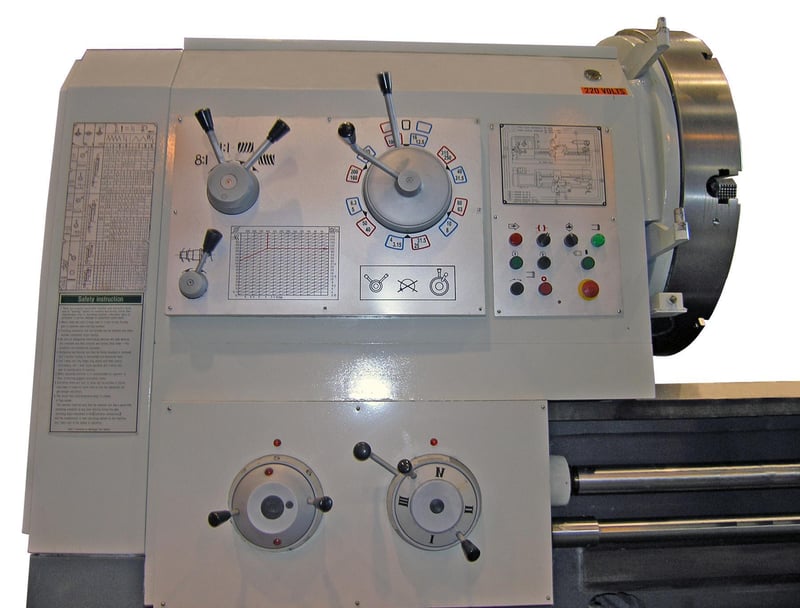

49" x 157" Vanguard #CW61125F, extra heavy duty lathe, 4-jaw chuck, cooling device, new

Manufacturer: Vanguard
Model: CW61125F
Swing: 49.0
Centers: 157.0
Stock # 19874

For Sale by Harris Machine Tools, Inc.

Platinum Level Dealer
Surplus Record Dealer Since 1986
Sales Dept.
713-46...> Show Seller's Phone Number 713-462-5800 Let the seller know you found their listing on Surplus Record!


Main specifications
Max. Swing over bed: 1250mm (49.2")
Max. Swing over carriage: 900mm (35.4")
Width of bed: 755mm (29.7")
Max. Length of work-piece: 4000mm (157.4")
Max. Supporting weight between two centers: 8000Kg (17,600 Lbs.)
Spindle nose/taper in inner taper hole: ISO A2-15
Spindle bore: 130mm (5.1")
Range of spindle speed: Normal 3.15 - 315 rpm / Reverse 4 - 315 rpm
No. of longitudinal and cross feeds: 97 Kinds
Feed range per rev. of spindle: Longitudinal 0.064 to 12mm (0.0025 to 0.472 ipr) / Cross (half of longitudinal feed) 0.032 to 6mm (0.0012 to 0.236 ipr)
Compound rest (a quarter of longitudinal feed): 0.016 to 3mm (0.00063 to 0.118 ipr)
Metric threads: (45) 1 - 120mm
Whitworth threads: (42) 30 to 1/4 TPI
Module threads: (46) 0.5 to 60
Diametral pitch threads: (48) 0.5 to 60
Size of tool section & Swing angle of tool post: 45×45mm; ±900
Max. travel of cross slide: 520mm (20.4")
Max. travel of compound: 300mm (11.8")

Speeds of rapid traverse (mm/min): Longitudinal 3470 / Cross 1870 / Compound rest 935
Power of spindle motor: 22KW
Diameter of tailstock sleeve: 200mm (7.8")
Taper hole of tailstock sleeve: Morse NO 6
Max. Movement of tailstock sleeve: 300mm (11.8")

Machining accuracy:
Roundness of finish turning surface: 0.020mm
Flatness of finish turning face: 0.033mm/500mm
Roughness of finish turning surface: Ra 1.6
Pitch accuracy of finish turning threads: 0.015mm/50mm

Accessories supplied with machine:
1000mm 4-jaw chuck
Lighting device
Cooling device
Foundation blocks and screws sets
Living center
Dead center (2 pcs.)
Center sleeve
Special tools

Optional accessories
1000mm (39") 4-jaw chuck
Taper attachment (Length 800mm)
50 - 590mm (2-23") Steady rest
50 - 220mm (2-8.6") Follow rest
Live Center
Automatic Lubrication
Work Light
