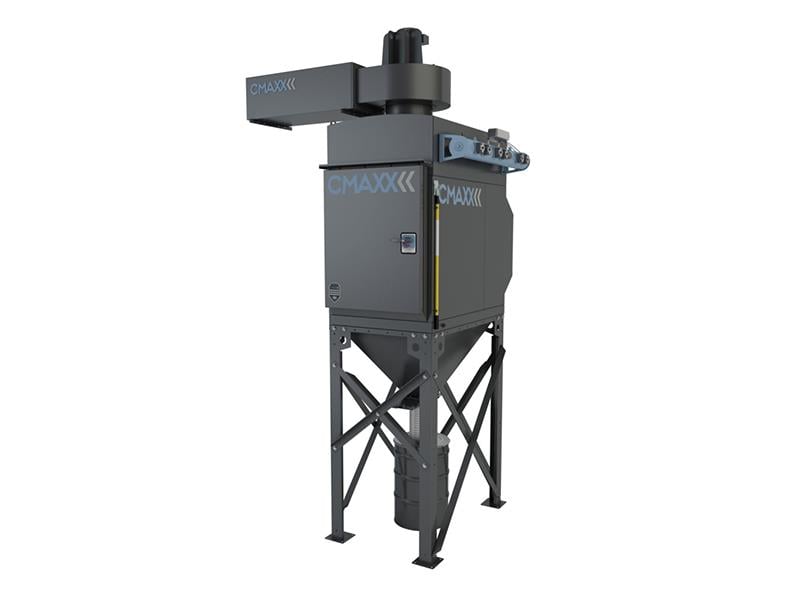

4800 cfm Imperial #CM-006, baghouse dust collector, revers air fan, 2800 sq.ft., 20 HP

IMPERIAL CM-006 Cartridge Modular Pulse Jet Dust/Fume Collector. Designed to be the strongest, safest, and most efficient dust and fume collector in the industry. -- Overall Specs: 4,800 CFM with 2,800 sq. ft. of total filtration media operating at 2.0:1 Air-Cloth-Ratio (ACR). Factory-provided compressed air (clean, dried) is supplied to manifold-mounted valves, providing an efficient, continuous pulse-jet Filter Cleaning System. -- Fan/Motor: MS-180-HD-70-20 Fan driven by a 20 HP premium E motor. Efficient backward-inclined fan wheel. Manual slide gate damper on fan discharge. Fan-Silencer at fan outlet. Fan capable of 4,800 CFM at 13" SP. -- Electrical Control Panel: NEMA 12 (indoor) enclosure with a main breaker that houses the fan Start, E/stop, continuous On-Demand selector switch, and Local/Remote selector. Soft Start drive to reduce power peaks on startup. -- Construction/Housing/Features: Heavy 7 - 10 gauge construction with no external bolt holes, guaranteeing no leaks for life. Filter access door with lockable handle, heavy-duty latches for one-handed operation. Tool-free filter change out with 'Even-Lock technology positive stop double sealed ensures cartridges are always installed properly. -- Filters are fully grounded to dust collector housing. OSHA-compliant full-length platform and adder access. Bolted support sstructure with 54" clearance for 55 Gal drum & adapter. Discharge via a 10" Rhino heavy-duty collection drum sealed cover kit requires no airlock with a slide gate closure, a tool-free sliding coupler, and a grounding wire. -- Comes with: High Entry inlet with staggered angle inlet baffle plate provides filter protection and allows material to enter at filter level causing the natural downflow material primary separation effect. Horizontal square to round transition. DWYER DCT1000 control manages the Filter Cleaning System with user-friendly software menu. Solenoid time/on-off/settings and high/low differential pressure control capability Auto/Manual control option. Compressed air pressure regulator and filter. -- Optional: Updated control panel to include a Variable Frequency Drive (VFD) to replace the Soft Start drive and keypad on cabinet door. Upgrade Controls to Include VFD. VFD reduces inrush current at startup saving energy. Also regulates system airflow by maintaining static pressure at the collector inlet. This reduces the load on the motor, saving operating cost, instead of dampening the airflow with an outlet damper that is required on other starter options -- On system shutdown, the VFD slows the fan down to a preset speed of 20 HZ for 5 minutes (the duration of the downtime cleaning cycle). This prevents dust from backflowing out of the collector due to the cleaning system pressurizing the collector, creating a back-flow through the ductwork. Please inquire about the price.
