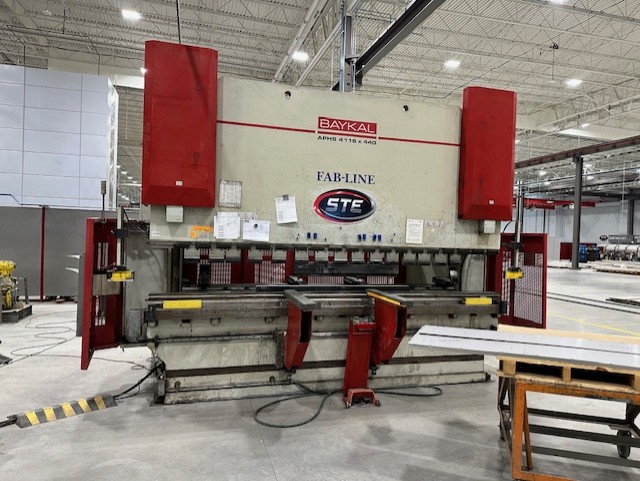

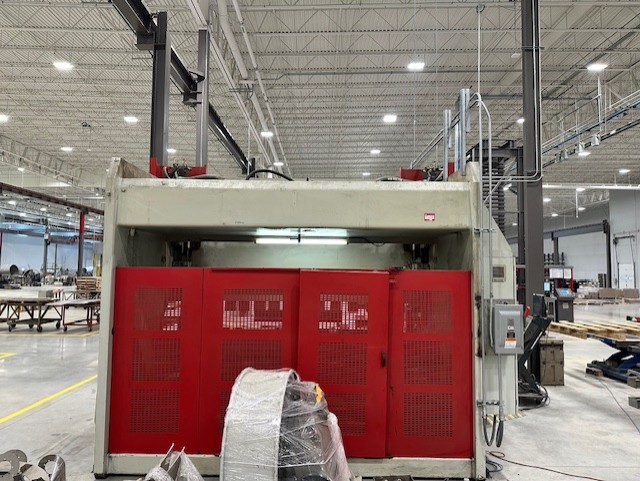

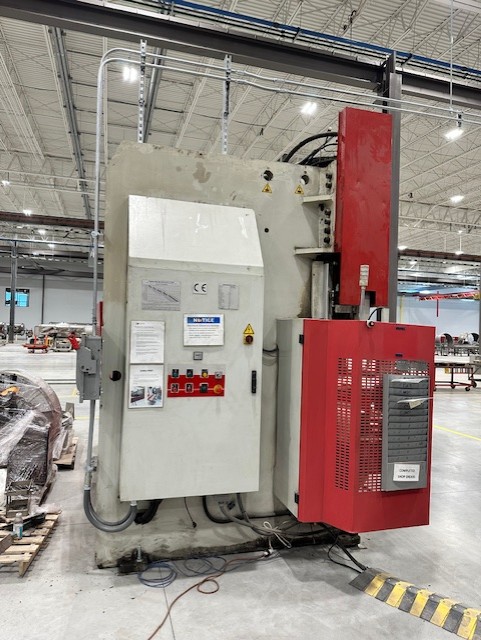

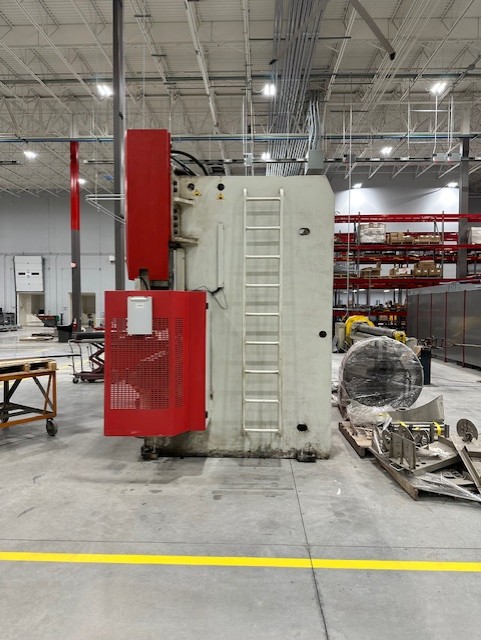

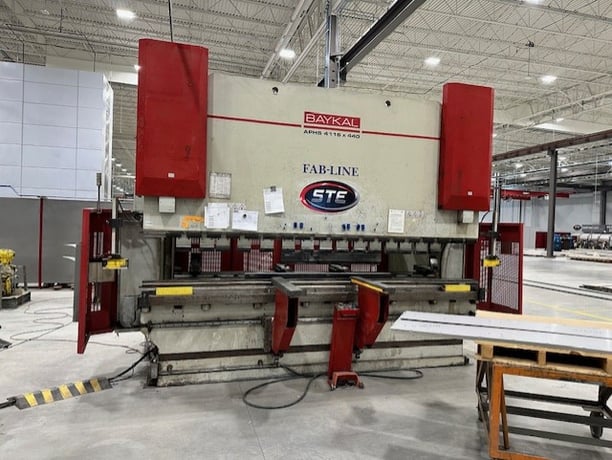

Manufacturer: Baykal
Model: APHS-4116X440
Year: 2011
Tons: 480.0
Overall: 13.0
Between Housings: 139.00
1 / 4
Click to zoom in
1 / 4
For Sale by Westway Machinery Ltd
Surplus Record Dealer Since 1978
Location: Mississauga, ON Canada
Contact Sales Dept.
Phone Number: 905...> Show Phone Number 905-803-9999
Let the seller know you found their listing on Surplus Record!
Description
FEATURES:
- Five (5) Axis CNC, Y1, Y2, X, R, plus CNC Crowning, Delem 69W Control (on mobile stand)
- Laser Safe Laser Beam Guards
- Physical Rear and Side Guarding Included, Safety Interlocked
- 2 Front Support Arms Included, Sliding
- Four (4) Backgauge Fingers
MODEL: APHS 4116×440
CAPACITY: 13′ 5” X 480 TON
SERIAL NO.: 17729
OVERALL BENDING LENGTH: 13’ 4”
DISTANCE BETWEEN HOUSINGS: 11’ 7”
STROKE OF RAM: 12.6”
OPEN DAYLIGHT: 23.2”
SPEED: ADVANCE: 189 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 165 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second stop)
TABLE WIDTH: 15”
DISTANCE FLOOR TO TOP OF BED: 43.5”
THROAT DEPTH: 19.7”
YEAR: 2011
MOTOR: 40 HP
WEIGHT: 60,000 LBS (approx)
DIMENSIONS (LxWxH): 200″ x 90″ x 138″
FOB POINT: Site, USA
CONDITION: Pre-Owned
Get Your Price from Westway Machinery Ltd!
