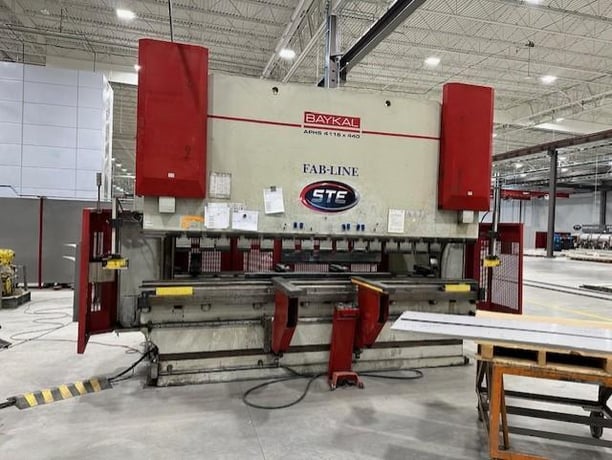

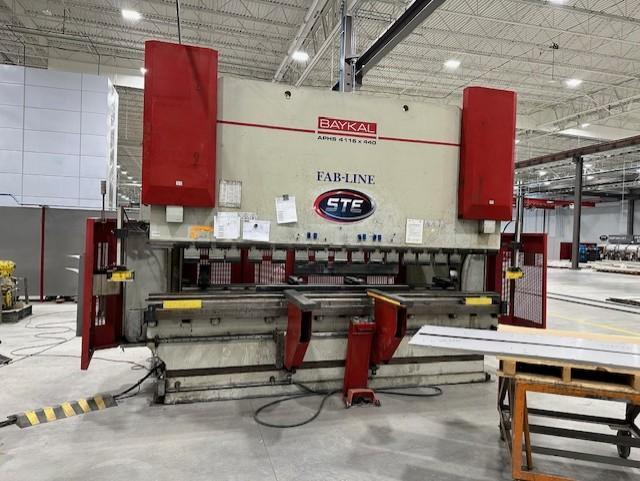

Manufacturer: Baykal
Model: APHS-4116X440
Year: 2011
Tons: 480.0
Overall: 13.0
Between Housings: 139.00
Stock # Z25024
1 / 8
Click to zoom in
1 / 8
For Sale by D & D Industries Inc
Surplus Record Dealer Since 2005
Location: Monclova, OH
Contact Dave Zerbey
Phone Number: 419...> Show Phone Number 419-866-6894
Let the seller know you found their listing on Surplus Record!
Description
Equipped With

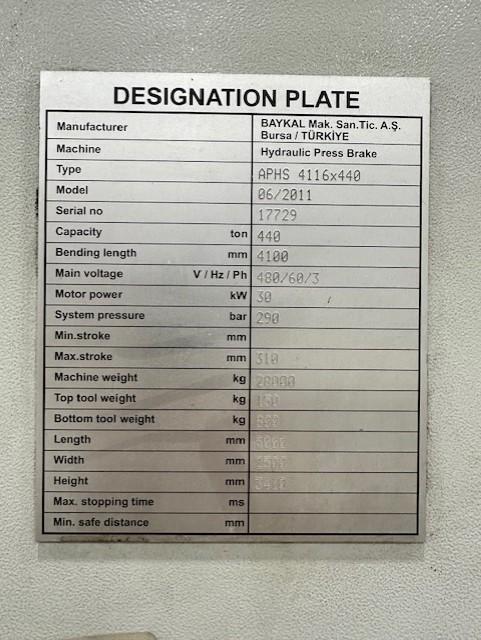

MODEL: APHS 4116×440
CAPACITY: 13′ 5” X 480 TON
SERIAL NO.: 17729
OVERALL BENDING LENGTH: 13’ 4”
DISTANCE BETWEEN HOUSINGS: 11’ 7”
STROKE OF RAM: 12.6”
OPEN DAYLIGHT: 23.2”
SPEED: ADVANCE: 189 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 165 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second stop)
TABLE WIDTH: 15”
DISTANCE FLOOR TO TOP OF BED: 43.5”
THROAT DEPTH: 19.7”
CROWNING

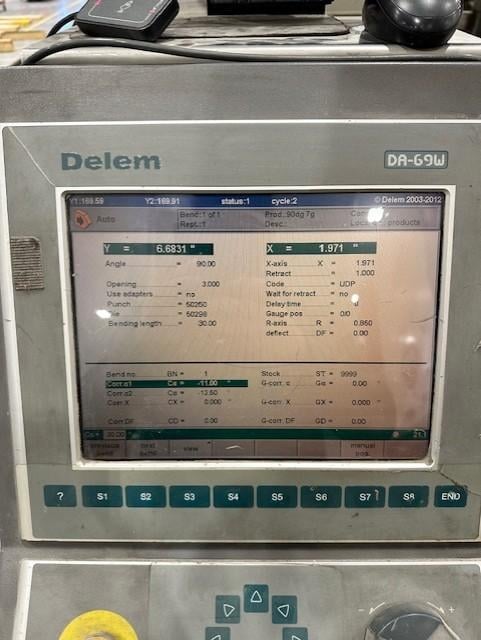

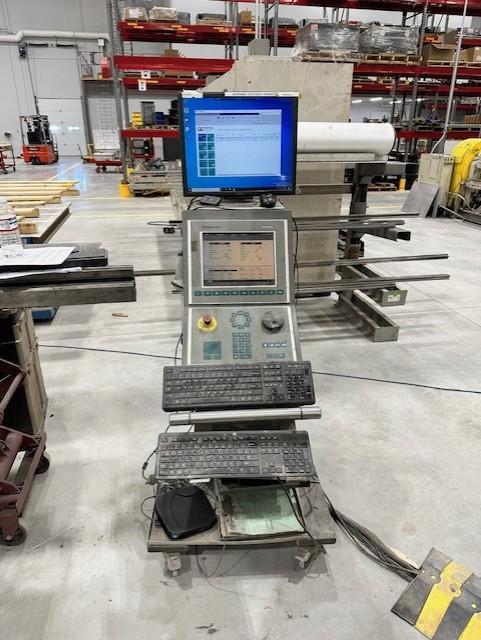

DELEM DA-69W CONTROL
5 AXIS BACK GAUGE Y1, Y2, X, R, CROWING
85 GALLON OIL TANK
CROWNING
DELEM DA-69W CONTROL
5 AXIS BACK GAUGE Y1, Y2, X, R, CROWING
85 GALLON OIL TANK
YEAR: 2011
MOTOR: 40 HP 460 VOLT
FLOOR STANDING
FLOOR STANDING
WEIGHT: 60,000 LBS (approx)
DIMENSIONS (LxWxH): 200″ x 90″ x 138″
Get Your Price from D & D Industries Inc!
