Description

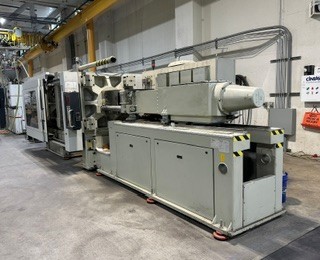

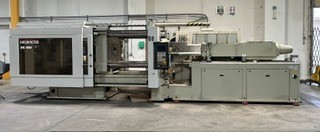

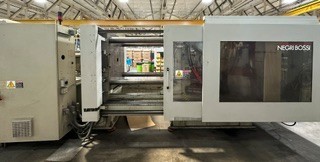

Negri Bossi VE 4800H-3600 all-electric injection molding machine available. This machine is a heavy-duty 480-ton class press designed for precision molding, repeatability, and efficient production. It is also an excellent candidate for spare parts, component recovery, or rebuilding projects.
Machine Details
- Manufacturer: Negri Bossi
- Model: VE 4800H-3600
- Machine Type: All-Electric Injection Molding Machine
- Operating Hours: 36,037
- Clamping Force: 480 tons (4,800 kN)
- Injection Unit: 3600
- Shot Capacity: 64 oz (approximately 1,820 g)
- Tie Bar Spacing: 27.9" × 31.5" (710 × 800 mm)

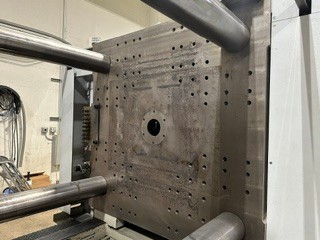

- Platen Size: 48.0" × 46.5" (1,220 × 1,180 mm)
- Clamp Opening Stroke: 32.67" (830 mm)
- Maximum Daylight: 66.14" (1,680 mm)
- Ejector Stroke: 11.81" (300 mm)
- Power Requirements: 480V, 3-Phase

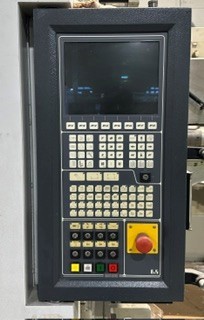

- Control System: DIMI EL 2000
- Machine Weight: Approximately 44,200 lbs. (20,050 kg)
Features
- Full electric servo-driven clamp and injection system
- High-speed, high-precision molding capability
- Excellent repeatability and control
- Energy-efficient all-electric technology
- Heavy-duty 480-ton clamping system
- Large platen and mold capacity
- Suitable for automotive, packaging, consumer products, and technical molding applications
Condition
This Negri Bossi VE 4800H-3600 has 36,037 operating hours and is available as a complete machine. It is a good opportunity for buyers looking for a production machine, a rebuild candidate, or a reliable source of spare parts and replacement components.
Ideal for recovering valuable components including electrical, mechanical, injection, clamp, and control system parts.
Inspection is welcome. Additional photos, videos, and machine information are available upon request.
The machine will come shrink-wrapped for transport to help protect it during shipping and storage.
Machine is being sold as-is, where-is, with no warranty expressed or implied. Buyers are encouraged to inspect the machine before purchase.
