48" Unimak #FLL-1400-PUR, laminating line, flying knife, 15-82 FPM, 10"-48" width, 1/8"-2-3/8" thickness, 2023

$270,000 USD

Request Formal Quote

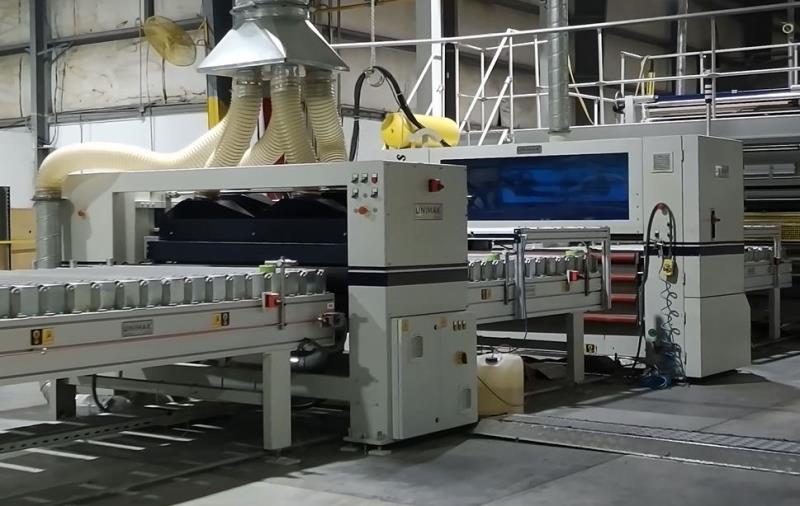

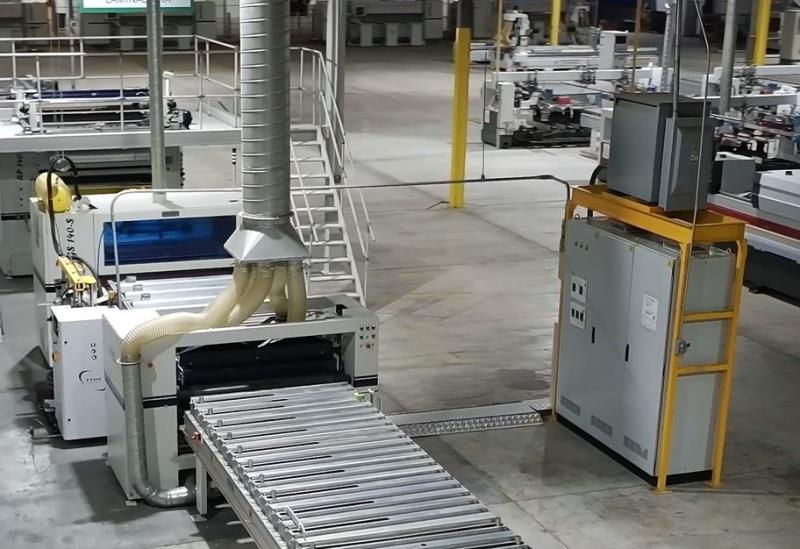

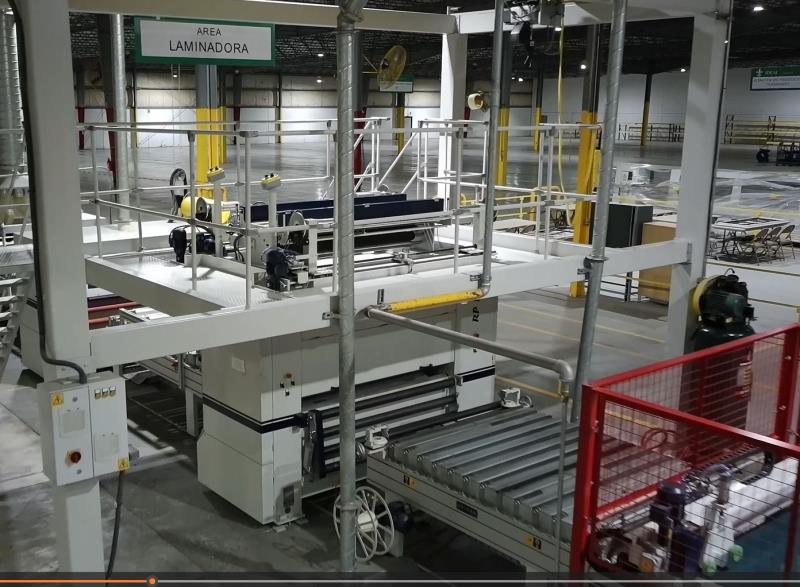

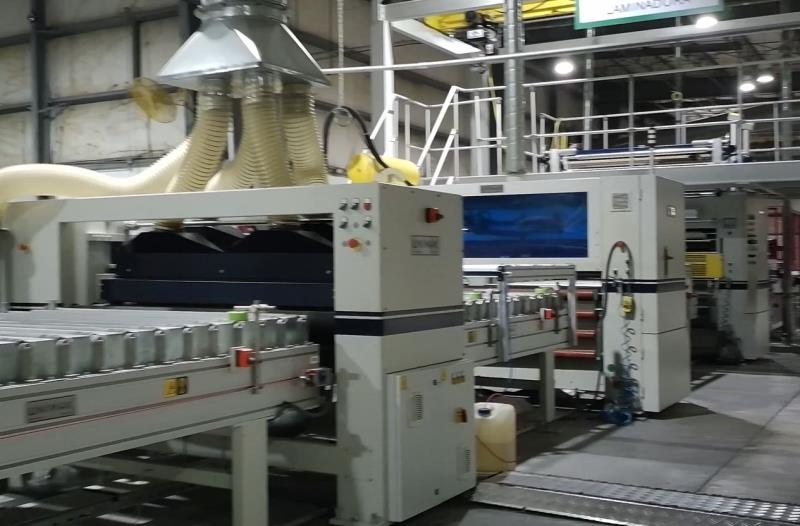

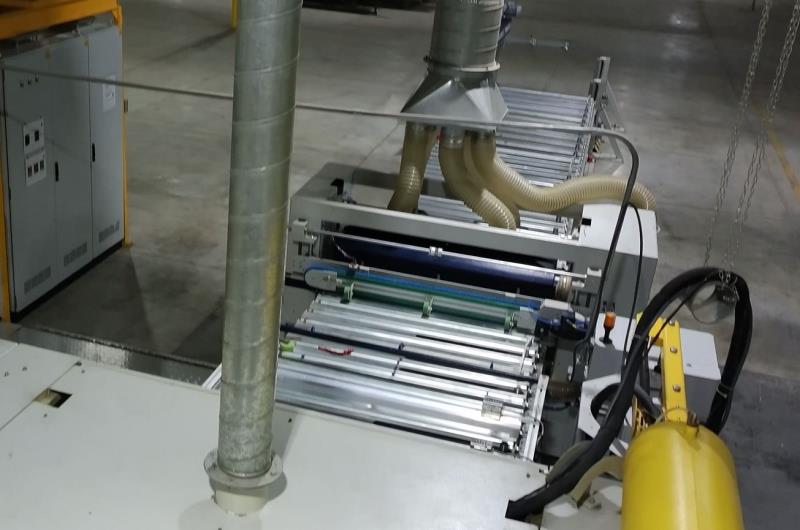

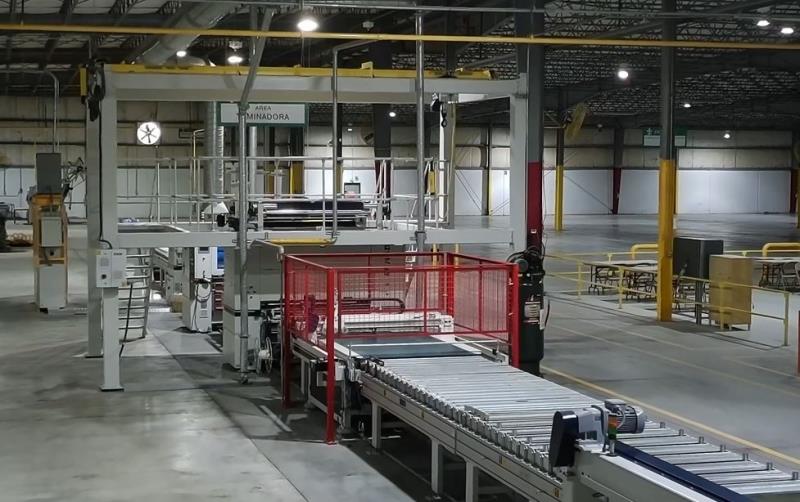

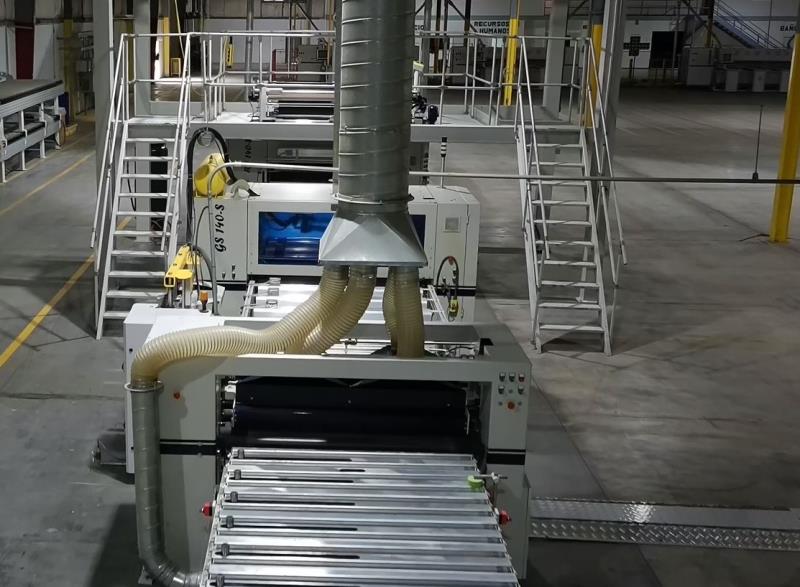

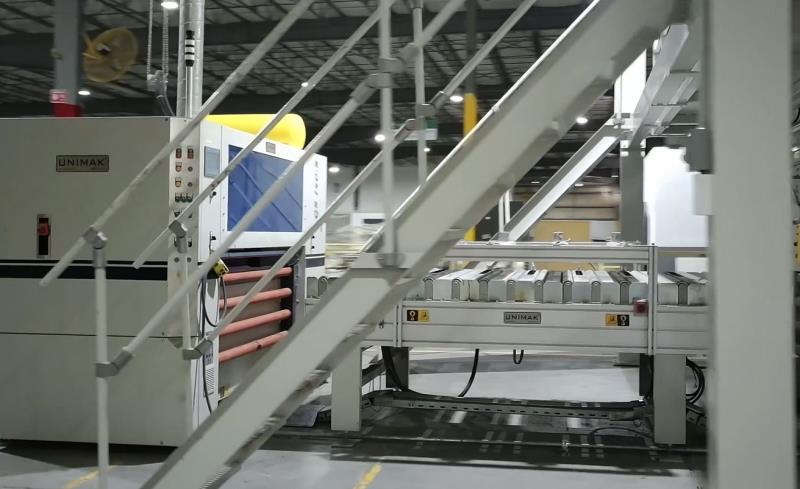

UNIMAK - FLL 1400 PUR: Flat Lamination Line with Flying Knife System; Load & Unload, Catwalk, and Gantry Crane4' Laminating Line for: Laminating flat panels with PUR glue.Laminating Station. Sheet & roll feed system with: Calender style Double Roll Press.Technical Characteristics -- Line Speed from: 5 - 25 MPM (15 - 82 FPM). -- Panel Width from: 250 mm - 1,550 mm (10" - 48"). -- Panel Thickness from: 3 - 60 mm (1/8 - 2-3/8"). -- Overall Line footprint: 5,000 x 22,386 x 2,700 mm (16.4' x 74' x 8.8').System includes the following: -- 3 Meter (118") Long Conveyor & Adjustable Guide System (20) PVC Coated rollers; retractable panel guide/fence for: Easy width adjustment; Mod. #s: "C3 130 HBD". -- Top & Bottom Brush Unit & Sword Brush Panel Cleaner Height adjustable brush system for: Cleaning panel surfaces; first rough cleaning with: Hair bristle brush; then micron grade cleaning with: Blower, vacuum system, and Sword Brush, which works in: Crosswise direction of material flow (caterpillar type); includes (2) 5" dust suction outlets; Mod. #s: "BS 130-PB" & FDB 130. -- 2.4 Meter (94") Panel Heater Conveyor & Adjustable Guide System Mounted on infeed conveyor, the heater preheats top of panels between: 35 - 40 C (95 - 104 F); width easily adjusted by retractable panel guide/fence; Mod. #s: "C2.4-130 PH" & "C2.4-130 AGS-2". -- Single Surface Glue Spreader for PUR Applies PUR Hotmelt on flat panels; application roller: Motor driven; features independent frequency inverter redactor; Mod. #: "GS 140. -- MELTON: E-DRUM - G-25-NPUR Hotmelt System includes Airtight 200 L Drum Melter with: NI120 Temperature control; max. pumping capacity: 130 kG/Hr @ 100 RPM; max. working viscosity: 100,000 cps (100,000 mPa-s); max. working pressure: 80 Bar (1,160 PSI); max. working temp.: 230 C (446 F); (2) heated hoses: 13 mm dia. (1/2"); (2) MS Series extrusion guns; Mod. # PUR B-DRUM Melter. -- 4.5 Meter Conveyor, Adjustable Guide System Transports glued boards from: Glue Spreader to Pressure Roller Station; driven by frequency-controlled gear motor; mod.: "C4.5 ADG -130 HBD". Double Roll Press with: Single Roll Unwind StationLaminating Station to: Laminate foils from rolls onto glue-coated panel surfaces. Calender style Double Roll Press; working width: 250 - 1,300 mm (10" - 51"); working speed: 5 - 25 MPM (15 - 82 FPM); accepts up to 23" diameter rollers; "RP 140-D" & "SRU 130." -- 2.1 M (84") Long Conveyor with: L & R Edge Trimming(14) PVC Coated rollers; motor driven; "C2.1-130HBD" - "CEC 130." -- Flying Knife System & Left/Right Compact Edge CleanerTo separate laminated boards; the flying (traversing) blade: Locates gaps between panels; cuts only the foil; powered by: Frequency controlled drive motor; blade positioning controlled by: Servo motor; Mod. #s: "FK 130." -- Flying knife Safety FenceSafety fence to surround Flying Knife station; "SF-FK 130." -- Lift Feeder & Lift OffloaderSystem consists of: Scissors lift; Lift push feeder; Forklift stopper; Stac
