For Sale by Carolina Machinery Sales
Surplus Record Dealer Since 2021
Location: Monroe, NC
Contact Ralph Viegelmann
Phone Number: 704...> Show Phone Number 704-288-1904
Let the seller know you found their listing on Surplus Record!
Description

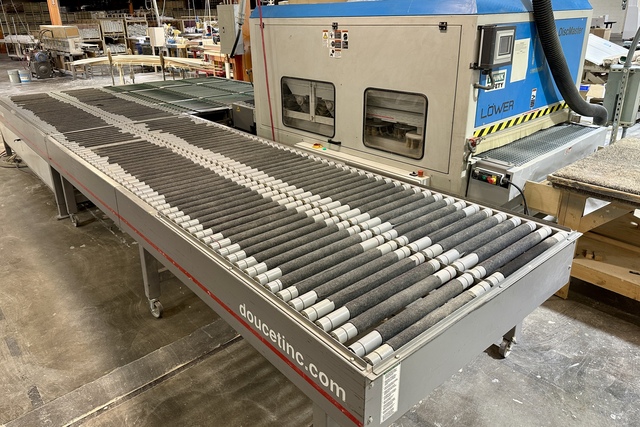

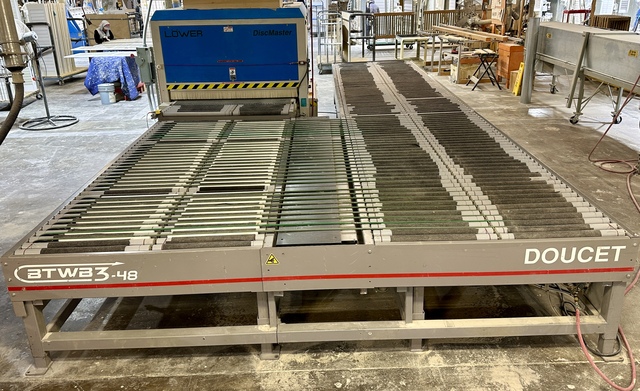

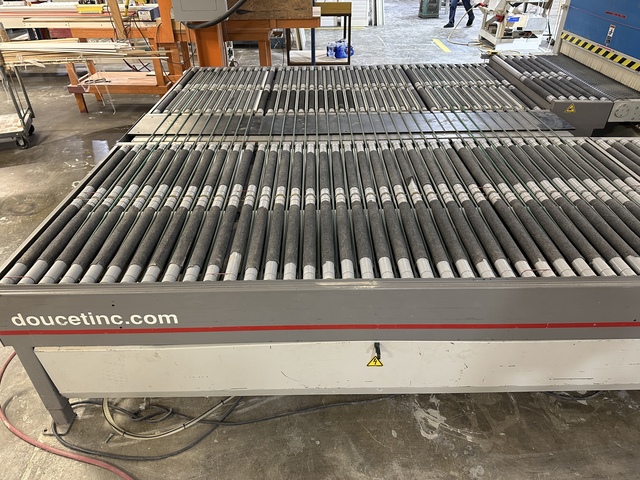

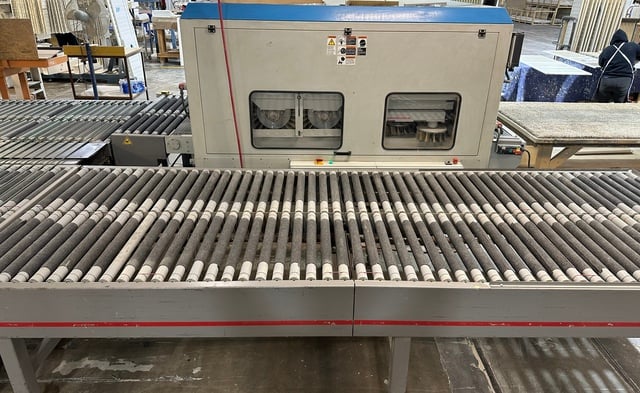

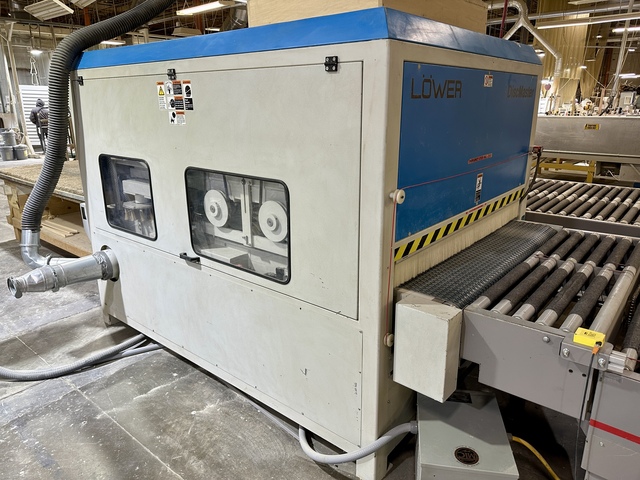

Disc Master 48" de-nibbing and brushing sander with 2 rollers and 16 disc station
53" max material width and 4" max thickness

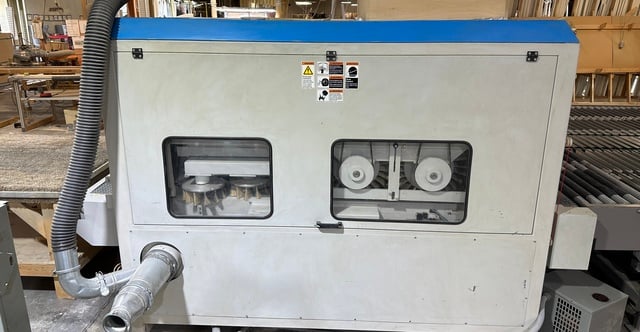

Disc Station: 16x 10″ discs, each with 24 key-ways, 75mm long, 2x 1.5KW gear motors, variable speed discs 50-300rpm, eccentric orbital disc movement, separate height adjustment of disc station - to run discs only or rollers only or both
Rotating Roller Spindles: 2x 2″ diameter spindles positioned 90deg to the feed with 16″ diameter brushes, 2x 2.2KW (3HP) gear motors, variable speed 14-300rpm, spindles are counter rotating and have individual speed controls
4x Spring loaded material hold-down rolls
10hp Vacuum bed / blower
2hp feed Motor 3-15mpm variable speed
Motorized table height adjustment

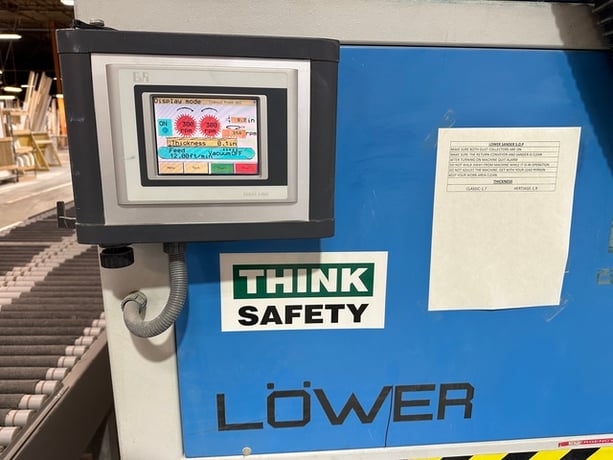

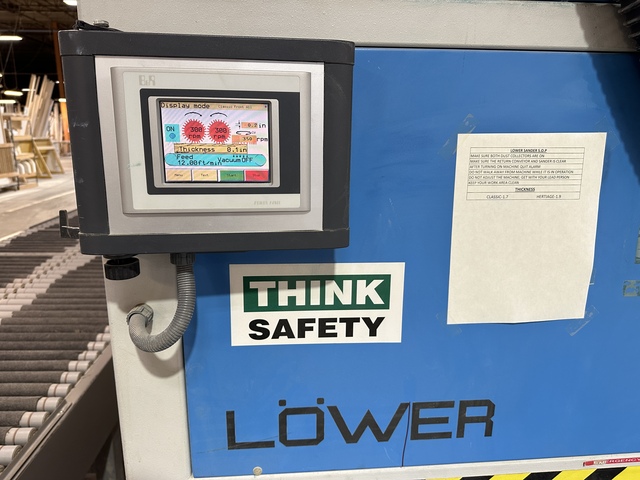

DRO showing thickness of material
Sensor controlled pneumatic oscillation
Constant pass –line
Front mounted control panel
Emergency shut-offs at in-feed and out-feed
Automatic shut off for over-thickness
8x dust hoods 3@ 3.2″ diameter, 4@ 5.6″ diameter 1@ 8″ diameter
Low Usage
53" max material width and 4" max thickness
Disc Station: 16x 10″ discs, each with 24 key-ways, 75mm long, 2x 1.5KW gear motors, variable speed discs 50-300rpm, eccentric orbital disc movement, separate height adjustment of disc station - to run discs only or rollers only or both
Rotating Roller Spindles: 2x 2″ diameter spindles positioned 90deg to the feed with 16″ diameter brushes, 2x 2.2KW (3HP) gear motors, variable speed 14-300rpm, spindles are counter rotating and have individual speed controls
4x Spring loaded material hold-down rolls
10hp Vacuum bed / blower
2hp feed Motor 3-15mpm variable speed
Motorized table height adjustment
DRO showing thickness of material
Sensor controlled pneumatic oscillation
Constant pass –line
Front mounted control panel
Emergency shut-offs at in-feed and out-feed
Automatic shut off for over-thickness
8x dust hoods 3@ 3.2″ diameter, 4@ 5.6″ diameter 1@ 8″ diameter
Low Usage
