For Sale by JPS International Inc
Description

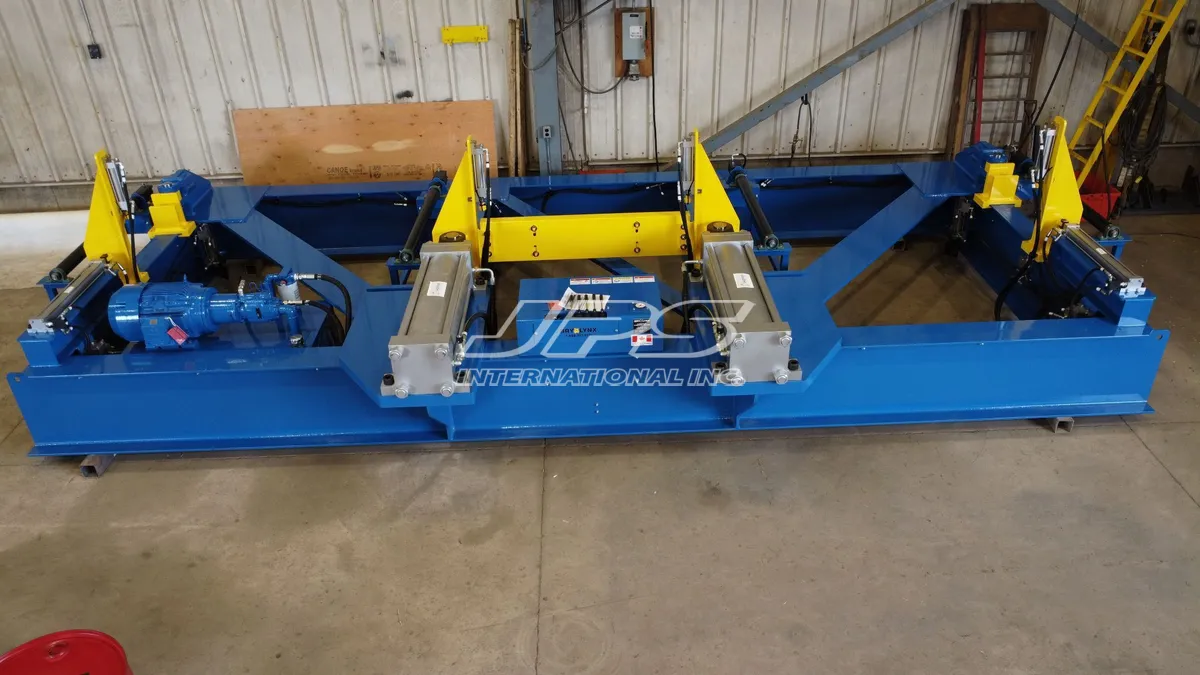

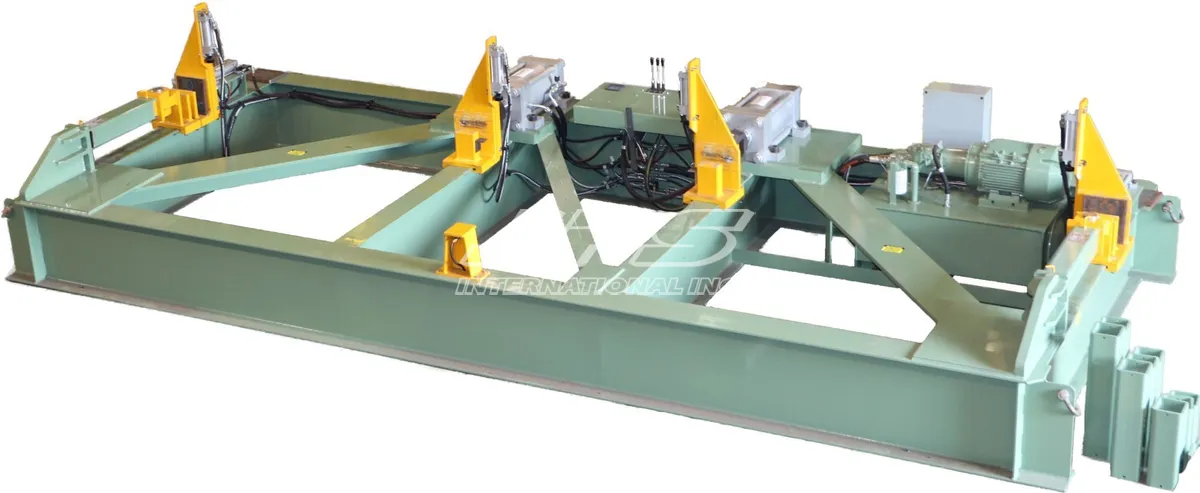

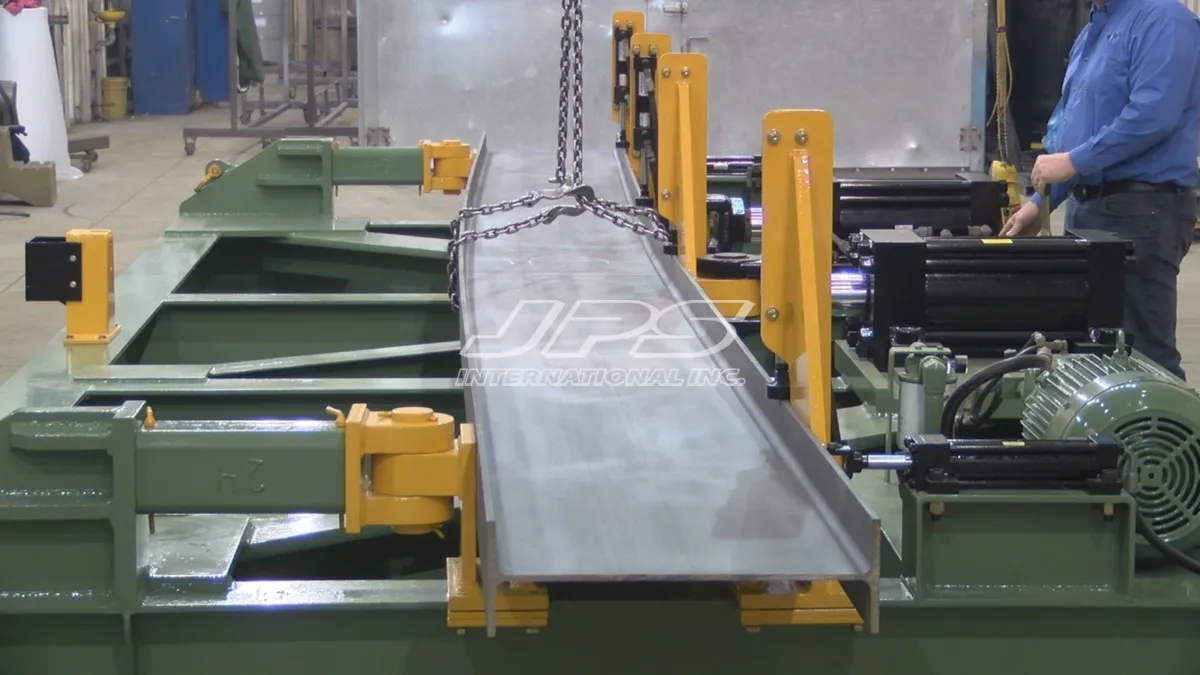

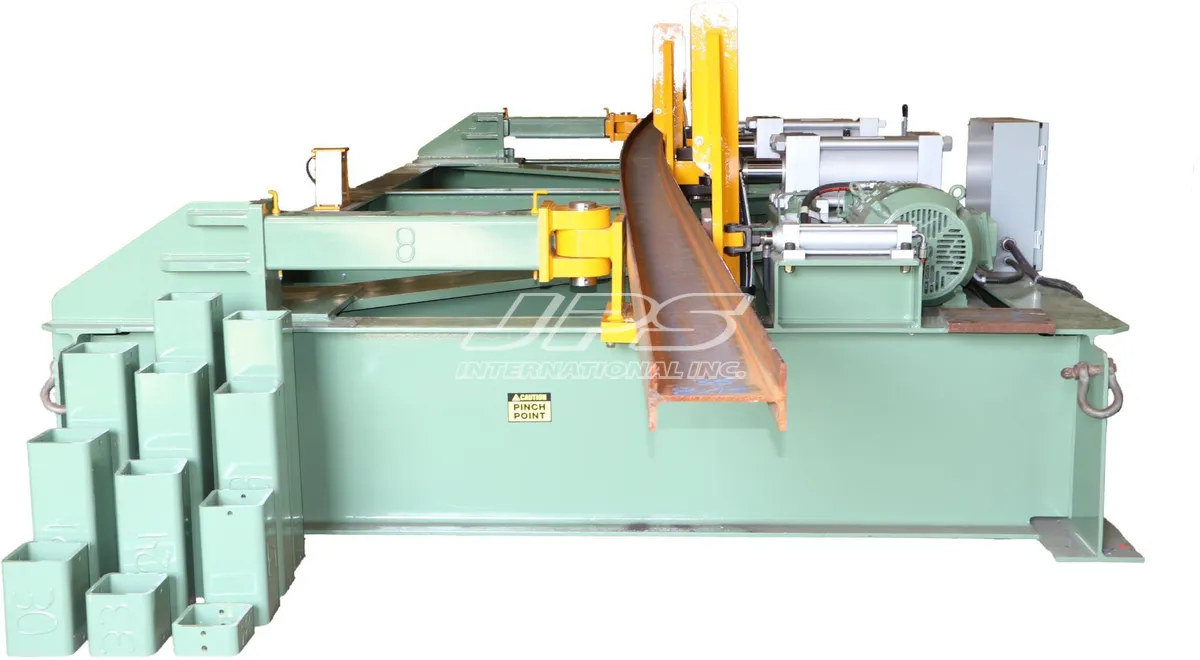

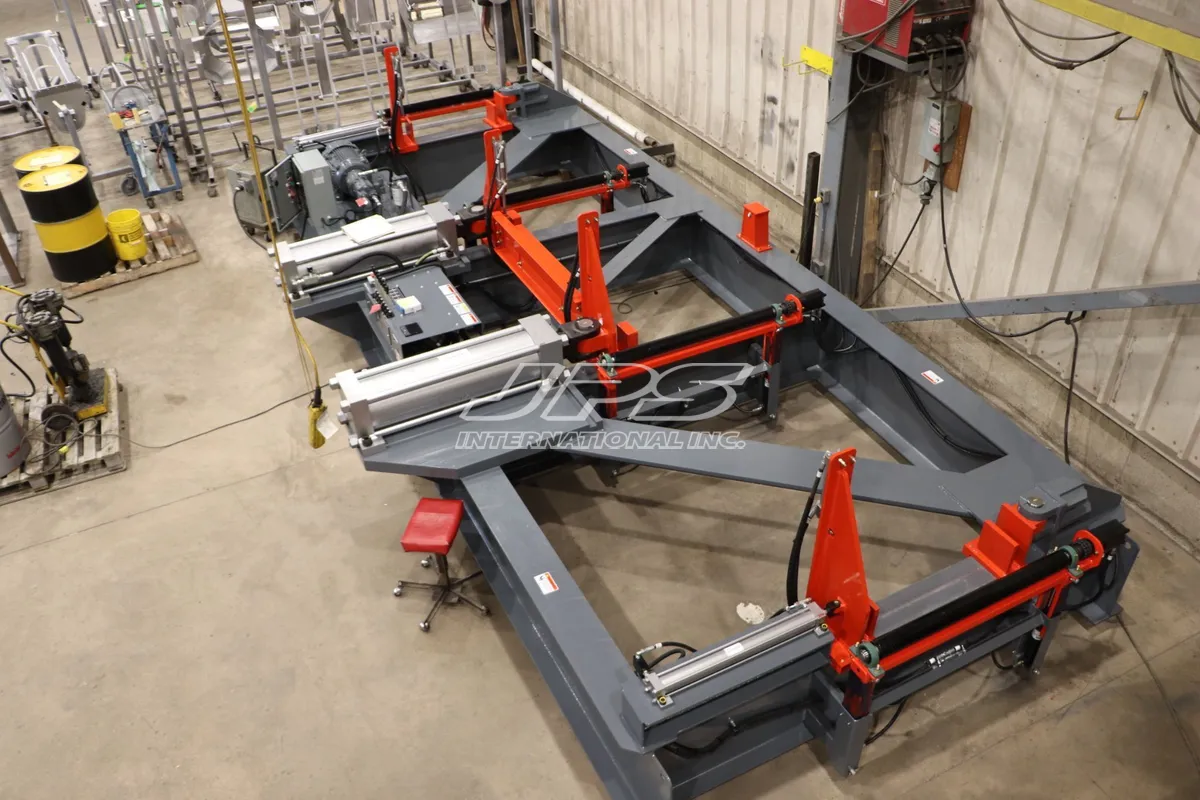

BAY-LYNX BC-1200 Beam Cambering Machine enhances production with precision, efficiency, and dependable performance. Designed for construction and steel fabrication environments, the BC1200 delivers consistent cambering results, reduces manual effort, and supports higher overall throughput. Built for demanding industrial applications, its a reliable solution for shops looking to improve accuracy and productivity. If youd like to explore whether this system is the right match for your cambering requirements, our team is here to help.
| Tonnage | 472 T | 428,191.7 kg |
| Camber Capacity | Grade 36: Up to W36 x 280; Grade 50: Up to W33 x 221 | Grade 36: Up to W36 x 280; Grade 50: Up to W33 x 221 |
| Overall Machine Dimensions | 9'11" W x 23'6" L x 3'10" H | 9'11" W x 23'6" L x 3'10" H |
| Total Press Capacity | 3600 psi | |
| Oil Reservoir | 60 | 60 |
| Main Cylinders | 12" x 12" | 12" x 12" |
| Clamping Cylinders | 3.25" x 9" | 3.25" x 9" |
| Motor Rating | HP Ramping, 25 GPM Piston | HP Ramping, 25 GPM Piston |
| HYDR. Pump | HP Ramping, 25 GPM Piston | HP Ramping, 25 GPM Piston |
| Dimensions | 9'11" W x 23'6" L x 3'10" H | 9'11" W x 23'6" L x 3'10" H |
| Weight | 17000 lbs | 17000 lbs |
Capacity & Structural Performance:
Press Capacity (Tons): 472 Tons
Operating Pressure (PSI): 3,600 PSI
Max Cambering Capacity (Grade 36): Up to W36 x 280
Max Cambering Capacity (Grade 50): Up to W33 x 221
Physical Dimensions & Weight:
Overall Dimensions (W x L x H): 9'11" W x 23'6" L x 3'10" H
Overall Machine Length: 23' 6"
Overall Machine Width: 9' 11"
Overall Machine Height: 3' 10"
Machine Weight (lbs approx): 17,000 lbs
Hydraulic & Electrical Systems:
Electric Motor Rating (3-Phase) : HP Ramping, 25 GPM Piston
Hydraulic Pump System: HP Ramping, 25 GPM Piston
Hydraulic Oil Reservoir Capacity: 60 Gal
Main & Clamping Cylinders: Main: 12" x 12" | Clamp: 3.25" x 9"
Optional Accessories & Upgrades:
CMS01 Measuring System with Digital Readout
36" LongStroke Cylinders
36" Stroke + Lift & Kneeling System
Hydraulic Flange HoldDowns (4 each)
Internal Lifting Rollers
BAY-LYNX BC-1200 Beam Cambering Machine enhances production with precision, efficiency, and dependable performance. Designed for construction and steel fabrication environments, the BC1200 delivers consistent cambering results, reduces manual effort, and supports higher overall throughput. Built for demanding industrial applications, its a reliable solution for shops looking to improve accuracy and productivity. If youd like to explore whether this system is the right match for your cambering requirements, our team is here to help.
Imperial
| Tonnage | 472 T |
| Camber Capacity | Grade 36: Up to W36 x 280; Grade 50: Up to W33 x 221 |
| Overall Machine Dimensions | 9'11" W x 23'6" L x 3'10" H |
| Total Press Capacity | 3600 psi |
| Oil Reservoir | 60 |
| Main Cylinders | 12" x 12" |
| Clamping Cylinders | 3.25" x 9" |
| Motor Rating | HP Ramping, 25 GPM Piston |
| HYDR. Pump | HP Ramping, 25 GPM Piston |
| Dimensions | 9'11" W x 23'6" L x 3'10" H |
| Weight | 17000 lbs |
Capacity & Structural Performance:
Press Capacity (Tons): 472 Tons
Operating Pressure (PSI): 3,600 PSI
Max Cambering Capacity (Grade 36): Up to W36 x 280
Max Cambering Capacity (Grade 50): Up to W33 x 221
Physical Dimensions & Weight:
Overall Dimensions (W x L x H): 9'11" W x 23'6" L x 3'10" H
Overall Machine Length: 23' 6"
Overall Machine Width: 9' 11"
Overall Machine Height: 3' 10"
Machine Weight (lbs approx): 17,000 lbs
Hydraulic & Electrical Systems:
Electric Motor Rating (3-Phase) : HP Ramping, 25 GPM Piston
Hydraulic Pump System: HP Ramping, 25 GPM Piston
Hydraulic Oil Reservoir Capacity: 60 Gal
Main & Clamping Cylinders: Main: 12" x 12" | Clamp: 3.25" x 9"
Optional Accessories & Upgrades:
CMS01 Measuring System with Digital Readout
36" LongStroke Cylinders
36" Stroke + Lift & Kneeling System
Hydraulic Flange HoldDowns (4 each)
Internal Lifting Rollers
