46000 cfm, Pneumafil #13.5, Reverse Air Cyclone Baghouse Dust Collector, 13'-5" diameter, 460 bags, 4,600 sq.ft., 150 HP soft start

Pneumafil baghouse dust collector, Used 46,000 CFM dust collection system.

Pneumafil dust collector: :model# 13.5, serial # 878 Order number 16560

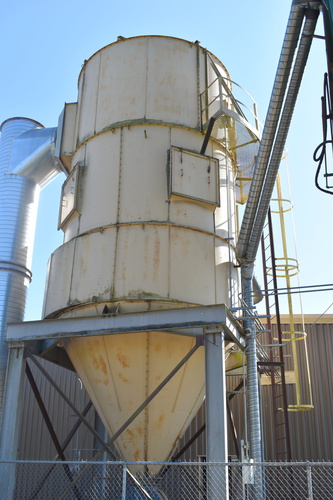

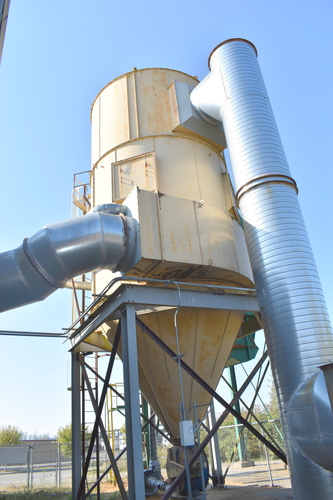

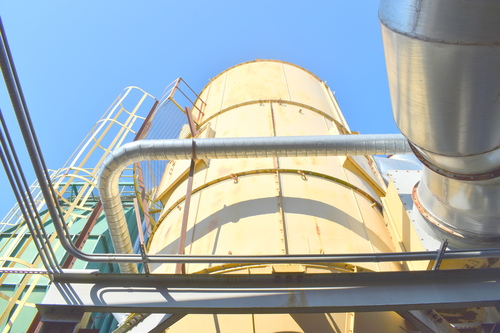

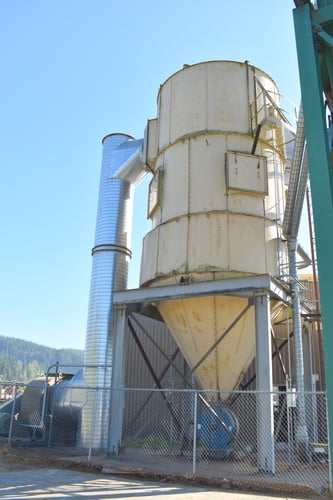

13'-5" diameter reverse air cyclone baghouse dust collector

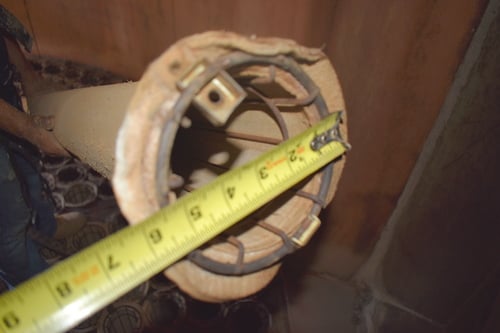

(460) or (448) filter bags 5" diameter 8' long
4,600 or (4738?) Sqft of filter media
Rated for 23,000 CFM at 5:1 cloth filter ratio or 46,000 CFM at 10:1 ratio
150 HP soft start Eaton Cutler Hammer interior mounted electrical control cabinet

Pull through design with fan set up on the clean air side of the filter

Rotary filter bag cleaning head
Heavy duty bolt together steel stand
Overall size 14'-3" wide x 14'-3" long x 41'-5" high
Collector weight ??

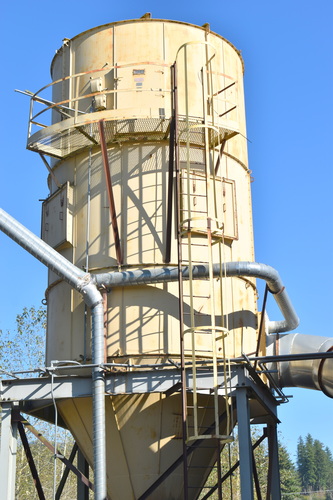

Side safety step ladder and top catwalk platform
Side explosion doors
42" diameter inlet pipe size
Donaldson Torit 20" rotary air lock valve
Model 20AN
S/N 2427656
2 Hp, 208-230/460 volt three phase air lock drive motor
(1) New York Blower fan aux transfer fan
S/N B12764-100
Fan mfg. date: 2007
5 Hp, 230/460 volt three phase fan motor
10" inlet pipe size with 8" diameter reducer to air lock

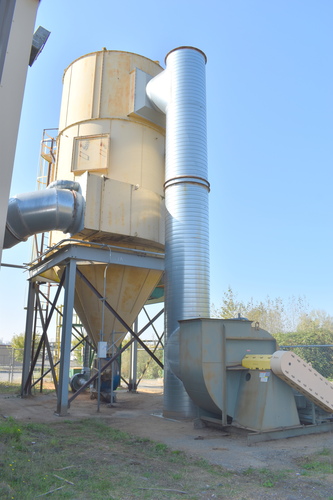

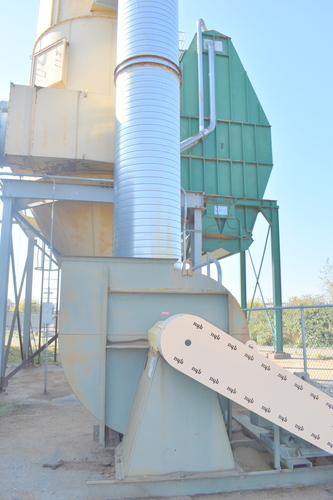

(1) New York main blower fan
Wheel Size 44ACF, Fan description ACF/PLR Class IV fan
Shop # B12185-100, P.O.# 56640
Fan manufactured date: 2007
Rated for 46,100 CFM at 15" SP
Primary fan 150 HP,, 460 volt three phase, 172 amps drive motor
Belt drive to fan arbor design
40" inlet pipe size at vertical stack

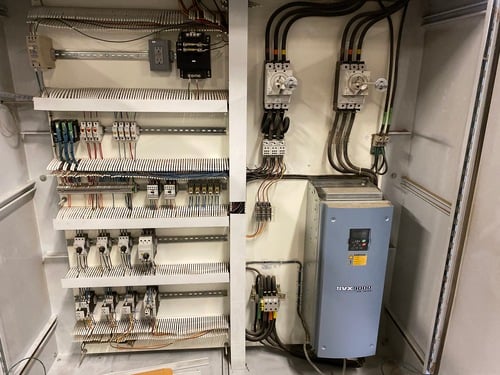

Overall cabinet size 72" wide x 19-1/2" deep x 74" high
Cutler Hammer SVX9000 inverter/soft starter for main fan
some dust pipe on the exterior of the building from the collector to the building side wall and the pipe from the collector to the aux blower fan
Contact us for a delivered price

20 Unit chip bin also available and sold separately.
