For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

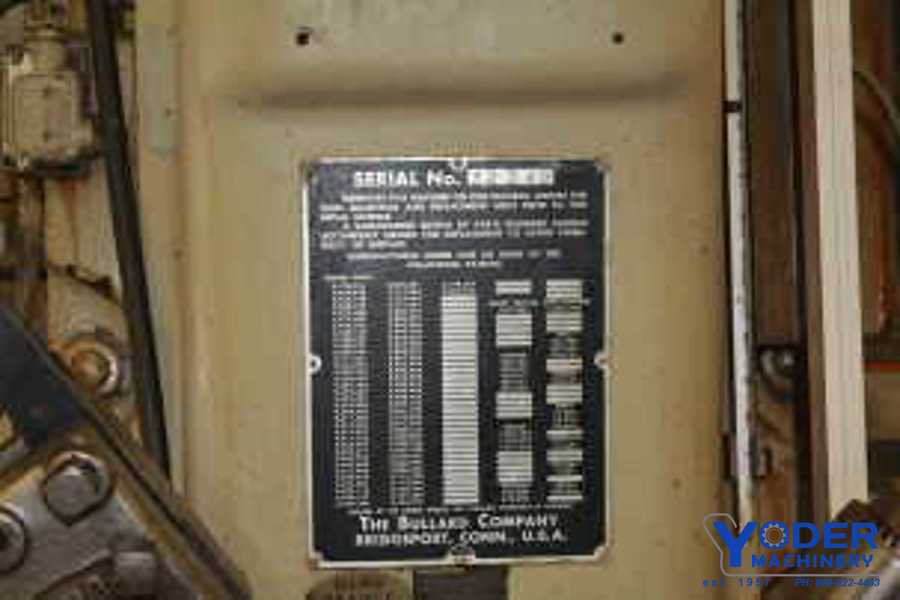

SERIAL ..................................... 32249
Swing With Side Head Above Table ........... 49"
Swing With Side Head Below Table ........... 58"
Height Under Cross Rail .................... 40"
Vertical Travel of Cross Rail .............. 30"
Max Height Under Turret Face ............... 50 3/8"
Vertical Travel of Turret Head ............. 26"
Horizontal Travel of Turret Head ........... 65 "
Turret Head Tool-Post Holes ................ 2 3/4"
Max Height Top of Side Head Ram to Table ... 36 1/4"
Vertical Travel of Side Head ............... 38 3/4"
Horizontal Travel of Side Head ............. 23 3/4"

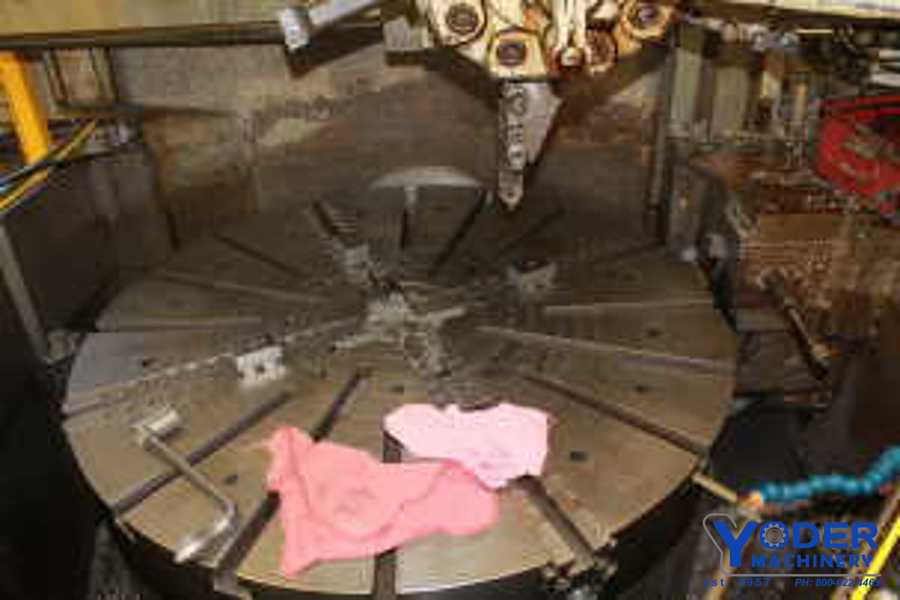

Built in 4-Jaw chuck Table ................. 46" Dia
SPEEDS ..................................... (20) 5.1-187 RPM
(16) FEEDS MECHANICALLY GEARED ............. .0006"-.125" IPR
HEADS:

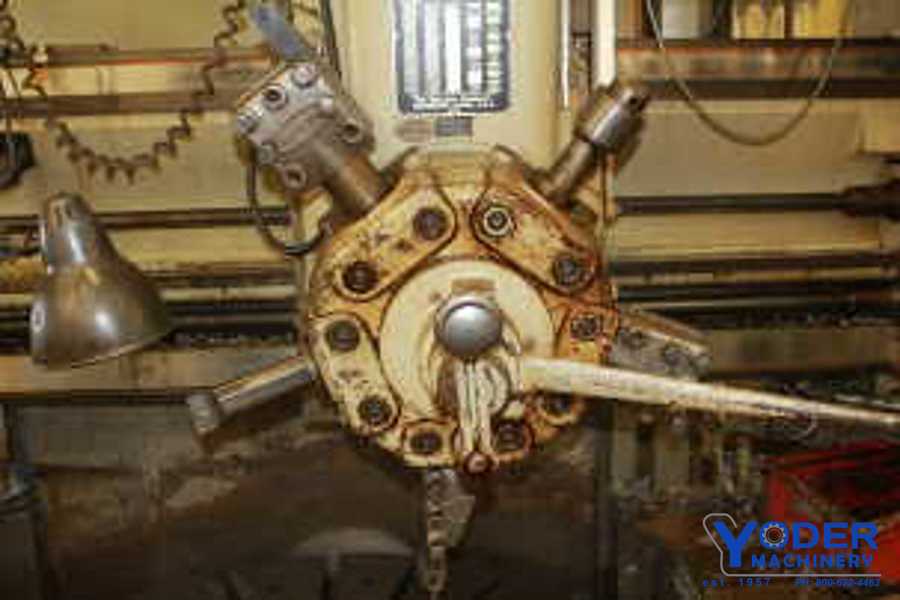

5-SIDED HAND INDEXING SWIVELING (30E) TURRET HEAD
4-SIDED HAND INDEXING SIDE HEAD
EQUIPPED WITH:
50HP Main Drive
5HP Rail Elevation Motor
Automatic Lubrication - Bijur

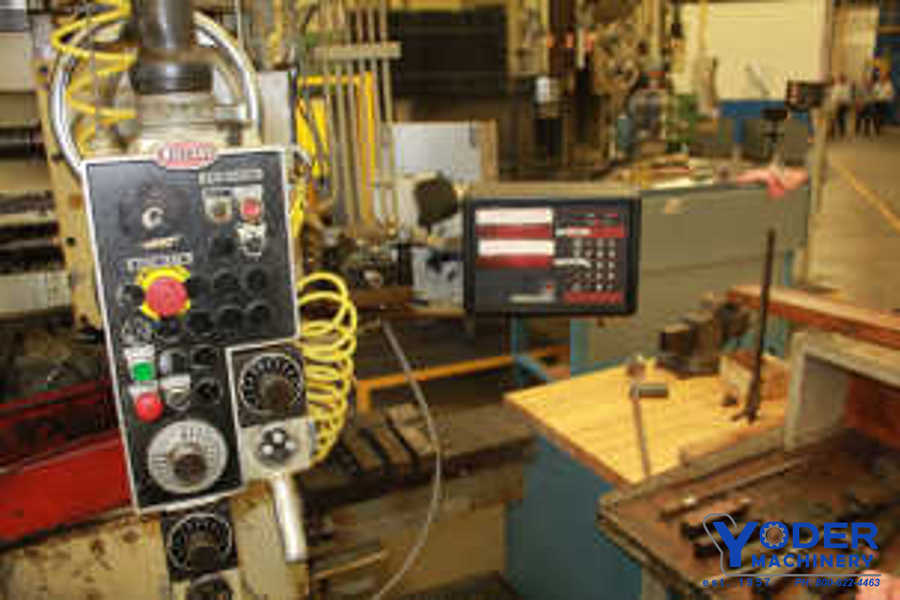

Unified "Pistol Grip" Remote Control for each Head
Mechanically Geared Feed Boxes with Rapid Traverse
Handwheels for Turret and Sidehead Feed Brackets
Scan-O-Matic Hydraulic Tracer on Turret Head
Anilam "Miniwizard" DRO on Turret Head
Hardened & Ground Ways on Cross Rail, Column, Turret Swivel
Swing With Side Head Above Table ........... 49"
Swing With Side Head Below Table ........... 58"
Height Under Cross Rail .................... 40"
Vertical Travel of Cross Rail .............. 30"
Max Height Under Turret Face ............... 50 3/8"
Vertical Travel of Turret Head ............. 26"
Horizontal Travel of Turret Head ........... 65 "
Turret Head Tool-Post Holes ................ 2 3/4"
Max Height Top of Side Head Ram to Table ... 36 1/4"
Vertical Travel of Side Head ............... 38 3/4"
Horizontal Travel of Side Head ............. 23 3/4"
Built in 4-Jaw chuck Table ................. 46" Dia
SPEEDS ..................................... (20) 5.1-187 RPM
(16) FEEDS MECHANICALLY GEARED ............. .0006"-.125" IPR
HEADS:
5-SIDED HAND INDEXING SWIVELING (30E) TURRET HEAD
4-SIDED HAND INDEXING SIDE HEAD
EQUIPPED WITH:
50HP Main Drive
5HP Rail Elevation Motor
Automatic Lubrication - Bijur
Unified "Pistol Grip" Remote Control for each Head
Mechanically Geared Feed Boxes with Rapid Traverse
Handwheels for Turret and Sidehead Feed Brackets
Scan-O-Matic Hydraulic Tracer on Turret Head
Anilam "Miniwizard" DRO on Turret Head
Hardened & Ground Ways on Cross Rail, Column, Turret Swivel
Get Your Price from Yoder Machinery Sales!
