45000 lbf (200kN) Frank Bacon #FB-200EM-TT, Floor Standing

Click here for FB-100EM-TT Video

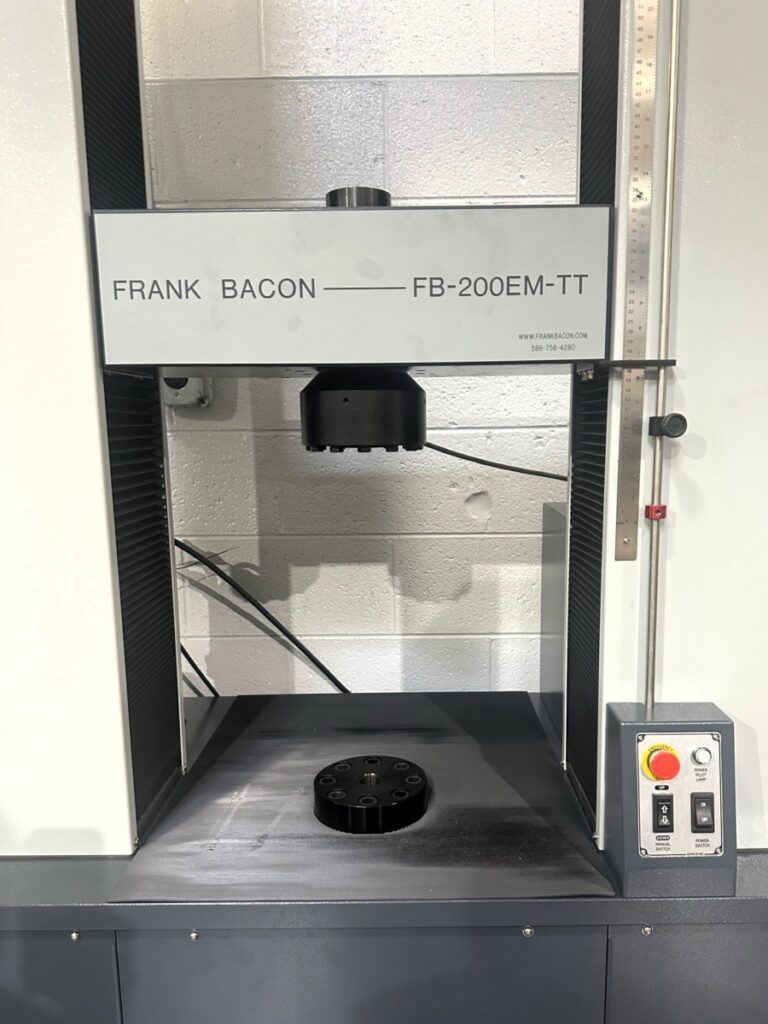

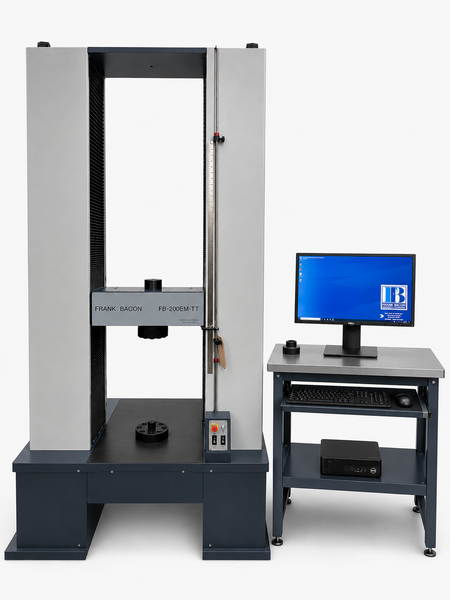

NEW 45,000 lbf (200 kN) Capacity, Frank Bacon Machinery Model, FB-200EM-TT, Floor Standing, Precision Two Ball Screw
Tension and Compression Testing Machine with Precision Load Cell.

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 21"
Testing Stroke: 48"
Testing Speed (IPM): .00002 – 13
Crosshead Adjusting Speed (IPM): 13
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Greater of ±.02mm and ±1%
Strain Rate Control Accuracy: ±.5%
Force Loading Control Accuracy: ±1%
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
Load Frame (W x D x H): 50 x 28 x 90
Load Frame Weight (lbs.): 2,800
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:
• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and
• Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• AC Servo Motor with High Precision Incremental Encoder and AC Drive Controller for Precision Control of
• Rate (Load, Position or Strain Rate Control)
• 200kN Tension & Compression Load Cell

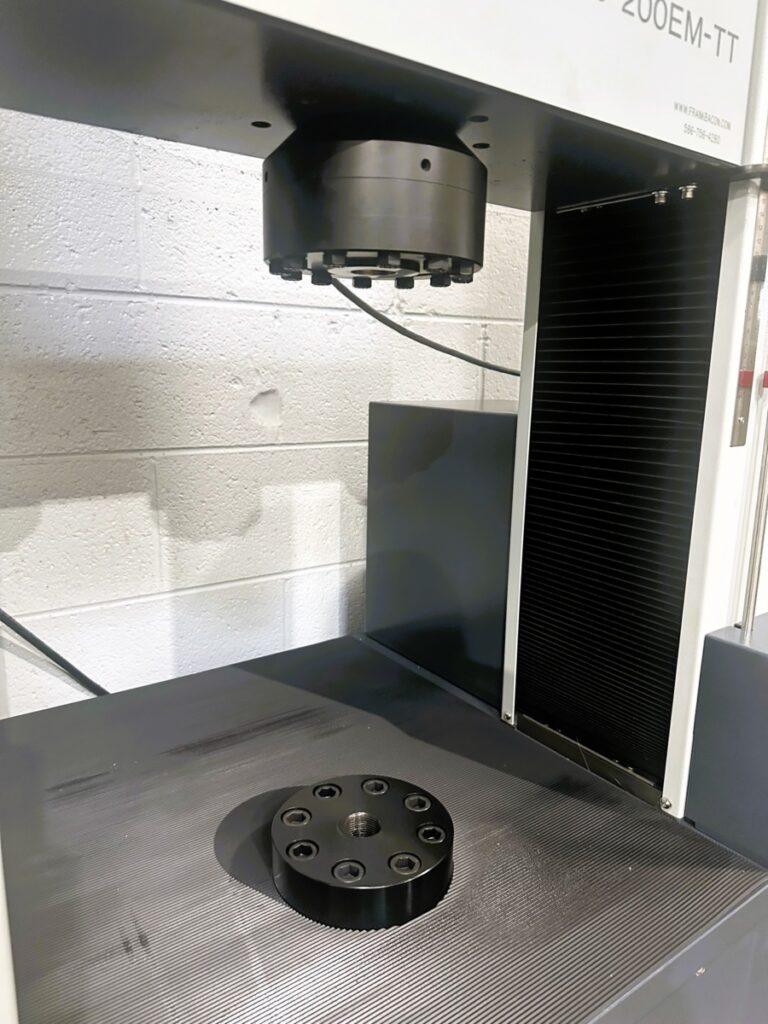

• Upper and Lower Quick Release Adaptors for Quick Tooling Changes

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification

Hundreds of Grips, Fixtures, and Accessories Available
