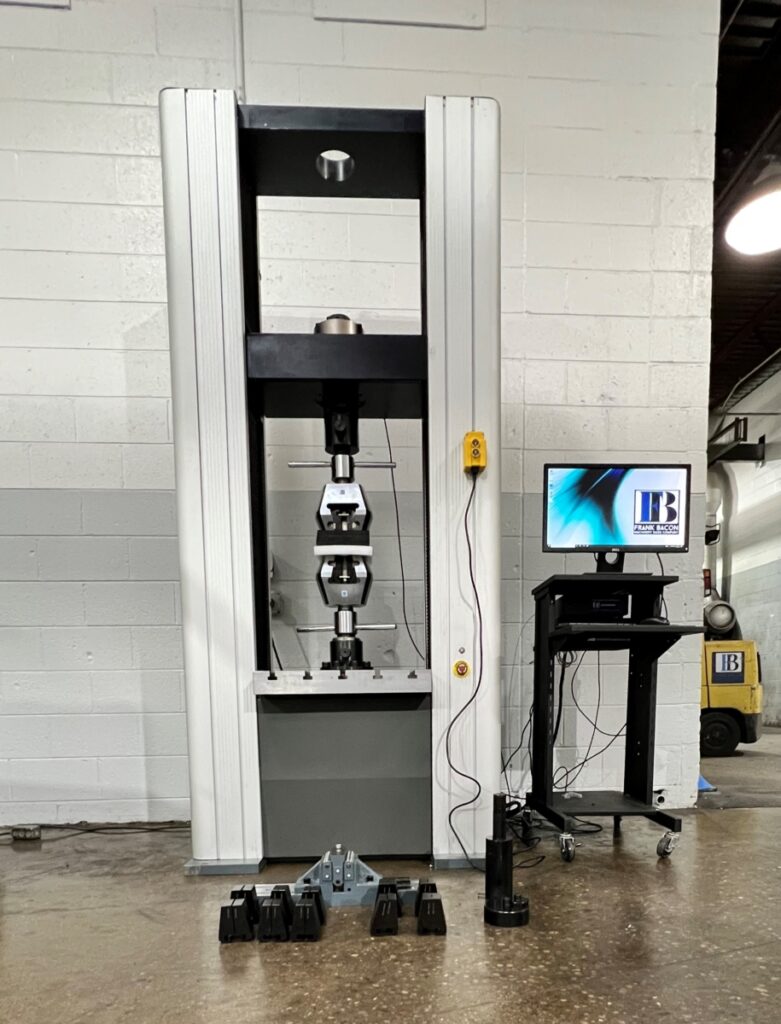

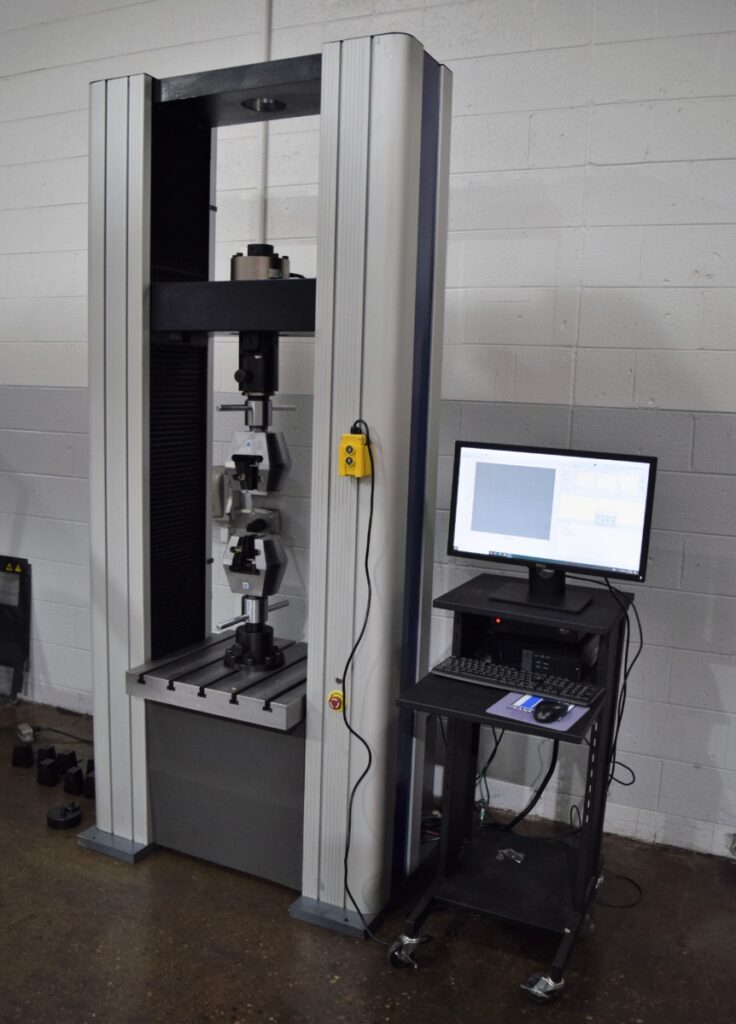

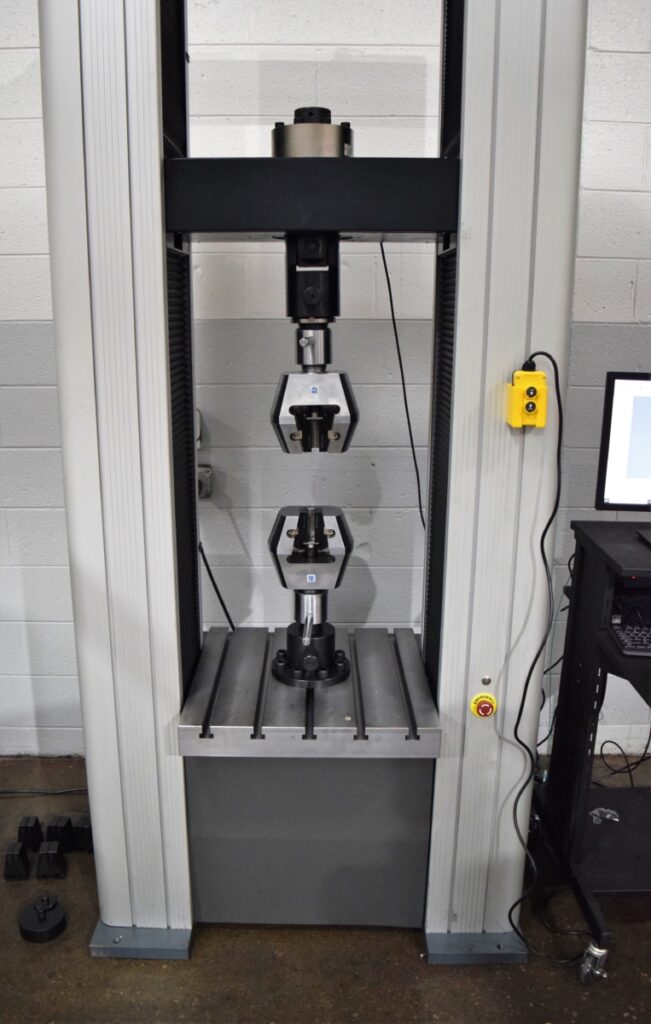

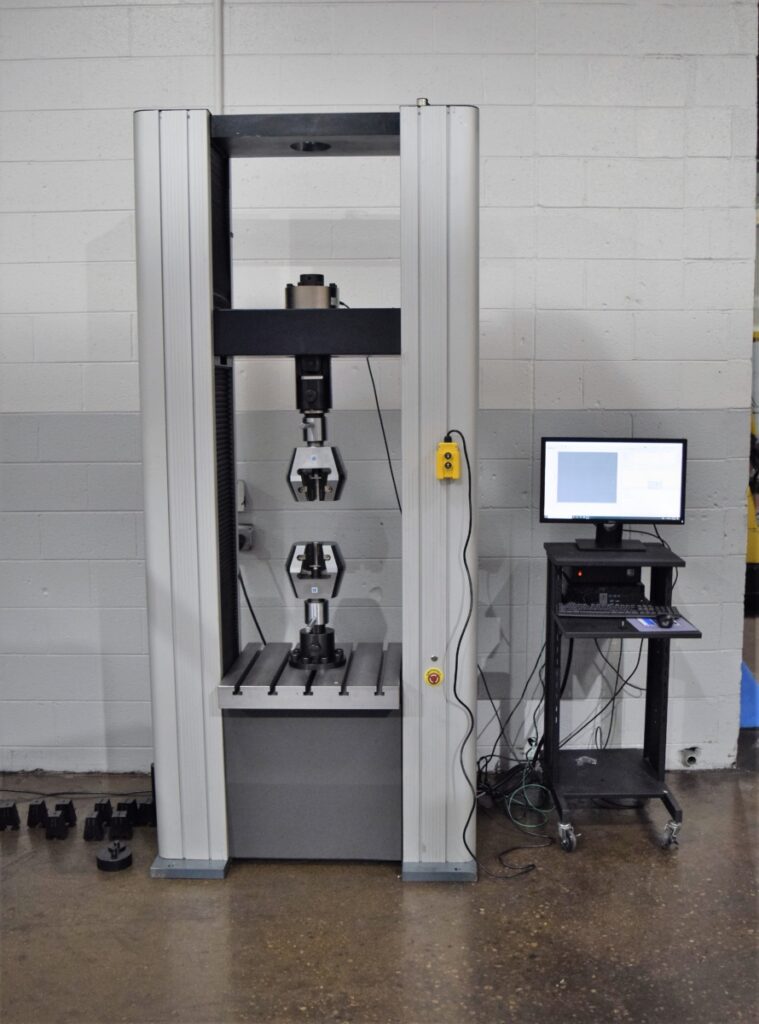

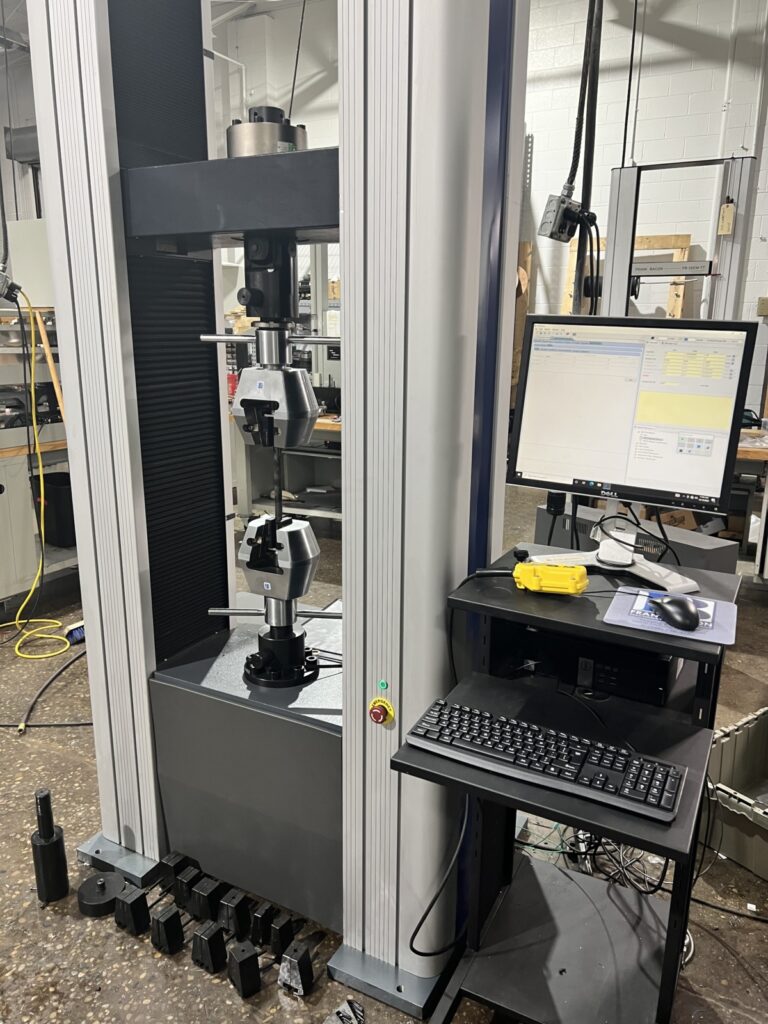

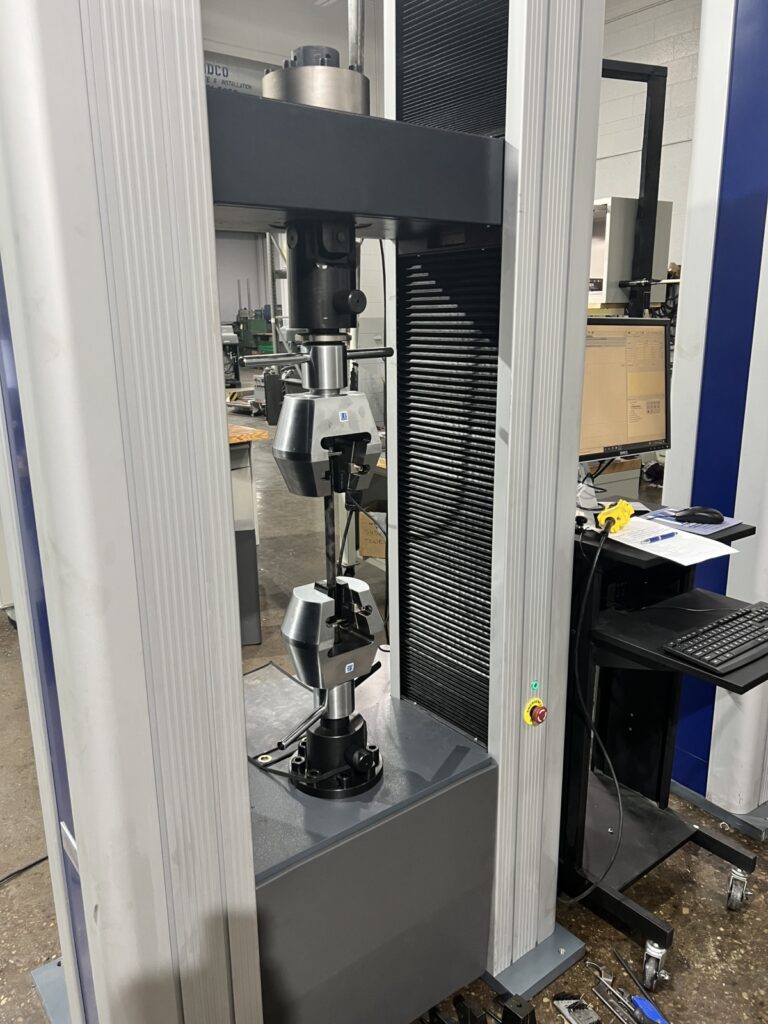

45000 lbf (200kN) Frank Bacon #FB-200EM, Floor Standing, Precision Two Ball Screw Tension and Compression Testing Machine with Precision Load Cell, new

NEW 45,000 lbf (200 kN) Capacity, Frank Bacon Machinery Model, FB-200EM, Floor Standing, Research Grade Precision Two Ball Screw
Tension and Compression Testing Machine with Precision Load Cell.

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 65"
Compression Testing Opening (Less Tooling): 65"
Distance Between Columns/Screws: 23"
Testing Stroke: 65"
Testing Speed (IPM): .002 – 20
Crosshead Adjusting Speed (IPM): 20
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Within ±.05%
Strain Rate Control Range: .00025/Sec - .0025/Sec
Strain Rate Control Accuracy: ±1%
Force Loading Speed Control Range: .001 to 10% FS/Sec
Force Loading Control Accuracy: ±1%
Displacement Rate Control Range: .01 to 500 mm/min
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
Load Frame (W x D x H): 44" x 32" x 99"
Load Frame Weight (lbs.): 3,050
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:

• New Computer System with Keyboard & Mouse
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System with PC Controls and Crosshead Jog Controller.
• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 200kN Tension & Compression Load Cell

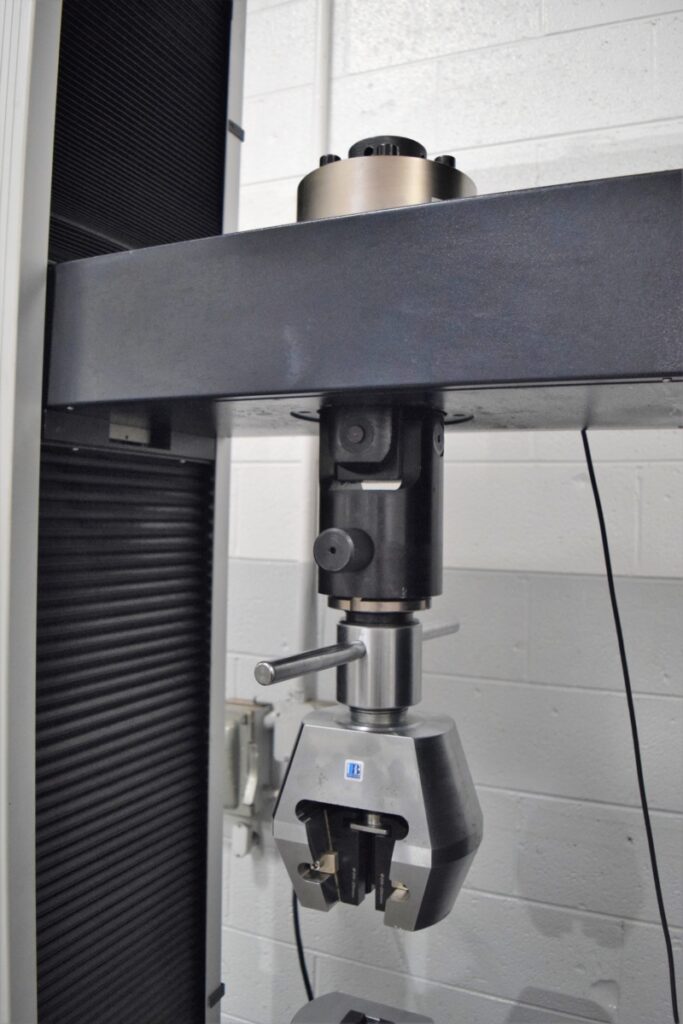

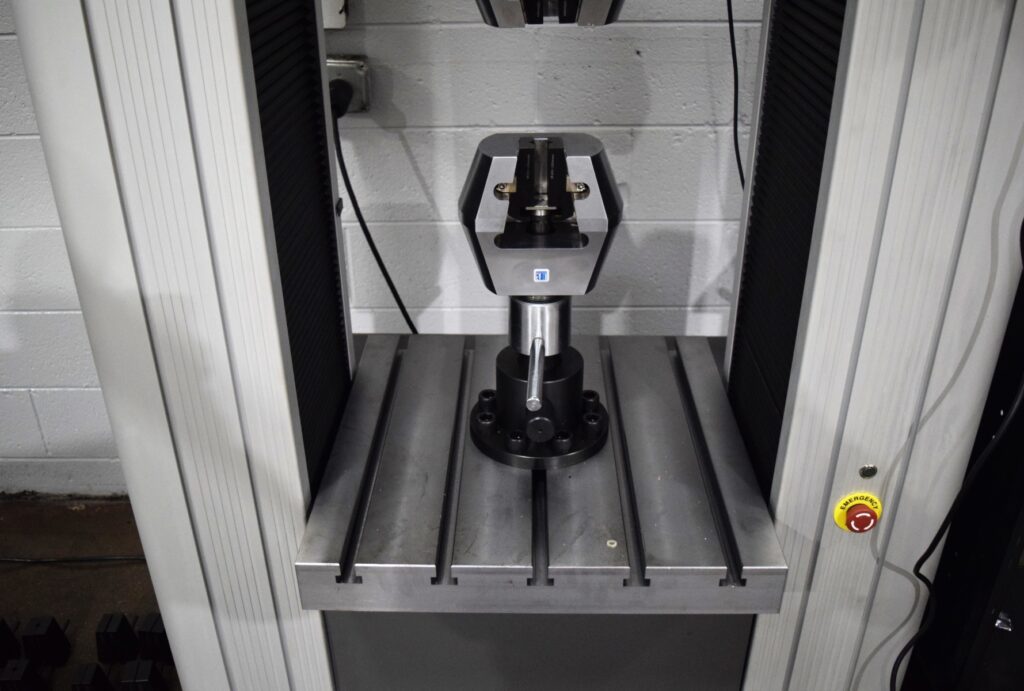

• Upper and Lower Quick Release Hubs for Tooling Changes

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty
ISO 17025 Accredited Certification
