450 MW Hitachi #TC4F-26, Steam Turbine Generator, unused

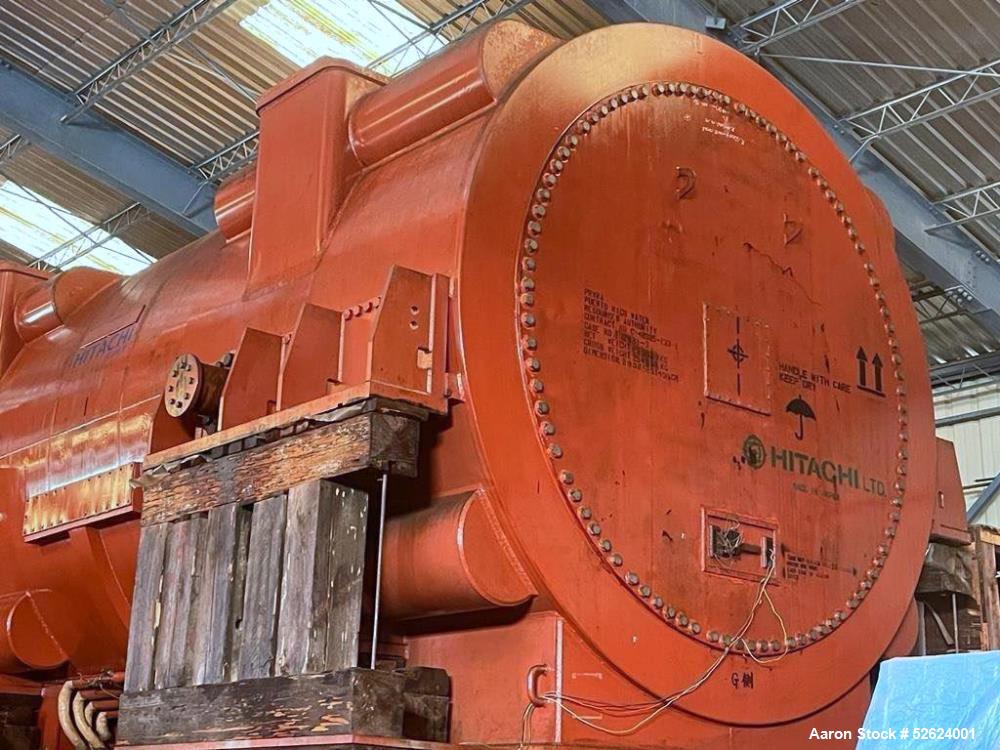

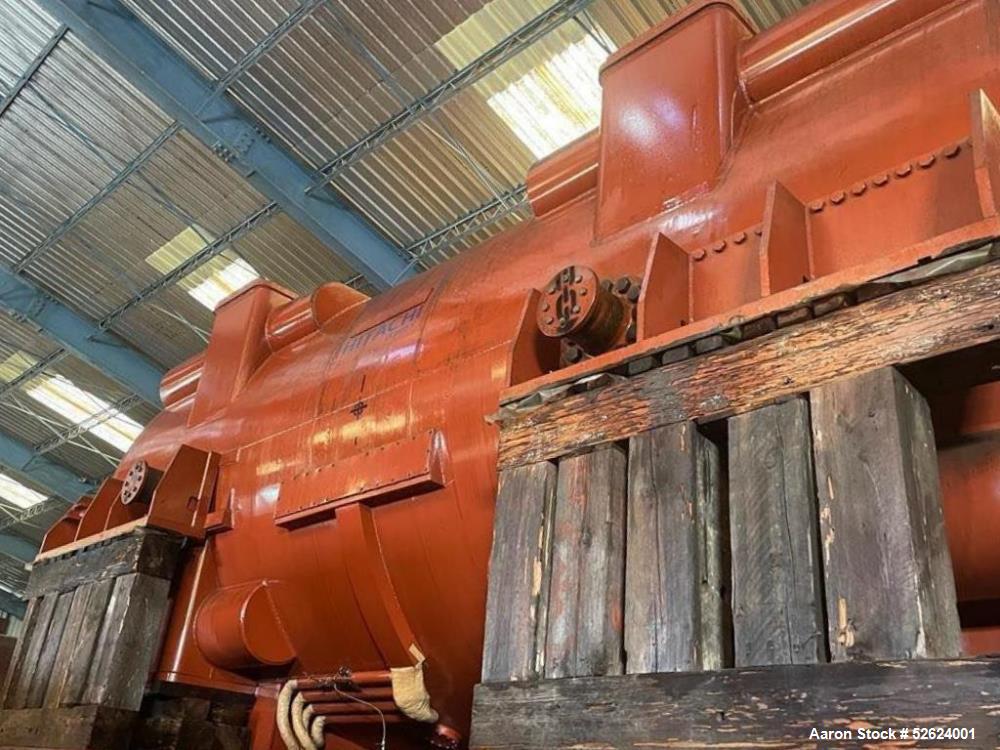

unused - 450mw hitachi tc4f-26 steam turbine generator. nominal rating 400mw. max continuous rating 450mw, type tc4r-26, 2,400psig, 1,000f, reheat steam 1,000f, exhaust pressure 2.5 inch hg. abs., 3,600rpm, 7 extractions, number of stages: hp 6, ip 4, lp 7x four flow, last stage bucket height 26in., governor type: fly ball with rotation pilot valve, 2 main stop valves, 4 control valves, 2 combined reheat valves, casing: 3 number double wall construction, rotor: 3 number solid type, journal bearings: 4 number elliptical, thrust bearing: 1 number tapered - land type, shaft gland system: steam seal with labyrinth packing, turbine governing device, mechanical hydraulic governor, generator: tflqq-k totally enclosed, explosion proof, cylindrical rotor type. ac generator, with water cooled stator, and hydrogen direct cooled rotor, outdoor type, rated capacity 553,064 kva at 60psig hydrogen, .85 power factor, rated output: 470,104kw at 60psig hydrogen, terminal voltage 24,000v, 3 phases, 60hz. double star connection. built 1976. the buyer will need to acquire boilers that will feed the proper steam to the steam turbine our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
