Description

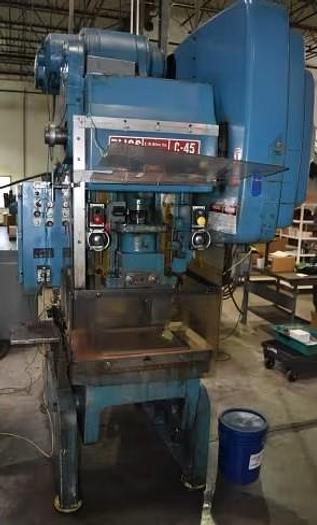

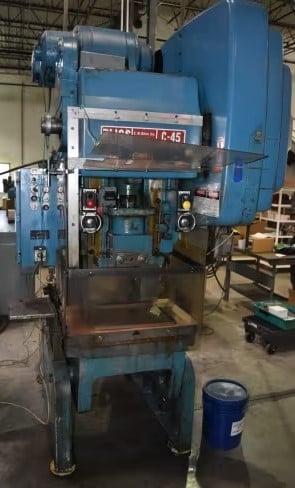

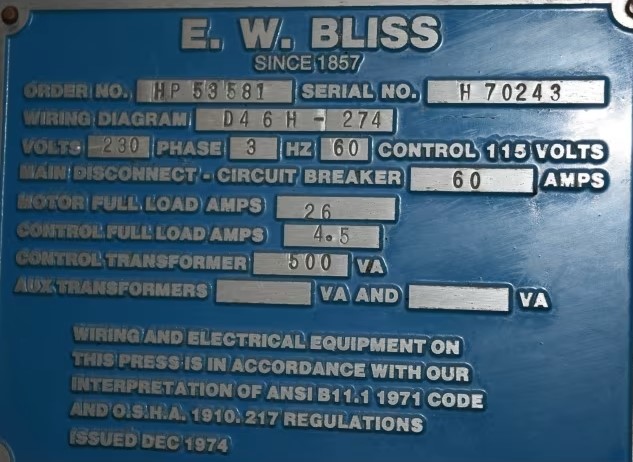

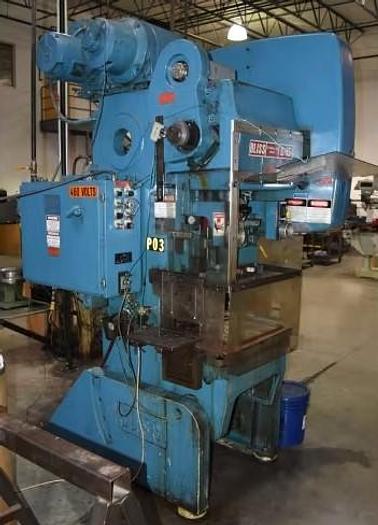

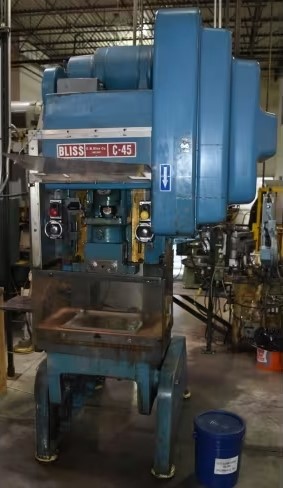

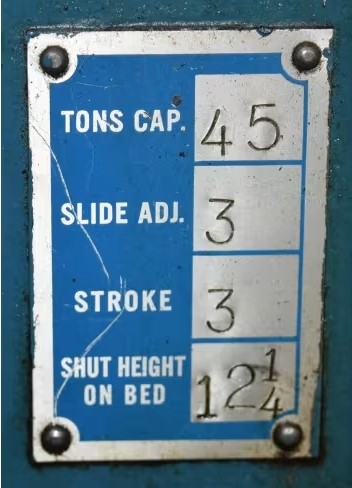

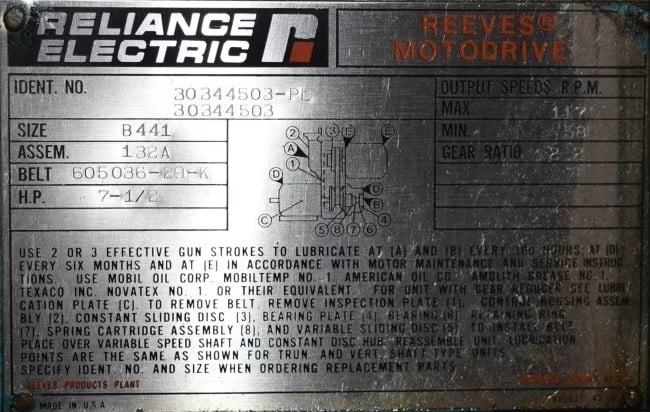

45 TON BLISS VARIABLE-SPEED O.B.I. PRESS New 1985, Serial No. H70243, Order No. HP53581, Model C45 45 TON BLISS VARIABLE-SPEED O.B.I. PRESS New 1985, Serial No. H70243, Order No. HP53581, Model C45 EQUIPPED WITH: Air Clutch & Brake 7-1/2 HP Reeves Vari-Speed Drive 2-1/3" T-Slotted Bolster Plate Flywheel Type Design CATALOG SPECIFICATIONS: Tonnage Capacity (USA) 45 TON Stroke Length 3" Shut Height to Bed, (SDAU) 12-1/4" Ram Adjustment, (Manual) 3" Ram Area, L-R x F-B 16" x 10-1/2" Bolster Area, L-R x F-B 29-1/2" x 18" Bolster Thickness 2-1/2" Throat Depth 9-1/2" Incline Positions, Degrees 30-DEGREES Strokes Per Minute Variable, Range 85 to 170 RPM Drive Motor, Horsepower/RPM 7.5 HP Overall Dimensions, W x D 4'4" x 5'3" Overall Height 8'7" Weight, Approximately 7700 LBS. F.O.B. OUR WAREHOUSE
TONNAGE 45 TON, STROKE 3", SLIDE ADJUSTMENT 2-1/2", SHUT HEIGHT 11-1/2", SPEED 100 SPM, INCLUDES:, - Updated CIECO PPC1000 Cam Base Control, - New NEW MOTOR CONTROLS, - ALL NEW WIRING, - NEW PALM STATION, OPTIONS:, - VARY SPEED - NEW VFD DRIVE (0-150 SPM) ADD $3500, - FRONT LIGHT CURTAINS W SIDE MIRRORS OR SIDE GUARDS ...more
SERIAL. H66448/HP50158MODEL. C-45CAPACITY. 45 TONSTROKE OF SLIDE. 2-1/2"SLIDE ADJUSTMENT. 3"SHUT HEIGHT, SDAU. 12-1/2"AREA OF BED. 29-1/2" X 18"AREA OF SLIDE. 15" X 10-3/4"DEPTH OF THROAT. 10"WIDTH OF HOLE THROUGH BACK. 14"BOLSTER. 29-1/2" X 18" X 2-1/4"STEM HOLE. 2" DIAMETER X 6" DEEPSTROKES PER MINUTE. 90AIR CLUTCH ...more
