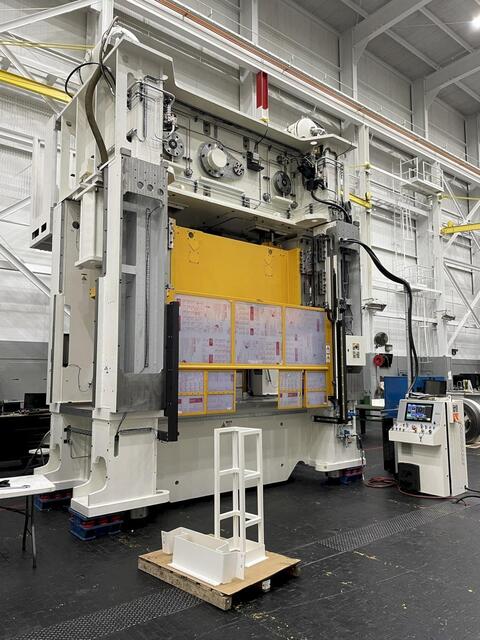

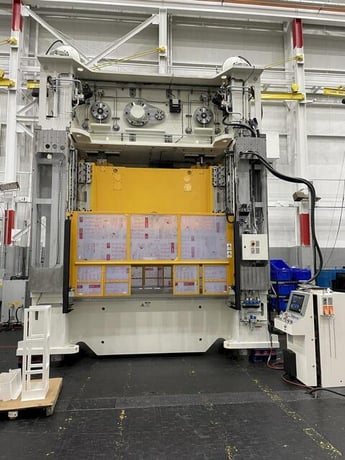

440 Ton, Minster #GM2-400-305x140-STD, straight side double crank 2-pt mechanical press, 15.7" stroke, 35.4" Shut Height, 13.8" adj., 55" x120" bed, 120 SPM, 55" x120" bed, 2024, new

SPM 120

Tonnage 440 tons

Stroke 15.75 inches

Shut Height 35.43 inches

Vari Speed (Yes/No) yes

Bed W 55 inches

Bed L 120 inches

Crank (Single/Double) double

SPECIFICATIONS

Press Specifications

Model Number........................................................ GM2-400-305x140-STD

Force × Distance off Bottom.................................. 4000 kN x 6 mm (440 tons x 0.24 in.)

Energy (with 15% slowdown)................................ 25 kJ (110.6 in-tons) @ 25 spm

Connection Points................................................... 2

Lube Unit Location................................................. Standalone Floor Level

Approximate Press Weight..................................... 82,000 kg (181,000 lbs.)

Scale and Display Units.......................................... Inch/Metric

Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications

Stroke Length.......................................................... 50 to 400 mm (1.97 to 15.75 in) variable

Max. Speed at 400 mm (15.75 in.)....................... 55 spm

Max. Speed at 300 mm (11.81 in.)....................... 65 spm

Max. Speed at 200 mm (7.87 in.)......................... 80 spm

Max. Speed at 100 mm (3.94 in.)......................... 100 spm

Max. Speed at 50 mm (1.97 in.)........................... 120 spm

Area of Slide, R-L × F-B........................................ 3050 x 1400 mm (120 x 55 in.)

Slide Face Machining.............................................. Standard

Overload travel........................................................ 25 mm (0.98 in.)

Overload recovery time........................................... 120s

Maximum Upper Die Weight................................. 6,000 Kg (13,200 lbs.)

Press Bolster Specifications

Bolster Plate Material.............................................. Steel

Bolster Plate Thickness........................................... 190 mm (7.5 in.)

Area of Bolster, R-L × F-B..................................... 3050 x 1400 mm (120 x 55 in.)

Opening in Bolster, R-L × F-B............................... None

Bolster Plate Machining.......................................... Standard

Press Frame Specifications

Upright Passline Opening, F-B............................... 1400 mm (55 in.)

Area of Bed, R-L × F-B.......................................... 3050 x 1400 mm (120 x 55 in.)

Opening in Bed, R-L (F-B ribs) × F-B................... 2500 (3) x 350 mm (98.4 x 13.7 in.)

Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)

Shutheight SDAU @ 50 mm Stroke....................... 900 mm (35.43 in.) Bolster to Slide

Shutheight SDAU @ 100 mm Stroke..................... 875 mm (34.45 in.) Bolster to Slide

Shutheight SDAU @ 200 mm Stroke..................... 825 mm (32.48 in.) Bolster to Slide

Shutheight SDAU @ 300 mm Stroke..................... 775 mm (30.51 in.) Bolster to Slide

Shutheight SDAU @ 400 mm Stroke..................... 725 mm (28.54 in.) Bolster to Slide

Shutheight Adjustment........................................... 350 mm (13.8 in.)

Accuracy of slide adjustment.................................. 0.1 mm (0.004 in)
