For Sale by RT Machine
Surplus Record Dealer Since 2025
Location: Hughesville, PA
Contact Sales
Phone Number: 570...> Show Phone Number 570-584-2002
Let the seller know you found their listing on Surplus Record!
Description

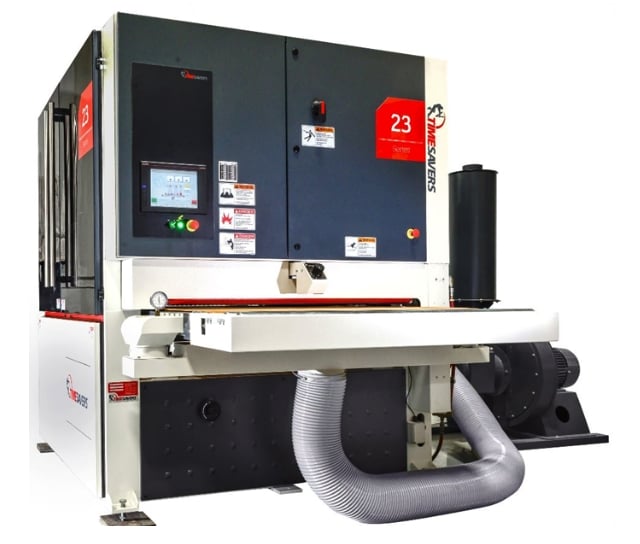

- Timesavers Model 2331-24-066 Three Head 43" Segmented Widebelt/Polisher
- Specifications:
- Abrasive belt size: 43 x 75"
- Main motor first head: 25HP
- Main motor second and third heads: 20HP
- Maximum width stock: 42"
- Minimum part size: 6 x 6" with Vacuum
- Maximum thickness opening: 5"
- Infeed loading area: 14"
- Feed speed: 15-45 FPM
- Approximate full load amps at 460 volt: 144
- Passline height: 33-38"
- Dust extraction: 5250 CFM (5" Static Pressure)
- Compressed air usage: 8 CFM @ 80psi
- Compressed air usage for belt blow-off: 41 CFM @ 80psi
- Standard Features:
- 8" Diameter Contact Drum: (first head positions)
- Dual Action Segmented Sanding Heads: (2nd and 3rd position)
- A.C. Variable Frequency Main Drive Motor: (3rd head)
- Abrasive Belt Blow-Off On Third Head
- Dual Infeed and Dual Outfeed Holddown Rolls
- PLC Controller with HMI Interface
- Panel Cleaning Brush
- Air Operated Disc Brakes
- Part Set-up Device
- Infeed Stop Bar
- Hour Meter
- Centralized Control Panel
- Main Motor Percentage Load Meter
- Through-Beam Abrasive Belt Tracking
- Dial Indicators on Adjustable Drum/Platen Heads
- Motorized Thickness Adjustment
- Quick Release Outboard Support
- Vacuum Conveyor Bed
- U.L. Listed Components
- Variable Speed Conveyor Drive
Get Your Price from RT Machine!
