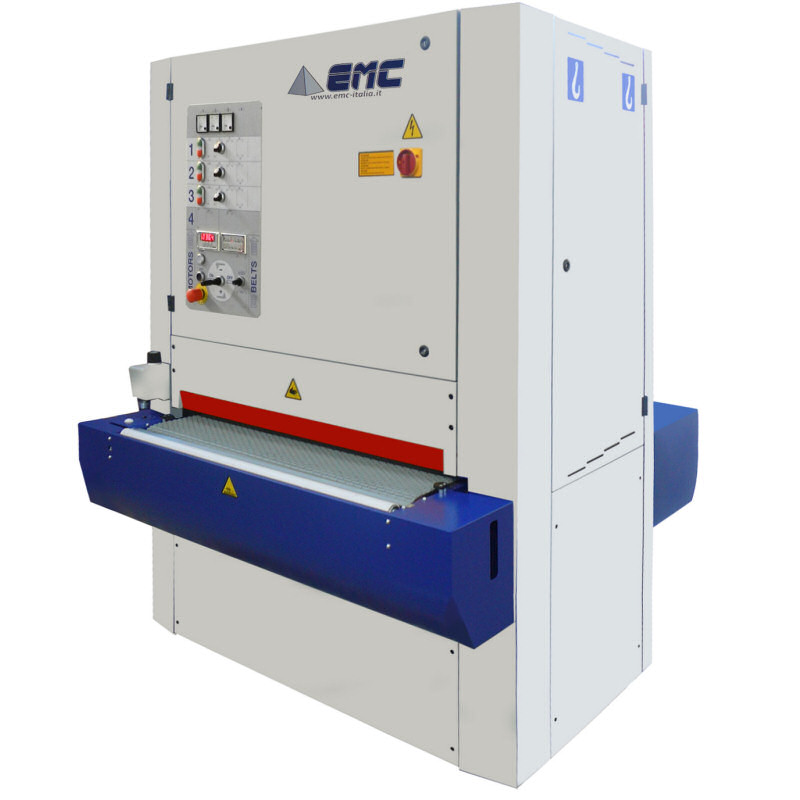

43" x 6-11/16" EMC #Mercury-1100-WK, 2-Hd. Top Knife Planer/Sander, 86.6" x 44" belt, 63 FPM, 5-9/16" knife & roll diameter, 20 HP, 2025, new

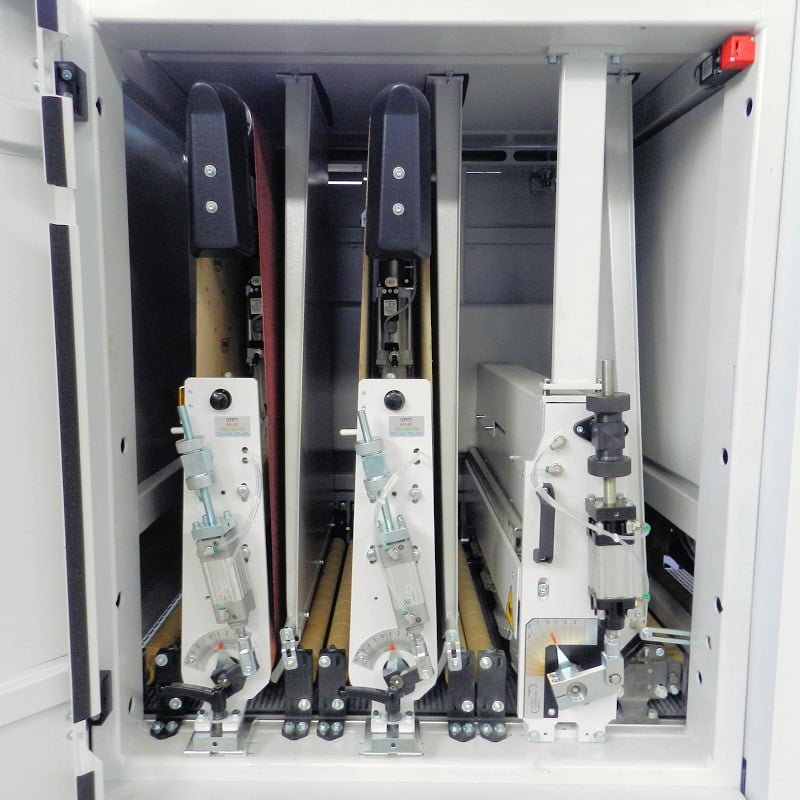

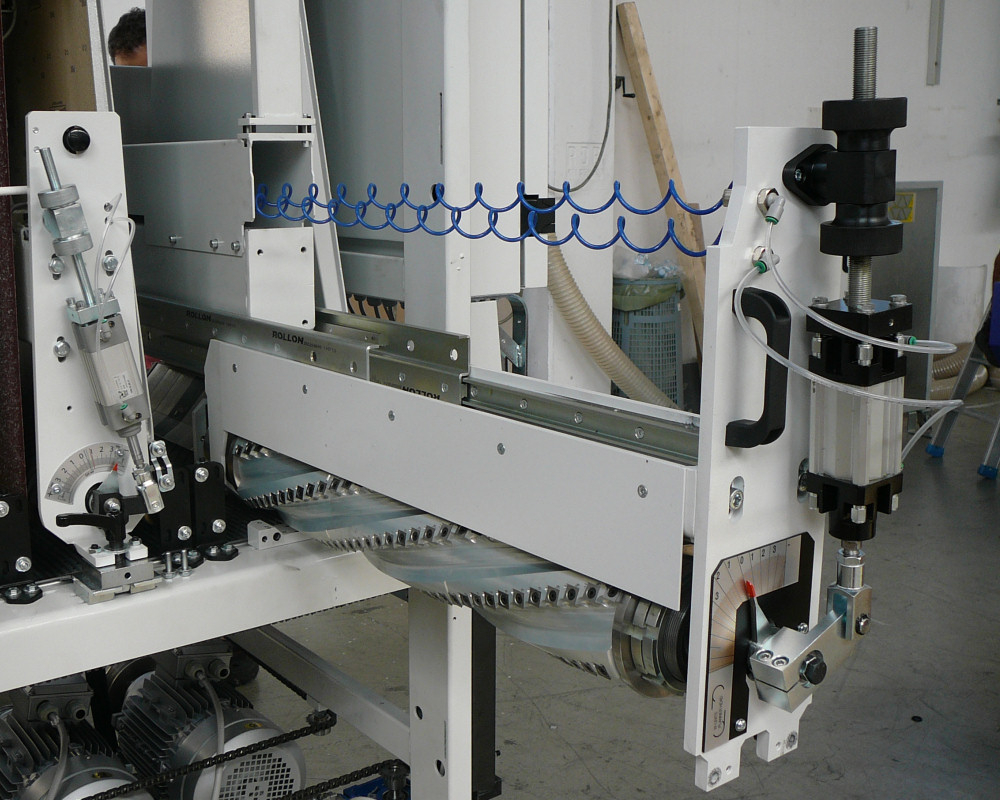

EMC EXPLORER 1100 SUPER WK Abrasive Planer / Wide Belt Sander with (2) Sanding Heads; Planer Head, Combination head roller/pad.TECHNICAL DATA: -- Useful working width 1,100 mm (43"). -- Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16"). -- Abrasive belt dimension (length) 2,200 mm (86.6") x (width) 1,120 mm (44"). -- Feed belt speeds adjustable by electronic inverter from 3 to 19 m/Min (10 - 63 FPM). Head configuration:1st Head: Planer Head "W" -- Cutter head knives diameter 142 mm (5-9/16"). -- Shaft for helicoidal position knives with (316) Interchangeable knifes with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 20 independent segments. -- Anti kickback protection made of 60 independent elements. -- On-Off pneumatic cylinder for planer group in working position. -- Working pressure adjustment. -- Motor power 15 kW (20 HP). -- Automatic Star-delta starter. -- Speed rotation: 30 m/Sec (97.5 FPS).2nd Head: Combination Roller & Pad. -- Roller diameter 142 mm (5-9/16"). Rubber covered hardness 45 Shore. Automatic abrasive belt grit compensation with "Grit-Set System". On Off Selector control for 2 roller incl. pneumatic piston -- Pneumatic elastic pad high resistance with quick changing system; extractable felt, rubber & graphite. . Complete with On-Off Selector and Quick Change System for removable pad with felt, rubber and graphite. Rotating cutting speed 18 m/Sec (59.1 FPS). -- Motor power 15 kW (20 HP). Belt blowers, oscillating, for cleaning of abrasive belt. Abrasive belts oscillation by means of electronic photocell sensor. -- Cleaning Brush: -- Tampico brushing unit for panel cleaning, at outfeed, 150 mm diameterFeed system: -- Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16"). -- Motorized table lifting including fine adjustment, on 4 precision screws. Natural rubber conveyor belt machined. -- Automatic feed belt centering device. Electronic digital display for working thickness; resolution 0.1 mm (0.004"). -- Feed belt speeds adjustable by electronic inverter from 3 to 19 m/Min (10 - 62 FPM). -- Idle table rollers support in infeed and outfeed.Centralized Control Cabinet: Analog ammeters on main control cabinet. Table lifting-lowering thickness system electrically controlled. AUTOMATIC Delta - Star starter on main motors and IP 54 protection against dust & moisture. Centralized independent pneumatic control cabinet: Pneumatic air filter with automatic water-drain system. Pneumatic adjustment for "Grit set system". Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI). Features: -- Control panel with self-diagnostics alarm control unit. -- Telemetry computer remote diagnostics control. Direct connection with EMC via internet for assistance.USA UL or Canada CSA Safety Features
