Name: 42.25"-12" Summit #RD4312, Radial Arm Drill, 8.63" spindle travel, 49-1524 RPM, 3 HP, 1.75" drill capacity, hydraulic clamp, coolant, unused
Brand: Summit
Availability: InStock

Manufacturer: Summit

Model: RD4312

Stock # 87018

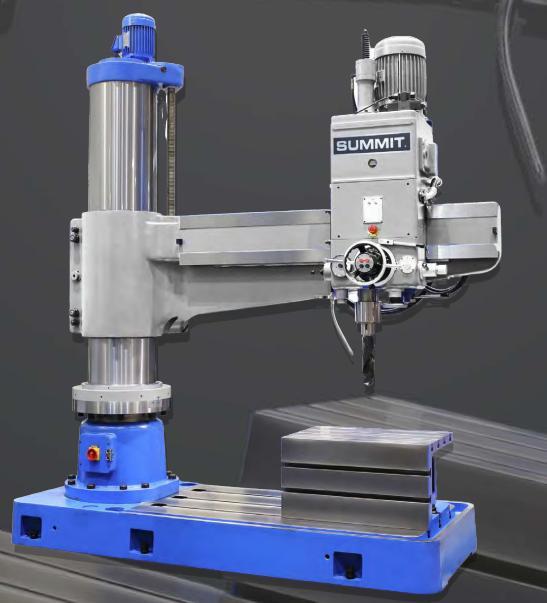

42.25"-12" Summit #RD4312, Radial Arm Drill, 8.63" spindle travel, 49-1524 RPM, 3 HP, 1.75" drill capacity - Image 1

View PDF

For Sale by Smith Machinery Co

Surplus Record Dealer Since 2001

Location: Ames, IA

Contact Jim Smith

Phone Number: 515...> Show Phone Number 515-233-6330

Let the seller know you found their listing on Surplus Record!

See all listings from this seller

Description

Specifications

Equipped With
Equipped With

SPECIFICATIONS:

Drilling capacity: 1.75”

Spindle motor: 3 HP

Distance from spindle axis and column: 14” / 43.25”
Column diameter: 12”

Taper in spindle: 4 MT

Spindle travel: 8.625”

Spindle speeds: 9

Range of spindle speeds (RPM): 49-1524

Spindle feeds: 3

Range of feeds: (IPR) .003"- 0.0137"

Horizontal traverse of spindle head on arm: 29.75”
Arm elevating motor: 2 HP

Hydraulic clamping motor for head and arm: N/A
Coolant pump motor: .1 HP

Dimensions (L x W x H): 81" x 41" x 93"

Net weight (approximate): 5,896 lbs.
STANDARD FEATURES:

• Centralized controls

• Gears and shafts hardened and ground
• Pressurized pump lubrication

• Head and arm movement adjustable, anti-friction precision bearings

• Safety limit switches for raising, lowering, locking and reset

• Leveling screws in base

• Hydraulic clamping RD4312 and RD6315

• Manual clamping RD2808

• Large T-slotted base

• Adjustable clutch on feed of the spindle with automatic depth stop
• Oil sight window

• Precision spindle and quill unit made of chrome nickel steel, hardened and ground

• Spindle mounted on two anti-friction bearings

• Built-in coolant pump and plumbing

• Hardened and precision ground ways

• Head traverse on roller gibs
