CST Storage Industrial Silo System, 4140 cu.ft., 11'11" diameter x 52' 7" H, 2 silos 8280 cu.ft. total, 2021

Overview

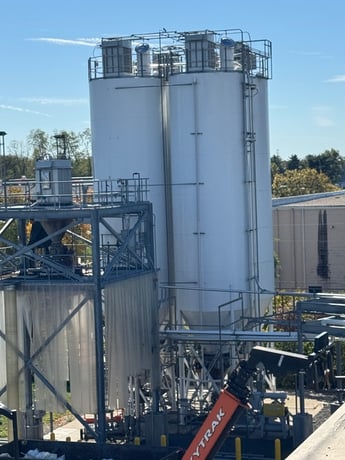

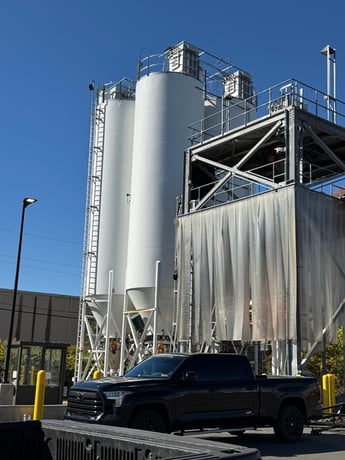

This CST Storage industrial silo system consists of four vertical storage tanks manufactured in August 2021. Each silo measures 11'-11" in diameter and stands 52'-7" tall, providing 4,140 cubic feet of nominal capacity. Designed for finished product storage with fluidized flow loads, these silos feature access ladders, top-mounted equipment, and cone-bottom discharge with support structures.
Design and Performance
Tank Specifications:
- Date: 08/2021
- Project I.D.: USP003777_005
- S.O. #: 21-7766
- Diameter: 11'-11"
- Height: 52'-7"
- Nominal Capacity: 4,140 Cu. Ft. (per tank)
- Manufacturer: CST Storage
Design Data:
- Product: Finished Product
- Compacted Density: 30 PCF
- Designed For: Fluidized Flow Loads
- Max Operating Pressure: Do Not Exceed
- Pressure: 8.09 oz/sq in
- Vacuum: 1.01 oz/sq in
Construction:
- Vertical cylindrical tanks
- Cone-bottom design
- External ladder access
- Top-mounted equipment
- Safety railings
- Support leg structures
- Corrugated panel sections visible
- Discharge hopper support structures
System Components:
- Four vertical storage silos
- Access ladders with cages
- Top-mounted equipment
- Platforms and railings
- Cone-bottom discharge hoppers
- Support leg structures
- Corrugated metal panels
- Structural steel support framework
Safety Features:
- Roof Concentrated Load: 500 lbs. per 10 sq. ft.
- Ladder safety cages
- Platform railings
- Pressure and vacuum specifications
- Warning labels

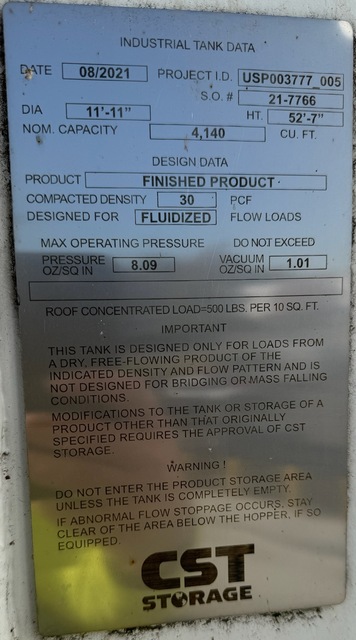

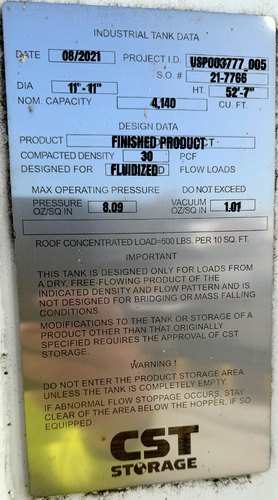

Important Design Limitations (per nameplate):
- Tank designed only for loads from dry, free-flowing product of indicated density and flow pattern
- Not designed for bridging or mass falling conditions
- Modifications to tank or storage of products other than originally specified requires CST Storage approval
- Do not enter product storage area unless tank is completely empty
- If abnormal flow stoppage occurs, stay clear of area below hopper
Key Specifications
- Condition: Used - 2021 Build
- Brand: CST Storage
- Date Built: 08/2021
- Equipment Type: Industrial Vertical Storage Silos
- Quantity: 4 Silos
- Diameter: 11'-11"
- Height: 52'-7"
- Nominal Capacity: 4,140 Cu. Ft. per tank
- Total System Capacity: 16,560 Cu. Ft.
Design Specifications:
- Product Type: Finished Product
- Compacted Density: 30 PCF
- Flow Type: Fluidized Flow Loads
- Maximum Pressure: 8.09 oz/sq in
- Maximum Vacuum: 1.01 oz/sq in
- Roof Load Rating: 500 lbs. per 10 sq. ft.
Physical Specifications:
- Tank Configuration: Vertical cylindrical with cone bottom
- Access: Ladder with safety cage
- Top Equipment: Mounted equipment visible
- Bottom Discharge: Cone hopper with support legs
- Safety Features: Railings, platforms, warning labels
Ideal Applications
- Cement and Concrete Plants
- Aggregate and Sand Storage
- Food Processing Facilities
- Grain and Feed Mills
- Plastic Pellet Storage
- Chemical Powder Storage
- Pharmaceutical Manufacturing
- Industrial Mineral Storage
- Construction Material Storage
- Manufacturing Facilities
- Batch Plant Operations
- Dry Bulk Material Handling
Benefits
- 2021 manufacture
- Four-tank silo system
- 16,560 total cubic feet capacity
- Fluidized flow design
- Complete access systems
- Cone-bottom discharge
- Safety-compliant design
- Heavy-duty construction
- Professional installation ready
Additional Information
- Condition: Used - 2021 Manufacture
- Manufacturer: CST Storage
- Date Built: 08/2021
- Project I.D.: USP003777_005
- S.O. Number: 21-7766
- Quantity: 4 Silos
- Diameter: 11'-11"
- Height: 52'-7"
- Capacity Per Tank: 4,140 Cu. Ft.
- Total System Capacity: 16,560 Cu. Ft.
- Product Design: Finished Product
- Density: 30 PCF
- Flow Type: Fluidized Flow Loads
- Max Pressure: 8.09 oz/sq in
- Max Vacuum: 1.01 oz/sq in
- Roof Load Rating: 500 lbs. per 10 sq. ft.
- Configuration: Vertical with cone-bottom discharge
Location: Ohio
