Description

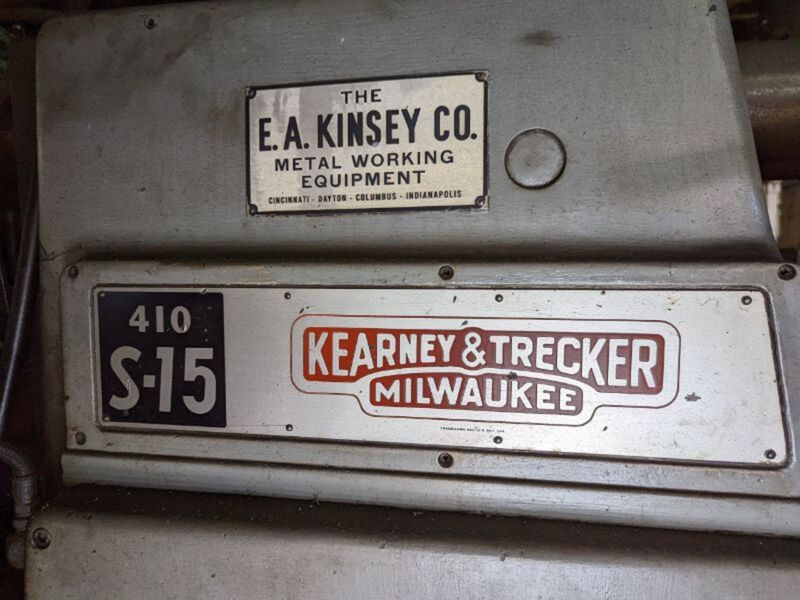

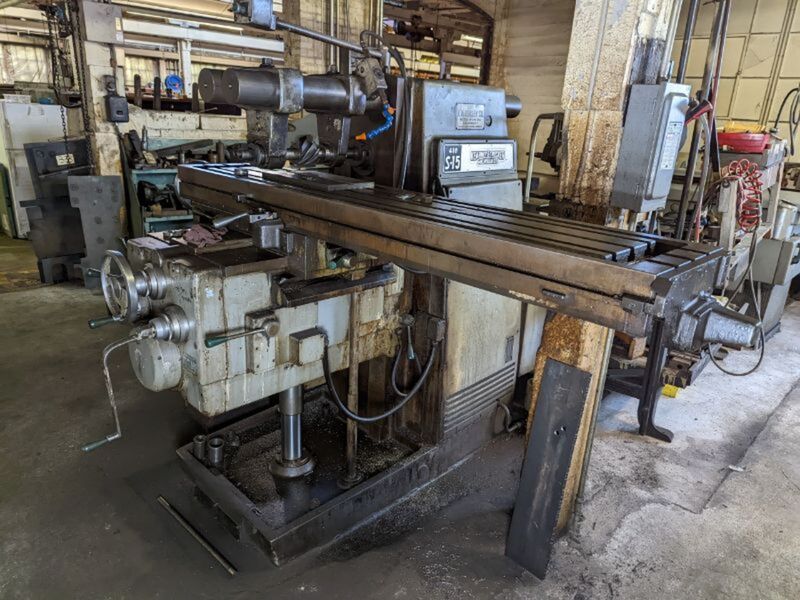

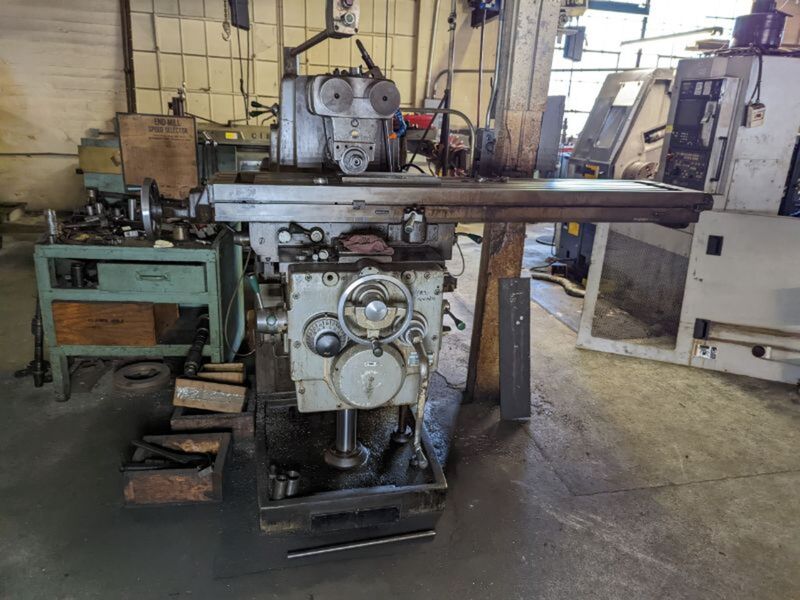

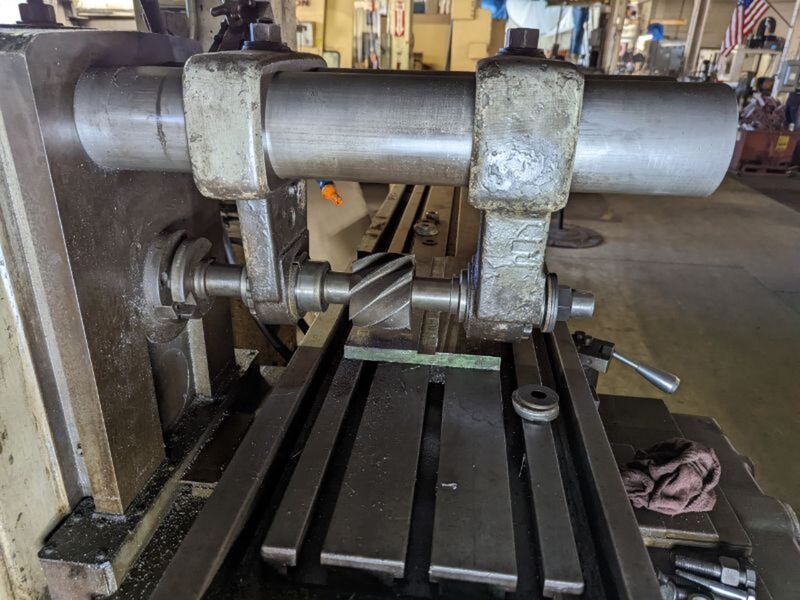

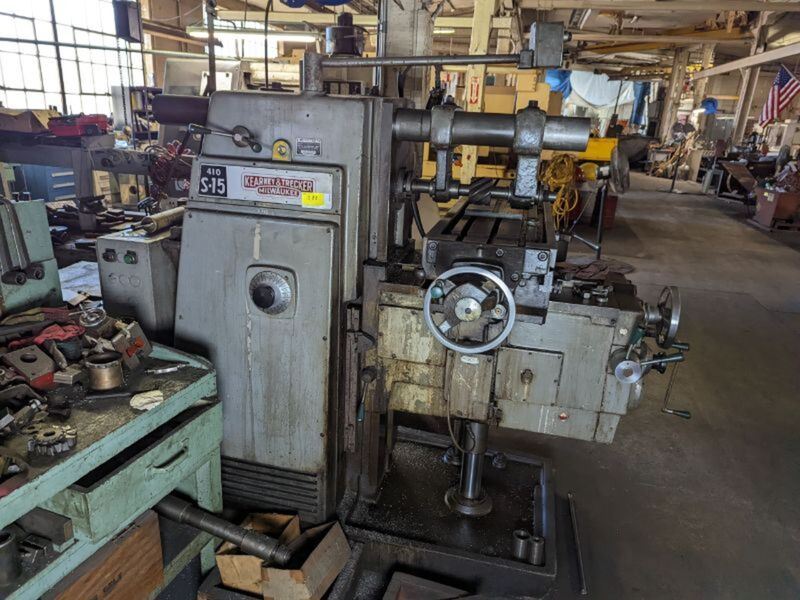

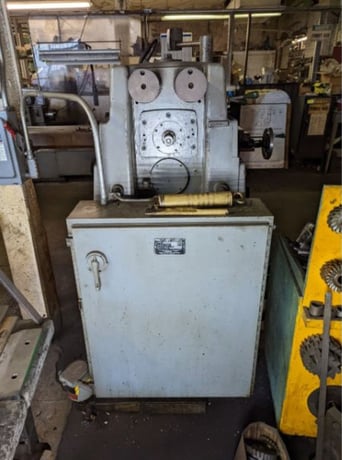

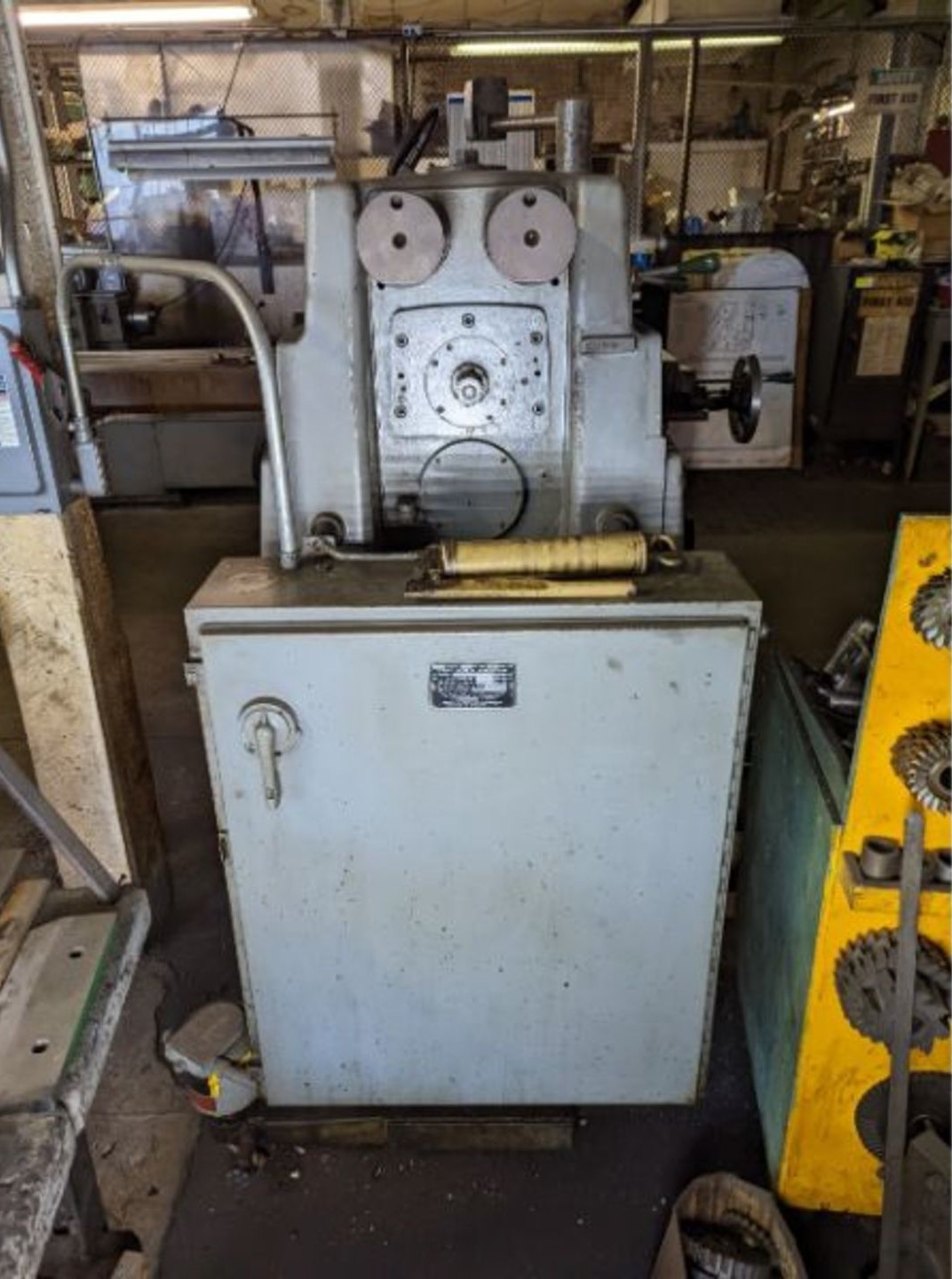

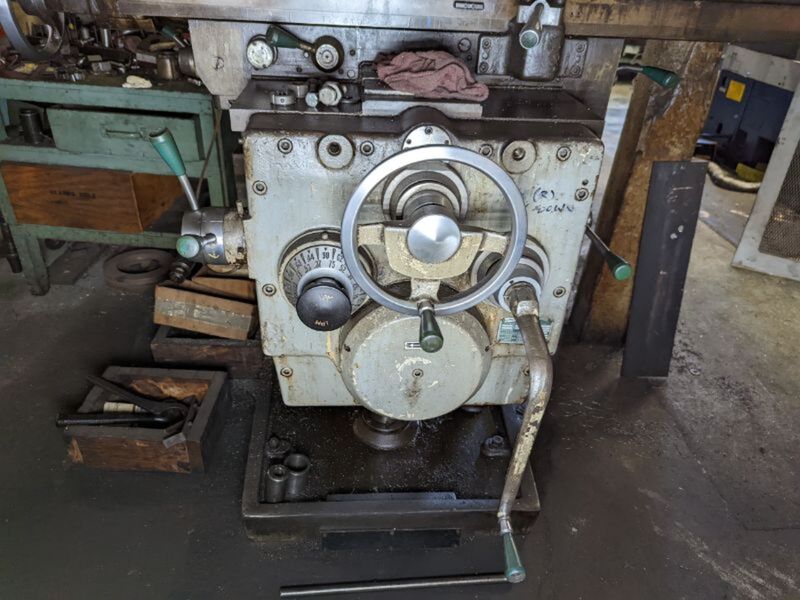

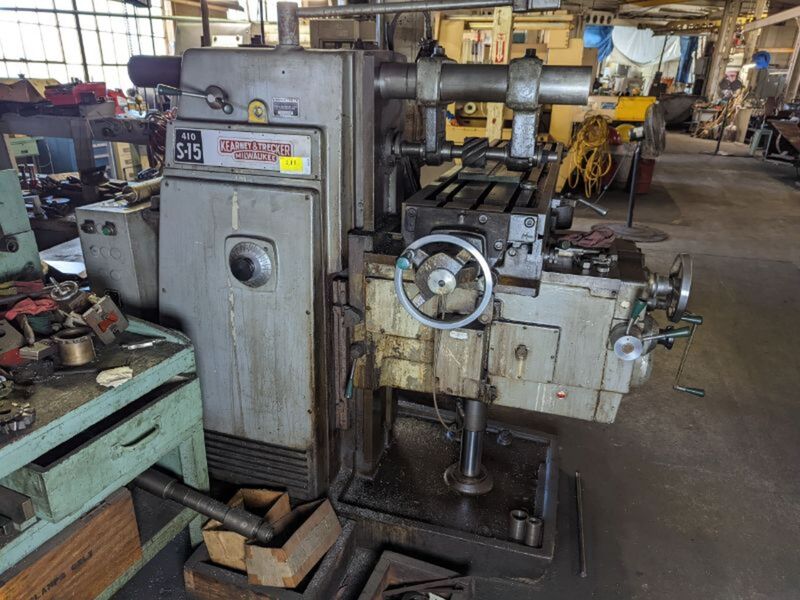

#410S15 KEARNEY & TRECKER PLAIN HORIZONTAL MILL New 1968, Serial No 80-1011-01, Model 410S15, #410S15 KEARNEY & TRECKER PLAIN HORIZONTAL MILL New 1968, Serial No 80-1011-01, Model 410S15, EQUIPPED WITH: Knee Motor Dual Round Overarm (2) Arbor Supports (2) Arbors CATALOG SPECIFICATIONS: Table Dimensions (Overall), W x L 15" x 76" Table Working Surface, W x L 15" x 76" Table Longitudinal Travel (X-Axis) 42" Saddle In-Out Cross Travel (Z-Axis) 14" Knee Vertical Travel (Y-Axis) 19" Spindle Taper #50 NSTD (24) Spindle Speeds, Range 25 to 2000 RPM (32) Longitudinal and Cross Feeds .375 to 90 IPM Vertical Feeds, Range .1875 to 45 IPM Power Rapid Traverse, Long & Cross 150 IPM Power Rapid Traverse, Vertical 75 IPM Spindle Motor, Horsepower/RPM 10 HP Feed Motor, Horsepower 3 HP Weight, Approximately 9350 LBS F.O.B. OUR WAREHOUSE
SERIAL. TF1005, MODEL. 415TF, AREA OF TABLE. 80" X 15-1/2", SPINDLE SPEEDS. (24) 15 TO 1500 RPM, LONGITUDINAL & CROSS FEEDS. (32) 3/8 TO 90 IPM, VERTICAL FEEDS. (32) 1/8 TO 30 IPM, LONGITUDINAL TABLE TRAVEL. 42", CROSS TRAVEL. 14", VERTICAL KNEE TRAVEL. 18", CENTER OF SPINDLE TO TOP OF TABLE. 0 MIN. TO 18" MAX. ...more
