400000 lbf (2000kn) Satec #400-HVL (mtq Servo)

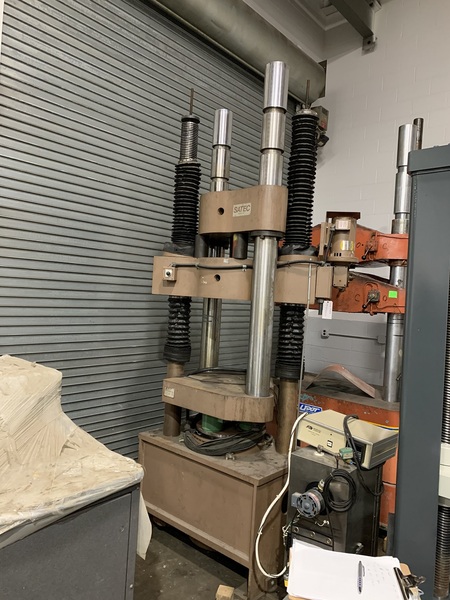

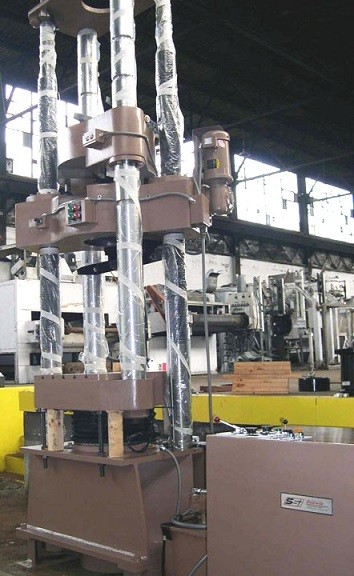

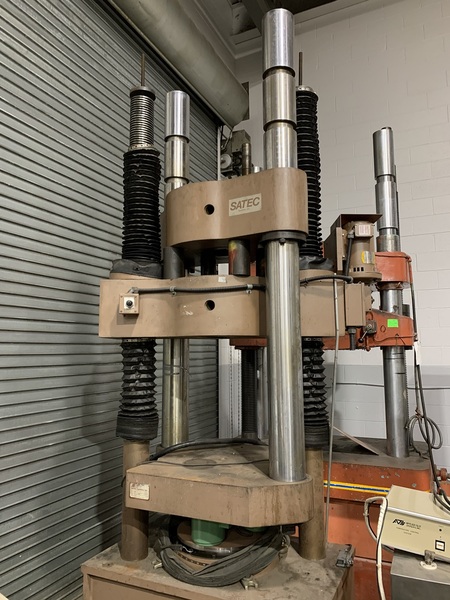

(1) Reconditioned 400,000 lbf (2,000 kN) Capacity Satec Model 400HVL, Hydraulic Tension and Compression Testing Machine with Adjustable Top Crosshead.

Satec Model 400HVL

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 24"

Testing Stroke: 12"

Table Size (W x D): 24" x 30"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Approximate Overall Dimensions/Weight:

New Hydraulic Console (W x D x H): 36" x 24" x 42"

Load Frame (W x D x H): 50" x 30" x 130"

Weight (lbs.): 20,000

Electrical Requirements (V,Hz,PH): 220/440, 60, 3

EQUIPPED WITH:

• New Computer System with Keyboard and Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & Aux), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• High Resolution TTL Compatible Incremental Quadrature Encoder for Position and Testing Speed Values with Signal Cable and Mounting Hardware.
• Three Strain Gauge Load Cells Indicating System
• New Closed Loop Hydraulic Pumping System in custom "Silent" Console With: Hydraulic Reservoir, Submerged Pump, P. Valve, Custom Aluminum Hydraulic Circuit Manifold, Motor, Thermal Transfer Heat Exchanger, PC Controls & More.

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
