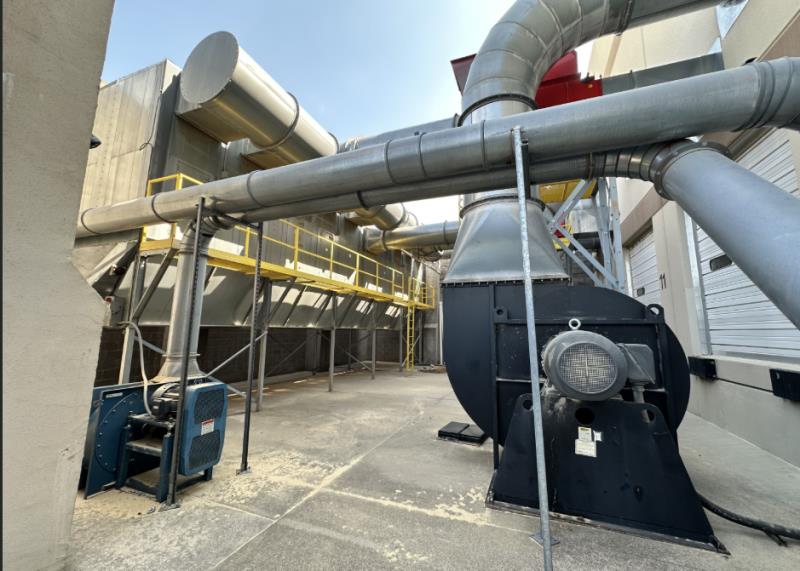

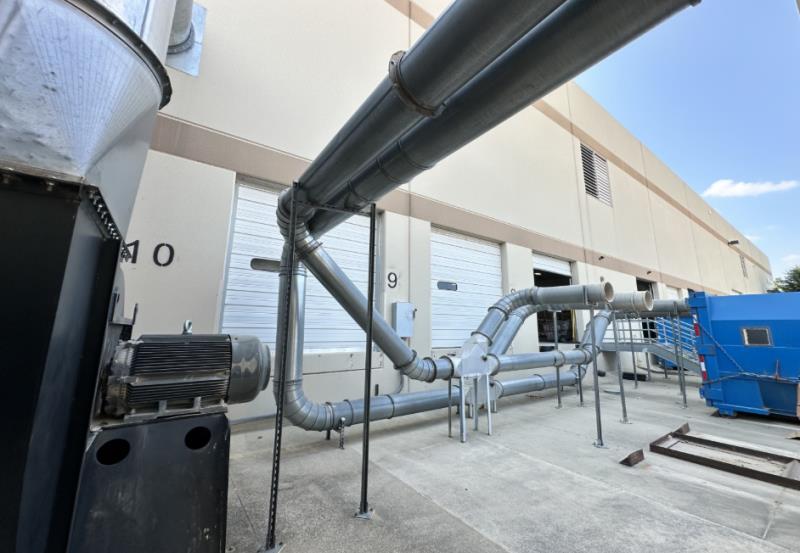

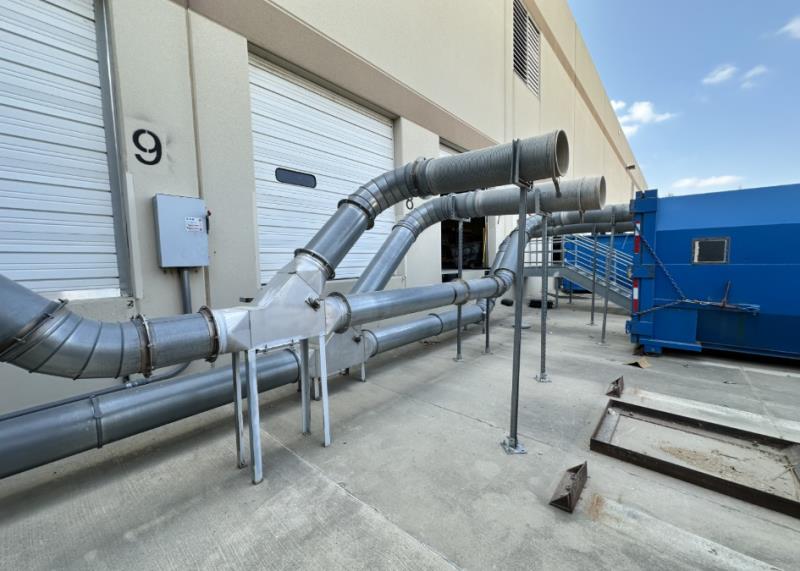

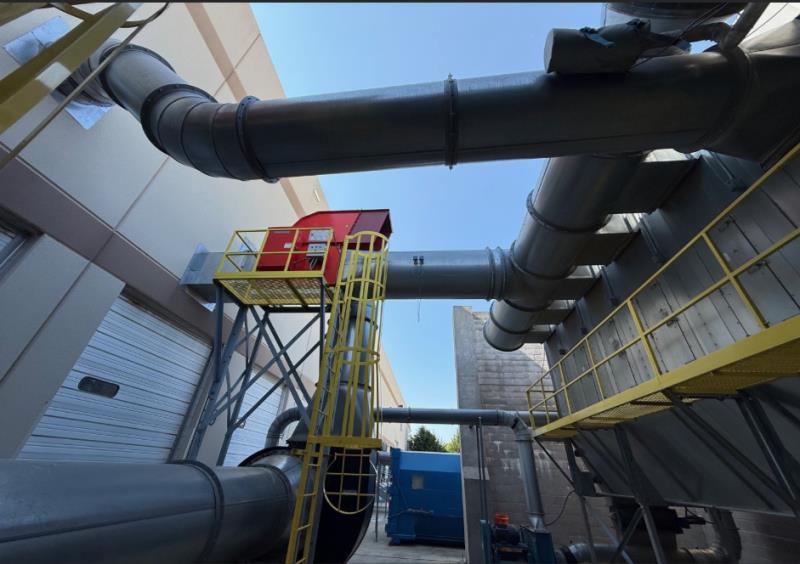

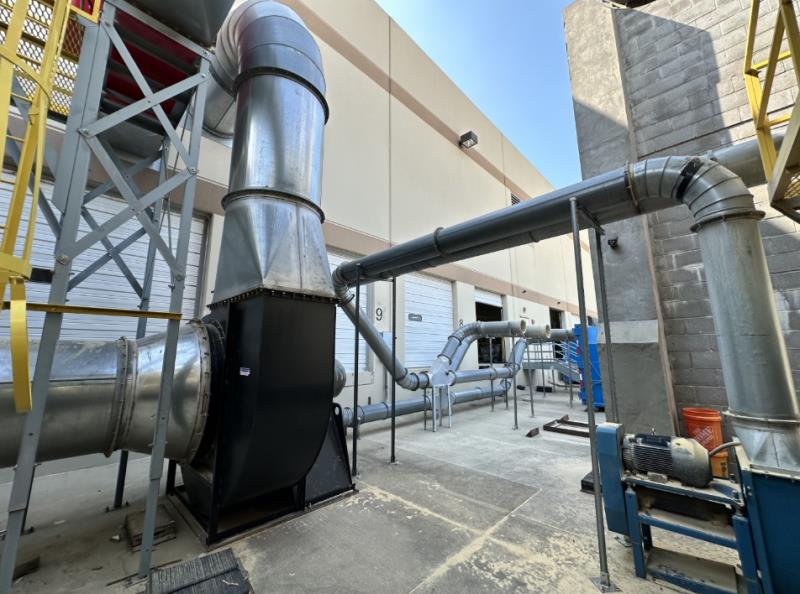

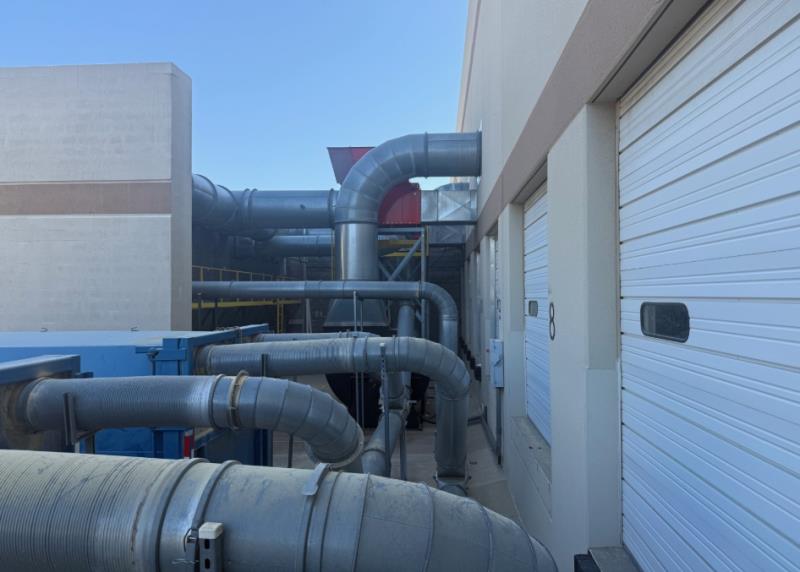

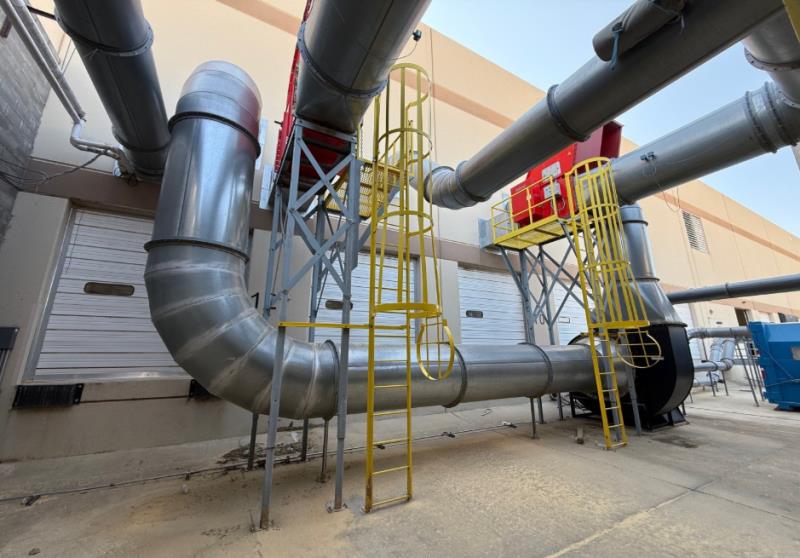

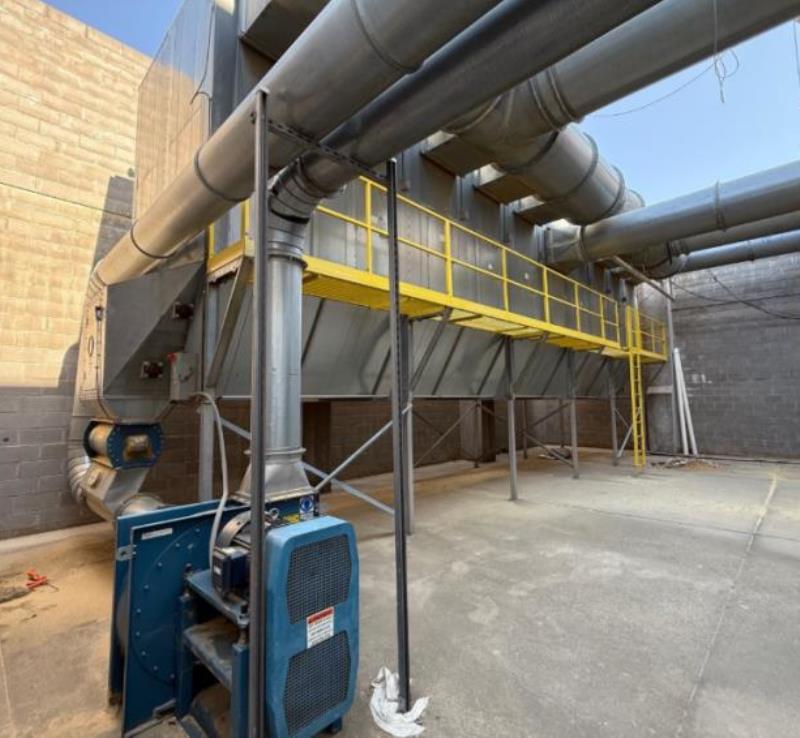

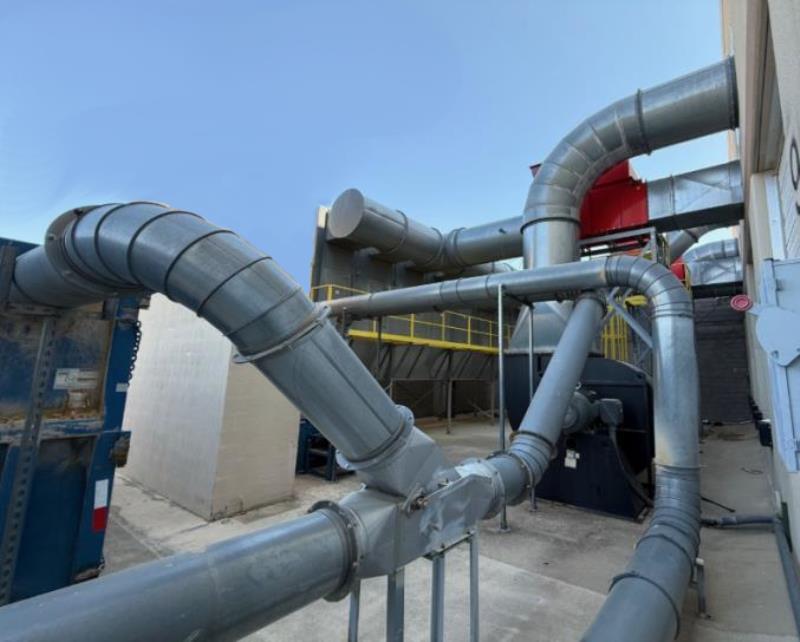

40000 cfm Nederman #NFKZ-3000, baghouse dust collector, 7,320 sq.ft., (400) filter bags, 200 HP, 2014

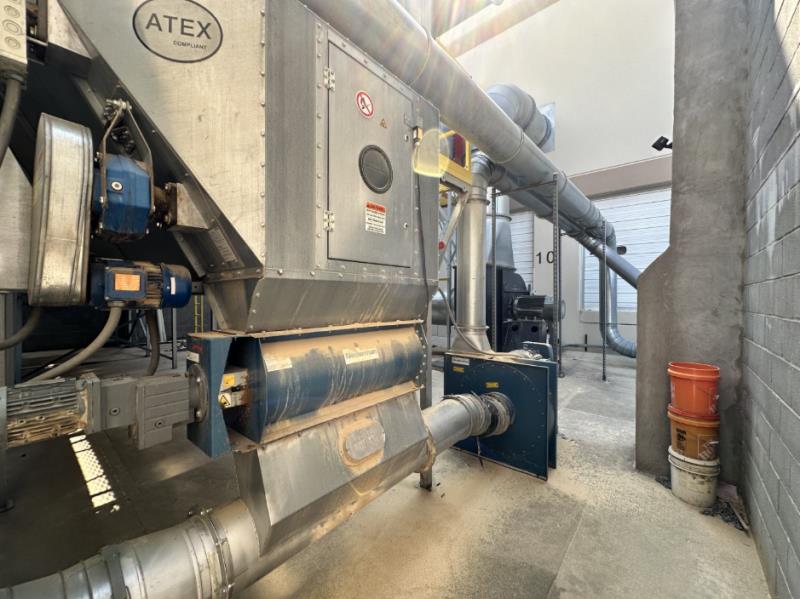

NEDERMAN - DANTHERM NFK3000 8+2 Filter Dust Collection System. Full-Featured with Return Air, Abort Gate, Non-Return Explosion Valve, Spark Detection, and Rotary Air Lock with Dual Relay Transfer Fan., 40,000 CFM approx Capacity set up @ 6.3 to 1 air-to-cloth ratio, (design dependant). Consistsf of (8) filter modules under positive pressure and (2) entry (dust fallout modules), expandable Heavy Duty Baghouse Dust Collector System. Designed for medium to large-sized air flows with large material concentration (dust loading).Features: Variable Speed motor drive. (2) 32" High Speed Abort Gates and (2) 32" Explosion Isolation Flap Valves CARZ - Nederman. 2-Zone Spark Detection for (2) Process Air Lines to Filter and (2) Return Air Lines.- Zone 1 Spark Detection – 2 x extinguishing sets in 28"; duct to be located a minimum of 23’ from detector set in 40"; duct between fan and dust collector- Zone 2 Spark Detection – 2 x 32"; high speed abort gates to be located in minimum of 10’ from zone 2 detector sets in 40"; duct.Specifications: -- Total approx. 7,320 sq. ft.of filter area, total of (400) filter bags. Each module contains (50) filter bags @ 915 sq. ft. filter area per module). -- Consists of (8) Filter module sections with combined explosion and access door in each section, each with 2 HP regenerative fans for cleaning of filter media. -- Unit is ATEX rated. Hopper for collected material to a NRSZ-10 Rotary Air Lock (RAL) discharging into a Dual Relay System dust transfer with T.40-315 Relay Fan – 20 HP -- Equipped with: (1) Ground-mounted 200 HP - 1800 RPM TEFC direct drive motor with Variable Frequency Drive and NEDERMAN 40" Material Handling Fan package with 40" inlet pipe to fan inlet box. -- Electrical: NFKZ Control Panel. Separate control panel with motor starter for main blowers. -- Complete with: Support stand (separate steel support) is not included. .Drain with plug: quick open access doors, (dual purpose Explosion Relief Doors) and inlet flange; -- Includes: Approx. 40" Trunk line pipe filter header to fan inlet, square to round fan discharge adaptor, and approx. 3' high support steel structure. -- Baghouse dimensions are: 94.5" square (2,400 x 2,400 mm) for each module.Hence approx. shell overall length is 945" (78.75'). Depth is 94.5". Height of baghouse shell is approx. 167" (4,250 mm), not including support legs. -- Actual model is NFK3000-8HJ-2BL
