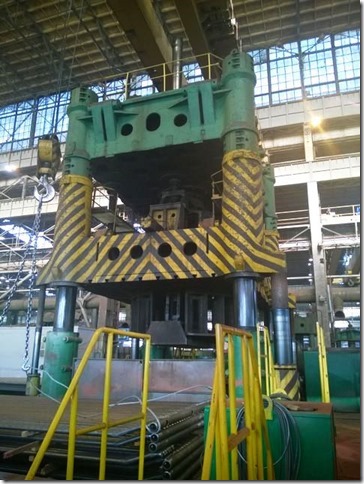

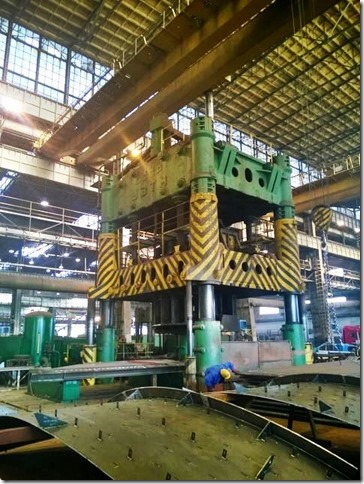

4000 Ton, CCCP hydraulic press, (2) 49.2" strokes, 147.6" daylight, 98.45" SH

We are pleased to offer for immediate sale this used 4000 ton Hydraulic CCCP press with the below specifications. Please call Ted Gillespie at the above toll free phone number for price and further press details. Ted can also arrange inspection for buyers and quote shipping to major Cities worldwide.
Here are the basic specifications confirmed in Inches below for this press.
Capacity 4000 Ton
Internal ram max force 3000 Ton
External ram max effort 1000 Ton
Max. cold punching effort 2000 Ton
Movable table size 216" fb x 236" rl
Central ejector force 900 Ton
Side ejector Force 100 Ton
Distance between columns
- on loading side 232.28"
- on control side 161.41"
Max distance between table and ram 147.63"
Rams up/down stroke speed max 20 cm/sec
Pressing speed max 10 cm/sec
Table travel speed 20 cm/sec
Height over/under floor 43'.86" above floor / below floor 24".60"
Weight 1323.7 Ton
Stroke is carried out in two steps:
One stamp from the internal Stroke size is 49.25"
Second from the plate buildings situated on the 4 pillars/cylinders Stroke size is 49.25"
Total Press Stroke 98.45"
Daylight 147.63"
Shut Height 98.45"
