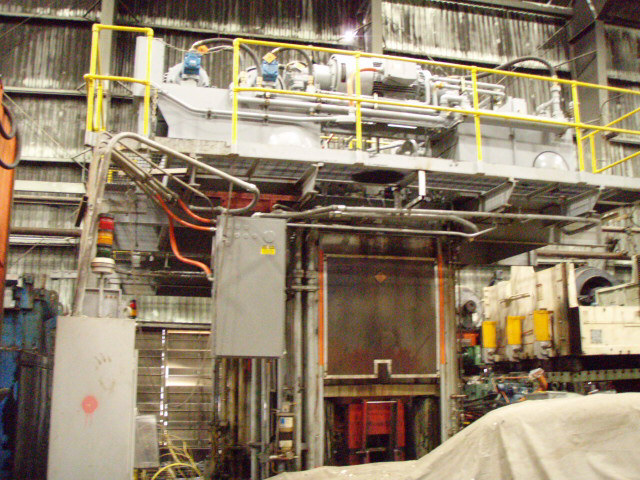

400 Ton, St. Lawrence #SHD1-4P-400, 12" stroke, 8" daylight, 30" x 60" bed, fast, 1999, #2526C

ONE PREOWNED 400 TON ST LAWRENCE EXTRUSION PRESS W/50 TON EJECTOR, MODEL SHD1-4P-400, S/N 9414, NEW APPROX 1999
SPECIFICATIONS:
Capacity-Main Ram @ 1506 P.S.I. 400 Ton
Capacity-Ejector 50 Ton
Stroke of Ejectors in Inches 6”
Daylight 48”
Shut Height 36”
Stroke 12”
Bolster Area 30” x 60”
Ram Closing Speed, Ins./Min 1667 in/Min
Pressing Speed, Ins./Min 173 in/Min
Opening Speed, Ins./Min 1667 in/Min
Distance Between Columns 38”
Bolster Height 4.5”
Height of Bolster from Floor 42”
Capacity of Hydraulic Tanks 1200 gal
Motors-Main (2) 150 hp
Motor-Return Power (1) 75 hp
Floor Space 80” x 92”
Press Height Above Floor 217”
Approx Weight 84,200 lbs
EQUIPPED WITH:
Part Feed and Transfer System
Flush Mount with Micro/Level Isolators
Top Mount Hydraulic System
Update PC Base Controls
Guarding
CONDITION: Very good to excellent. Inspect under power. Last used by automotive company to cold forge starter gears.
LOCATION: In Storage Northeast USA
Two (2) Available
Stk#2526CE
