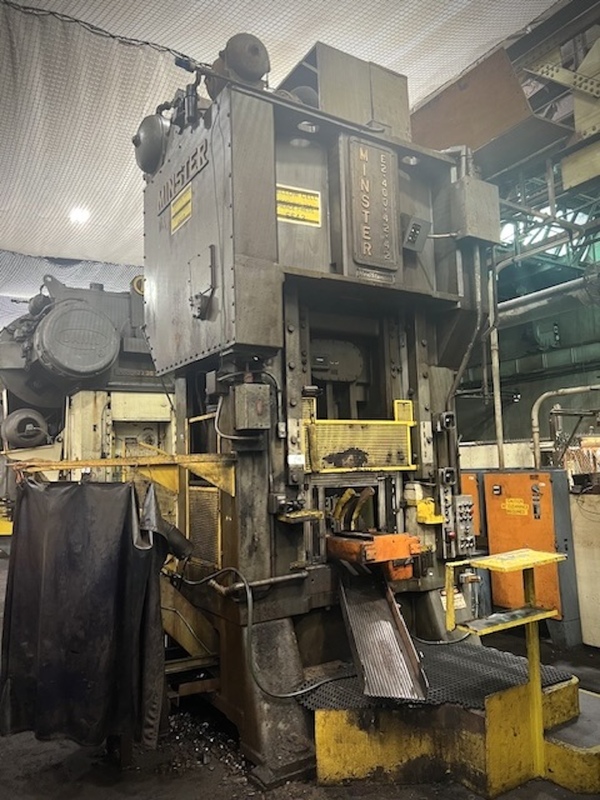

Manufacturer: Minster
Model: E2-400-42-42
Year: 1978
Ton: 400
Stroke: 8.0
Shut Height: 38.0
Stock # 8055
Click to zoom in
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description
| CAPACITY | 400 ton | STROKE | 8" | MAX SHUT HEIGHT TO BED | 38" SDAU | BED AREA | 42" X 42" (rl x fb) | SPEED | 44 SPM | SLIDE ADJUSTMENT | 6" MOTORIZED | SLIDE AREA | 42" RL X 42" FB | BOLSTER PLATE | APPROX 6" H X 42" RL X 42" FB | DISTANCE BETWEEN UPRIGHTS | 42" | DISTANCE FLOOR TO BED | 34" | WINDOW SIZE | 26" W | CLUTCH | MINSTER AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 30 HP 1150 RPM 480V-3-60 MOTOR & NEW CIECO 1100R PRESS CONTROL FOR RECOND. PRICE | APPROX DIMENSIONS | 211" H X 87" RL X 80" FB | APPROX WEIGHT | 88,000 LBS | Equipped With | TIE ROD FRAME, GEARED, TWIN END DRIVE, HEAVY DUTY UPRIGHTS, EIGHT POINT GIBBING FOR PRECISION SLIDE GUIDING, HEAVY SLIDE & CONNECTIONS, DUAL AIR COUNTERBALANCES, FLOOR STANDING | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
Buyers Who Viewed This Listing Also Viewed:

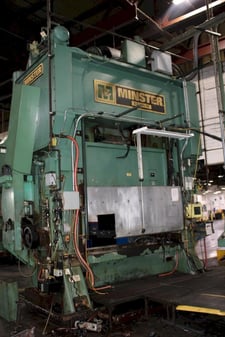

400 Ton, Minster #E2-400-96, straight side double crank, 8" stroke, 40" Shut Height, 96" x42" bed, 70 SPM, air clutch & brake, 1981
