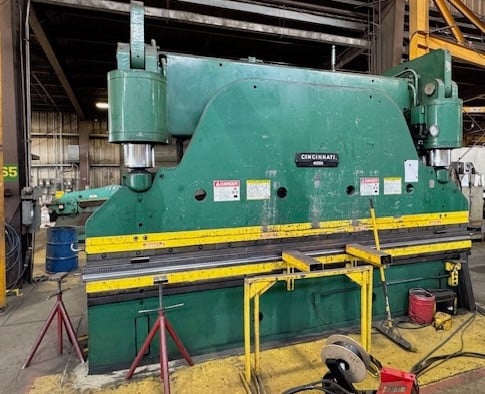

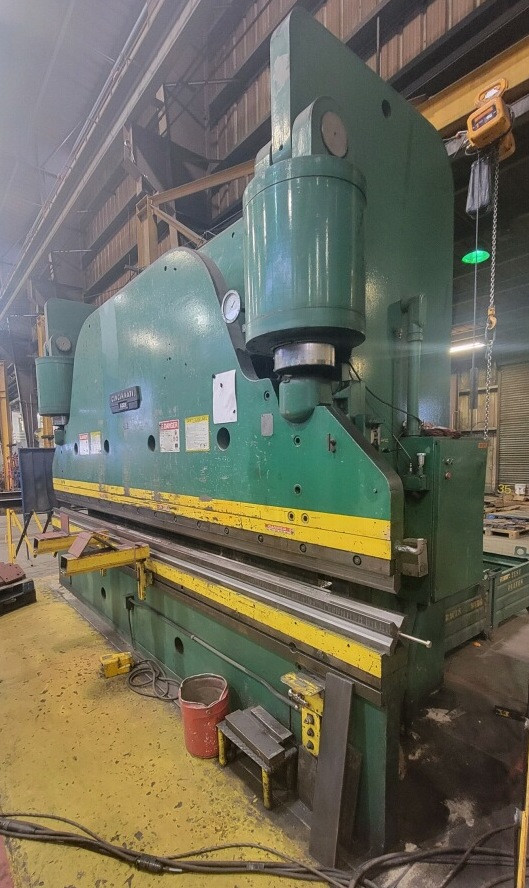

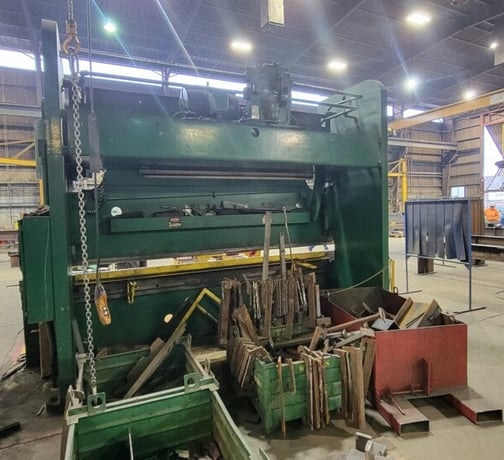

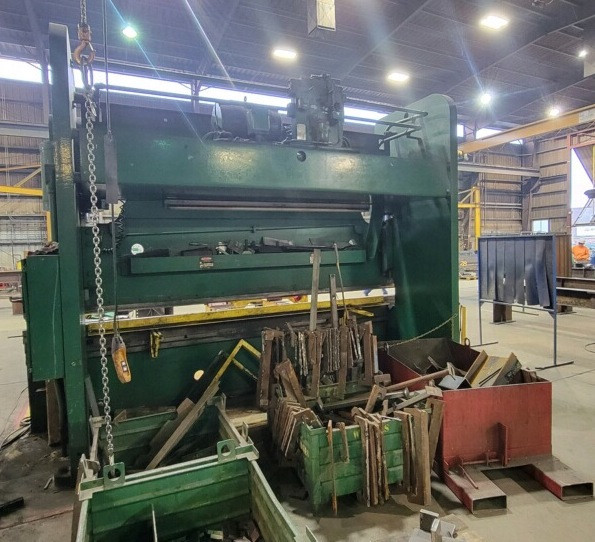

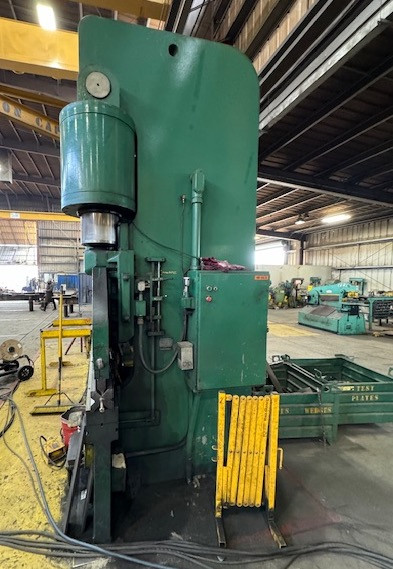

400 Ton, Cincinnati #400H, hydraulic press brake, 16' overall, adj depth stop, foot pdl, 4-way die & punch, 40 HP

Overall Bed Length 16'
Dist. Between Housings 12' 6"
Bending Capacity 400 Tons
Capacity 10' X 1/2"
Stroke 12"
Ram Speed (Fast Press) 64 Ipm
Ram Speed (Full Tonnage) 27 Ipm
Ram Speed (Return) 51 Ipm
Open Height 20"
Closed Height 8"
Bed Height 32"
Main Motor 40 Hp
Weight Approx 58,500 Lbs.
Approximate Dimensions 192"Lr X 62"Fb
Height Above Floor 11'8" High
Depth Of Pit 49"

Equipped With:
Full Length Die Rail
Adjustable Depth Stop
40 Hp Motor Currently Running 440v

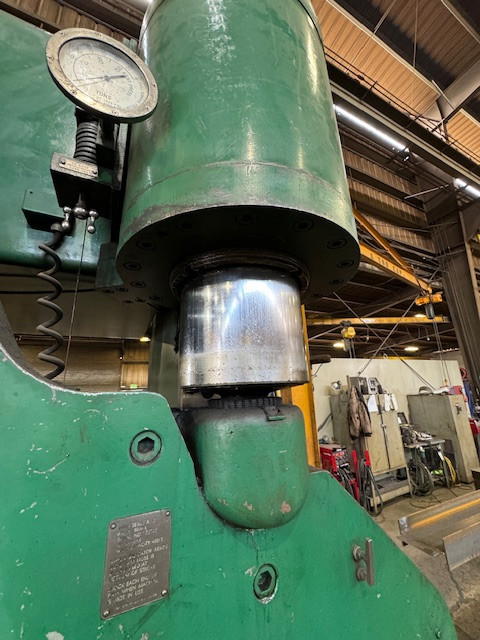

Tonnage Indicator
Front Ram Leveling Adjustment
Front Ram Depth Adjustment

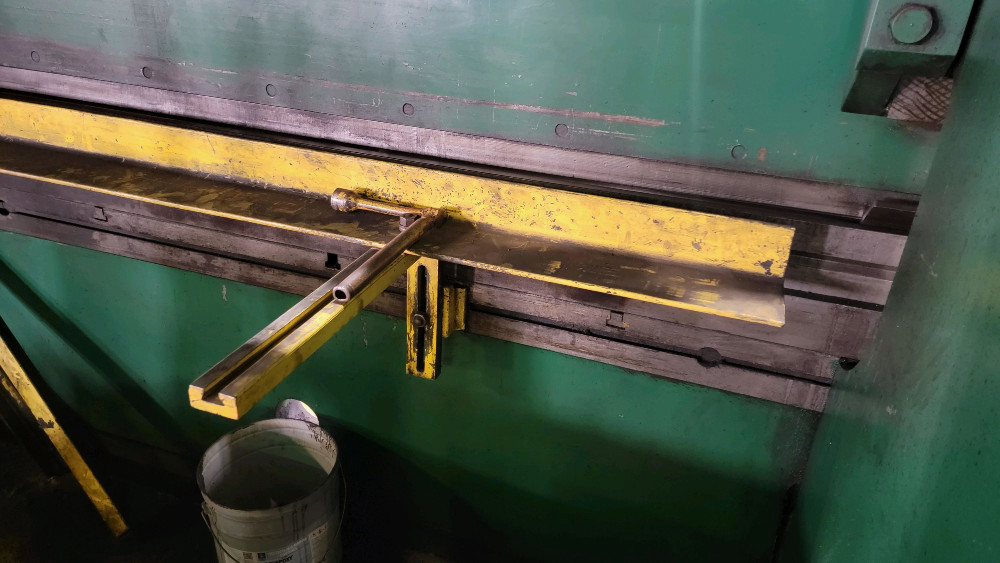

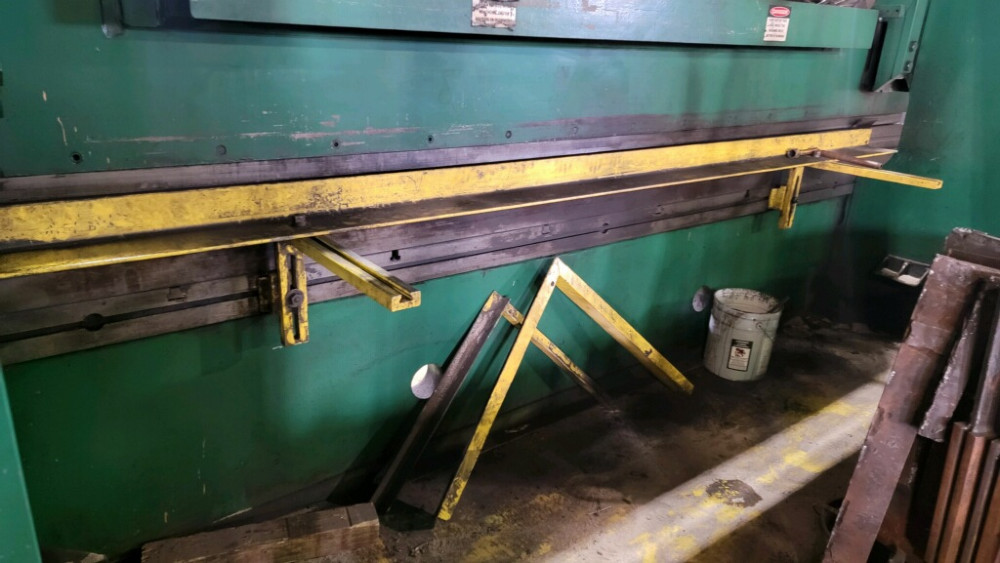

Rear Angle Brackets For Part Stops
Foot Pedal
E-Stop

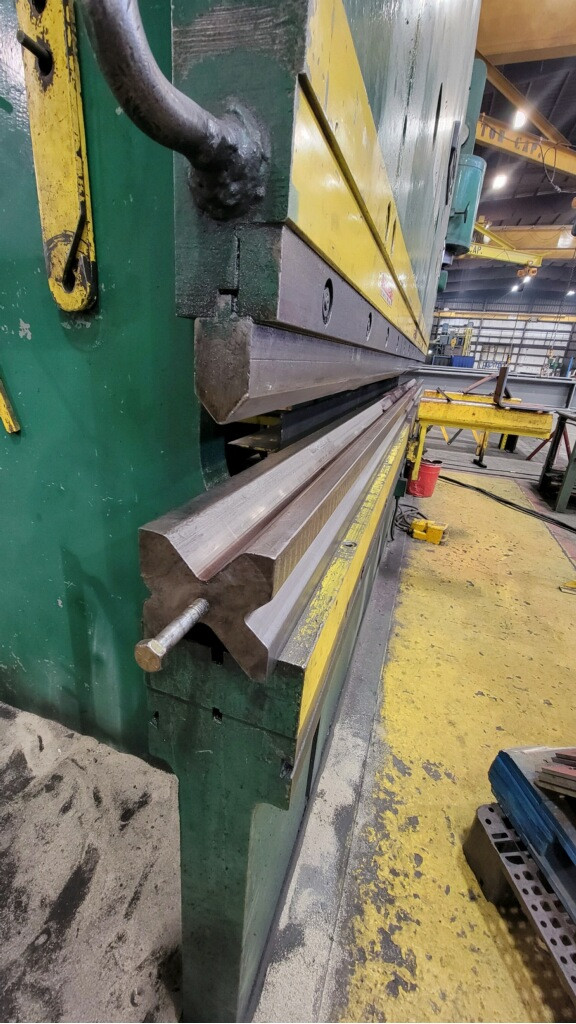

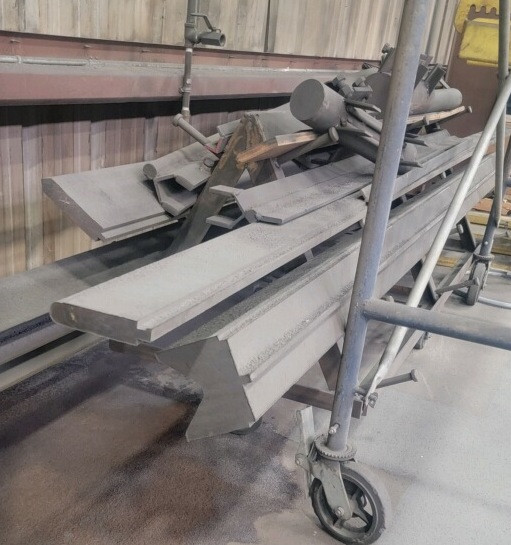

4 Way Die With Punches And Miscellaneous Tooling.

Machine under power.
