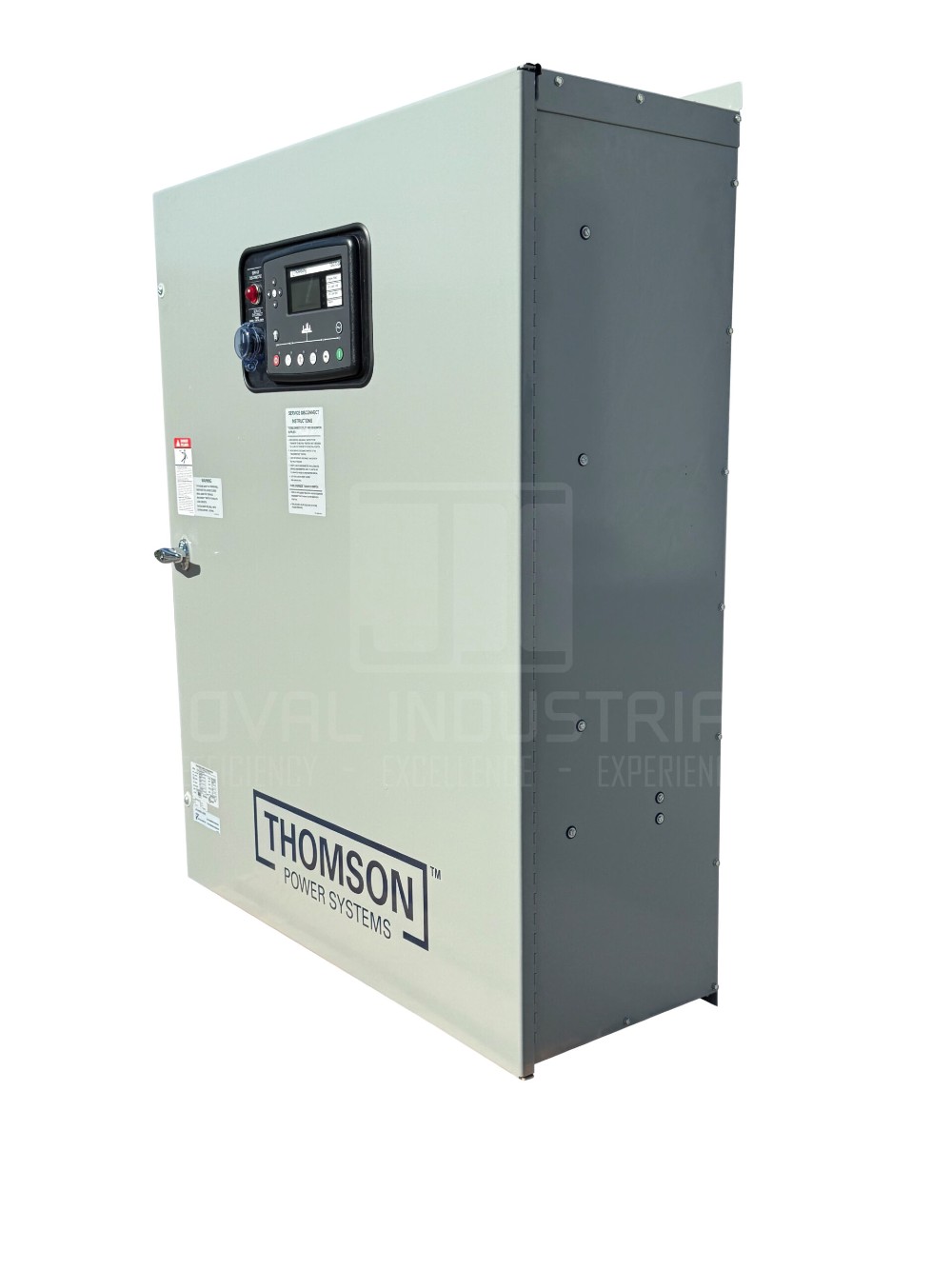

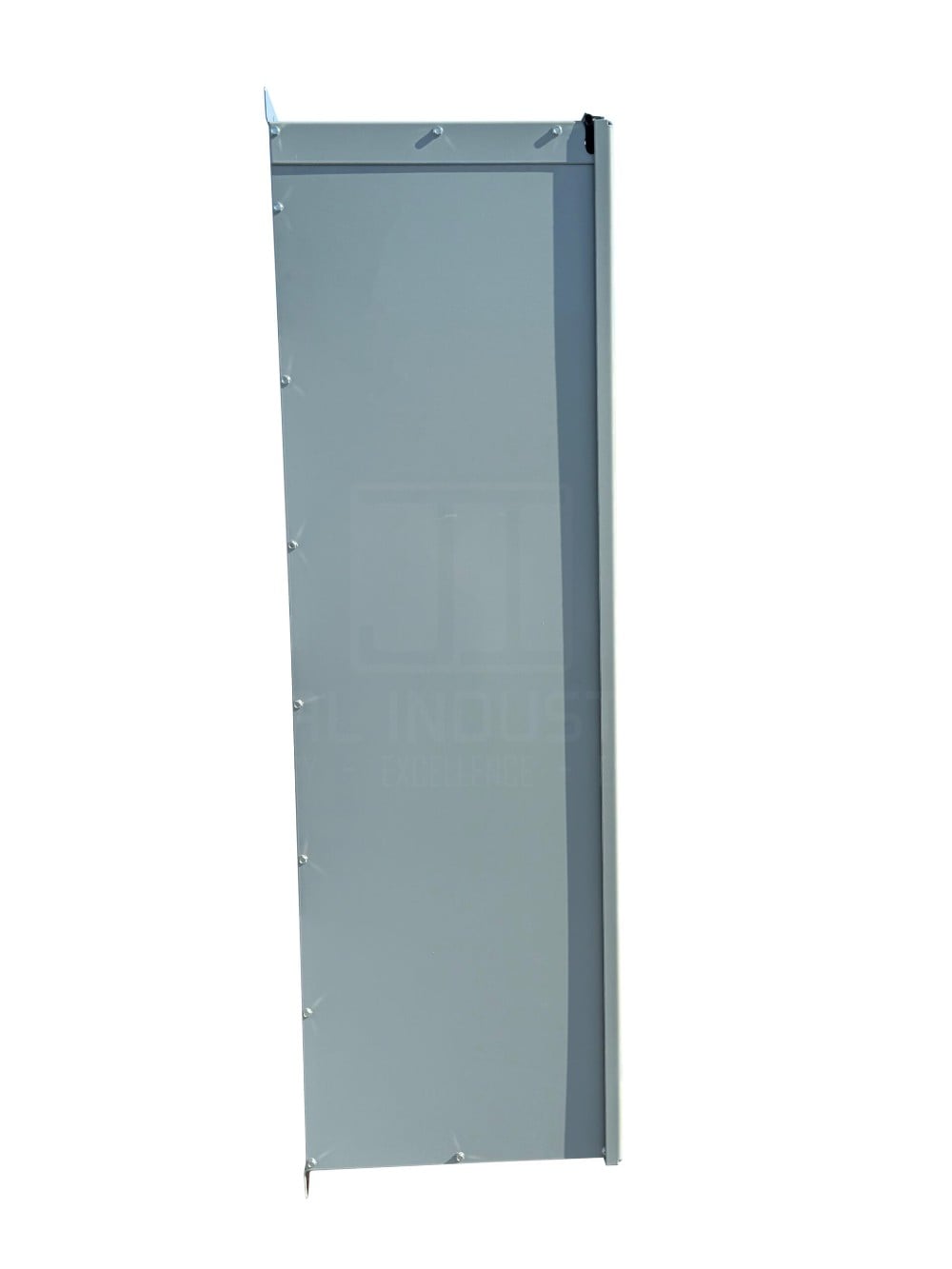

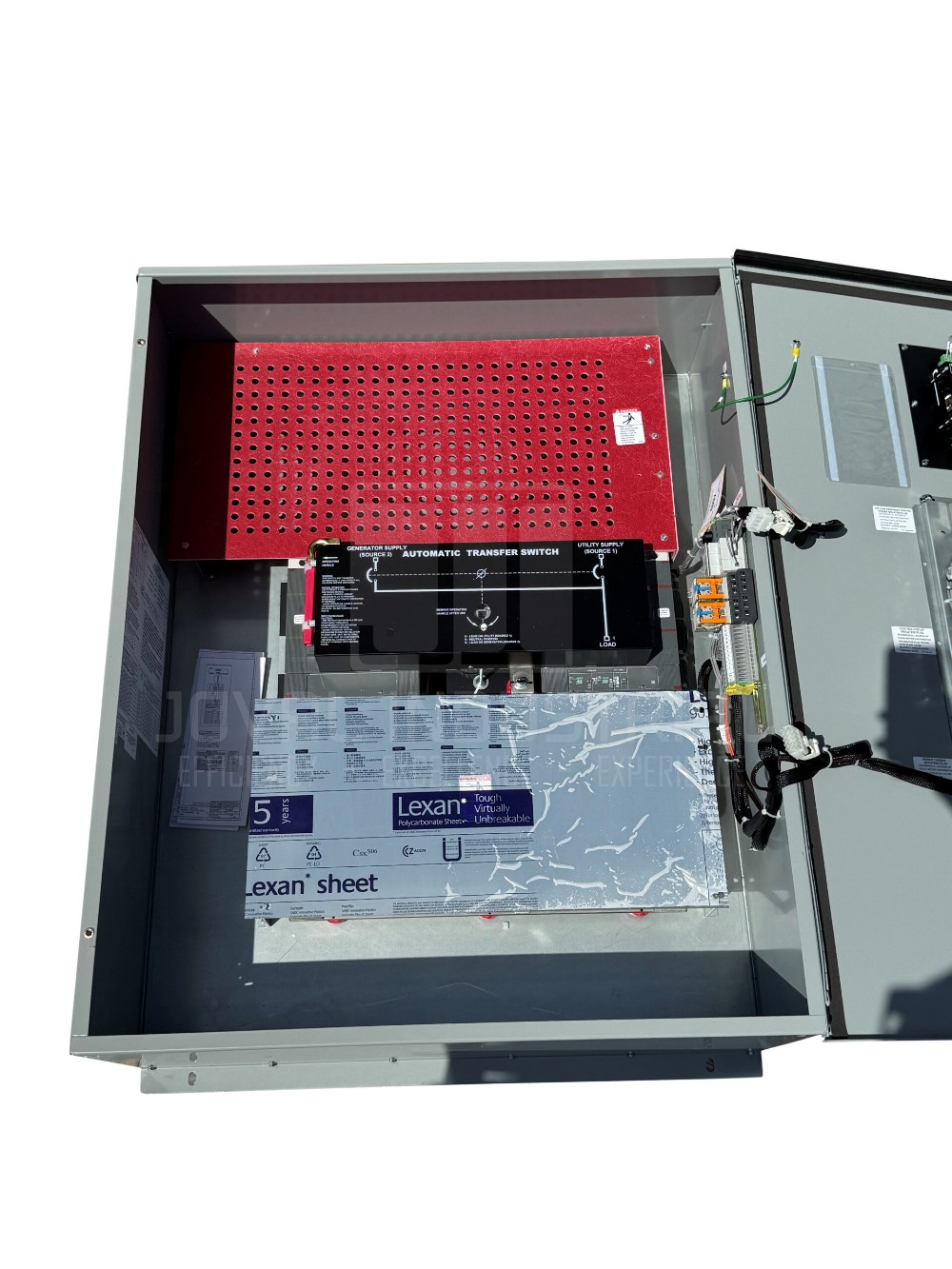

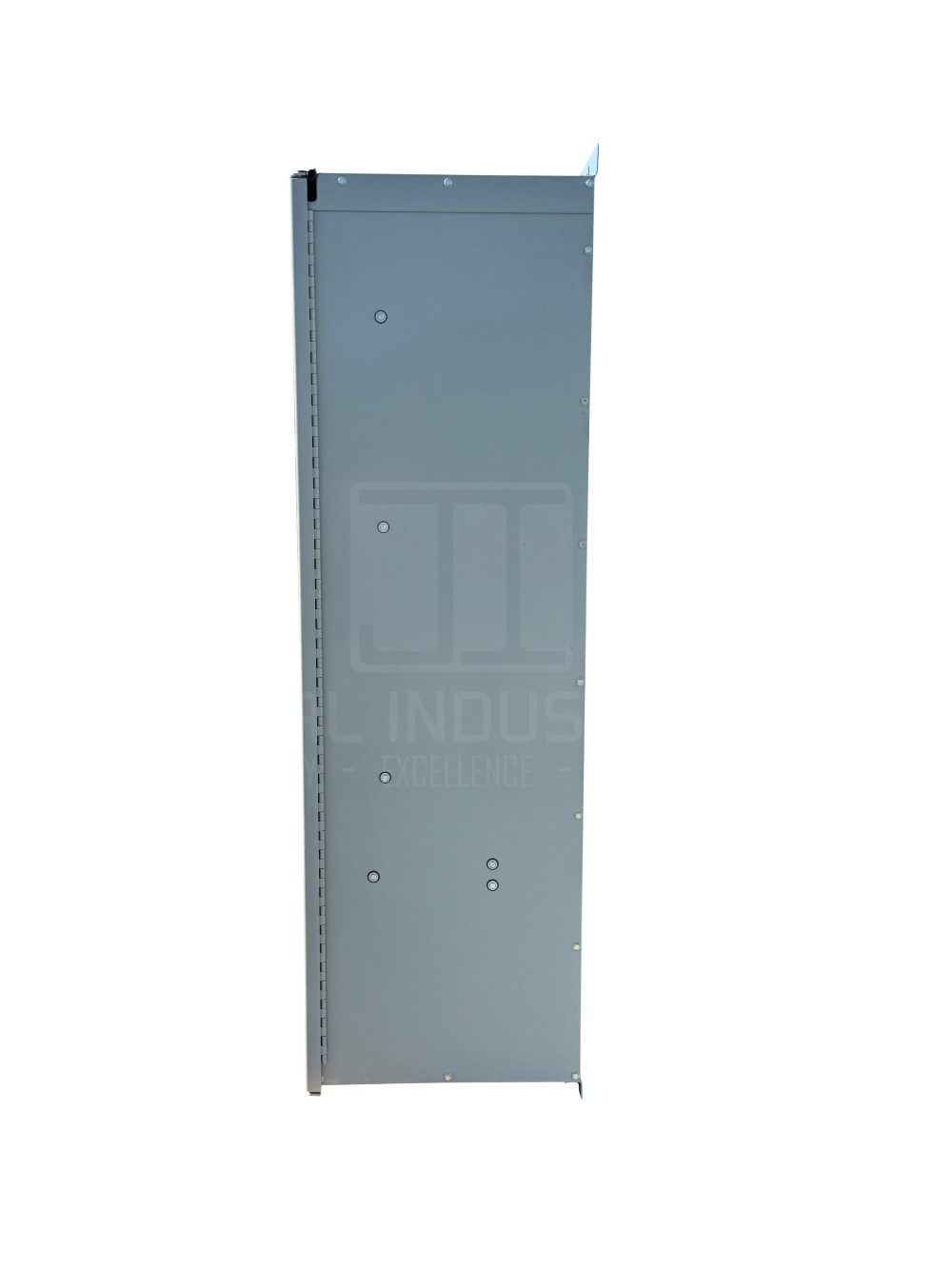

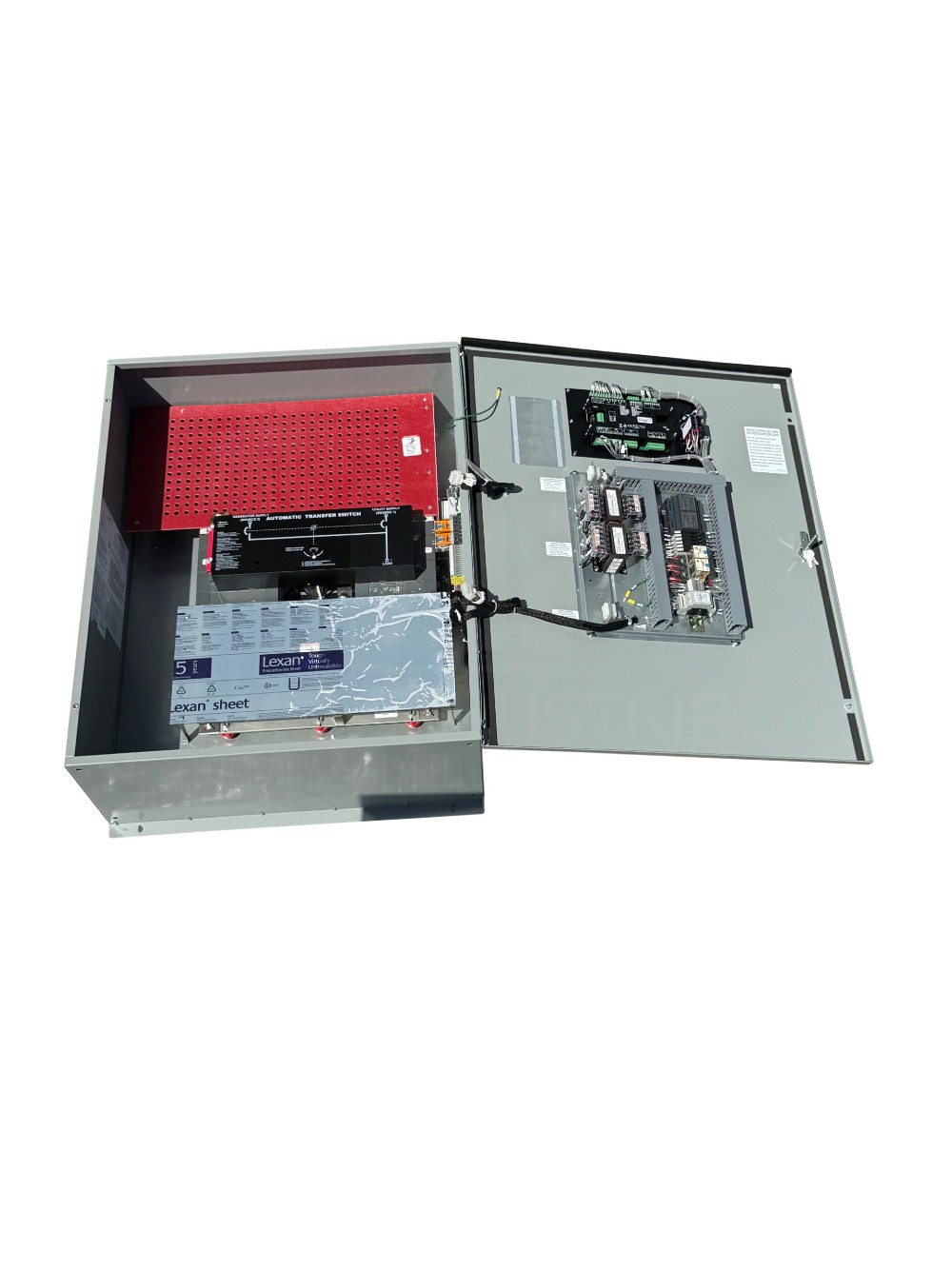

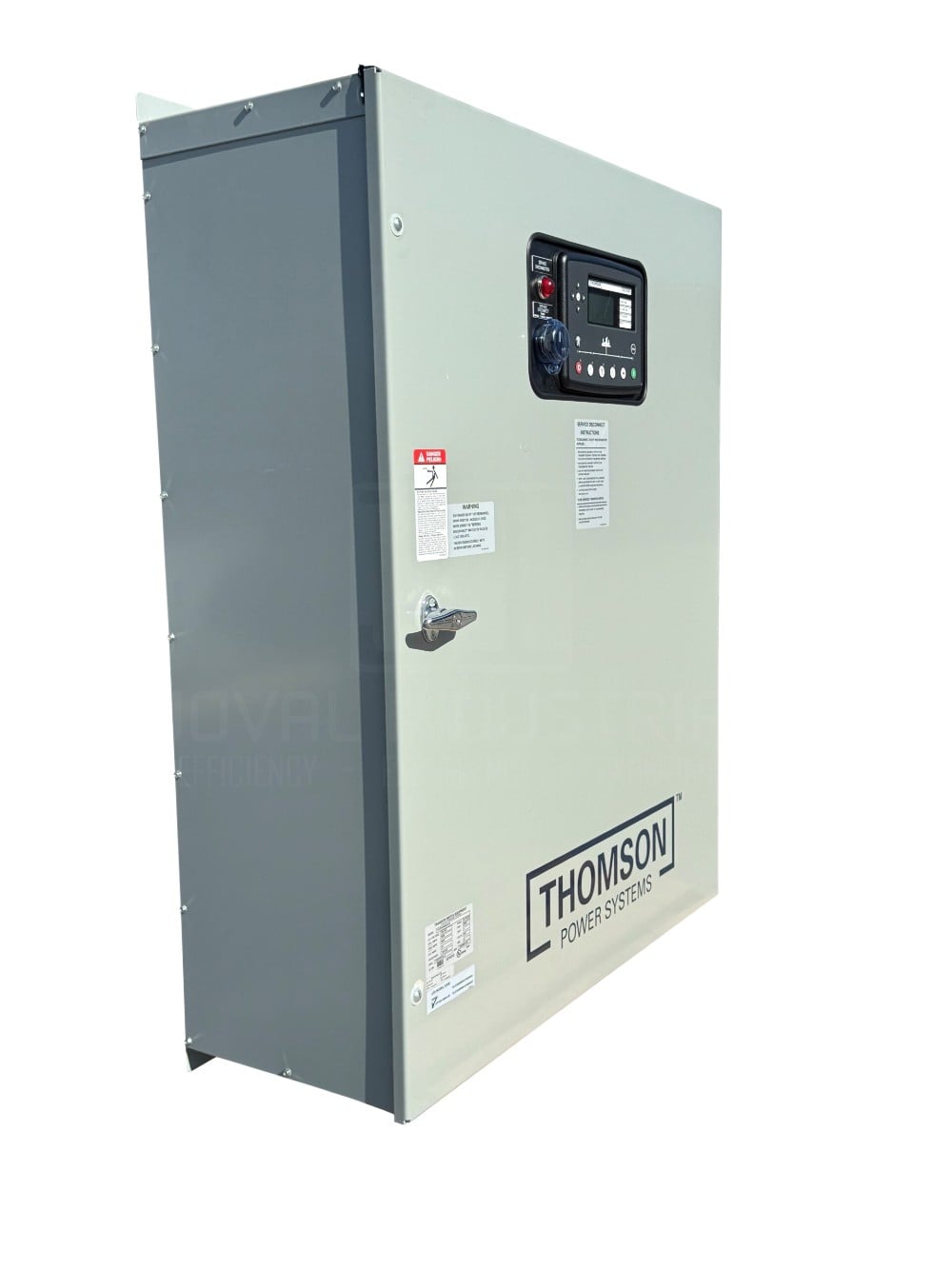

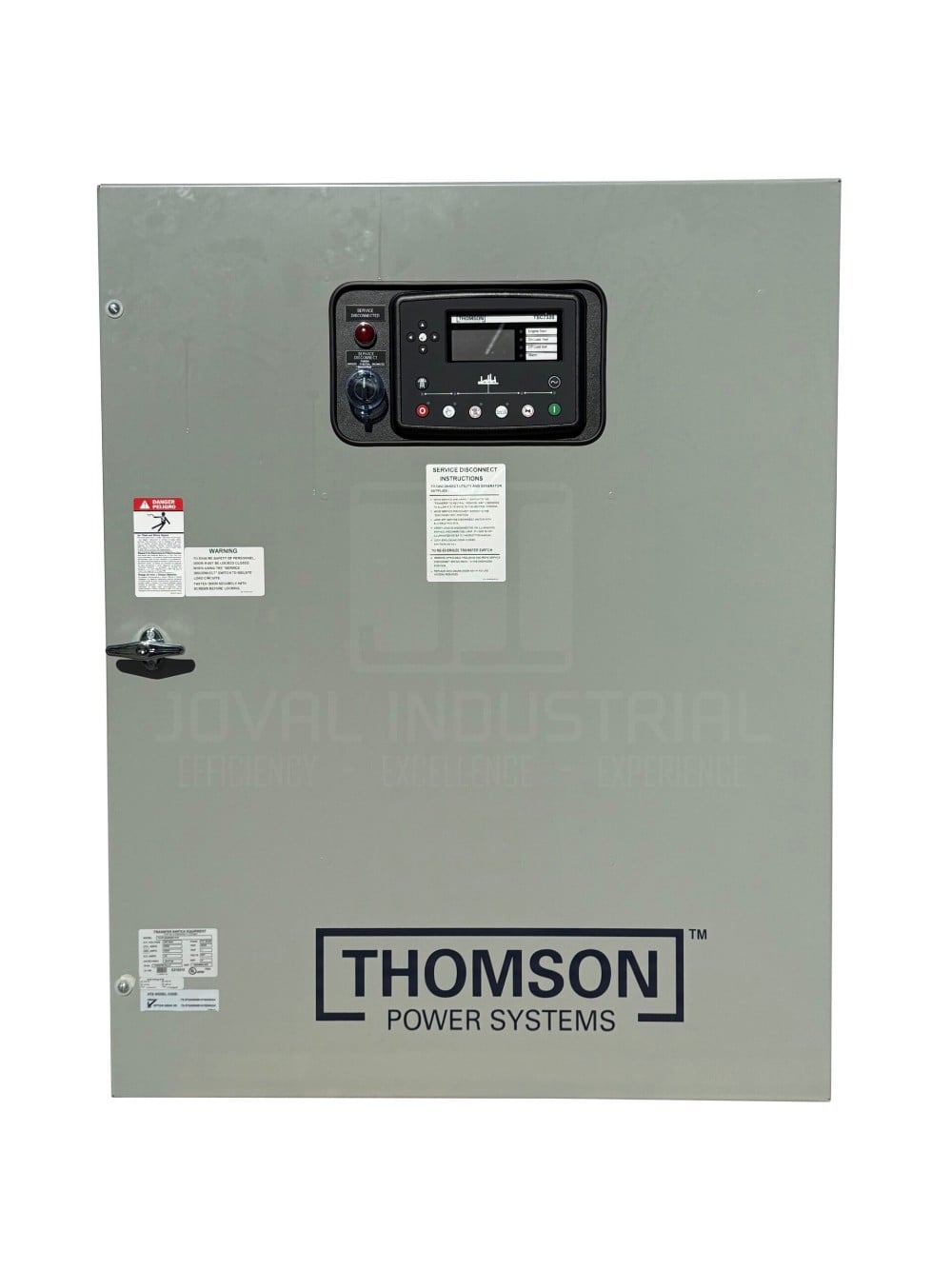

400 Amp. Thomson Power, Service Entrance Rated Transfer switch, Automatic transfer switch, 1 or 3 phase, 208-600 Volts, New

$8,664 USD

Request Formal Quote

THOMSON POWER SYSTEMS® AUTOMATIC TRANSFER SWITCH – NEW
TS870 SERIES – SERVICE ENTRANCE RATED

■ Amperage Rating: 400Amps
■ Series: TS870 Automatic Transfer Switch
■ Application: Service Entrance Rated ATS
■ Poles: 2 or 3-Pole
■ Phase: 1 or 3 Phase
■ Voltage: Multi-Voltage, Field-Configurable for 208/240/480/600V Applications
■ Frequency: 50/60 Hz
■ Transition Type: Open Transition
■ Switching Type: Breaker-Style / Molded Case Switching
■ Utility Protection: Trip on Utility / Service Disconnect
■ Neutral: Solid Neutral

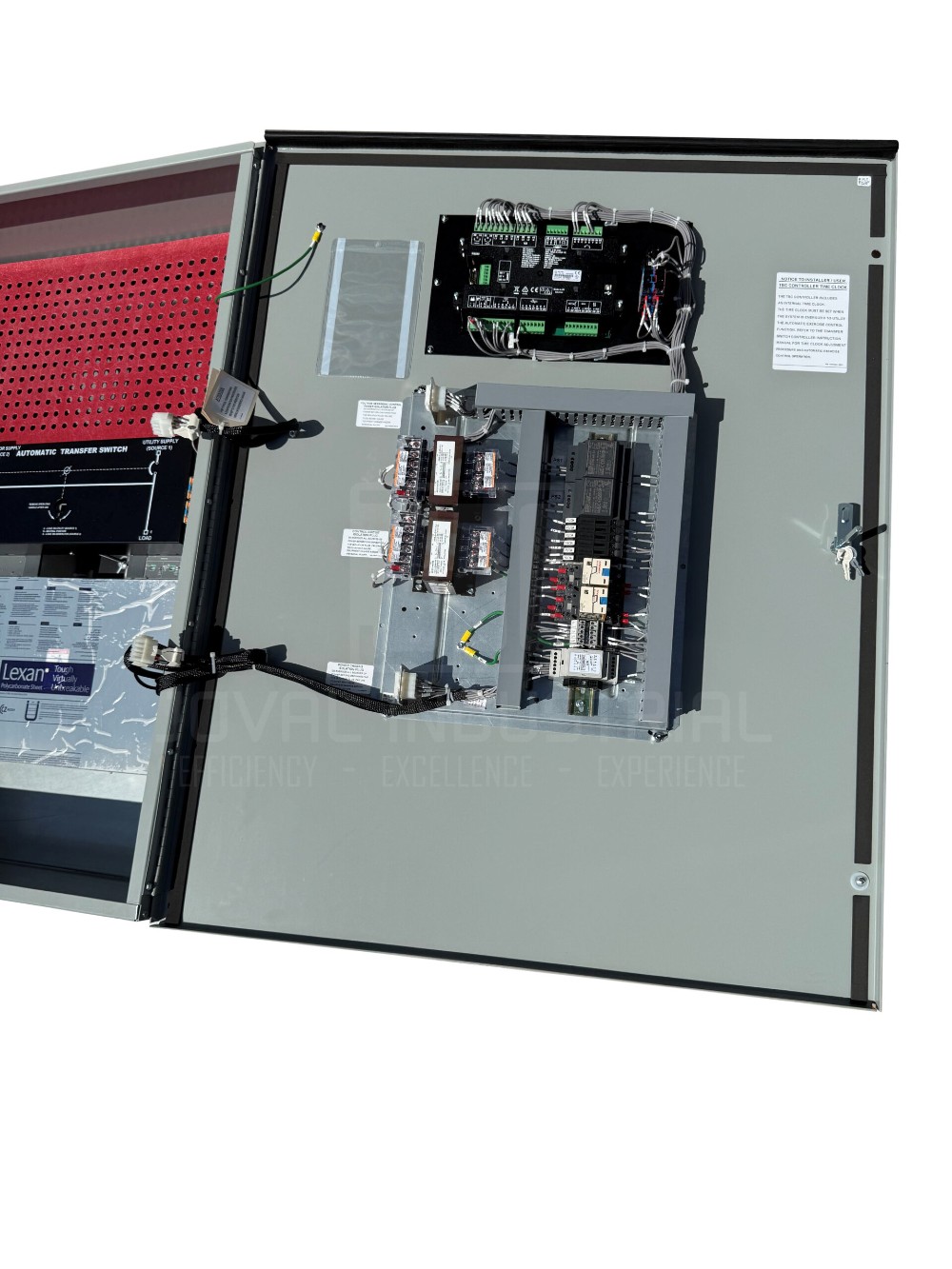

■ Controller: TSC 7320 Advanced Controller
■ Display: 2.3" Back-Lit LCD Operator Interface
■ Generator Start: 2-Wire Dry Contact
■ Generator Exerciser: Programmable On-Load or Off-Load Exerciser
■ Enclosure: NEMA 3R Outdoor Rated Steel Enclosure
■ Safety Listing: UL 1008 / CSA C22.2 No. 178 Listed
■ Dimensions: 43.1 x 34.3 x 13 inches — Reference Only, See Drawing

KEY BENEFITS
✔ Service Entrance Rated Design with Utility-Side Disconnect Protection
✔ Automatic Utility-to-Generator Power Transfer
✔ Breaker-Style Switching Design with Integrated Overcurrent Protection
✔ Multi-Voltage Capability for 208 to 600V Applications
✔ Advanced TSC 7320 Controller with 2.3" Back-Lit LCD Display
✔ Field-Programmable Controller — No Computer Required
✔ Programmable Generator Exerciser with Load or No-Load Test Options
✔ 2-Wire Dry Contact for Generator Auto-Start Connection
✔ Voltage and Frequency Monitoring for Utility and Generator Sources
✔ Open Transition Transfer Operation
✔ Solid Neutral or Switched Neutral Configuration
✔ UL 1008 / CSA 178 Listed for Emergency and Standby Applications

IMPORTANT NOTES
• Installation should be performed by qualified electrical personnel only.
• Dimensions and weight are approximate and for reference only.
