400 Amp. Eaton, Pow-R-Line PRL2a Panelboard 480Y/277V, 3-Phase 4-Wire, 60 Circuit, with HKD Main and GBH Branch Breakers (2015 available)

400 Amp Main Breaker, Eaton Pow-R-Line PRL2a Panelboard
480Y/277V, 3-Phase 4-Wire, 60 Circuit, with HKD Main and GBH Branch Breakers (2015)

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

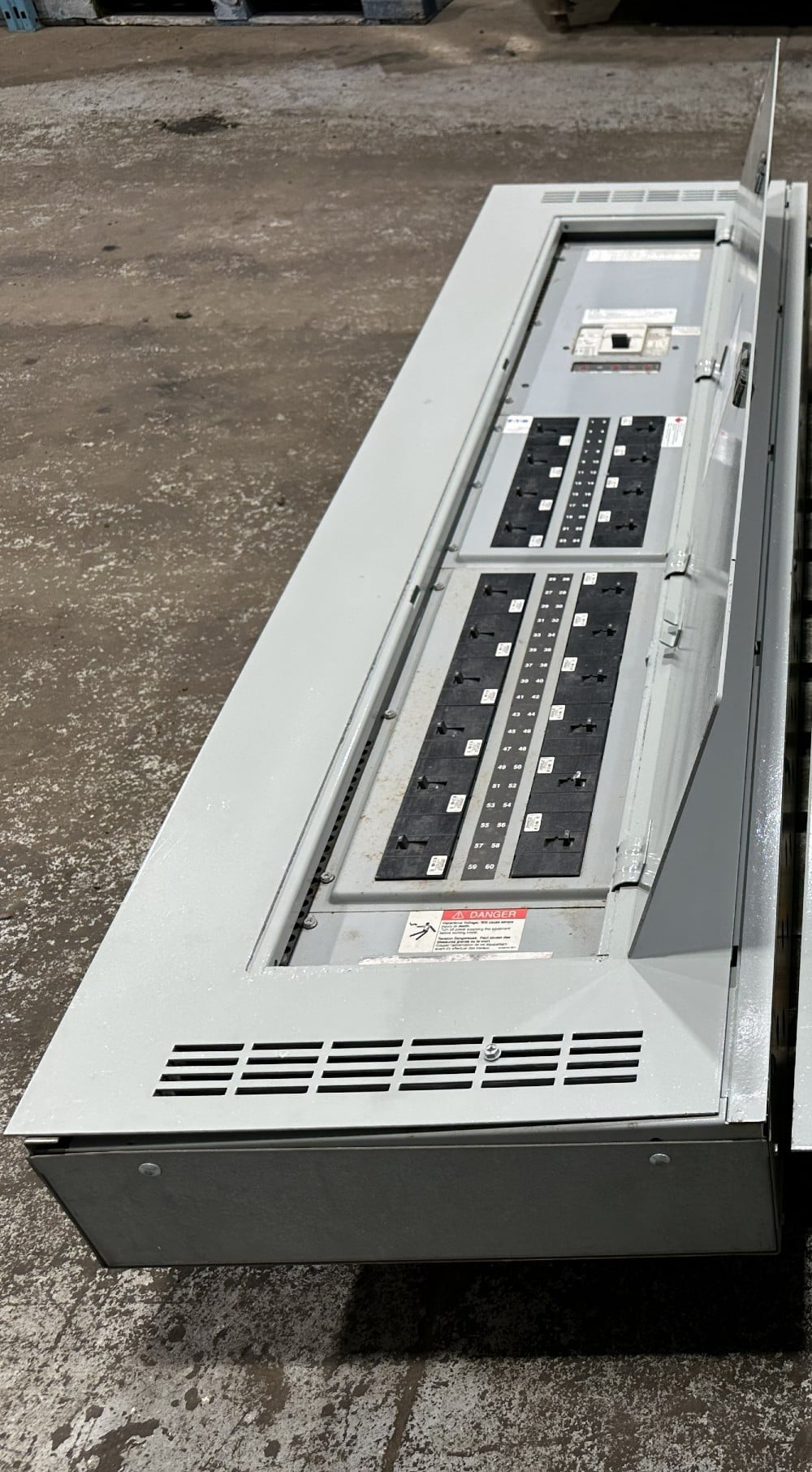

Surplus Eaton Pow-R-Line PRL2a panelboard, 480Y/277V, 3-phase 4-wire, 60 Hz, with 400A main bus and 400A neutral. It has 60 circuit spaces. The main breaker is an Eaton Series C HKD3400F frame (400A, 3-pole, 600 VAC) fitted with a KT3400T thermal-magnetic trip unit with adjustable magnetic trip and push-to-trip. Eaton GBH3030 three-pole 30A bolt-on branch breakers are installed. The panel comes complete in its Enclosure Type 2 tub with a hinged door-in-door trim. Made in Mississauga, Ontario, Canada, dated April 2015. It suits commercial and industrial 480/277V lighting and power distribution.

Please note: The number of branch breakers installed and the remaining spaces are as shown in the photos. Please call to confirm the exact breaker count and layout. The branch breakers are 480Y/277V rated GBH units.

SPECIFICATIONS:
Manufacturer: Eaton
Type: Pow-R-Line PRL2a Panelboard
System: 480Y/277V, 3-Phase 4-Wire, 60 Hz
Main Bus: 400A
Neutral: 400A
Circuits / Spaces: 60

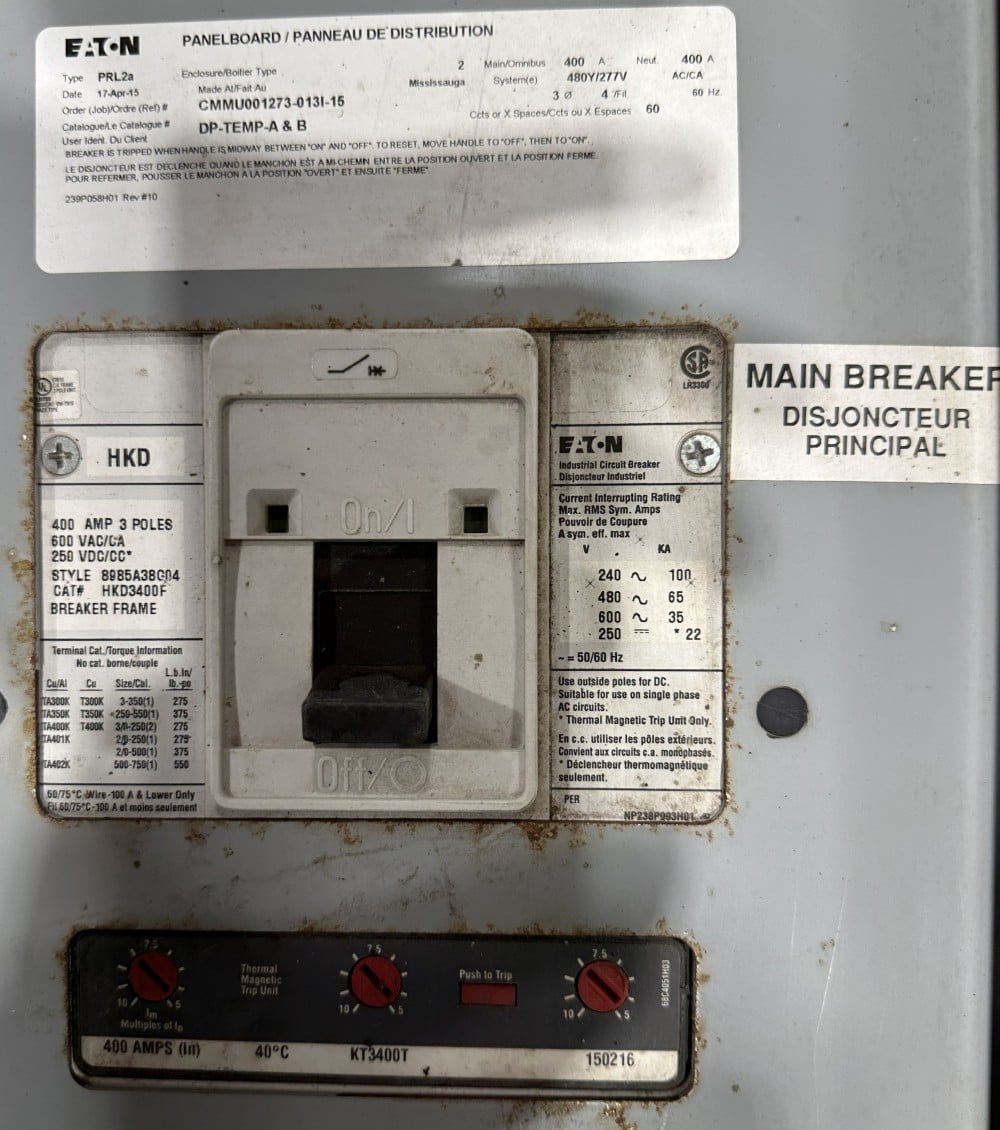

Main Breaker: Eaton HKD3400F frame (Style 6685A36G04), 400A, 3-Pole, 600 VAC / 250 VDC
Main Trip Unit: KT3400T Thermal-Magnetic, 400A (In), 40°C, adjustable magnetic, push-to-trip

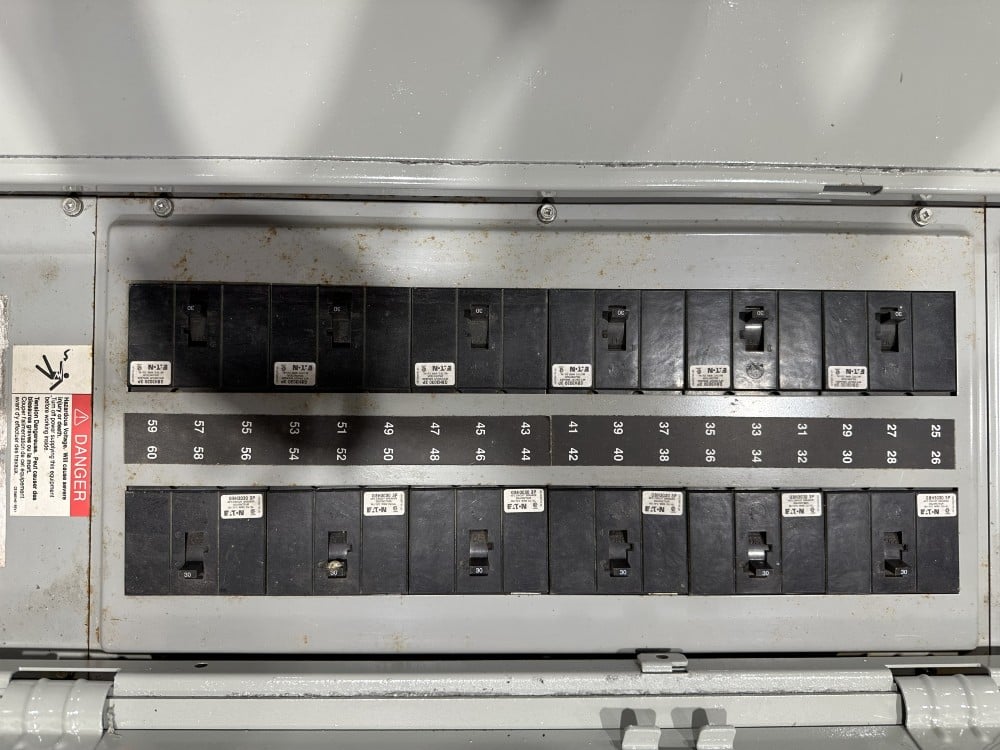

Branch Breakers: Eaton GBH3030, 3-Pole, 30A
Enclosure Type: 2
Date of Manufacture: April 2015
Origin: Made in Mississauga, Ontario, Canada

CONDITION:

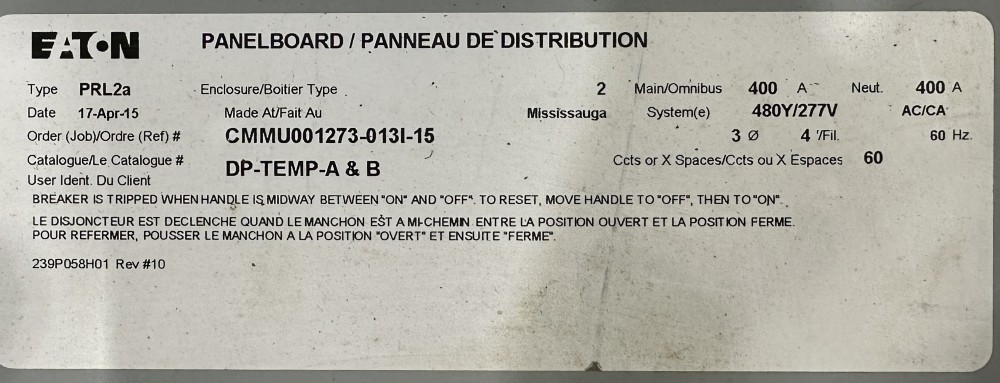

Used surplus, removed from service. Tub, interior, trim and door are intact. The nameplates on the panel and the main breaker are legible. Light dust and handling marks. Sold as-is, untested.

TERMS:
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: PAN-0001
