For Sale by Southern Fabricating Mchy Sales
Description

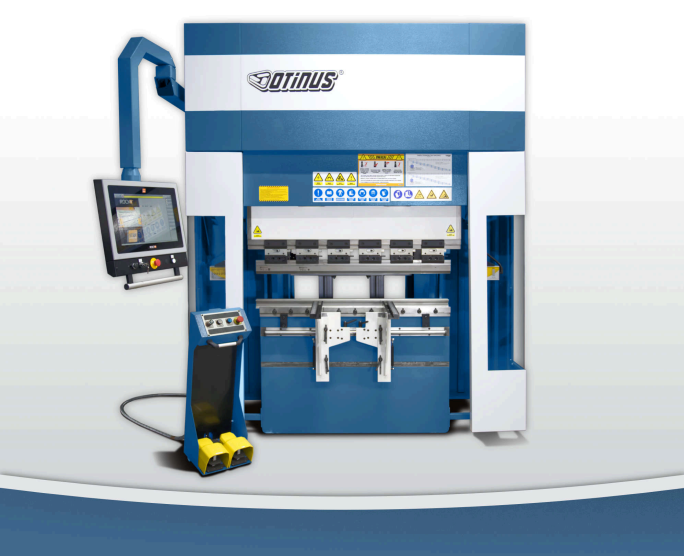

44 Ton X 4’ Electric Press Brake with Delem 58T Control, WILA Tool Clamping, Advanced Automatic Crowning System, Integrated Fiessler AKAS Safety System, Independent Y1 & Y2 Control, Integrated LED Lighting, Front Supports and Control Pedestal with Foot Pedals.
GENERAL SPECIFICATIONS
Bending Capacity: 400Kn
Max Working Length: 50”
Throat Depth: 12”
Max. Ram Stroke: 8”
Daylight: 16”
Distance Between Side Frames: 43”
Backgauge Retract Distance: 30”
Nominal Motor Power: 2.68 HP
Access Speed: 5.9” / Sec
Bending Speed: 0.39” - 0.78” / Sec
Return Speed: 5.9” / Sec
Machine Dimensions: 77” X 57” X 103”
Machine Weight: 8,900 Lbs
INCLUDES: Delem 58T Control, WILA Tool Clamping, Advanced Automatic Crowning System, Integrated Fiessler AKAS Safety System, Independent Y1 & Y2 Control, Integrated LED Lighting, Front Supports and Control Pedestal with Foot Pedals.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
