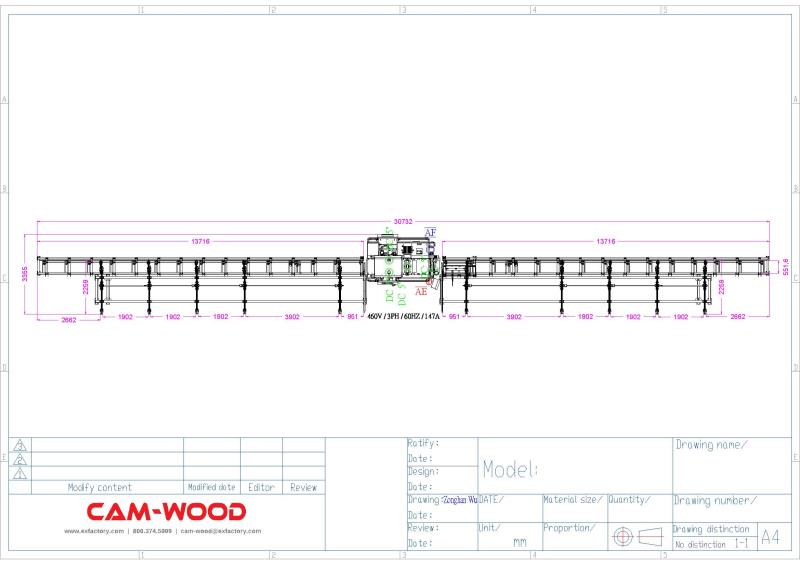

40' long, Cam-Wood #MHC-500, Lateral Chain Feeder, 4.75"-19.7" width x 0.75"-16.1" thick x 540" L Work size, (5) 96" L feed chain w/logs, 70 FPM, 2026

$171,300 USD

Request Formal Quote

CAM-WOOD MHC 500 Lateral Chain FeederHeavy Duty Cross feed for Beam of 16" X 20" and up to 40 ' longFeatures: -- Could be used at infeed or outfeed -- The feed conveyor is designed to be able to connect with any 4-sided Moulder, Multiple Blade Rip Saw, Straight Line Rip Saw and PlanerFeed rollers are pneumatically actuated for quick clamping of wood. The feed speed of the front set of rollers is adjustable to match the moulder/planerHydraulic drive motors for each feed roller allow variable feed drive -- Centralized control panel, with push-button for start and stop, chain feed regulation and display, feed roller raising/lowering control -- Infeed fence, the infeed fence allows the material to be lined up properly with the feed roller -- Wood thickness limit. There are two adjustable thickness limits preventing over-thickness material to enter the moulder/planerSpecifications: Working width 120 to 500 mm (4 3/4" to 19.7") Working thickness: 20 to 410 mm (3/4" to 16.1")Minimum lenght: 3,200 mm )120")Macimum lenght: 13700 mm (45')Feed speed: 18' to 70FPMCross Section: -- (5) feed chain with logs 2,500 mm (96")long -- Distance betewwen each feed chain: According to you minimum and maximum lenght
