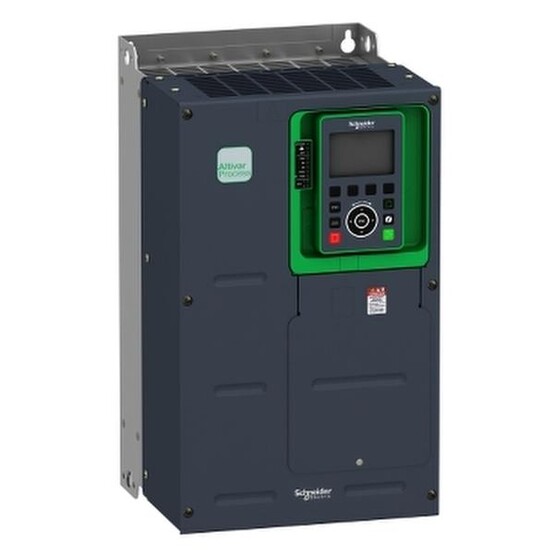

40 HP Schneider #ATV-630-D30-Y6, altivar 630 ac variable frequency d, 500-690 Volts, Unused

Schneider/Telemecanique 40HP VFD

• Make: Schneider/Telemanique
• Model: ATV-630-D30-Y6
• Condition: Unused
• Rated Supply Voltage: 500-690 Volts
• Type of Cooling: Forced Convection
• Supply Frequency:
  • 50-60Hz (-5 - 5%)
  • 500-690 Volts (-15 - 10%)
• Maximum Horse Power Rating:
  • 30HP - 500 Volt (Normal Duty)
  • 25HP - 500 Volt (Heavy Duty)
  • 40HP - 690 Volt (Normal Duty)
  • 30HP - 690 Volt (Heavy Duty)
• Line Current:
  • 32.1 A - 500 Volt (Normal Duty)
  • 32.8 A - 690 Volt (Normal Duty)
  • 27.6 A - 500 Volt (Heavy Duty)
  • 26 A - 690 Volt (Heavy Duty)
• Prospective Line Isc: 70 kA
• Apparent Power:
  • 39.2 kVA - 690 Volt (Normal Duty)
  • 31.1 kVA - 690 Volt (Heavy Duty)
• Continuous Output Current:
  • 34 A - 4 kHz (Normal Duty)
  • 29 A - 4 kHz (Heavy Duty)
• Speed Drive Output Frequency: 0.1-500Hz
• Nominal Switching Frequency: 4 kHz
• Output Voltage: <= Power Supply Voltage

• Overall Dimensions:
  • Width: 9.69in
  • Height: 16.54in
  • Depth: 9.53in
  • Weight: 48.5 Lbs.

• Location: Savona, British Columbia, Canada
