40 HP 1775 RPM Baldor #H2539T, Frame 324T, 230/460 Volts, 3Ph, 1.15 service factor

Overview

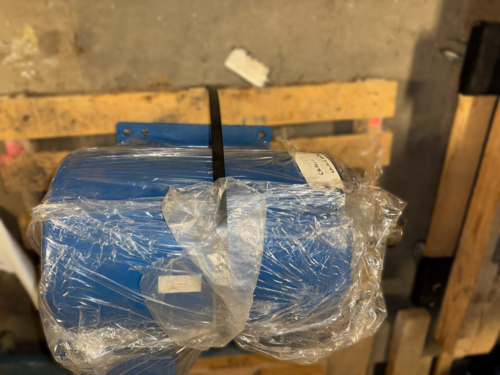

This Baldor industrial motor is a 40 horsepower three-phase electric motor manufactured by Baldor Electric Company in Fort Smith, Arkansas. Model H2539T with specification 40H005W275H1 and frame 324T, this motor operates at 1775 RPM and is rated for 230/460 volt dual voltage operation. The motor remains in protective plastic wrapping.
Design and Performance

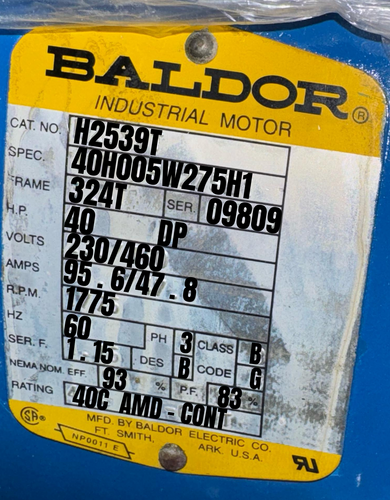

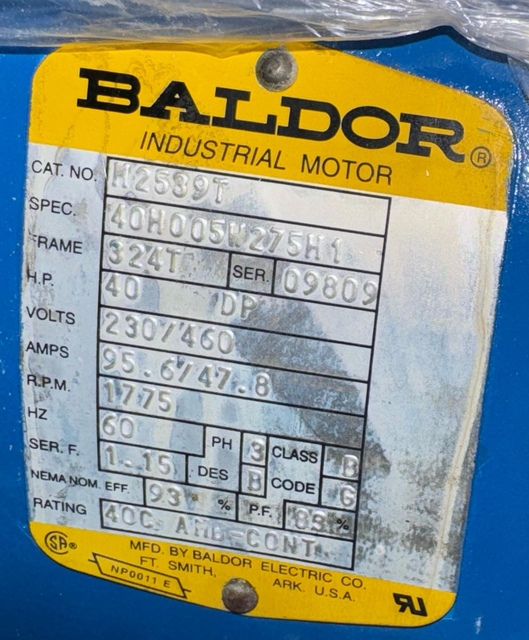

Model Specifications:
- Catalog No.: H2539T
- Specification: 40H005W275H1
- Frame: 324T
- Serial Number: 09809
- Manufacturer: Baldor Electric Company
- Made in: Fort Smith, Arkansas, USA
Performance Specifications:
- Horsepower: 40 HP
- Voltage: 230/460V
- RPM: 1775
- Frequency: 60 Hz
- Amps: 95.6/47.8
- Phase: 3
- Service Factor: 1.15
- Design: B
- Class: B
- Code: G
- NEMA Nominal Efficiency: 93%
- Power Factor: 83%
- Rating: 40°C AMD - CONT
Construction:
- Blue painted steel frame
- Frame type: 324T
- Foot mount configuration
- Protective plastic wrapping
Electrical Specifications:
- Voltage: 230/460V (3-phase)
- Full Load Amps: 95.6A at 230V / 47.8A at 460V
- Frequency: 60 Hz
- Phase: 3
- Service Factor: 1.15
- Design Code: B
- Insulation Class: B
- NEMA Code: G
Performance Data:
- Speed: 1775 RPM
- NEMA Nominal Efficiency: 93%
- Power Factor: 83%
- Duty Rating: 40°C AMD - CONT
Safety & Certifications:
- UL Listed
- CSA Certified
Key Specifications
- Condition: Protective Wrapping
- Brand: Baldor
- Model: H2539T
- Specification: 40H005W275H1
- Serial Number: 09809
- Equipment Type: Three-Phase Industrial Electric Motor
Performance Data:
- Horsepower: 40 HP
- Speed: 1775 RPM
- Voltage: 230/460V
- Frequency: 60 Hz
- Phase: 3-Phase
- Full Load Amps: 95.6A @ 230V / 47.8A @ 460V
Physical Specifications:
- Frame Size: 324T
- Finish: Blue painted steel
- Mounting: Foot mounted
Electrical Ratings:
- Service Factor: 1.15
- NEMA Efficiency: 93%
- Power Factor: 83%
- Insulation Class: B
- Design Code: B
- NEMA Code: G
- Rating: 40°C AMD - CONT
Ideal Applications
- Pumps and Compressors
- Conveyors and Material Handling
- Machine Tools
- Fans and Blowers
- Industrial Processing Equipment
- Manufacturing Machinery
- HVAC Systems
- Food Processing Equipment
- Packaging Machinery
- Woodworking Equipment
- Metal Working Machines
- General Industrial Applications
Benefits
- Baldor manufacturing
- 40 HP power
- Dual voltage (230/460V)
- 93% NEMA nominal efficiency
- 1.15 service factor
- Class B insulation
- Continuous duty rated
- UL and CSA certified
- Made in USA
- Protective wrapping
Additional Information
- Condition: In Protective Wrapping
- Manufacturer: Baldor Electric Company
- Made In: Fort Smith, Arkansas, USA
- Catalog No.: H2539T
- Specification: 40H005W275H1
- Serial Number: 09809
- Frame: 324T
- Horsepower: 40 HP
- Speed: 1775 RPM
- Voltage: 230/460V
- Frequency: 60 Hz
- Phase: 3-Phase
- Full Load Amps: 95.6A @ 230V / 47.8A @ 460V
- Service Factor: 1.15
- NEMA Efficiency: 93%
- Power Factor: 83%
- Insulation Class: B
- Design Code: B
- NEMA Code: G
- Duty Rating: 40°C AMD - CONT
- Finish: Blue painted steel
- Certifications: UL Listed, CSA Certified
Location: Ohio
