Description
Specifications

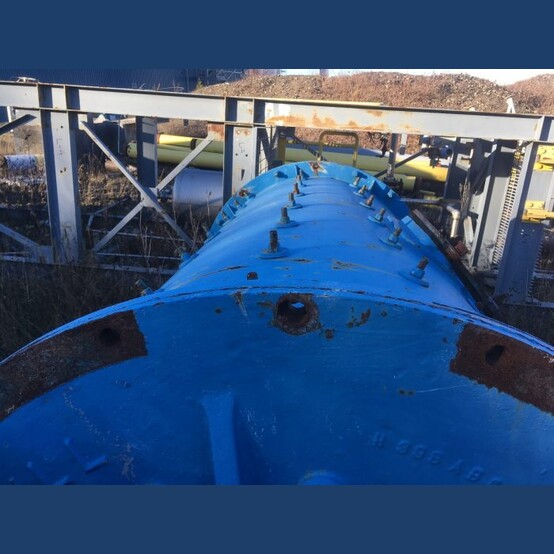

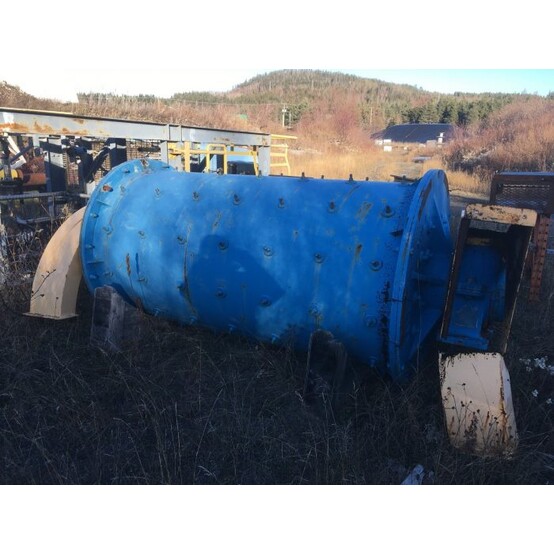

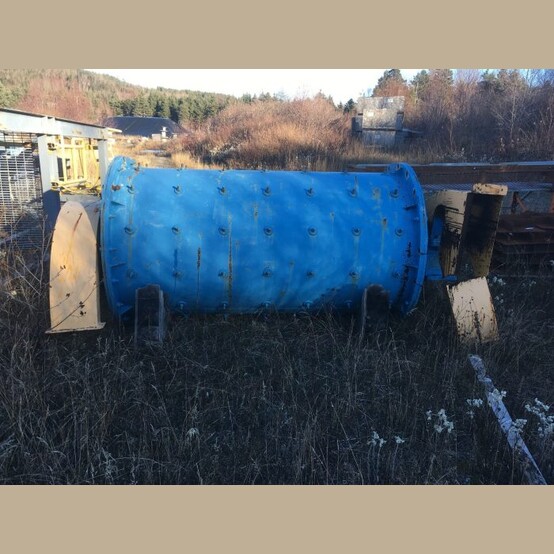

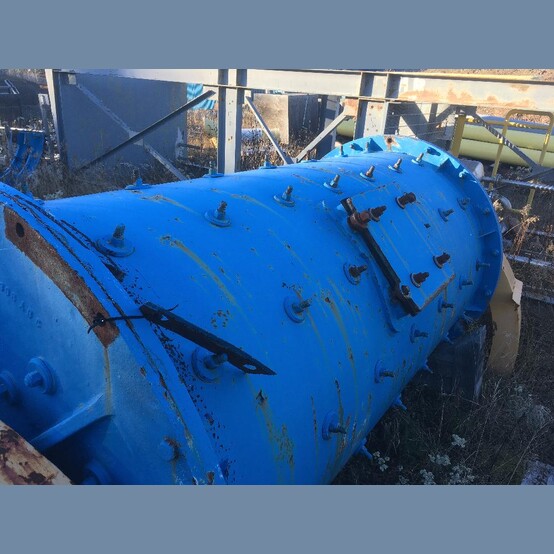

Denver 4' x 8' Ball Mill
- Make: Denver
- Size: 4' x 8'
- Feed Type: Center Feed
- Discharge Type: Trunnion Overflow Discharge

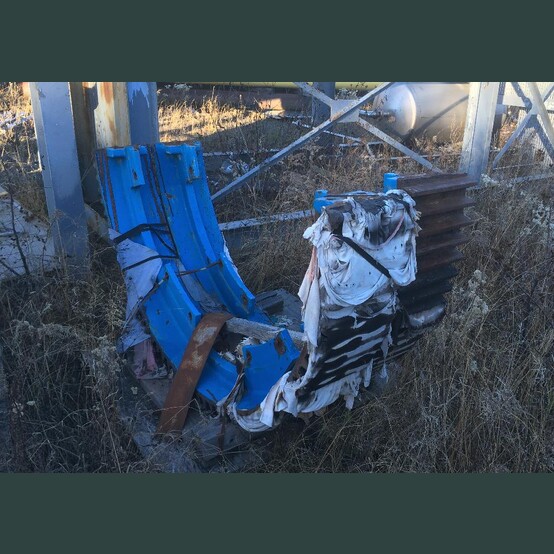

- Liner Material: Rubber Lined

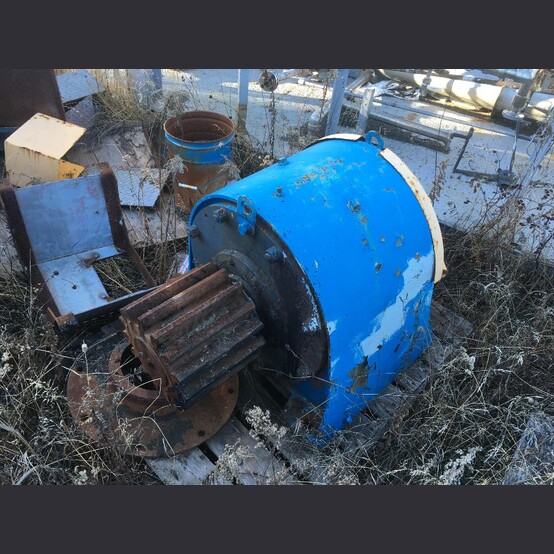

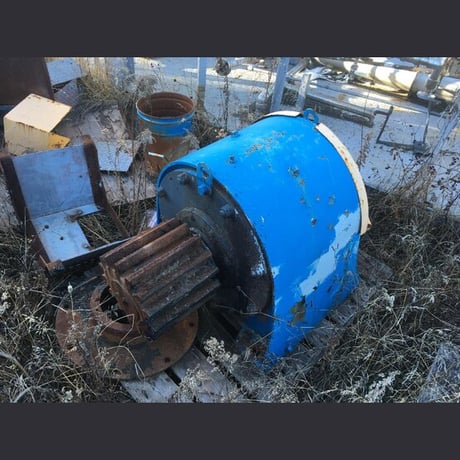

- Gear Style: Pinion and Ring Gear, Straight Cut Bull Gear

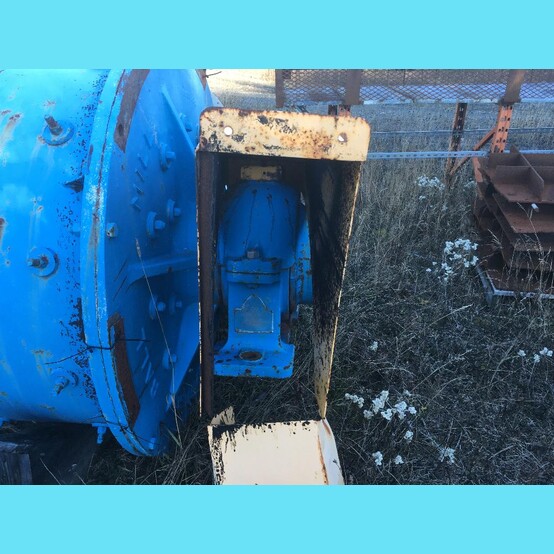

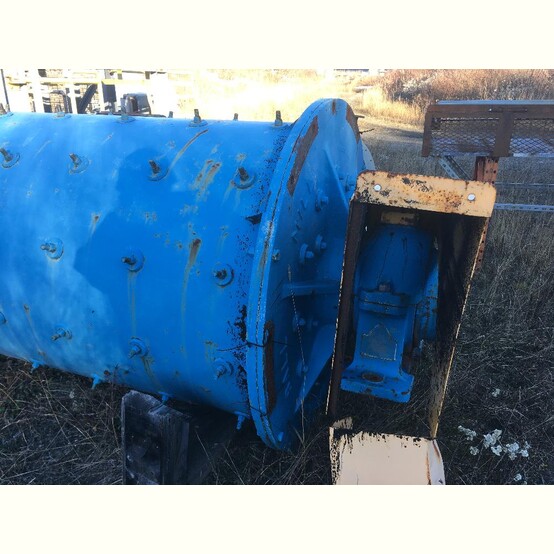

- Drive Configuration: Electric Motor(Not Included) Close-Coupled to a Gear Reduction Unit
- Motor: Motor Not Included
- HP: 50 HP Recommended
- HP: 50 HP Recommended
- Approx. Dimensions:
- Length: 13' 1" Approx.
- Width: 7' 5¼" Approx.
- Height: 6' 11" Approx.
- Weight: 28,100 Lbs Approx.
- Condition & Additional Notes:
- Mill Capacity: 74 TPD
- Mill RPM: 29
- Recommended Ball Charge: 13,000 Lbs
- Condition: Used
- Location: Canada
- Description: 4' x 8' Denver Ball Mill. Steel Ball Mills are one of the most precise, reliable and cost effective methods of fine grinding solids in either a wet or dry state. The Steel cylinder is rotated at a predetermined speed that sets the balls into a tumbling and cascading motion which impact the solids in a very predictable and controllable fashion.
