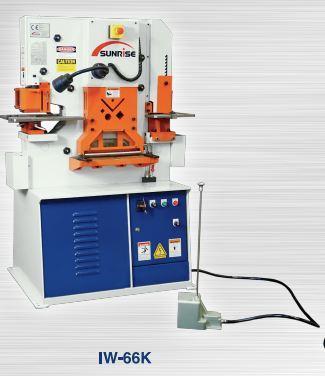

4" x 4" x 3/8" Sunrise #IW-66K, 66 ton, 8" throat, 8 HP, NEW

Specifications:
Punch:
Punching Pressure - 66 Ton
Punch Capacity - 7/8" x 3/4" or 1-1/2" in 7/16" material
Throat Depth - 7-7/8"
Maximum Stroke Length - 1.5"
Cycles - 34/Min.
Working Height- 41" to top of die
Angle Shear:
At 90° Shearing - 4" x 4" x 5/16"
Working Height - 42"
Section Shear:
Round Bar Shear - 1.5"
Square Bar Shear - 1.5"
Channel Notching - 4" (channel blades optional)
Working Height - 41"
Plate Shear:
Maximum W x T - 14" x 9/16"
Working Height - 31"
Notching:
Rectangular Notcher - 2-1/2" width x 3-1/2" depth in 5/16" material
Vee-Notcher - 3.5" x 3.5" in 5/16" material (V-notcher optional)
Working Height - 41"
Other:
Electric Power - 7.5 HP, 3/60/220 or 480
Weight - 2,925 lbs
Dimension - 60" L x 30" W x 64" H
Features:
SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Equipped With:
Notes:
Specifications Subject to Verification
Optional Features:
Urethane Punch Stripper: $850.00
Multi Opening Press Brake Attachment indexed Left to Right - 10": $1,450.00
Delivery:
Subject to Stock
