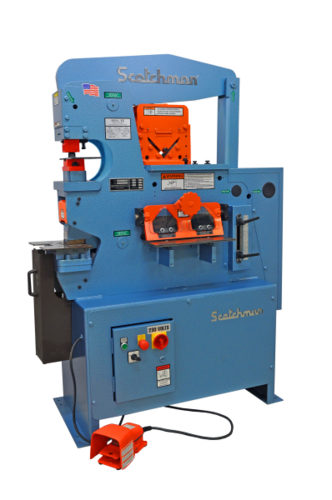

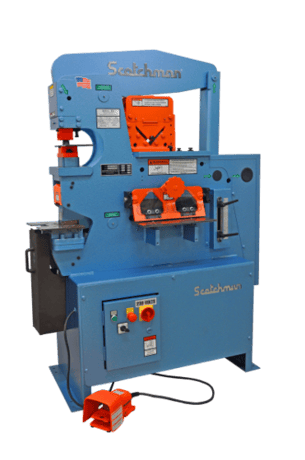

4" x 4" x 3/8" Scotchman #50514-EC, ironworker, 50 ton, LED lighting, 6" throat, 480 V., 3 phase

Description

Scotchman 50 Ton Ironworker, Model 50514-EC with LED Lighting, 480 Volt / 3 Phase

Serial # 5050EC0122

Asset #15648

Specifications:
Rated on: 65,000 PSI Tensile
Punching Capacity 50 ton, 1-1/4″ in 1/2″, 13/16″ in 3/4″
Special Tooling 2-1/4″ Max. Dia.
Throat Depth 6″
Flat Bar Shear 14″ Length, 3/4″ x 4″, 1/2″ x 8″, 3/8″ x 10″, 1/4″ x 14″
Opt. Saber Blade 1/2″ x 10″, 3/8″ x 12″
Angle Shear 90° 4″ x 4″ x 3/8″
Angle Shear 45° 2″ x 2″ x 3/8″
Brake 8″ 30 ton
Brake 12″ 25 ton
Open End Brake Max. 1/4″ x 3″ Flat or Angle Iron
Pipe Notcher 3/4″, 1″
Schedule 40 I.D. 1-1/4″, 1-1/2″, 2″
Rectangle Notcher 2-1/2″ x 3″ x 5/16″, 2-1/2″ x 2-3/4″ X 3/8″
90° V. Notcher 6″ x 6″ x 1/8″, 3″ x 3″ X 1/4″
Strut Shear Samples Required
Round Rod (Max.) 1/4″ to 1″, 5 Cavity, 7/16″, 9/16″, 5/8″, 3/4″, 1″
Square Rod (Max.) 1/4″ to 3/4″, 1 Cavity, 3/4″
Square Tube Shear 1/2″ to 1”, 12 GA.
Picket Tool 1/2″, 3/4″, 1″, 16 Gauge
Strokes Per Minute in Light Material 1/4″ stroke [Punch Station]
Strokes Per Minute in Heavy Material 3/4″ stroke [Punch Station]
Hydraulics 2350 psi
Motors Standard 3 HP, 3 PH, 230/460 Volts
Dimensions W-29″ x L-47″ x H-59″
Shipping Weight 1,515 lbs.

Ironworker is equipped with PN 090512 – LED Light Package

Preliminary Specifications – Subject to Verification
