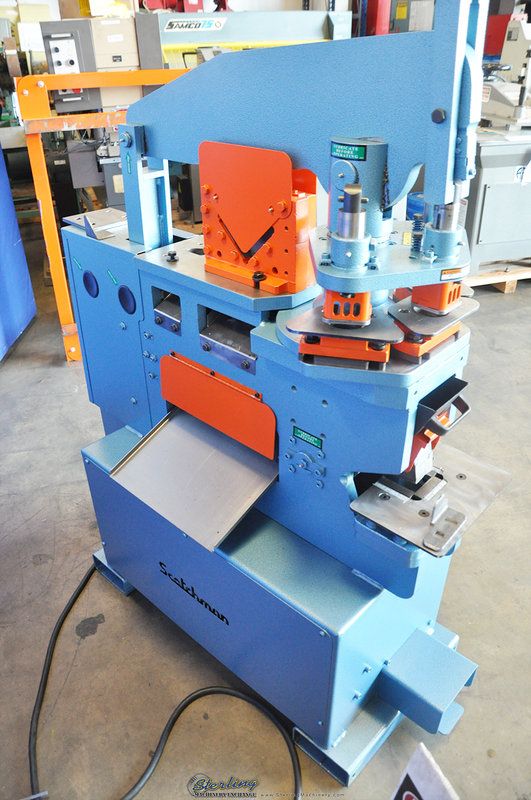

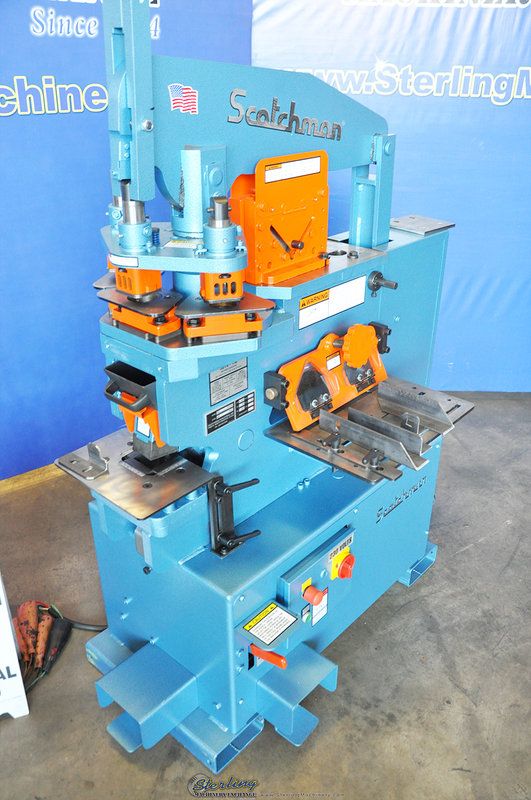

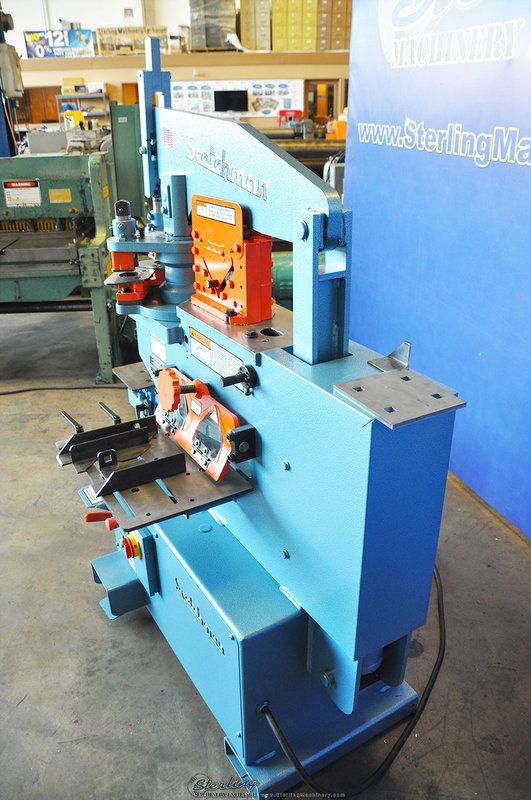

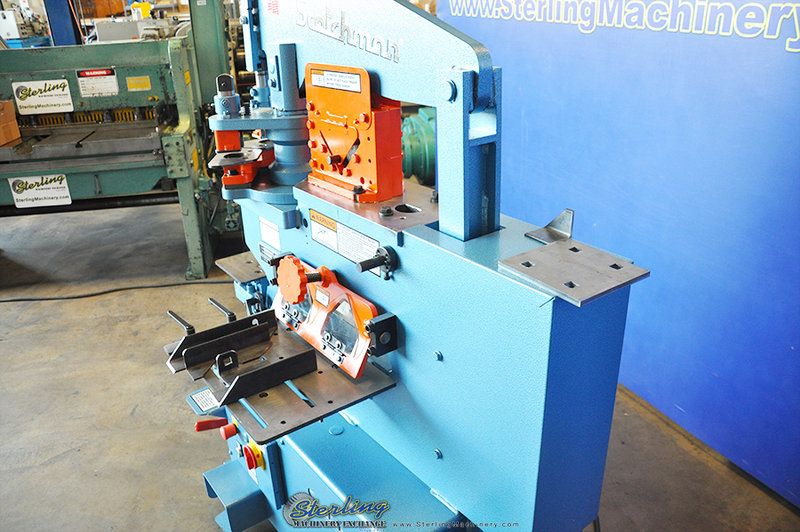

4" x 4" x 3/8" Scotchman #5014-ET, 50 ton, 3-station revolving turret, 2" die holders, new, #SM5014ET

Manufacturer Scotchman
Model 5014-ET
Angle Capacity" L 4.00" L
Angle Capacity" W 4.00" W
Capacity .375"
Ton 50
Stock # SM5014ET
Price $15,540

For Sale by Sterling Machinery Exchange

Platinum Level Dealer
Surplus Record Dealer Since 1970

Description

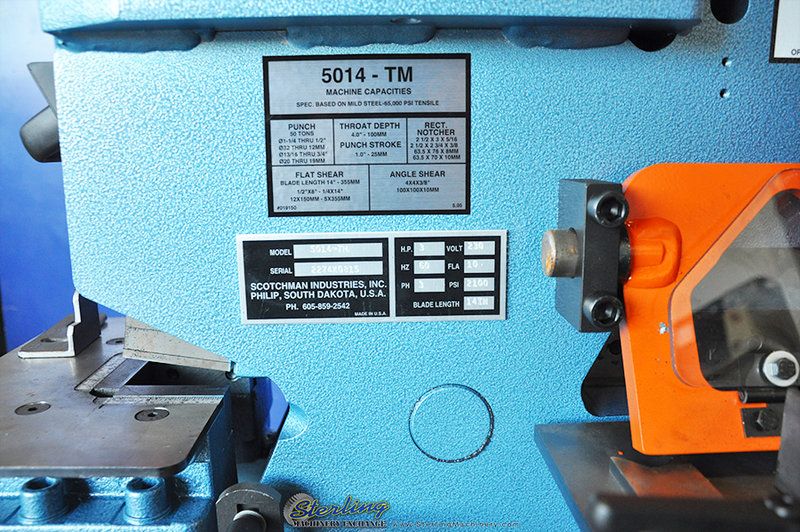

DETAILED SPECIFICATION
Capacity50 Ton
Punch Capacity:
Punch1-1/4" in 1/2" Material
Punch13/16" in 3/4" Material
Throat Depth4"
Flat Bar Shear14" Length
Angle Shear 90 Degrees4" x 4" x 3/8"
Angle Shear 45 Degrees2" x 2" x 3/8"
Optional Rectangular Notcher Capacity2-1/2" x 3" x 5/16"
Optional 90 Degree V. Notcher Capacity6" x 6" x 1/8"
Optional Rod Shear Capacity1/4" to 1"
Optional Square Rod Shear Capacity1/4" to 3/4"
Optional Square Tube Shear Capacity1/2" to 1" x 12 Ga.
Optional Picket Tool Capacity1/2", 3/4", 1", x 16 Ga.
Strokes Per Minute {Light Material} Punch Station1/4" x 40 SPM
Strokes Per Minute {Heavy Material} Punch Station3/4" x 17 SPM
TypeHydraulic
Horsepower3 H.P.
Dimensions (L x D x H)48" x 29" x 67"
Weight1580 lbs

EQUIPPED WITH

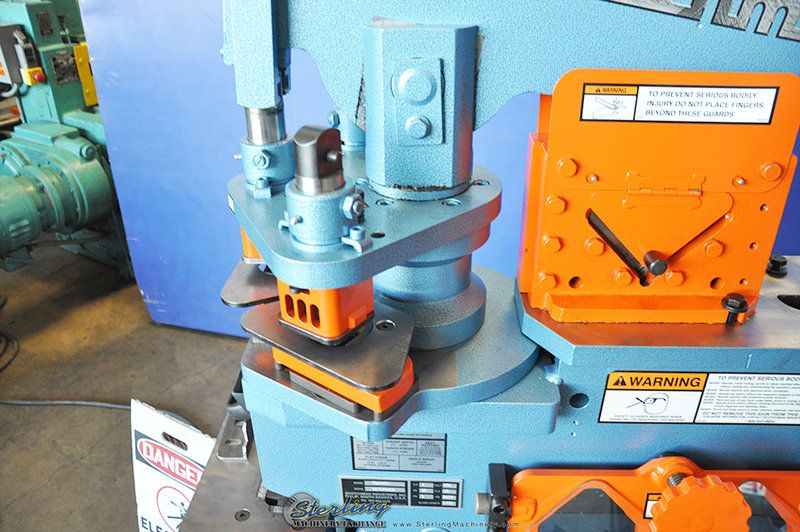

50 - Ton Punch Station With 3 - Station Revolving Turret (1 - 1/4" In 1/2")
Keyed Punch Ram For Safety
Three 2" Die Holders, Three Punch nuts With Wrench And Three Strippers
One Round Punch & Die: Max. Diameter 1"
3 Year Manufacturers Warranty!
Electronic Stroke Control

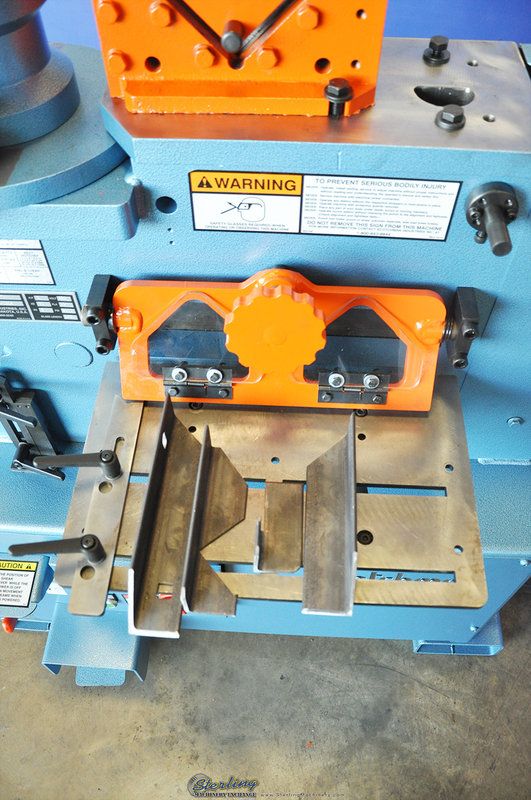

14" Flat Bar Shear with 4-Way Reversible Blade

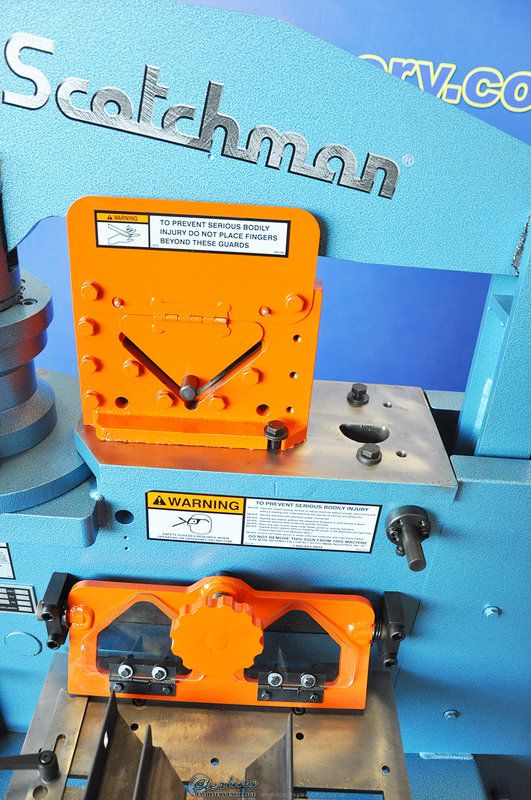

Angle Shear
Rectangular Notcher

Additional information:

Optional Scotchman Ironworker Accessories:
Call For Pricing.

CLICK HERE FOR A #20 PUNCH AND DIE PRICE LIST

CLICK HERE FOR A COMPLETE SCOTCHMAN IRONWORKER BROCHURE


Reasons to buy a Scotchman


  1. Scotchman is Made in U.S.A. -- and we can prove it!
  2. Scotchman offers the Best-in-the-Business 3 YEAR-WARRANTY!
  3. Scotchman has a SAFE punch & die change out.
  4. Scotchman punch is guided through a true vertical guide block.
  5. The punch can be safely left in a Scotchman ironworker while using the Angle Shear.
  6. The punch can be safely left in a Scotchman ironworker while using the Flat Bar Shear.
  7. The brake can be used without removing the punch on a Scotchman ironworker.
  8. A Scotchman Pipe Notcher can be used on the tool table without removing the punch.
  9. The Scotchman punch is Keyed to prevent shaped punches from spinning making it a SAFER machine.
  10. Scotchman ironworkers have a larger capacity angle shear.
  11. Calls made to Scotchman are answered by a person, not a machine.

Scotchman prides itself in manufacturing QUALITY, DEPENDABLE, AMERICAN Ironworkers.

Made in the U.S.A.
