4" x 4" x 3/8" Edwards #60-TON, 60 ton, 5 HP, 1725 RPM, NEW

SPECIFICATIONS:
PUNCH:
RATING ------------- 60 TONS
MAX. CAPACITY ------ 1 in DIA. IN 3/4 in A36 (65,000 PSI TENSILE)
STROKE ------------- 1 1/4 in
THROAT DEPTH ------- 8 7/8 in
OPEN HEIGHT -------- 8 1/8 in
SHUT HEIGHT -------- 6 7/8 in
WORK HEIGHT -------- 36 9/16 in
FLAT BAR SHEAR:
MAX. CAPACITY ------ 3/8 in X 14 in, 1/2 in X 12 in, 3/4 in X 4 in
MAX. ROUND --------- 7/8 in
MAX. SQUARE -------- 7/8 in
WORK HEIGHT -------- 34 1/2 in
ANGLE SHEAR:
MAX. CAPACITY ------ 3 in X 3 in X 1/2 in, 4 in X 4 in X 3/8 in
WORK HEIGHT -------- 39 7/8 in
COPER NOTCHER:
MAX. CAPACITY ------ 2 1/2 in X 4 in X 3/8 in
WORK HEIGHT -------- 39 1/2 in
GENERAL SPECIFICATIONS:
STANDARD MOTOR ----- 5HP, 3PH, 208V/230V, 1,725RPM, 14A
OPTIONAL MOTORS ---- 5 HP 3~ 460 V, 1725 RPM 7 A, 5 HP 3~ 575 V, 1725 RPM 6 A, 5 HP 1~ 230 V, 1725 RPM 23 A
HYDRAULIC PUMP ----- 3 1/2 GPM - 1 STAGE
VALVE PRESSURE ----- 2,500 PSI
RESERVOIR ---------- 7 GALLONS
CYLINDER ----------- 2 1/2 in RAM
DIMENSIONS:
HEIGHT ------------- 56 1/8 in
WIDTH -------------- 46 1/8 in
DEPTH -------------- 36 1/8 in
SHIPPING WEIGHT ---- 2,550 LBS
FEATURES:
FOUR LOADED WORKSTATIONS DEDICATED COPER NOTCHER STATION ELECTRIC STROKE CONTROL ANSI B11.5-1988R(02) COMPLIANT ETL/UL APPROVED CONTROLS.

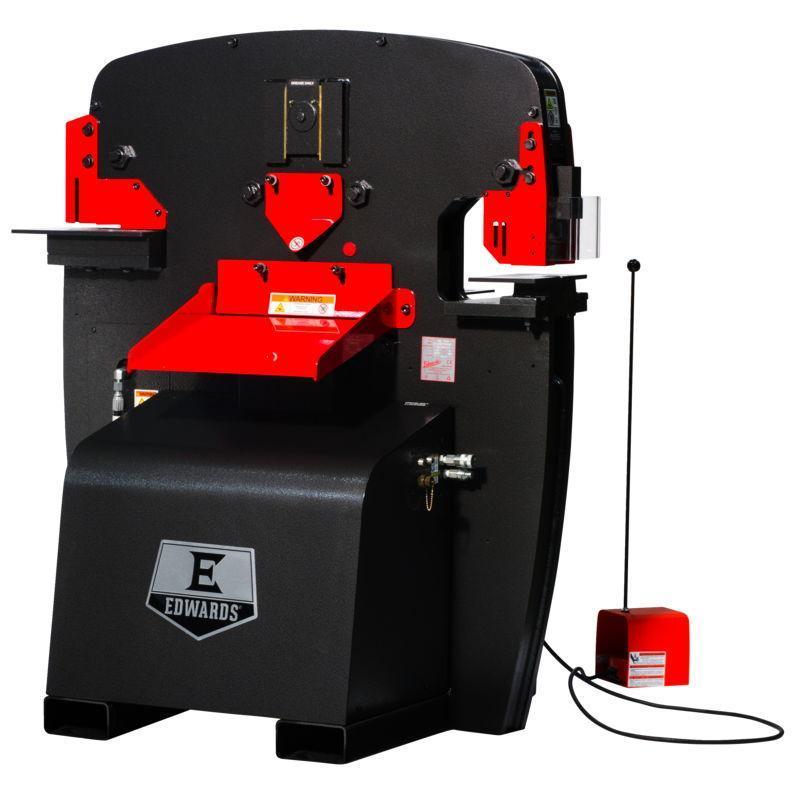

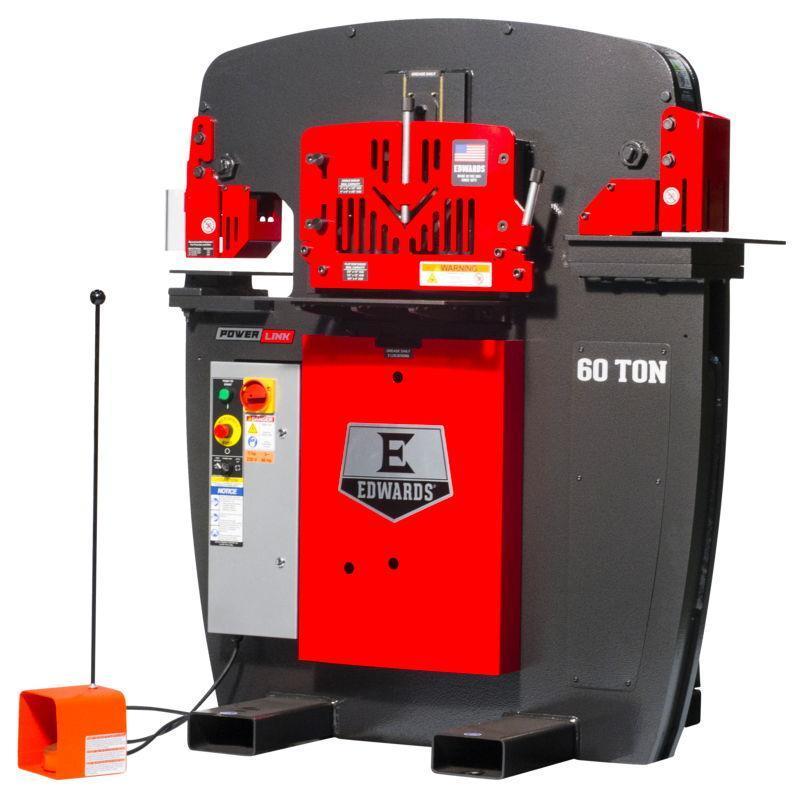

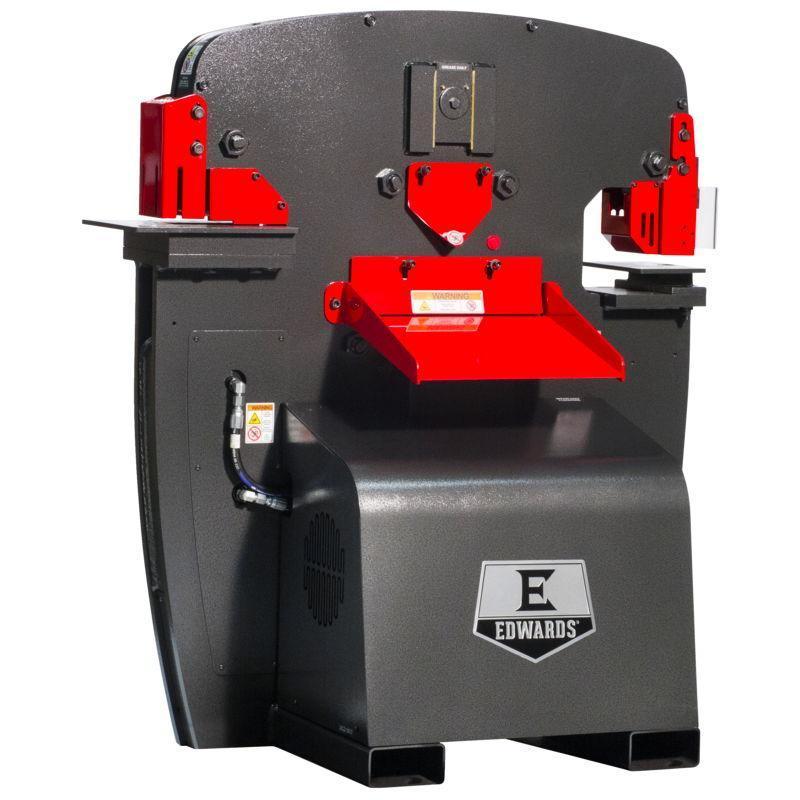

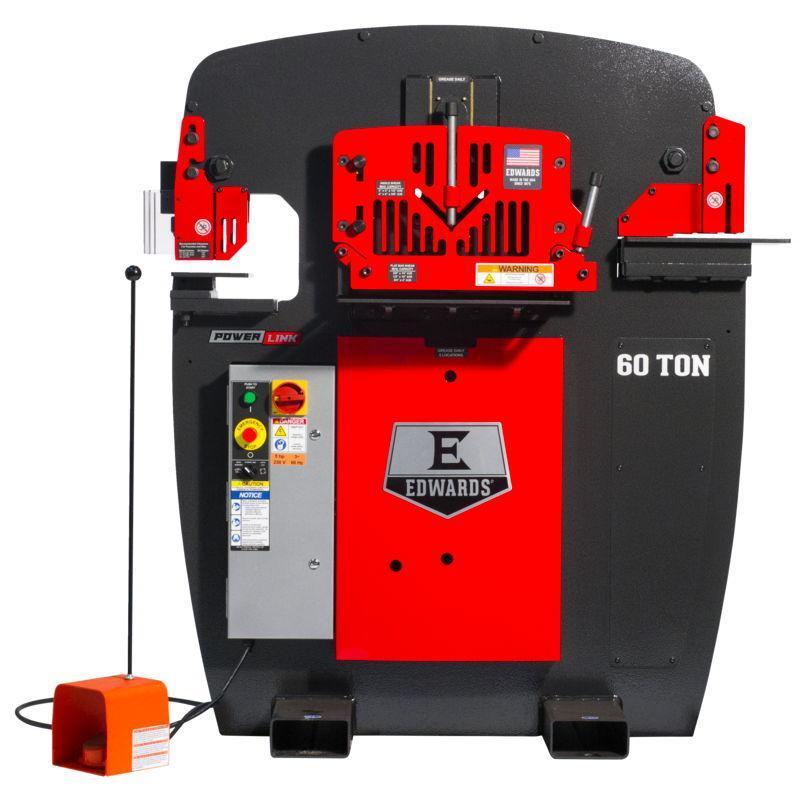

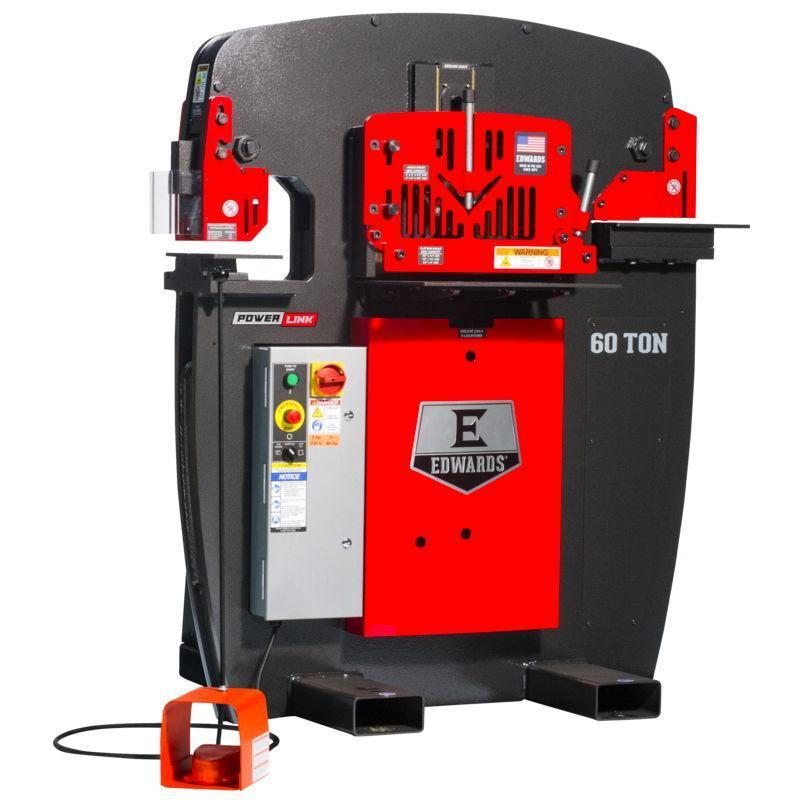

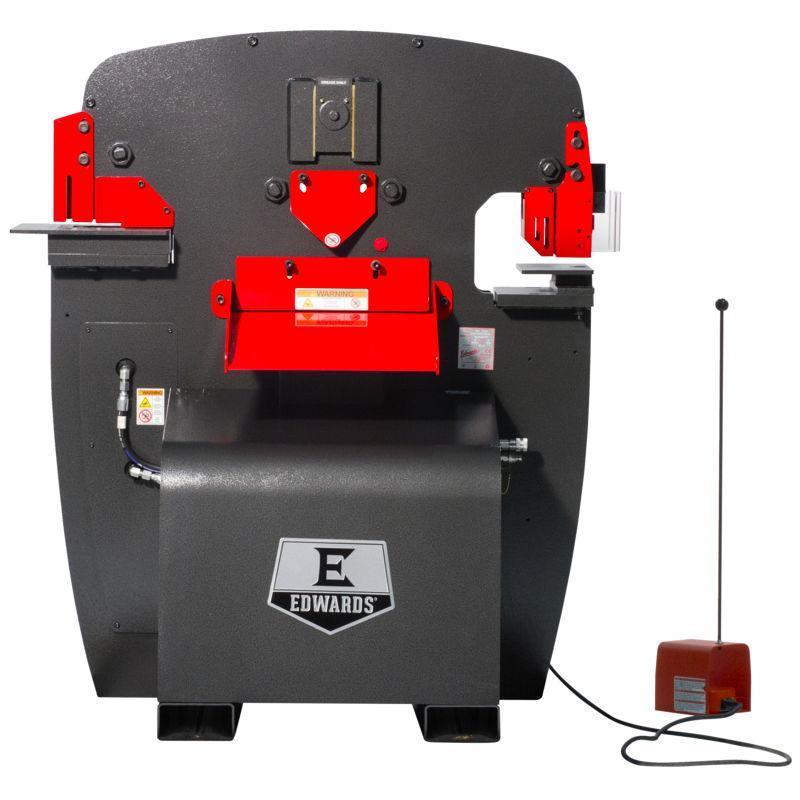

THE EDWARDS 60 TON JAWS IRONWORKER IS A ROBUST MACHINE FEATURING A DEDICATED COPER NOTCHER STATION, ADDING STRENGTH AND STABILITY TO THIS GREAT TOOL. STANDARD FEATURES INCLUDE A PUNCH ASSEMBLY WITH PEDESTAL DIE TABLE, 14 in WIDE FLAT BAR SHEAR, ANGLE SHEAR AND COPER NOTCHER.
THE OPTIONAL HYDRAULIC ACCESSORY PACK ALLOWS YOUR IRONWORKER TO ACT AS A POWER SOURCE TO OUR EXPANDING LINE OF INNOVATIVE HYDRAULIC ACCESSORY TOOLS, SUCH AS THE 10 TON TUBE/PIPE BENDER, 20 TON SHOP PRESS AND 40 TON SHOP PRESS
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
1 PHASE, 230V ----------------------------------- $18,139.00
3 PHASE, 208 V ----------------------------------- $SAME
3 PHASE, 460V ----------------------------------- $18,139.00
3 PHASE, 575V ----------------------------------- $18,909.00
1 PH, 230 V W/ POWER LINK SYSTEM ---------------- $19,559.00
3 PH, 208 V W/ POWER LINK SYSTEM ---------------- $18,959.00
3 PH, 230 V W/ POWER LINK SYSTEM ---------------- $18,959.00
3 PH, 460 V W/ POWER LINK SYSTEM ---------------- $19,559.00
3 PH, 575 V W/ POWER LINK SYSTEM ---------------- $20,289.00
ACCESSORY LIGHT --------------------------------- $119.00
AUTO CUT 48" ---------------------------------------- $1,069.00
ANGLE NOTCHER 3 in X 3 in X 1/4 in -------------------- $1,699.00
7" BRAKE W/ 4-WAY DIE ---------------------------$1,239.00
8" BRAKE W/ 4-WAY DIE --------------------------- $1,349.00
COPER NOTCHER ASSEMBLY -------------------------- $STANDARD
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ------------- $1,799.00
PIPE NOTCHER HOUSING (SCHEDULE 40 - 1/2 in - 2 in ) -- $559.00
QUICK CHANGE PUNCH ASSEMBLY --------------------- $1,019.00
ROD SHEAR HOUSING:(1/4 in ,3/8 in ,1/2 in ,5/8 in ,3/4 in ,1 in ) - $2,039.00
OVERSIZED PUNCH ASSEMBLY ------------------------- $1,129.00
DELIVERY:
SUBJECT TO STOCK
