Description

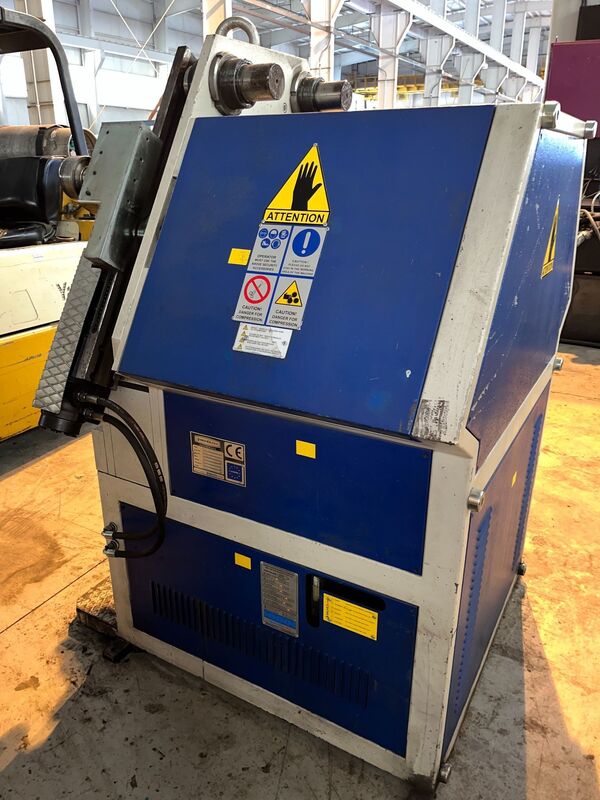

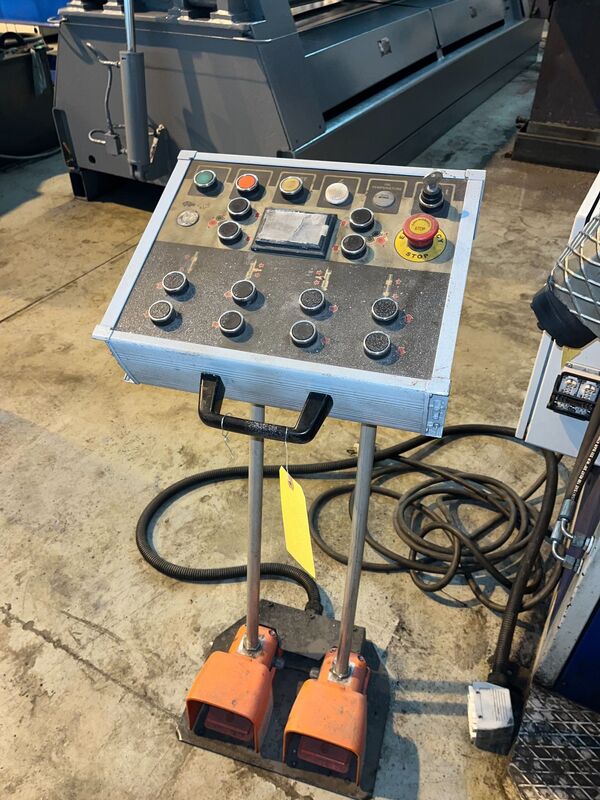

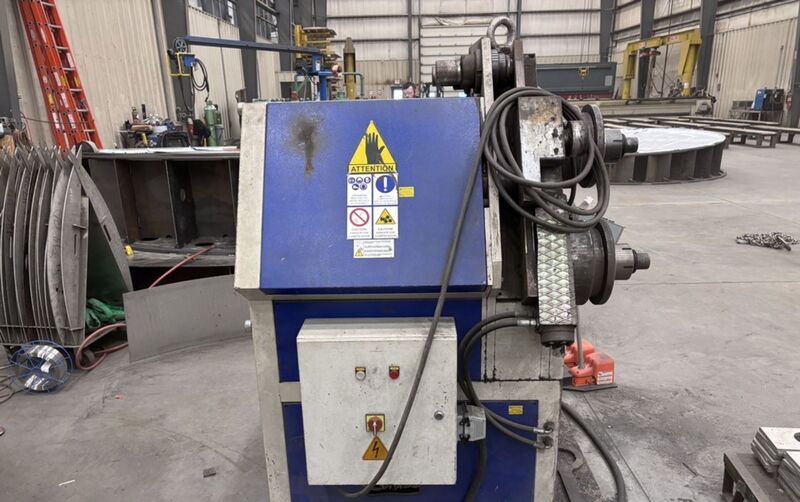

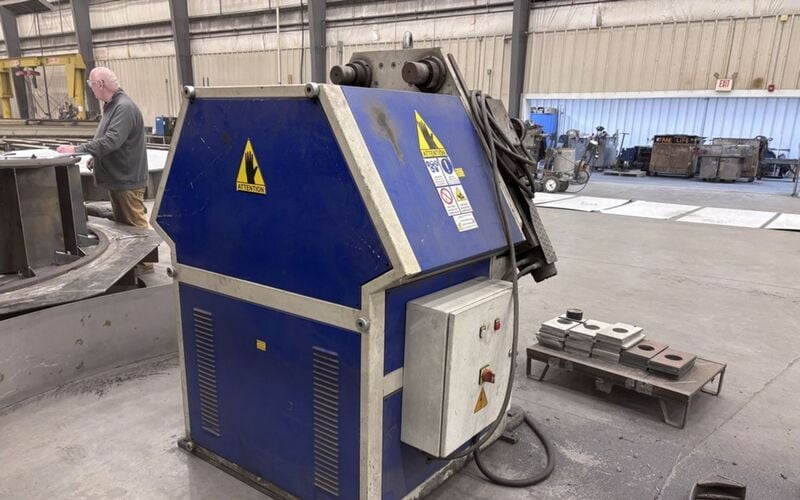

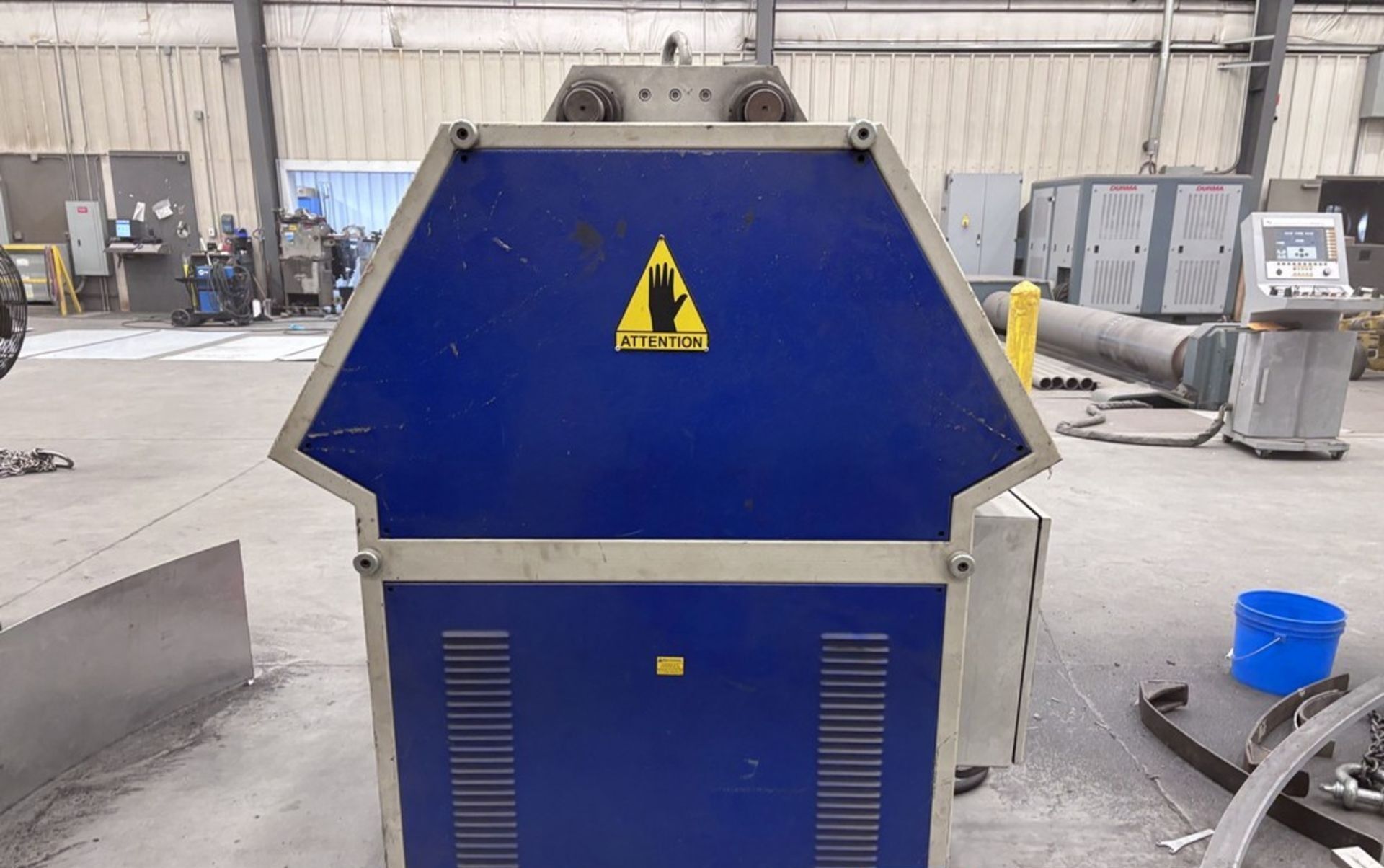

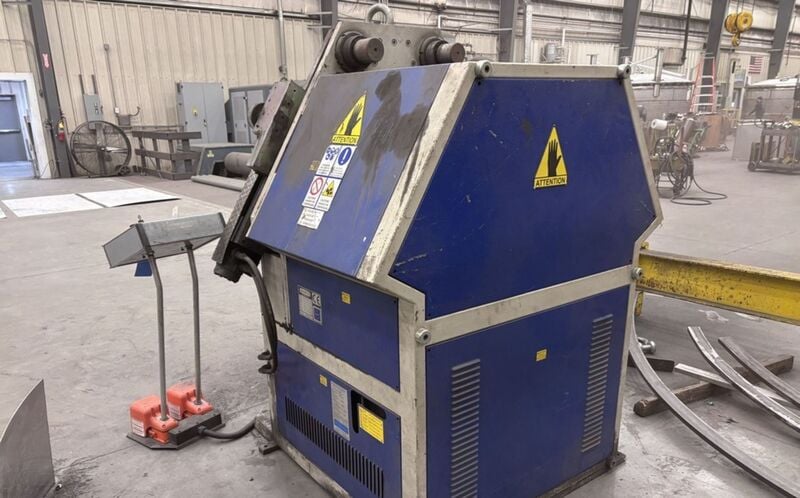

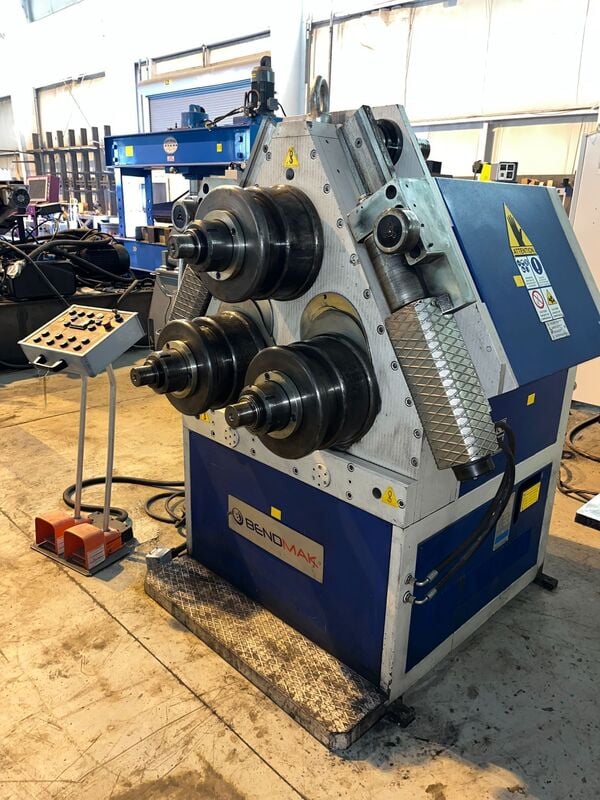

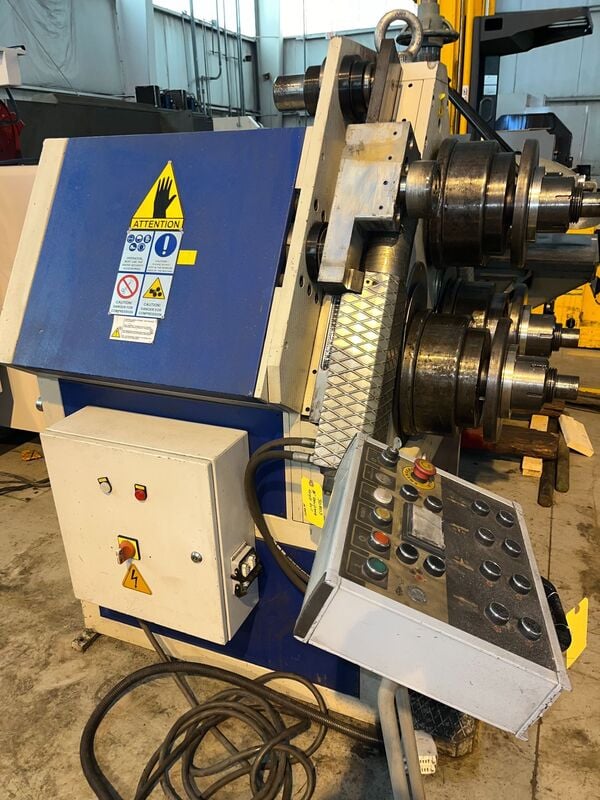

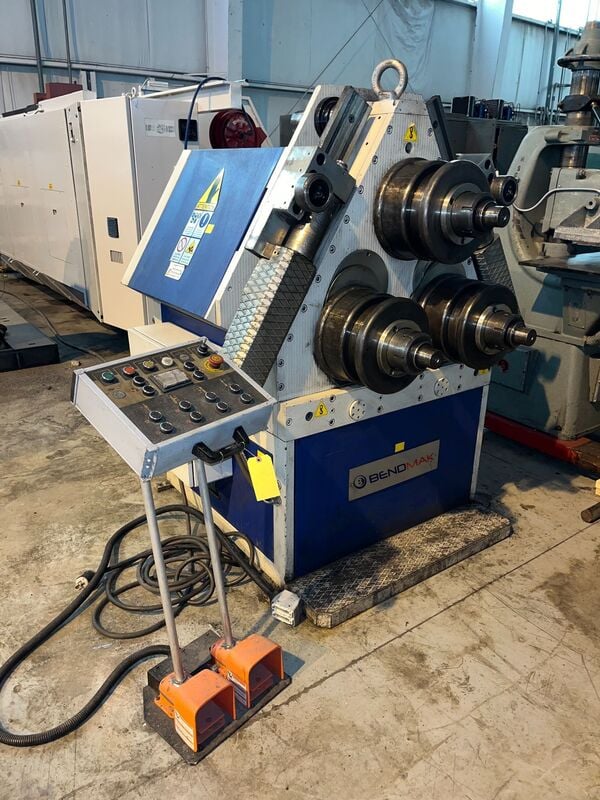

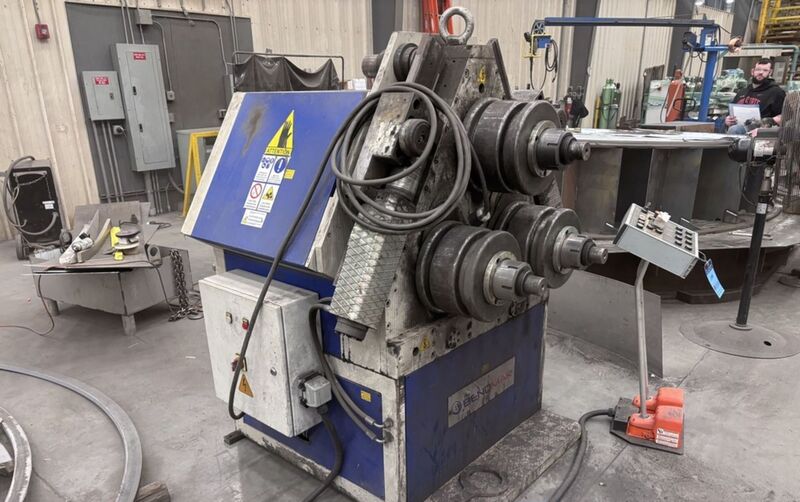

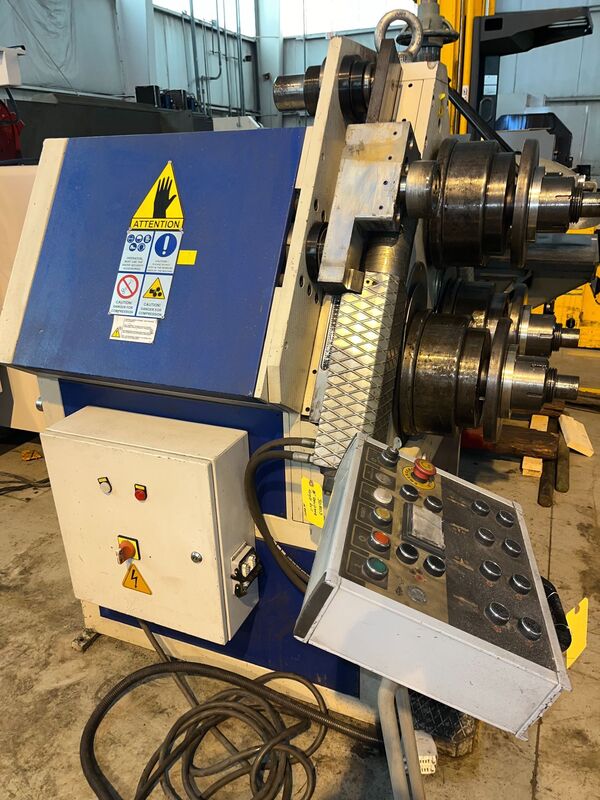

4 x 4 x 3/8" BENDMAK PRO 100 HORIZONTAL/VERTICAL HYDRAULIC ANGLE BENDING ROLL - 2012 - Manually Adjustable Side Guider Rolls - 15 HP Hydraulic Motor Planetary Gear Box w/Gears - 12.4" Diameter Rolls - Set of Universal Angle Bending Rolls 4" x 4" x 3/8" BENDMAK HORIZONTAL/VERTICAL ANGLE AND PROFILE BENDING New 2012, Serial No PRO100117, Model PRO 100 EQUIPPED WITH: All Three Rolls Driven Hydraulically Adjustable Side Guide Rolls Hydraulic Motor Planetary Gearbox And Gears (2) Lower Rolls Hydraulically Adjustable Vertical Or Horizontal Rolling Operation Movable Type Operator's Console (1) Set Of Angle Rolls CATALOG SPECIFICATIONS: Angle Leg In, 63" Minimum 4" x 4" x 3/8" Angle Leg In, 47 Minimum 3 x 3 x 5/16 Angle Leg In, 32 Minimum 2 x 2 x 1/4 Angle Leg Out, 55 Minimum 4" x 4" x 3/8" Angle Leg Out, 40 Minimum 3-1/2 x 3-1/2 x 5/16 Angle Leg Out, 28 Minimum 2 x 2 x 1/4 Flat Bending Hard, 63" Minimum 4" x 1" Flat Bending Hard, 24 Minimum 4 x 13/16 Flat Bending Hard, 16 Minimum 1-1/2 x 3/8 Flat Bending Easy, 40" Minimum 7-1/2" x 1-3/8" Flat Bending Easy, 24 Minimum 4 x 1-9/16 Flat Bending Easy, 16 Minimum 2 x 3/8 Square Bar, 40" Minimum 2-3/8" Square Bar, 16 Minimum 1 Pipe Schedule 40, 63 Minimum 4 Pipe Schedule 40, 16 Minimum 2" Round Bar, 32 Minimum 2-3/4 Round Bar, 16 Minimum 1-1/2" Round Tubing, 118 Minimum 5-1/2 x 0.118 Round Tubing, 24 Minimum 2" x 0.79 Square Tubing, 157 Minimum 4 x 0.196 Square Tubing, 20 Minimum 2" x 0.100 Rectangular Tubing, 157 Minimum 5-1/2 x 1-1/2 x 0.125 I-Beam Hard, S5 x 14.75" Rolling Speed 18 FPM Roll Diameters 12.4" Shaft Diameters 3.94" Motor, Horsepower 15 HP Weight, Approximately 4940 LBS F.O.B. OUR WAREOUSE
4” X 4” X ” Angle Roll with Digital Readout, Set of Universal Rolls, Hydraulic Guide Rolls, Variable Speeds, Horizontal and Vertical Working., Angle: 4” X 4” X ”, Flat Hard Way: 4” X 1”, Flat Easy Way: 7-½” X 1-”, Solid Square: 2-”, Round Bar: ...more
Product Information, Angle Rolls PRODUCT NEW - ON REQUEST: Type:Hydraulic Diameter of rolls:12" Rolled type:Universal Voltage / Phase:220 / 3 ::Digital Control: Beckhoff Weight:4,938 lbs Dimensions:54" x 82" x 70" Capacity:4" x 4" x 3/8", Product Code: 03040137084 Make: Bendmak Model: PRO 100 Condition: New.
4” X 4” Angle Roll Bending Machine with Machine Body Of Steel (ST-52) Construction, on Pro 100 Rolls are Driven By a Hydraulic Motor + Planetary Gearbox and Gears, Shafts Made of Special Steel, Hardened and Grounded, Pro 100 Guide Rolls are in Two Directions Hydraulic Adjustable, One Set Standard Rolls ...more
SERIAL. #75Y-2794MODEL. #2ANGLES LEG OUT. 4" X 4" X 5/8" (40" MINIMUM DIAMETER)ANGLES LEG IN. 3-1/2" X 3-1/2" X 5/8" (48" MINIMUM DIAMETER)BEAMS ON FLANGES. 8" X 18# (60" DIAMETER)CHANNELS FLANGE OUT. 9" X 20# (60" MINIMUM DIAMETER)CHANNELS FLANGE IN. 7" X 14-3/4"# (60" MINIMUM DIAMETER)FLATS ON EDGE. 4" X 1" (48" ...more
New RMT Horizontal Vertical Profile-Angle Roll, Manual Diameter Adjustment – Includes universal tooling, ANGLE ROLL S, BUILT TO LAST, The foundation of all RMT™ Angle Rolls is a solid, industrial strength frame precisely formed and precision welded made from mill-certified, high-yield steel. As a result ...more
