4" x 4" x 1/4" Hill-Acme #3, Metalworker, 33 ton, 12-1/2" throat, 1" stroke, 5 HP

Description

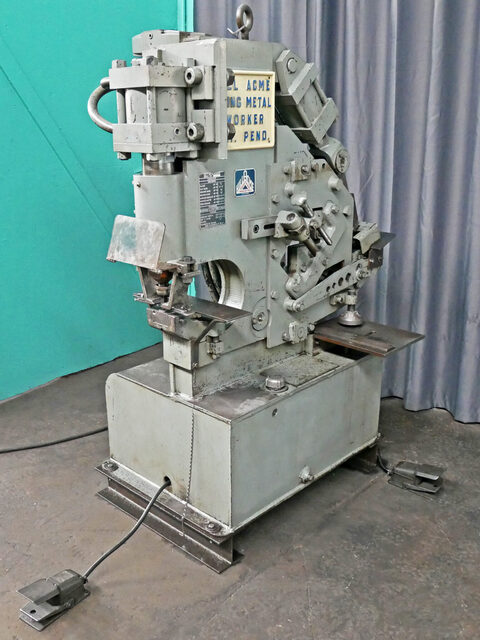

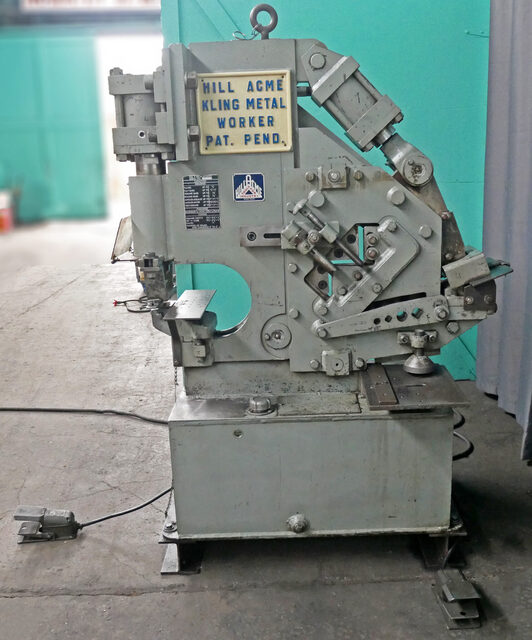

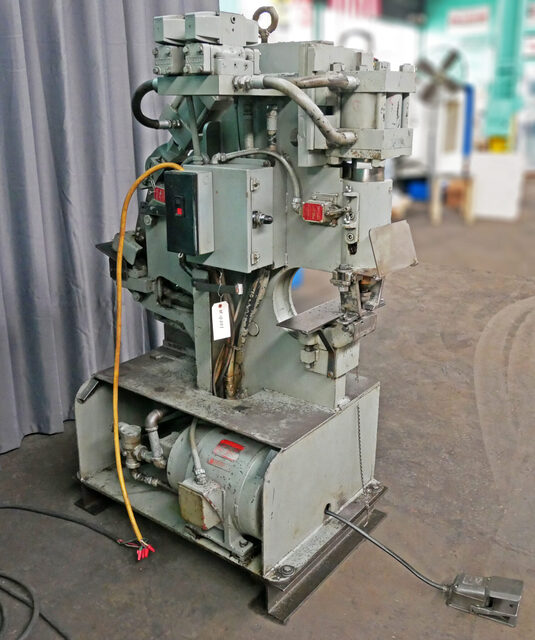

Hill Acme 33 Ton Ironworker, No. 3

Inventory # 10001

Model: No. 3

S/N: 476053

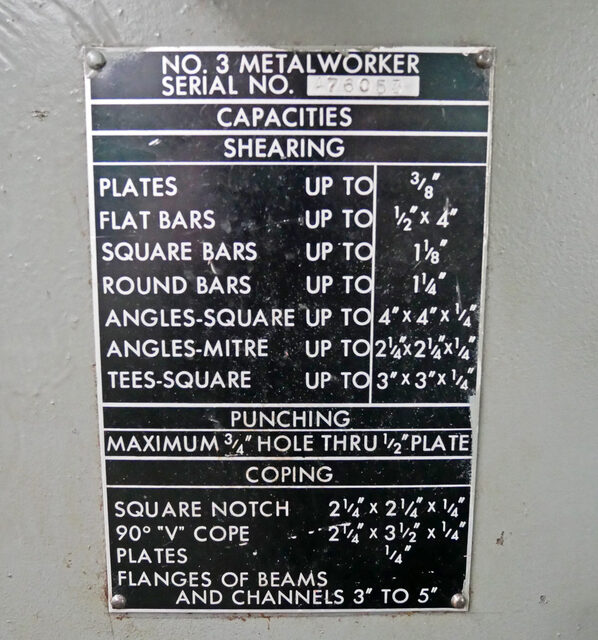

Specifications:

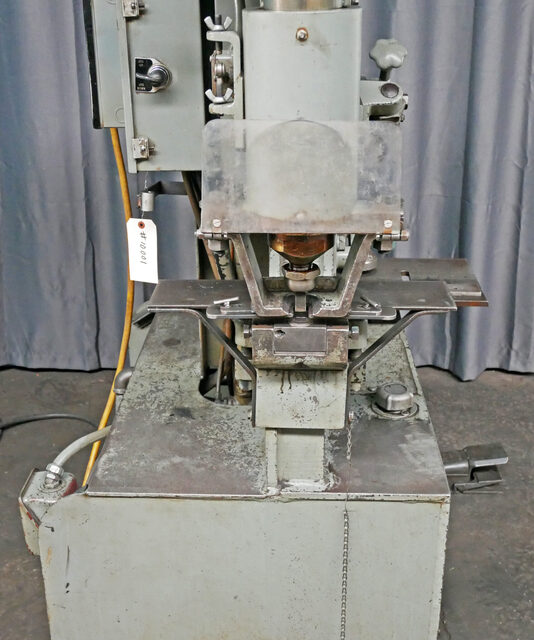

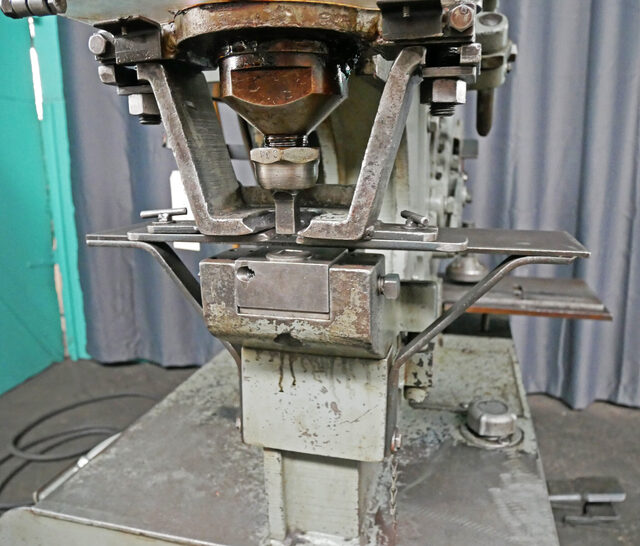

Punching Capacity:

Tons: 33

Max. Diameter Thru Thickness: 1 1/16″ thru 3/8″ tk

Diameter Thru Max. Thickness: 13/16″ thru 1/2″ tk

Depth of Throat: 12 1/2″

Length of Stroke: 1″ Max.

Shearing Capacity:

Flats/Max. Thickness and Width: 1/2″ x 6″, 3/8″ x 6 1/2″, 1/4″ x 8″

Blade Length: 9″

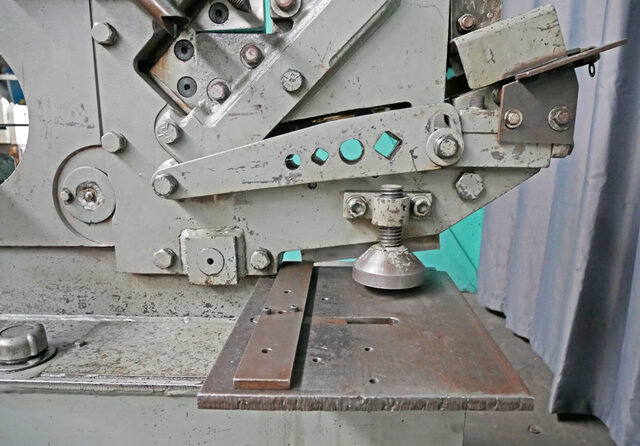

Rounds: 1 1/4″

Squares: 1 1/8″

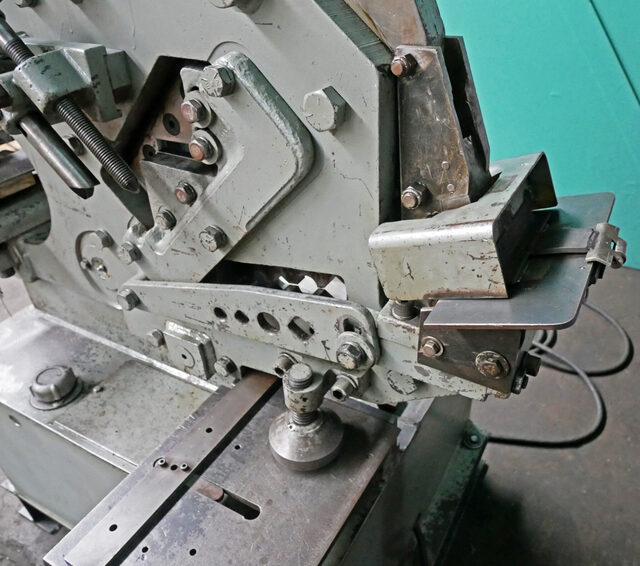

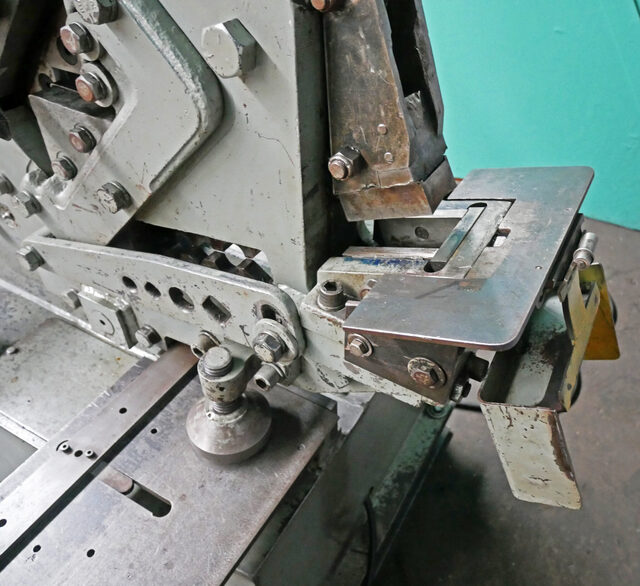

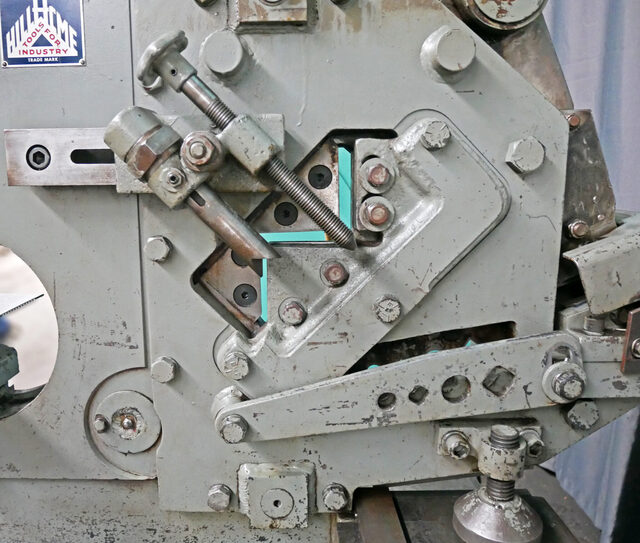

Angles: 4″ x 4″ x 1/4″

Angles with Special Blades: 5″ x 3″ x 1/4″

Angles – 45° Miter: 2 1/4″ x 2 1/4″ x 1/4″

Tees: 3″ x 3″ x 1/4″

Channels with Optional Attachments: 4″ – 7.25#

Coping Capacity:

Square Notch: 2 1/4″ x 2 1/4″ x 1/4″

90° “V” Cope: 2 1/4″ x 3 1/2″ x 1/4″

Flanges of Beams and Channels: 3″ to 5″

Strokes per Min. Punch End: Min. 20 Strokes @ 1″ Length – Max. 35 Strokes @ 3/8″ Length

Oil Required: 23 Gallons

Die Working Height: 30″

Motor: 5 HP @ 1,200 RPM / 3ph

All Capacities Based on 60,000 PSI Tensile, 40,000 PSI Yield Mild Steel

Mechanical Specifications:

Dimensions: 35″ x 50″ x 65″ H

Weight: approx. 2,650 lbs.

FOB Our Baltimore, MD Warehouse
