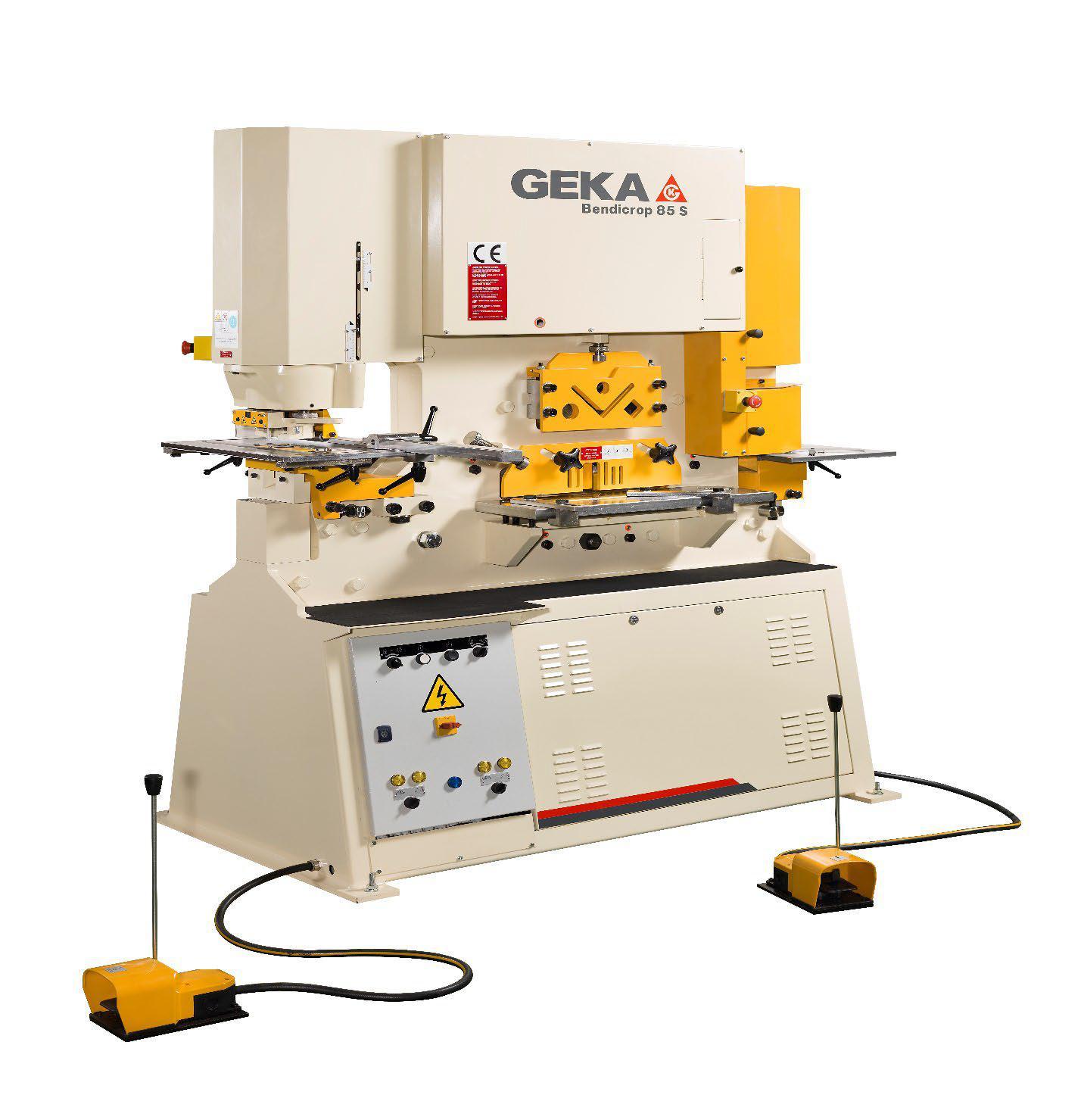

4" x 4" x 1/2" Geka #Bendicrop-85SD, universal hydraulic ironworker, 93 ton, 20" throat, NEW

SPECIFICATIONS:

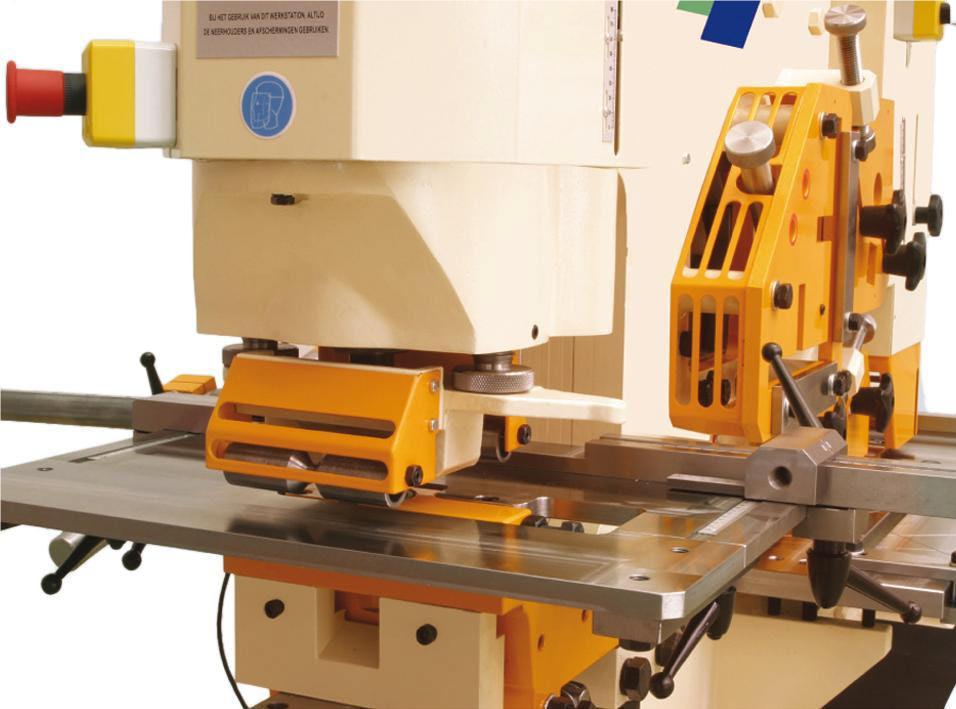

Punching Station:
Capacity: 93 US Tons
Ø1-1/2” in 1/2”
Maximum Round Punch that can be held Ø1-9/16”.
Optional Attachments up to 4” and 6” are available.
Throat Depth: 20”
Working Height: 43”
Safety:
• 2 Stage foot pedal with low pressure on first stage.
• When the stripper is open only low pressure is allowed for safe alignment of the tools.
• Steel Guards with Slots and Rollers.
• Emergency Stop close to working area.
GEKA Tools:
Punches 8/31 for up to Ø1-3/16”. 8/32 for Ø1-1/4”. 8/40 up to Ø1-9/16” as standard
Optional: Geka 5/27 and Other Brands and Styles on Request
Dies No 5 for up to Ø1-1/4” and No 8 up to Ø1-9/16”
Optional: Other Brands and Styles on Request
Other Information:
• Goose Neck Die Block with supports can be removed for punching of large U, I, and T profiles. When removed the allowable tonnage should be reduced to 30 US Tons.
• Gauging Table with inlayed inch scales as standard with front to back adjustment on rollers.
• Front to back movement on rollers for easier adjustment.
• Punch Slug Bucket
• Full Stroke or Jog Mode for inching of the tool with automatic return when lower limit switch is triggered.
• Gibbed and Guided punching cylinder for superb alignment of the tools.
• Quick change Punch holder.

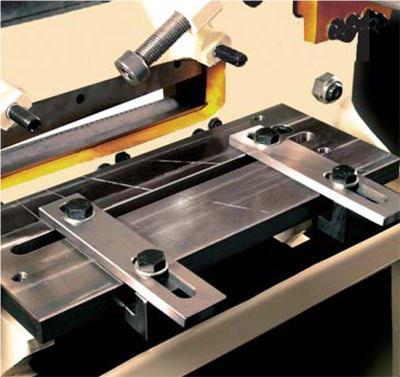

Flat Shearing Station:
Working Height: 36-3/16”
Length of Blade: 18-5/8”
Capacities: 18" x 9/16” at 2.5º Rake Angle
18” x 5/8” at 5º Rake Angle
Other Information:
• Rigid Table with mitering gradations inscribed in the table.
• Two adjustable guide bars.
• Manual hold down with access for shearing legs of angles
• Anti-Twist Device for flatter sheared pieces.

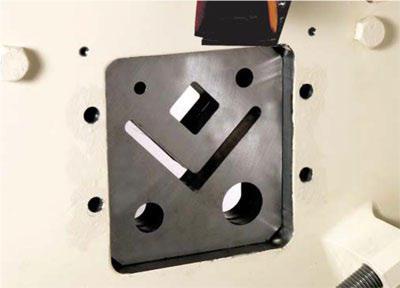

Angle and Sections Shearing Station:
Tonnage: 93 Us Tons
Working Height: 44-15/16”
Capacities: 4” x 4” x 1/2”
Openings for 1-3/8” and 1-3/4” Round
Opening for Square of 1-1/2”
Other Information:
• Shearing of both legs of the angle at the same time.
• “Non-deform cut” With no material loss.

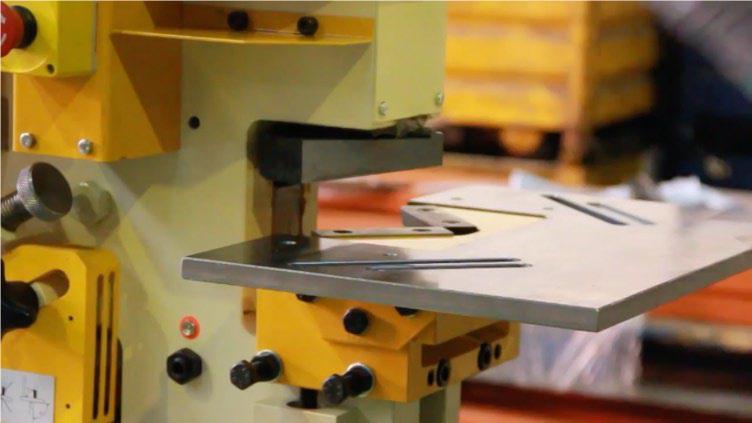

Notching Station:
Standard Equipment included is a Triangular Notcher
Capacities:
Width Per Side: 5”
Thickness: 1/2”
Working Height 43-1/8”
Note: Guard is shown swung away to show the station.
Other Information:
• Gauging Table with inlayed inch scales as standard.
• Section is protected with a hinged guard that must be opened to work.
• Emergency Stop close to working area.
Optional Equipment:
• Rectangular Notcher with Optional Gauging Table
• Pipe Notcher
• Punching Unit with Optional Gauging Table

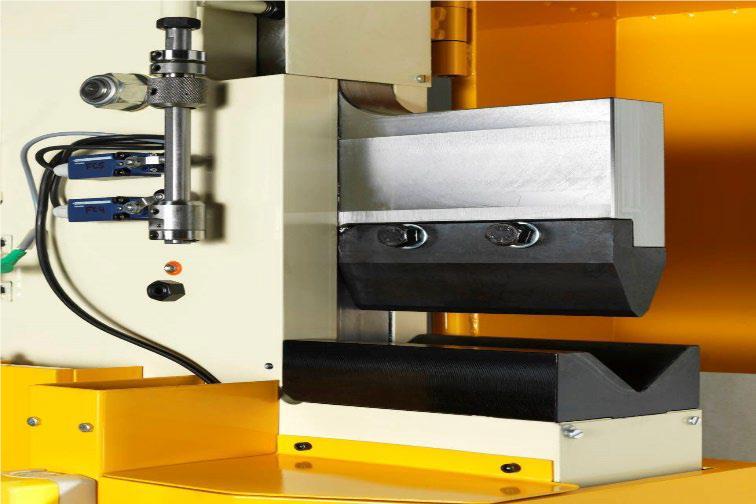

Bending Station:
CE SAFETY STANDARD
Working Height 53-3/8”
Maximum Thickness: 1/2”
Depth: 8”
Width 2” (50mm) & 3-1/2” (90mm) V Dies Easy change of lower die with no tools.
Micrometer fine adjustment of the depth of stroke,
Other Information:
• Safety system in the foot pedal if you press the 2^nd switch the bending cycles stops.
• Slow speed for CE Regulation and better depth of stroke control.
• Section is protected with hinged guard that must be opened to work.
• Optional 20” Flip stop with 2 retractable stops for repeat parts.
Productivity Kit:
• 40” Automatic Cut to Length Stop
• 10 sets of your choosing from 1/8” to 1-1/4” Round with 1/32” clearance
Additional Information:
The following hand tools are included with the machine.
• Open End Wrench 17-19mm, 19-22mm, 24-27mm
• Spanner Wrench for removal of punch nut
• Hex Keys 3, 4, 5, 6, 8, 10, 12, 14mm
• Manual Grease Gun
• Punch holders for Geka No 8/32C
• Manual with Parts List on USB
Also Note:
When punching with the quick-change punch holder, only the punches and dies need to be changed for standard punching operations. There is no need to remove the coupling nut.
Two-cylinder operation with two remote foot pedals and with hydraulics which will allow simultaneous operation (independently controlled) of the punch and shearing stations (both cylinders) to the total operating pressure of machine.
For shaped tooling, the punch base is keyed, and the die holder is set up with a fixation bolt to keep the punch and die indexed and aligned.
Voltage Selections:
Choice of 3 phase 60Hz with 12Hp Motor
• 200-208 Volts which requires 80 Amps
• 220-250 Volts which requires 80 Amps
• 440-500 Volts which requires 40 Amps
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
APPROX. 8-10 WEEKS
