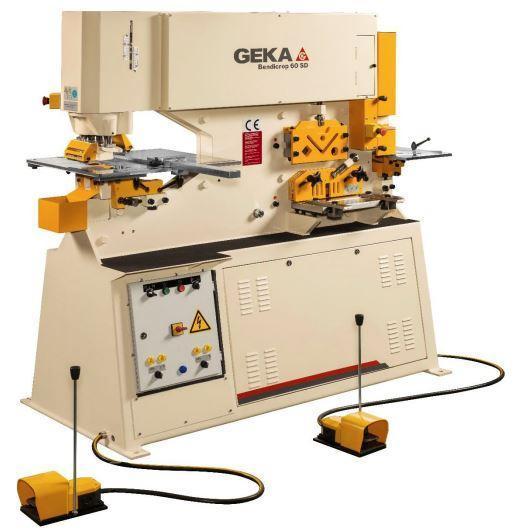

4" x 4" x 1/2" Geka #BENDICROP 60SD, 67 Ton Hydraulic Ironworker, Bending station, NEW

SPECIFICATIONS:
Punch:
Capacity (US tons) 67
Punching capacity: Ø1-1/2" thru 7/16"
Maximum Size Punch: Ø1-9/16”
Throat depth: 20"
Quick change punch holder
Full stroke or jog mode
Up to Ø4" hole or any shape that will fit within a Ø4” within tonnage capacity of machine is available as an Optional Accessory
Angle Shear & Sections:
"Non-deform cut" with no material loss
Angles square – 4" x 4" x 1/2"
Round bars – 1-3/4”
Square bars – 1-9/16"
Maximum Channel 5” is optional
Plate Shear:
"Non-deform cut" with no material loss
Flat bar 14" x 3/8” at 2º rake angle
14” x 1/2” at 5º rake angle
Blade length - 14"
Triangular Notcher:
Thickness – 3/8" Depth - 3-1/2"
Width – 1-9/16"
Other capacities as detailed in the catalogue
Press Brake:
CE SAFETY STANDARDS
Maximum Thickness – 3/8"
Depth - 6" With 1-5/8” & 3” V dies
Easy change of lower die with no tools
Micrometer fine adjustment of the depth of stroke
EQUIPPED WITH:
Flat bar blades (non-deform)
Bending Station
Triangle notcher
Dual cylinder operation with 2 remote foot pedal with 2 speed hydraulics. This is for excellent bending depth control.
Quick-change punch holder, keyed for shaped tooling
Support and miter table for plate shear
3 Phase 60HZ 220V/440V motor and controls. Low voltage at the controls.
A structural die holder is provided to allow the punching of the flanges in channels and I-beams.
Please Note:
When using the machine with standard equipment, the following sections can be sheared without tooling change.
Angles to maximum capacity
Rounds and squares to maximum capacity
Flat bar to maximum capacity
Notching to maximum capacity
Also Note:
When punching with quick-change punch holder, only the punches and dies need to be changed for standard punching operations. There is no need to remove the coupling nut. For shaped tooling, the punch holder is keyed and the die holder is set up with a locking bolt so that the properly keyed tooling can be properly aligned in the machine.
Tools:
The following hand tools are included with the machine.
Open End Wrench 17-19mm 20-22mm 24-27mm
Spanner Wrench for removal of punch nut
Hex Keys 3, 4, 5, 6, 8, 10, 12, 14mm
Manual Grease Gun & Manual with Parts List
Definition of Punching Tools:
Geka No 8/31 & 8/40 Punch or Cleveland Punch & Die Fig 20 & 26S
Geka No 5 & 8 Die or Cleveland Punch & Die Fig 59 & 62S
The following are included in the price of the machine: A Machined Punch Gauging Table consisting of X-Y scales and backstop. Magnetic Halogen Work Light with 2 spares bulbs A Machined Notcher Gauging Table consisting of X-Y scales and backstop. 40” Calibrated Electric Length Gauge to allow the operator to set the stop and feed material to the stop and have the shear sections (flats & angles) of machine cycle automatically. A Start Set of Round Punches and dies in the following sizes. 5/16”, 7/16”, 9/16,” 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1-1/16” with matching die with clearance of 1/32”.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
STOCK
