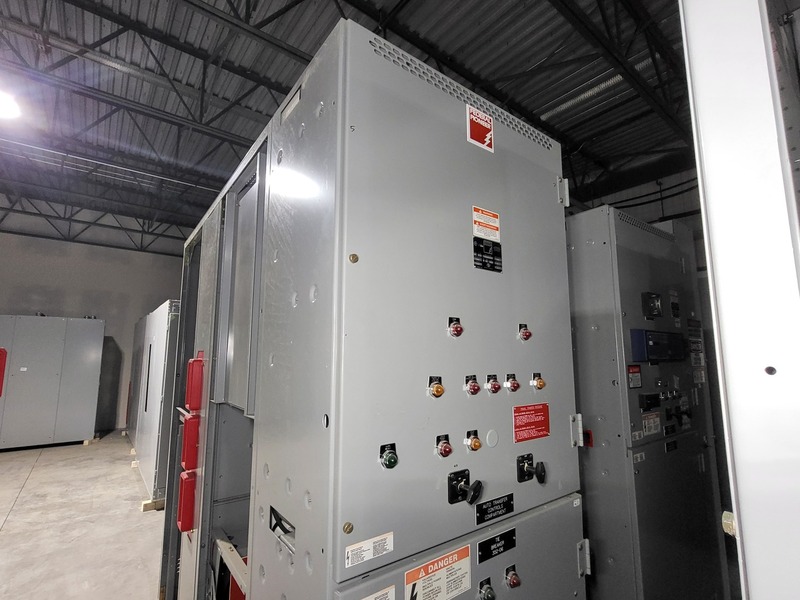

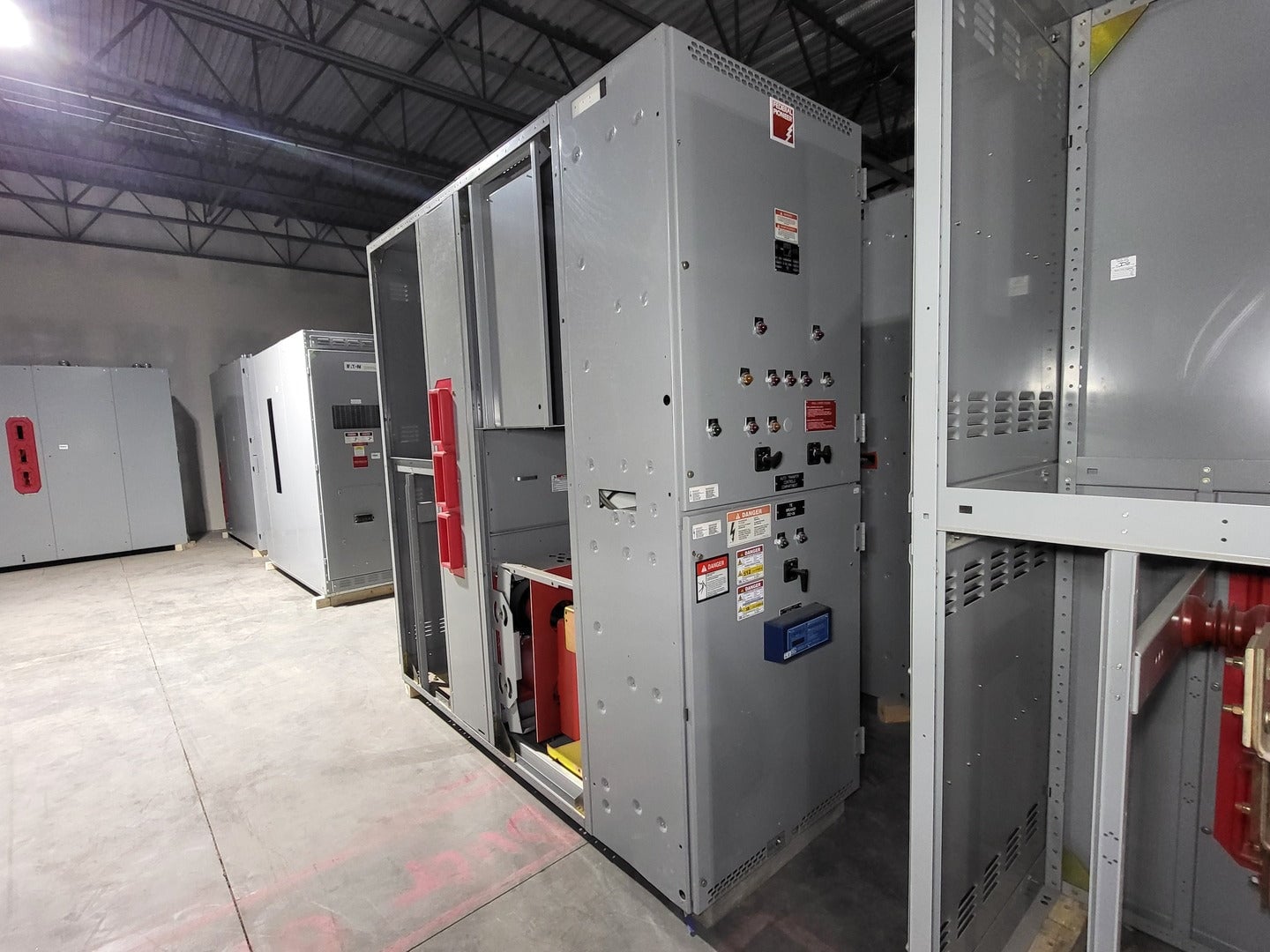

4 KV, Federal Pioneer, 2000 Amps Medium Voltage Switchgear Tie Breaker w/ Square D VR Breaker & SEL Relay, 2002

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 152532
Year: 2002
Condition: Used
S/N: 14005564-002
Electrical Specifications:
Amps: 2000 amps
Phase: 3-phase
Additional Description:

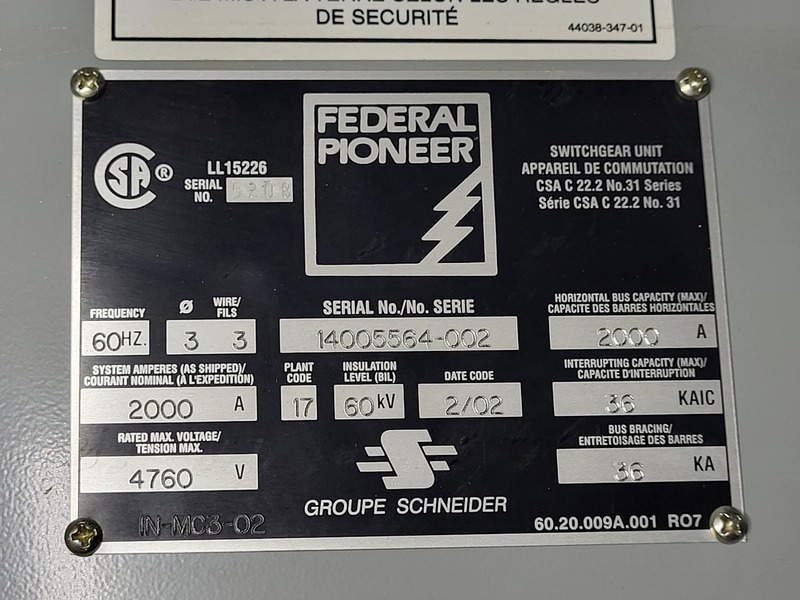

Manufacturer: Federal Pioneer / Groupe Schneider
Breaker Manufacturer: Square D Company
Breaker Type: VR Vacuum Circuit Breaker
Switchgear Type: Metal-Clad Indoor Switchgear
Voltage Class: 4.76kV
Frequency: 50/60Hz
Phase: 3
Continuous Current: 2000A
Interrupting Capacity: 36kA
Bus Bracing: 36kA
BIL Rating: 60kV
Breaker Interrupting Time: 3 Cycles
Breaker Weight: 430 lbs
Closing Coil Voltage: 100-140 VDC
Tripping Coil Voltage: 70-140 VDC

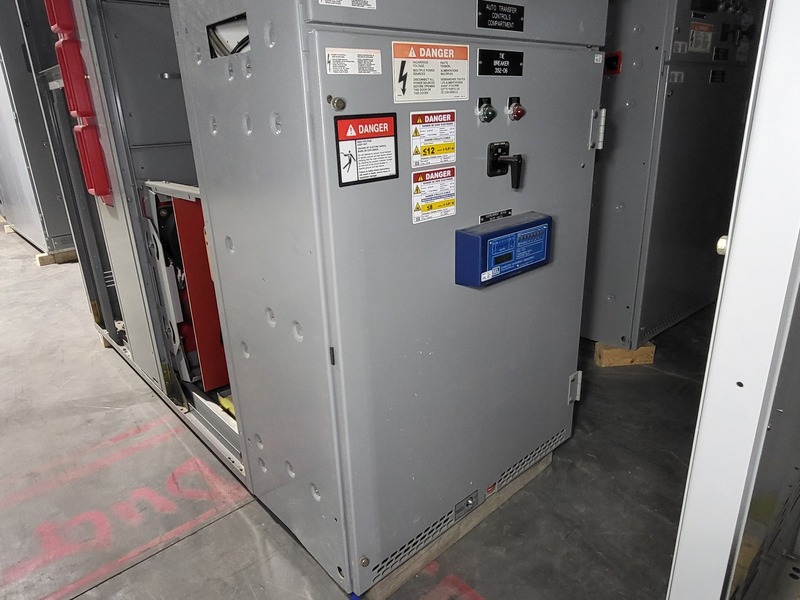

Relay Protection: SEL-551 Overcurrent Relay

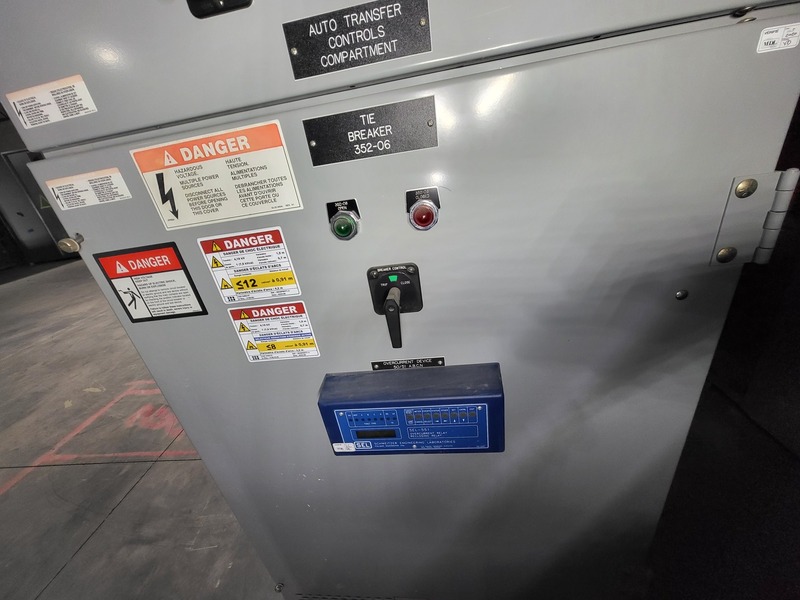

Control Section: Auto Transfer Controls
Manufacture Date: 02/2002
Breaker Catalog No.: V5D3233Y000 A
Factory Order No.: 17-14005564-002
Included Components

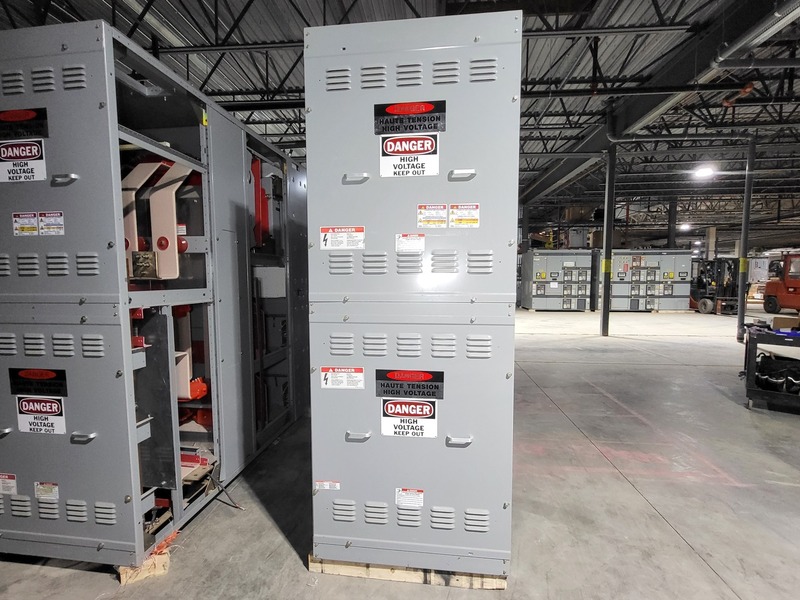

- Federal Pioneer metal-clad switchgear enclosure
- Square D VR drawout vacuum circuit breaker
- SEL-551 overcurrent protection relay
- Auto transfer control compartment

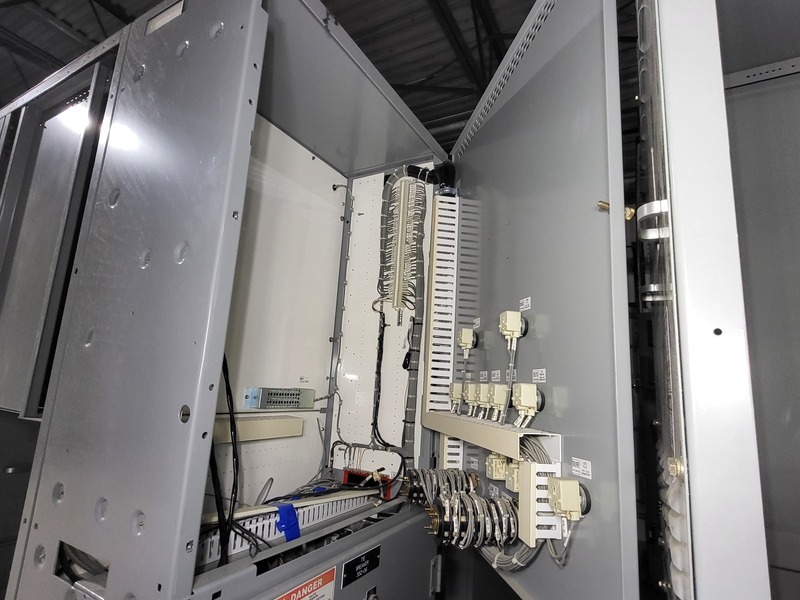

- Complete internal control wiring
- Auxiliary relays and terminal strips
- Mechanical interlock/racking assemblies
- Bus structure and insulating assemblies

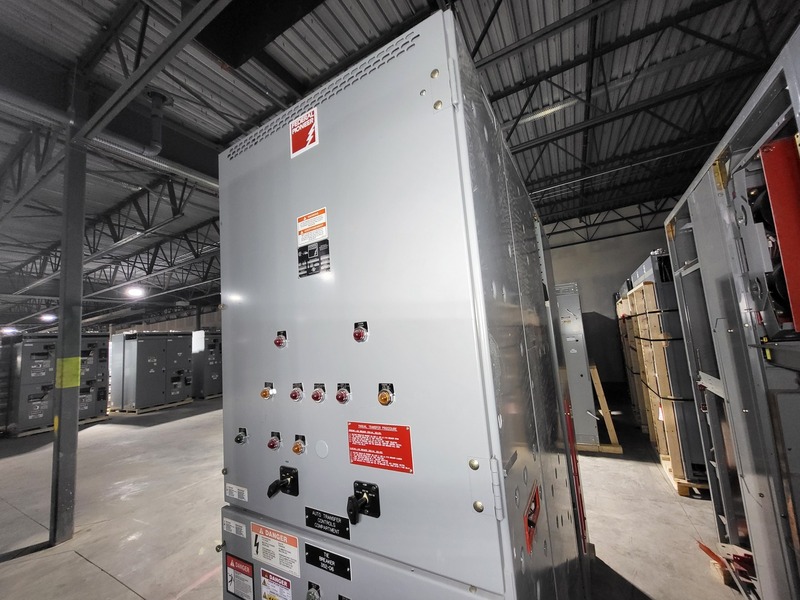

- Indicating lights and breaker controls
- Rear access compartments

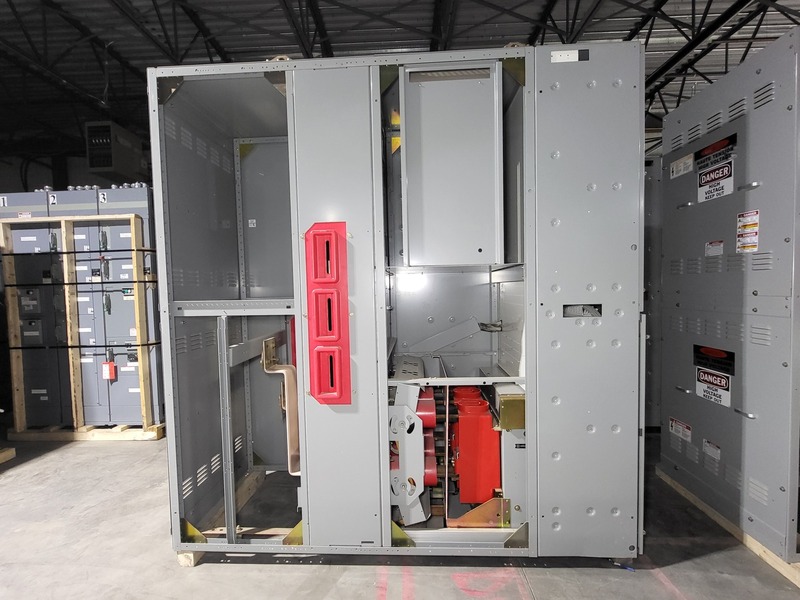

- Drawout breaker cradle assembly
Features
- Drawout vacuum breaker design
- Automatic transfer control system
- SEL digital protection relay
- Heavy-duty 2000A horizontal bus

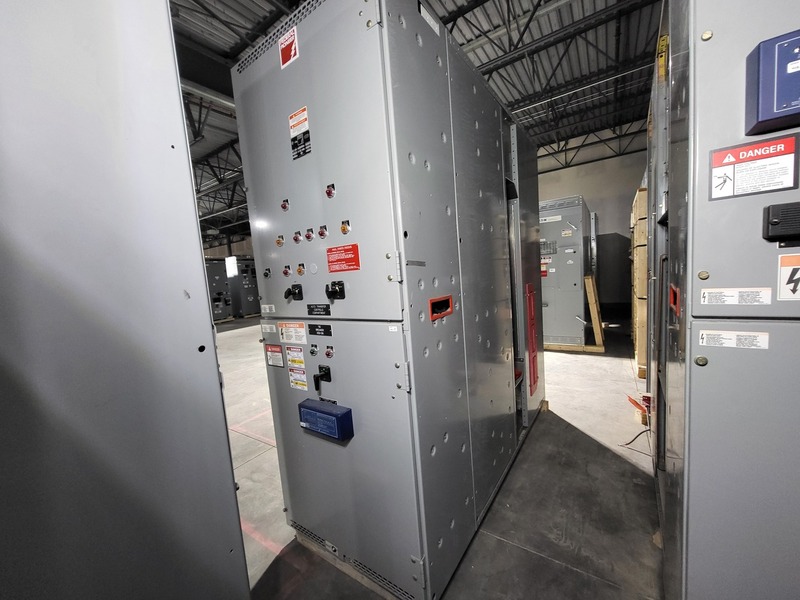

- Front-access operation
- Rear cable/control access
- Industrial metal-clad safety construction
- Arc-flash labeling installed
- Clean, labeled internal wiring
- Modular serviceable compartments
Suitable for:
- Utility substations
- Industrial power distribution
- Mining operations
- Petrochemical facilities
- Data centers
- Critical infrastructure
- Institutional facilities
- Medium-voltage tie breaker systems
- Automatic transfer applications
- Electrical distribution modernization projects
