Description

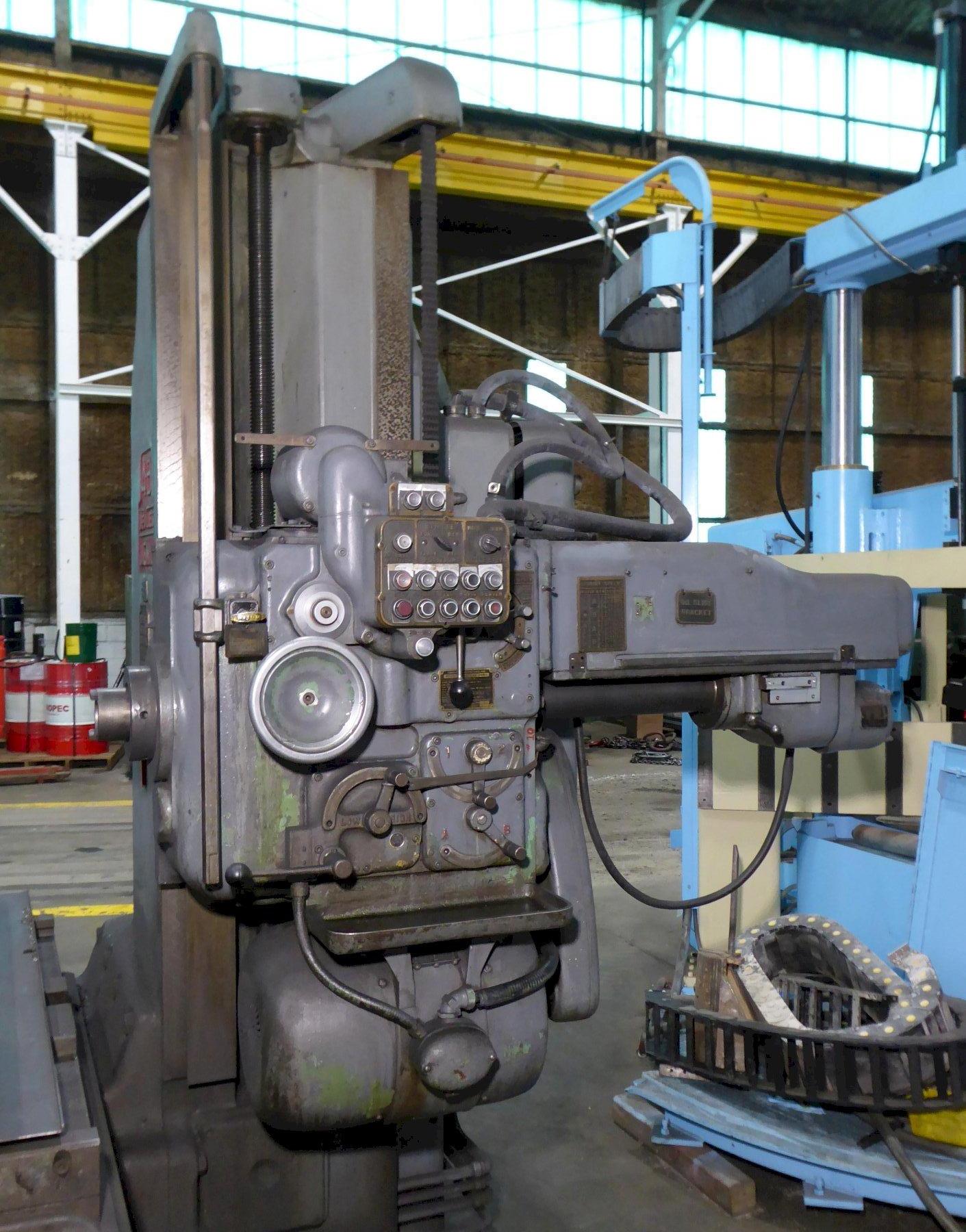

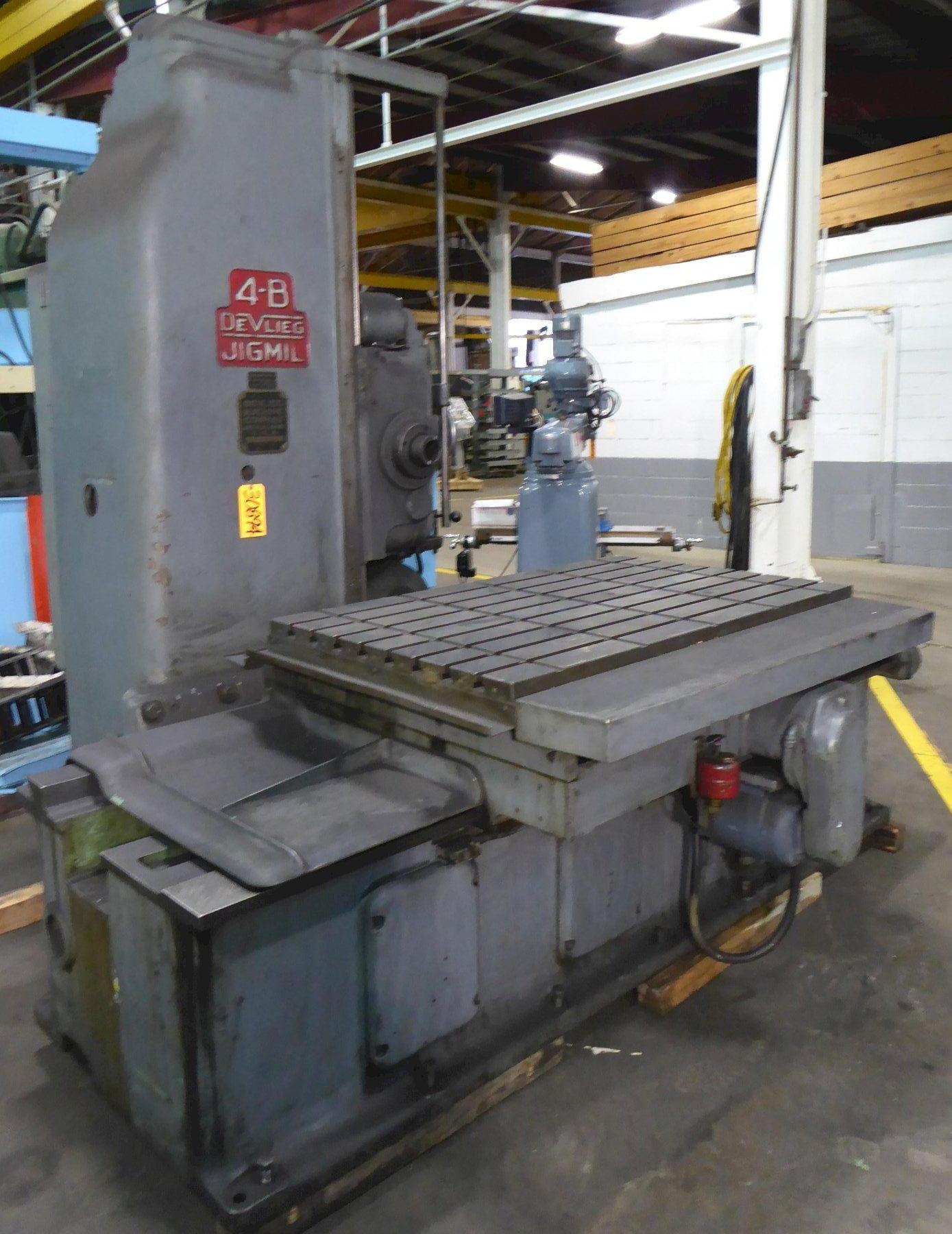

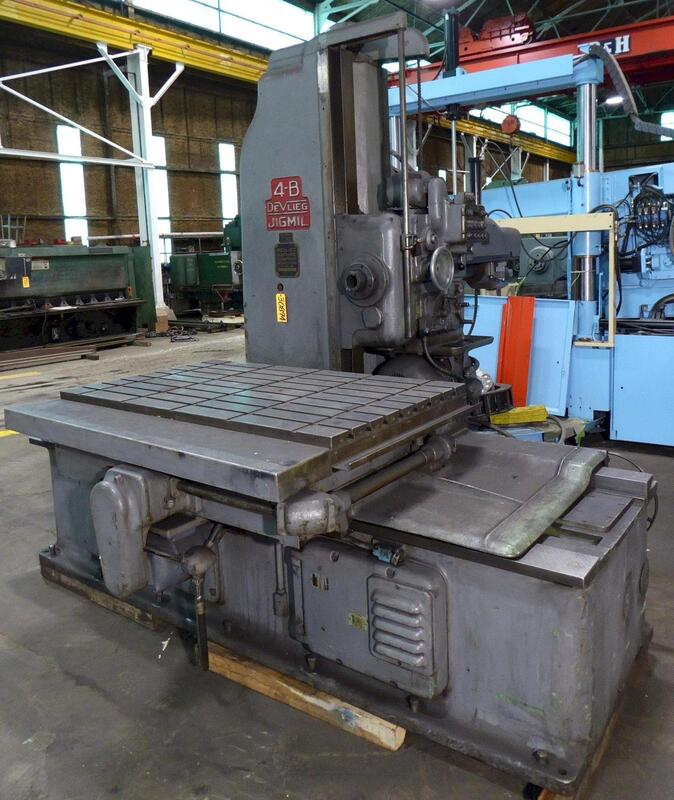

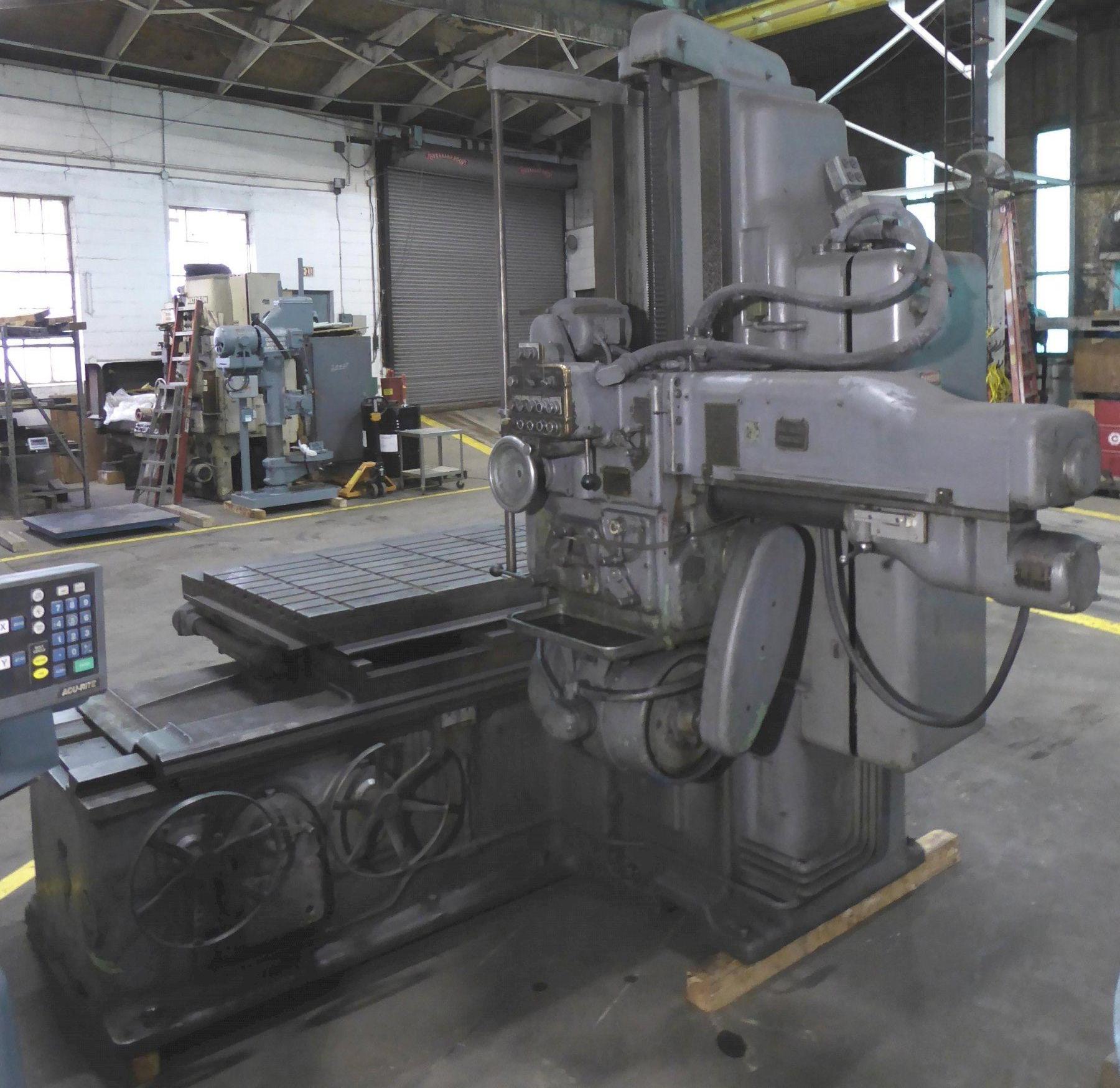

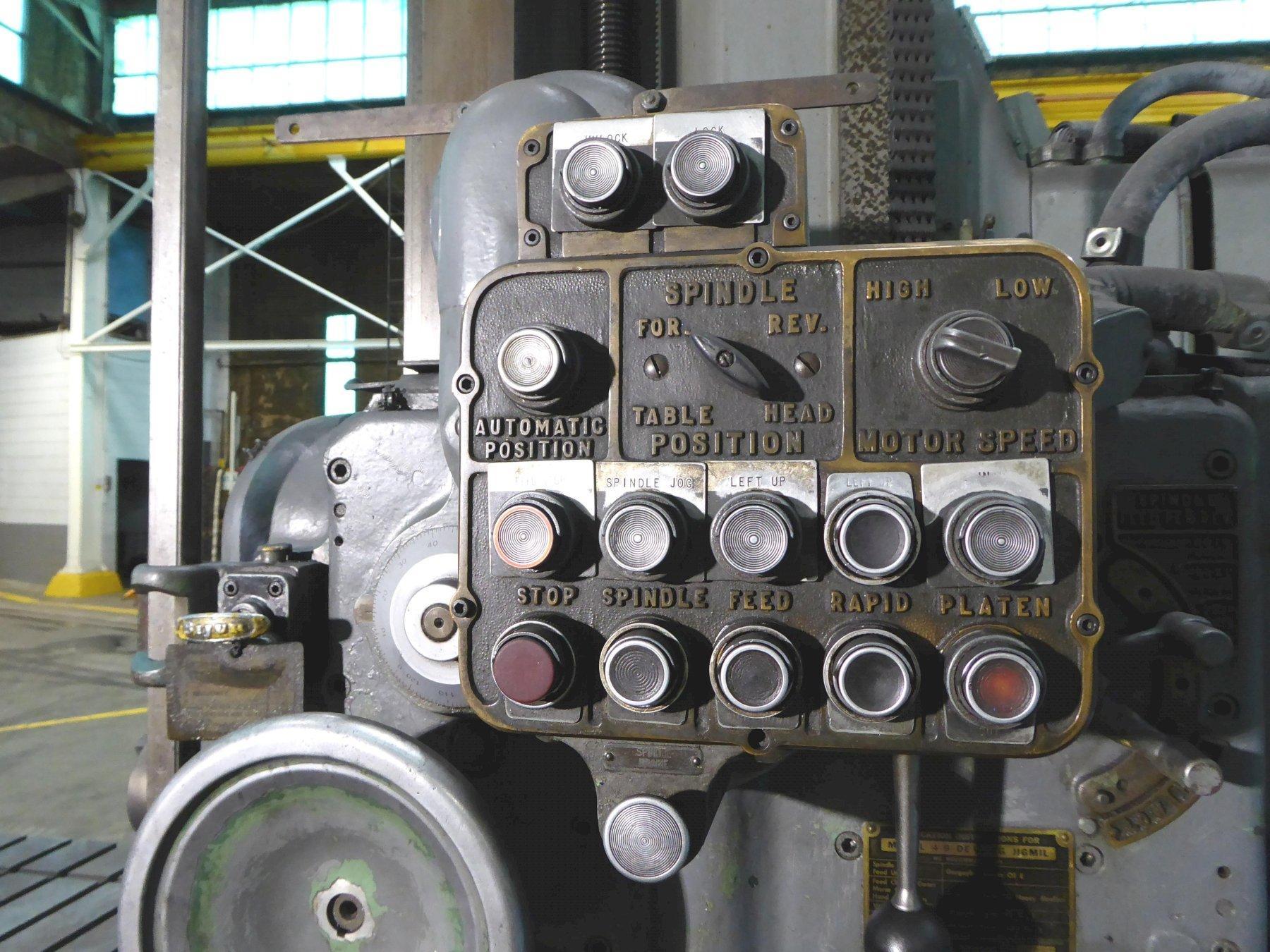

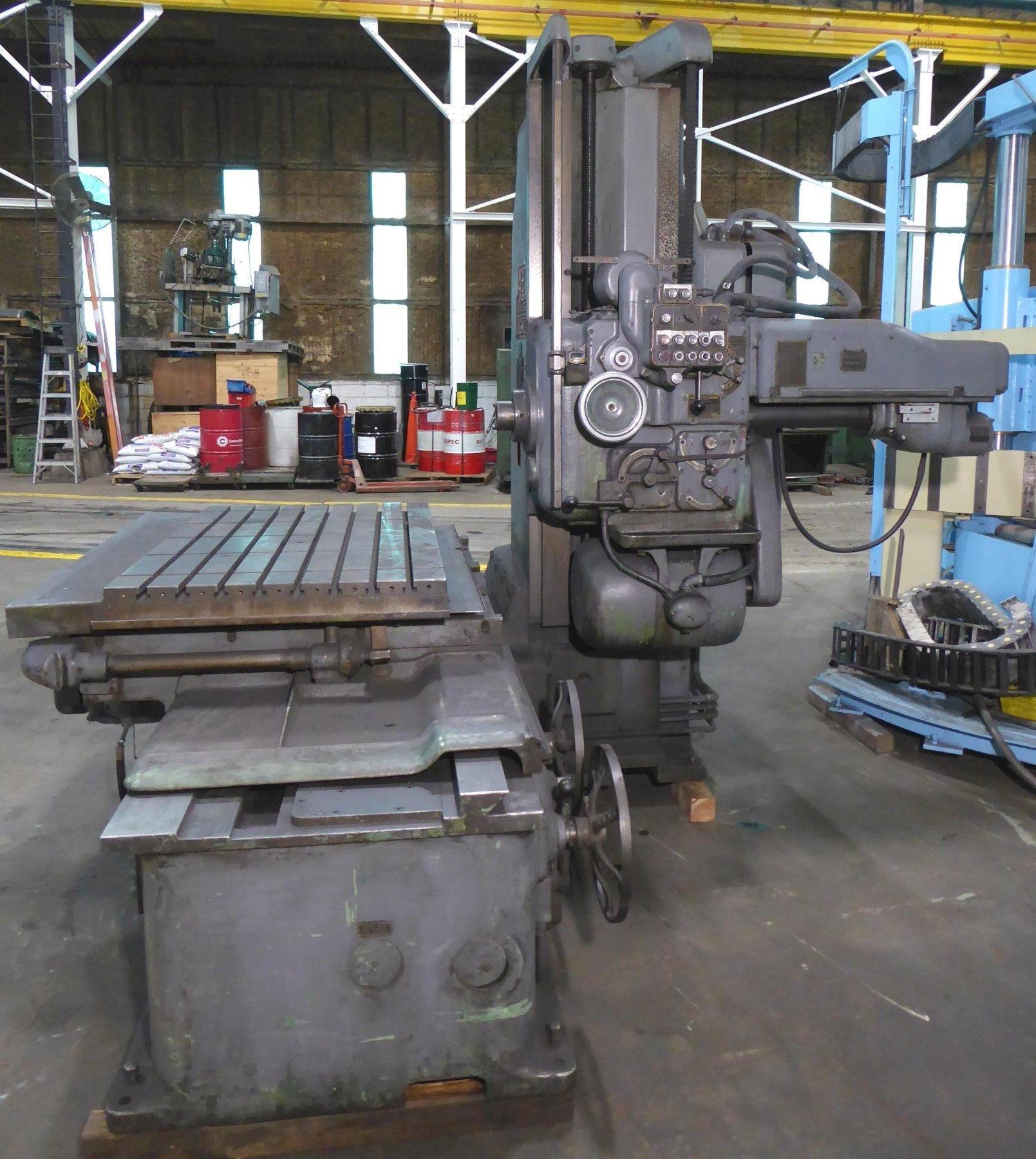

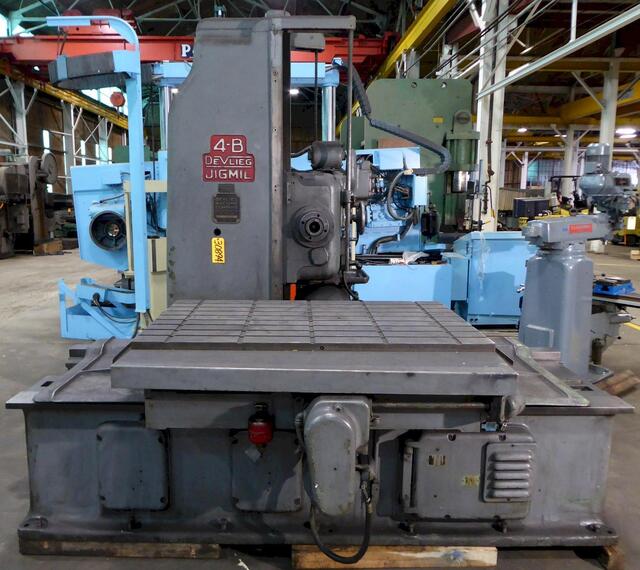

DEVLIEG JIGMIL
MODEL: 4B-60
SERIAL NUMBER: 4-174
GENERAL SPECIFICATIONS
Spindle Diameter: 4"
Spindle Taper: No. 50
Longitudinal Travel: 60"

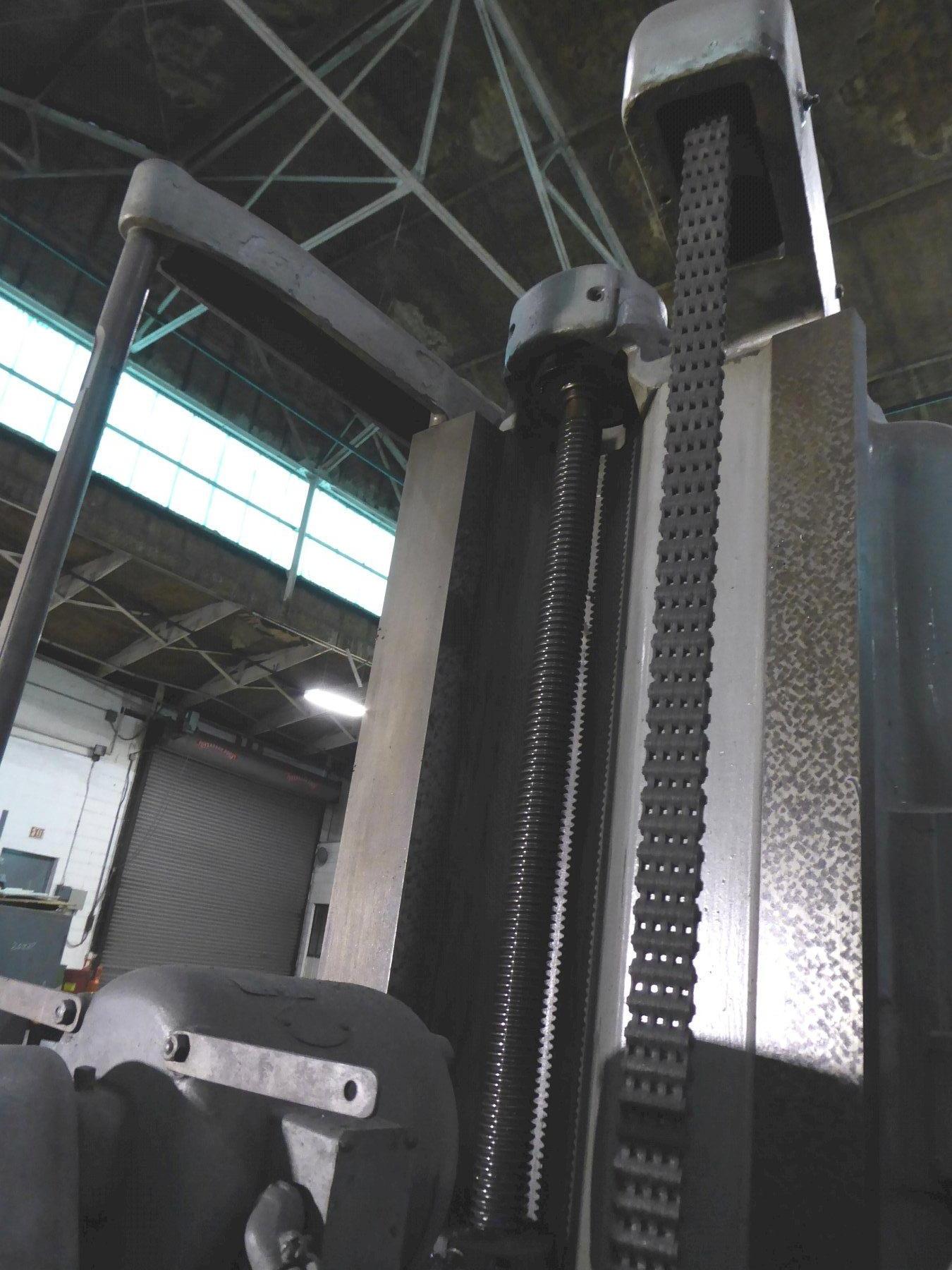

Vertical Travel: 48"

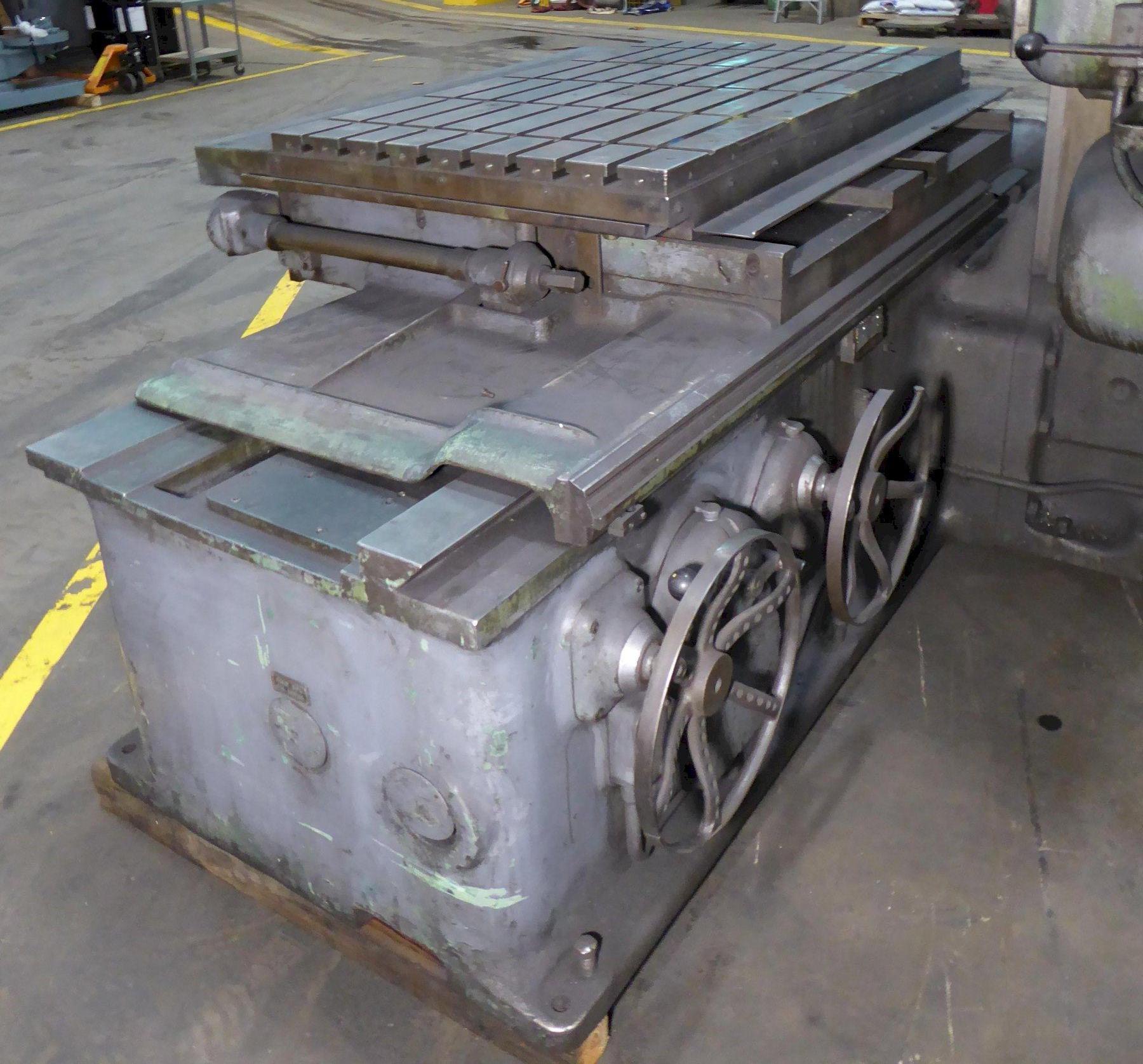

Table Dimensions: 36" x 60"

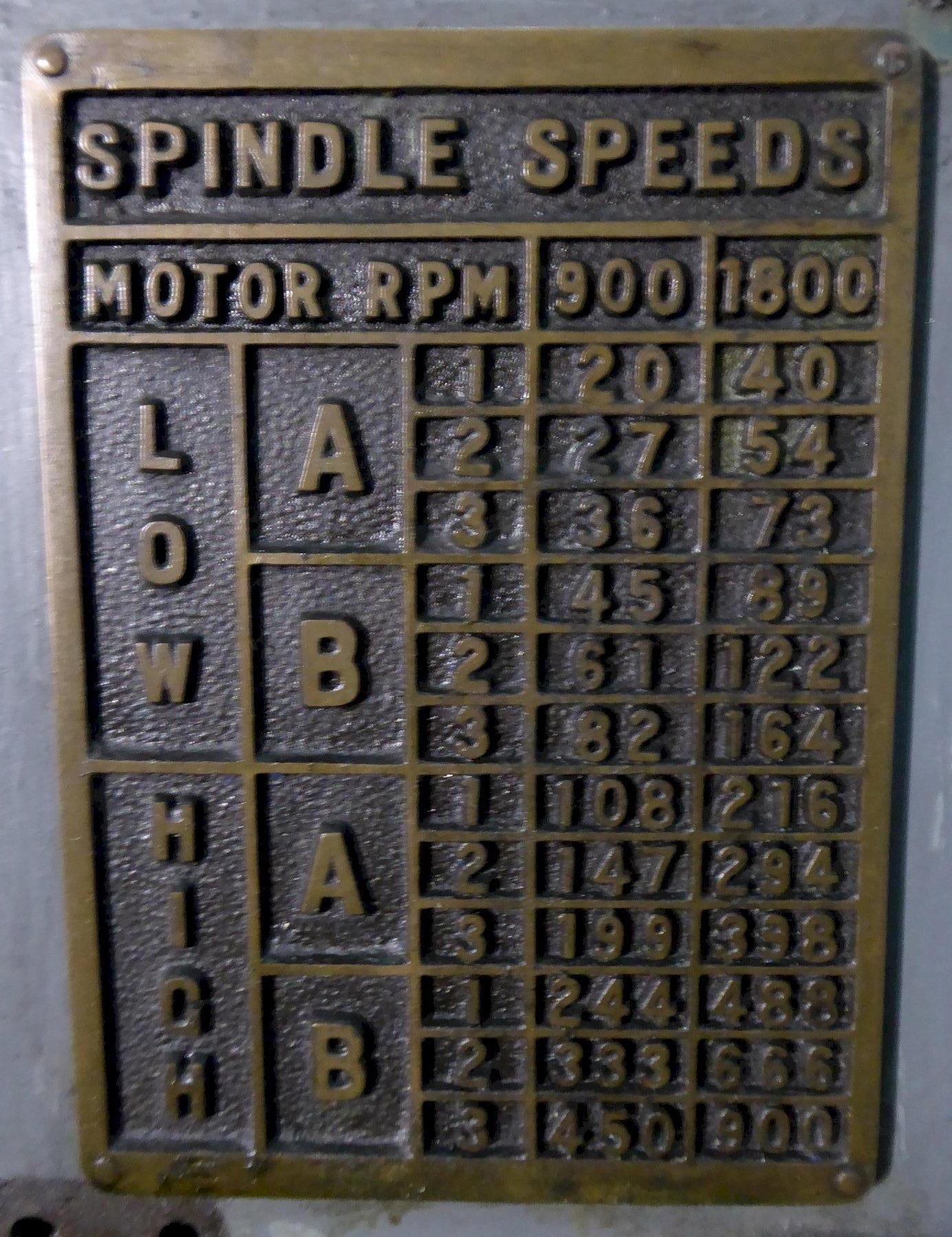

Spindle Speeds: (24) 20 - 900 RPM
Bar Feeds: (6) .0014" - .015"
Table Height From Floor: 40"
EQUIPPED WITH
10/5 HP Two Speed Spindle Drive Motor, 440/60/3
F.O.B. Cincinnati, Ohio
Approximate Weight: 32,000 Lbs.
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: 4B-60
SERIAL NUMBER: 4-174
GENERAL SPECIFICATIONS
Spindle Diameter: 4"
Spindle Taper: No. 50
Longitudinal Travel: 60"
Vertical Travel: 48"
Table Dimensions: 36" x 60"
Spindle Speeds: (24) 20 - 900 RPM
Bar Feeds: (6) .0014" - .015"
Table Height From Floor: 40"
EQUIPPED WITH
10/5 HP Two Speed Spindle Drive Motor, 440/60/3
F.O.B. Cincinnati, Ohio
Approximate Weight: 32,000 Lbs.
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
Get Your Price from C.W. Wood Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
4" DeVlieg #4H-60 Spiramatic jig mill, AcuRite digital read out, 60" travel, tooling package
Category: Jig Mills
Seller: Lucas Precision LLC
Location: Cleveland, OH
Mfr: Devlieg
Model: 4H-60
DeVlieg 4H-60 Spiramatic Jig Mill Heavy-duty DeVlieg 4H-60 Spiramatic Jig Mill available immediately in Ohio.Machine is an Acu-Rite digital read out and comes with extensive tooling and cabinet., Ideal for precision boring, toolroom work, large component machining and heavy-duty applications., Acu-Rite digital read ...more
JUST ADDED!

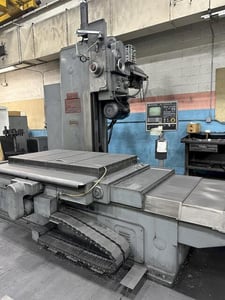

4" DeVlieg #4H72, CNC jig mill, Allen Bradley 8200 control, 25 HP, 1000 RPM, 1980
