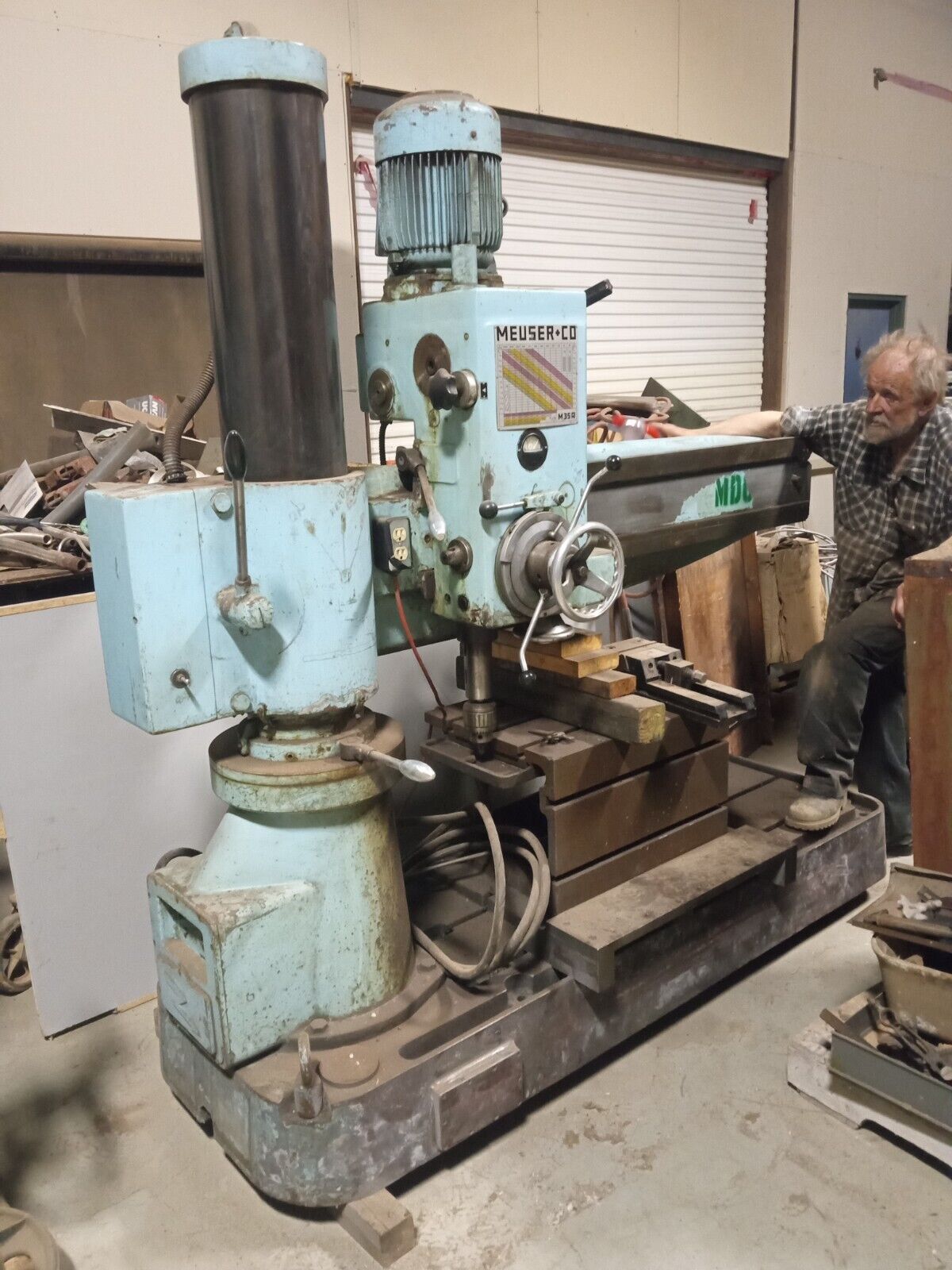

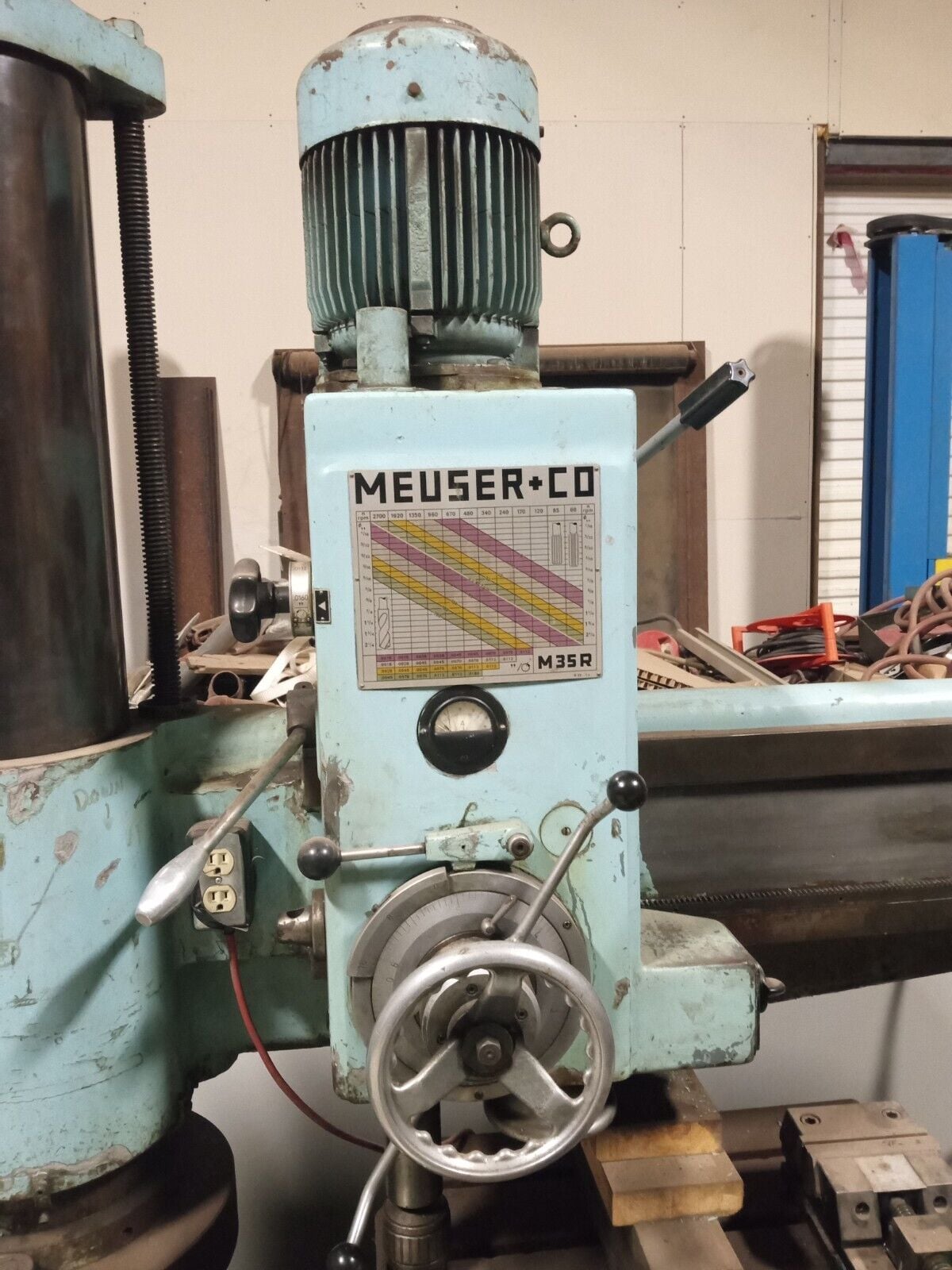

4' -9" Meuser #M35R, Radial Drill, 48" max distance Spindle to Column, 9" Spindle Travel, 1.5"/2" Drilling capacity, #4 MT, 4 HP, 60-2700 RPM

• 4 x 9″ MEUSER RADIAL DRILL MODEL: M35R




  SPECIFICATIONS:

  DIAMETER OF COLUMN ………………… 9″

  MAX DISTANCE SPINDLE TO COLUMN ……… 48″

  MIN DISTANCE SPINDLE TO COLUMN ……… 6-1/2″

  MAX DISTANCE SPINDLE TO BASE ……….. 46″

  MIN DISTANCE SPINDLE TO BASE ……….. 15″

  VERTICAL ADJUSTMENT OF ARM …………. 23″

  DRILLING CAPACITY IN STEEL …………. 1-1/2″

  DRILLING CAPACITY IN CAST IRON ……… 2″

  TAPPING CAPACITY IN STEEL ………….. 1-1/4″

  TAPPING CAPACITY IN CAST IRON ………. 1-1/2″

  SPINDLE TAPER …………………….. #4 MT

  SPINDLE TRAVEL ……………………. 9″

  SPINDLE SPEED RANGE (12) …………… 60 – 2700 RPM

  SPINDLE FEED RANGE (6) …………….. .0016″ – .016″

  APPROXIMATE BASE DIMENSIONS …………. 29″W x 80″L

  APPROX MACHINE WEIGHT ……………… 5,500 LBS

EQUIPPED WITH:

POWER ELEVATION & CLAMPING OF ARM ON COLUMN

T-SLOTTED BASE

T-SLOTTED BOX TABLE

TRAV-A-DIAL FOR LONGITUDINAL HEAD TRAVEL ON ARM

1-1/2 HORSE POWER ELEVATION MOTOR

4 HORSE POWER SPINDLE MOTOR
