Description

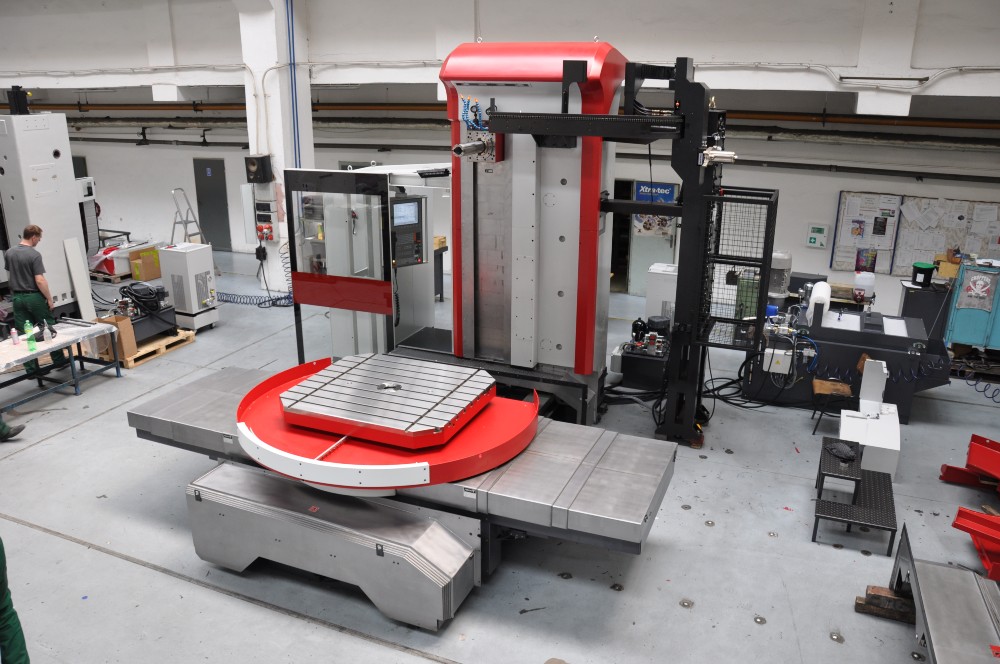

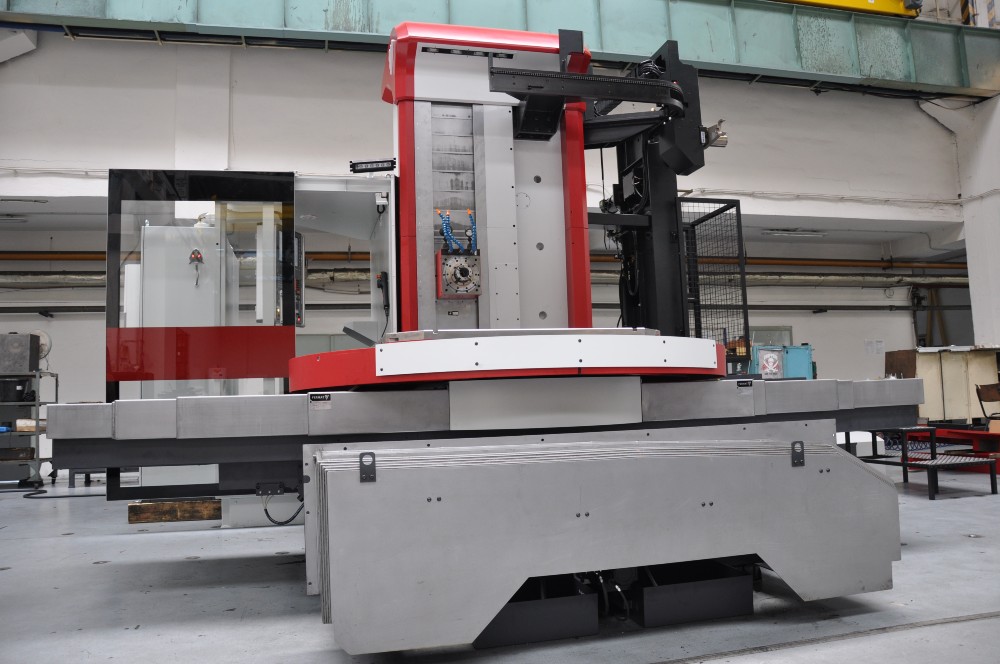

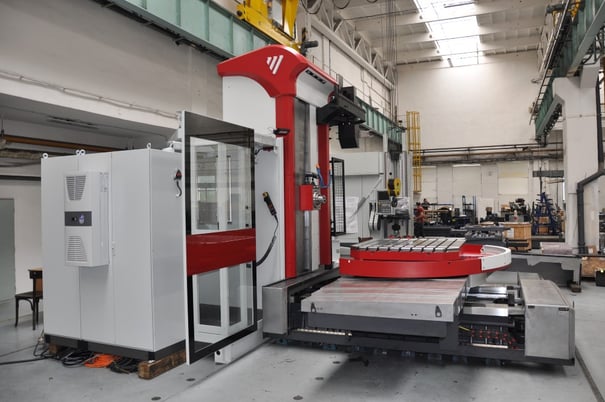

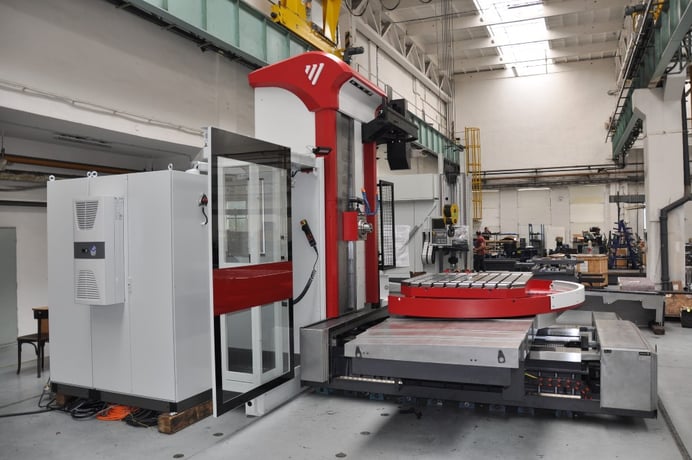

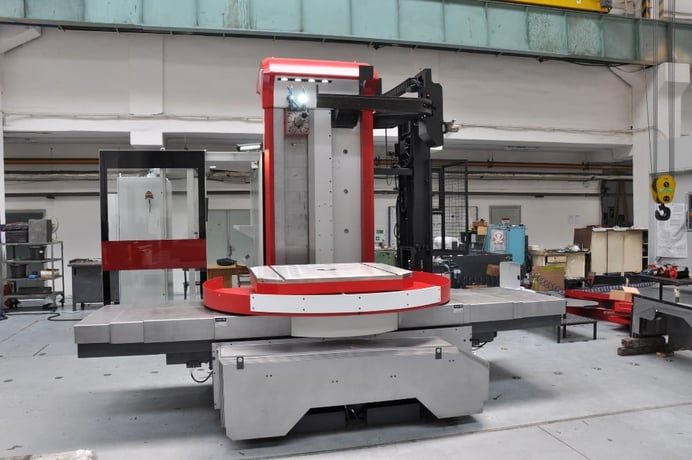

Economical, modern and compact solution. WFC is a contuniously controlled machine with cross table and stationary column, ideal for machining pieces of up to 5 tons.

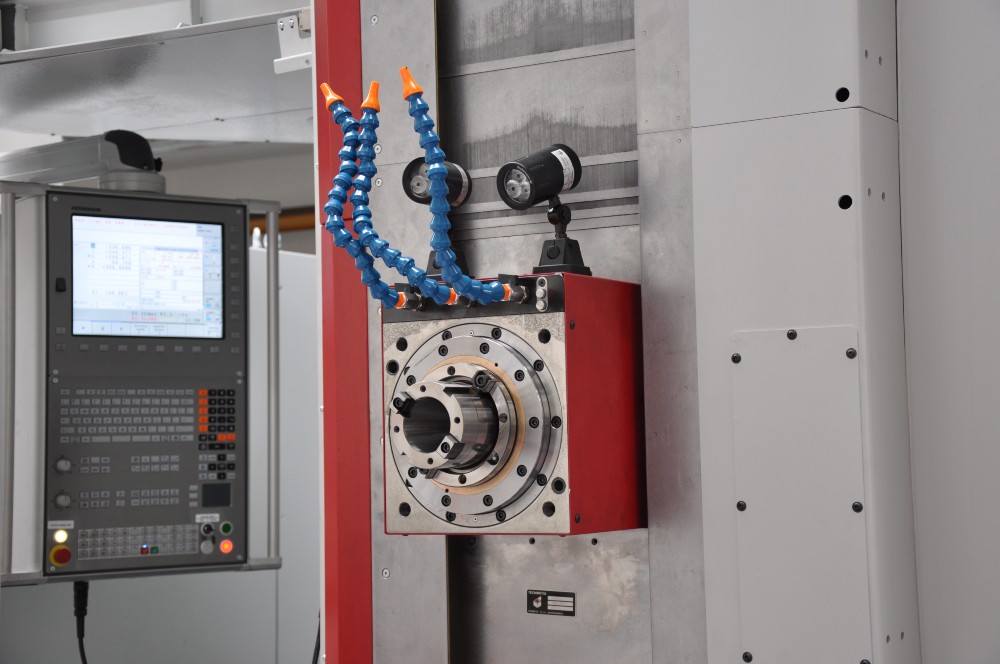

- Spindle diameter 100/110 mm, spindle travel 730 mm.
- Machine suitable also for serial production, for shops with limited floor space.

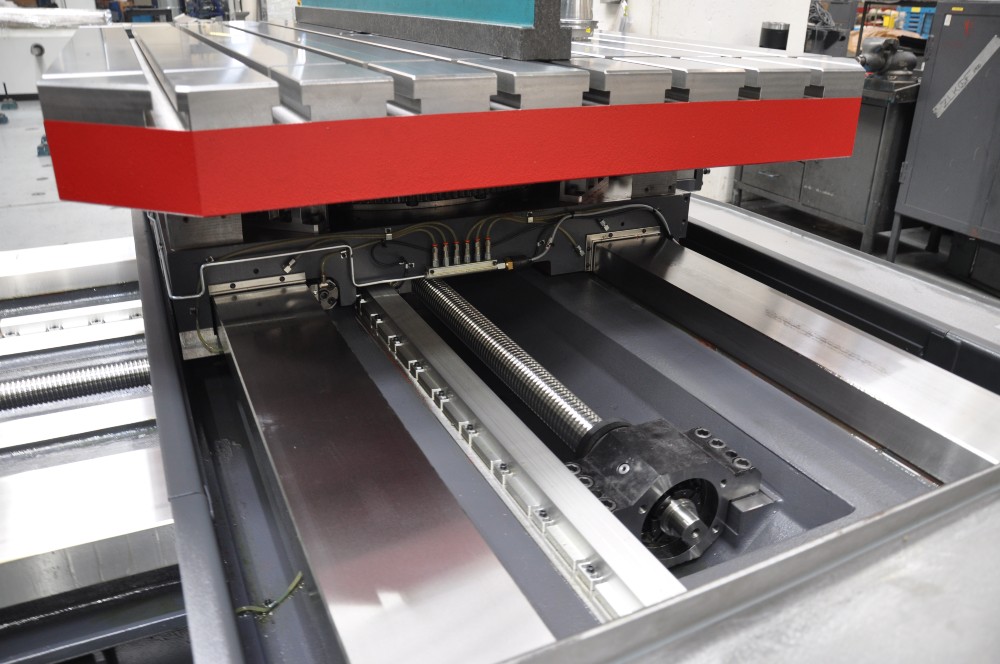

- Possible also in version with linear motion guideways (WFC 10 L).
- CNC rotary table with two servomotors
| Units | WFC 10 | WFC 10 L | |
| Spindle diameter | mm | 100/110 / 3.93"/ 4.33" | |
| Spindle taper | SK 50 (ISO 50) / BT 50 / CAT 50 | ||
| Spindle speed (max.) | rpm | 4000 | |
| Main Power Heidenhain or SIEMENS CNC (S1/S6) | kW | 19.5 / 29.3; 30 / 45.5 | |
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm | 951/1426; 1416/2124 | |
| Main Power FANUC CNC (S1/S3) | kW | 22/26; 30/37 | |
| Max. Torque FANUC CNC (S1/S3) | Nm | 823 / 971; 1370 / 1692 | |
| X-axis Cross Travel of Table | mm | 1250/ 2000 49.21"/78.74" | |
| Y-axis Vertical Travel of Headstock | mm | 1250/1700/2000 49.21"/70"/78.7" | |
| Z-axis Longitudinal Travel of Table | mm | 1250 / 49.21" | 1500 / 59" |
| W-axis Spindle Travel | mm | 730 | |
| Rapid Feed X, Y, Z | mm/min. | 8000/ 314"/ 12000 | 30000 |
| Rapid Feed W | mm/min. | 4000 / 157.5" | 12000 |
| Rapid Feed B | rpm | 2 (4 optional) | 2 (10 optional) |
| Max. Table Load | kg | 5000 | |
| Table Size | mm | 1000 x 1120/1250 x 1400/1250 x 1800/ 1400 x 1600 | |
