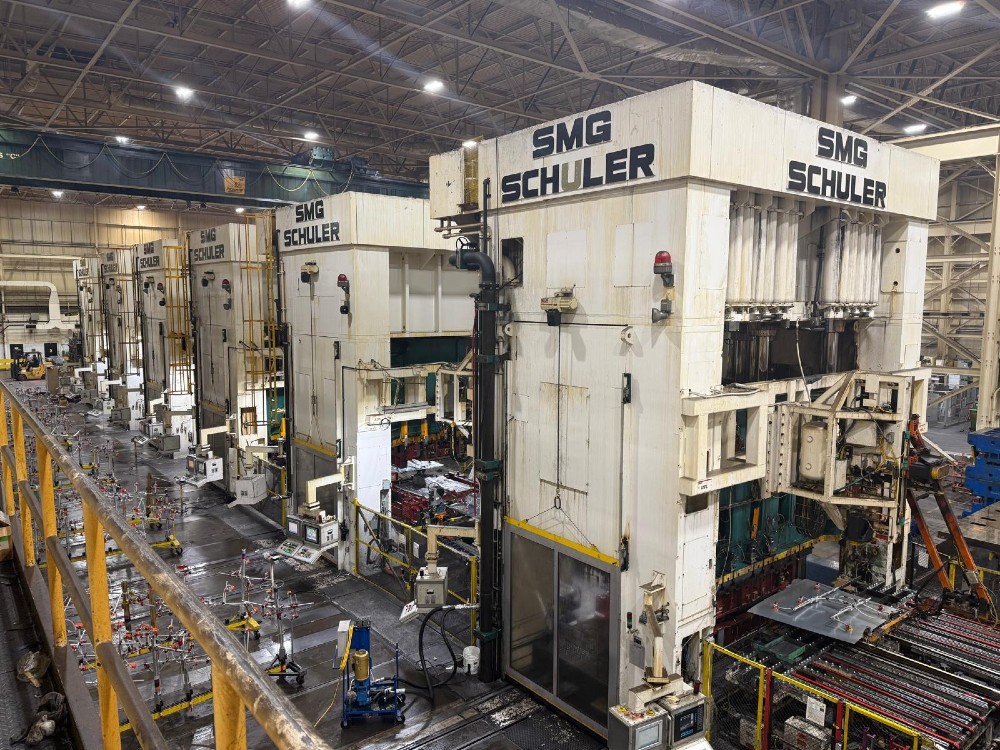

1500 Ton, Schuler #HZPU-T1500-212-96, 212" x 96" die space, 43" slide stroke, (4 available)

SCHULER PRESS Model HZPU-T1500- 212"/96"
Max slide capacity 1500 Tons
Slide retraction capacity 125 Tons
Max slide stroke 43 inches 1100 mm
Slide area 212 x 96 inches 5400 x 2450 mm

Daylight between bolster and slide up 89 inches 2275 mm
Daylight between bolster and slide down 46 inches 1175 mm
Clearance between uprights (Let to right) 213 inches 5410 mm
Clearance between uprights (Front to back) 98 inches 2500 mm
Clamping area of bolster (width/deph) 212 x 96 inches 5400 x 2450 mm

Die cushion displacement capacity 450 Tons
Die cushion ejector capacity 45 Tons
Die cushion stroke 12 Inch 300 mm
Die cushion aerea (width/depth) 153.5 x 69 inches 3900 x 1760 mm

Fixed type hydraulic clamps capacity 10 Tons
Hydraulic clamps slide quantity 16

Moving Bolster (ledt to right) 2
Speed of travel Aprox 9.8 ft/min 3 m/min
Travel each side Aprox 24.66 ft 7520 mm
Rapid advance slide speed 79 ft/min 400 mm
Working speed at maximum pump volume 10.6 ft/min 54 mm/s

Working speed at maximum slide capacity 6.3 ft/min 32 mm/s
Return speed 79 ft/min 400 mm/s

Main drive rating 745 Hp 555 Kw

Bolster high above floor 21 inches
Machine high above floor Aprox 30 ft
Machine width (without ladder) Aprox 25 ft
Machine depth (included oil tank) Aprox 19 ft
Total machine weight Aprox 390 US- Tons
