For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
Description

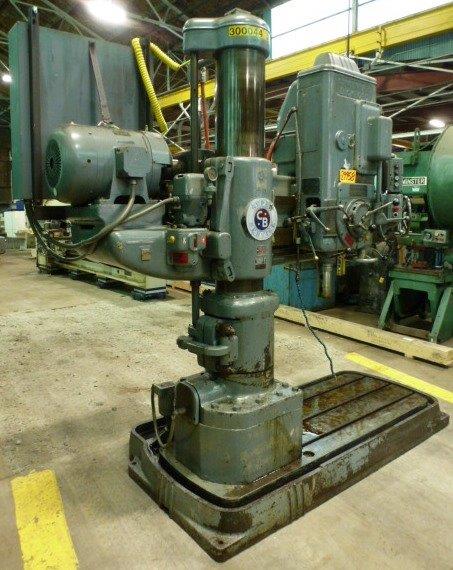

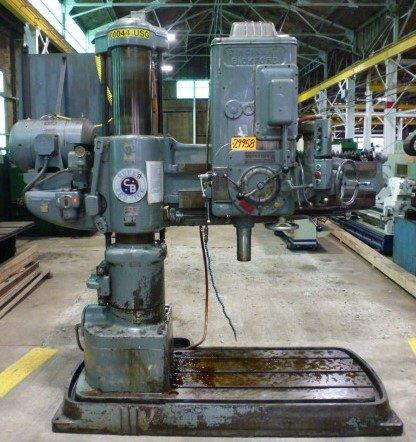

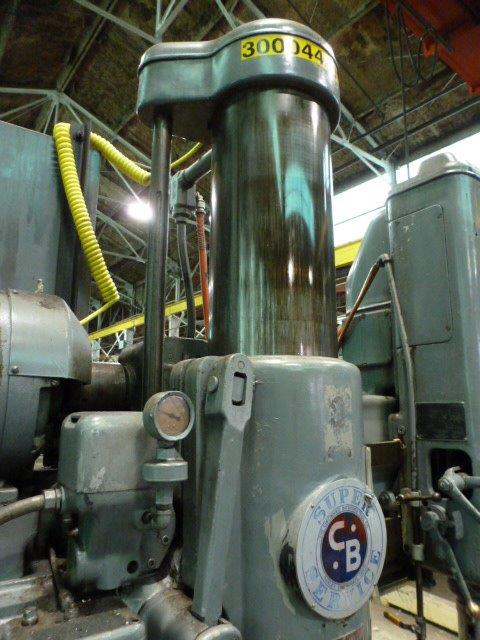

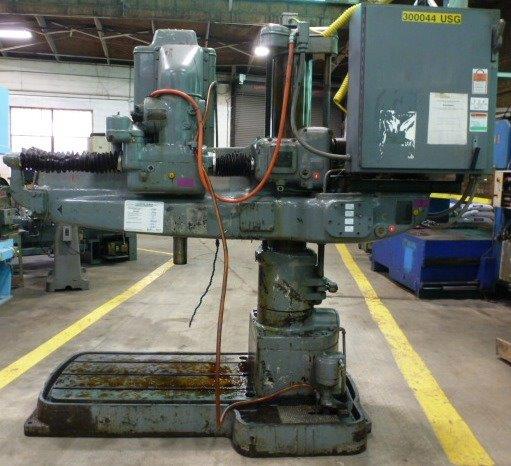

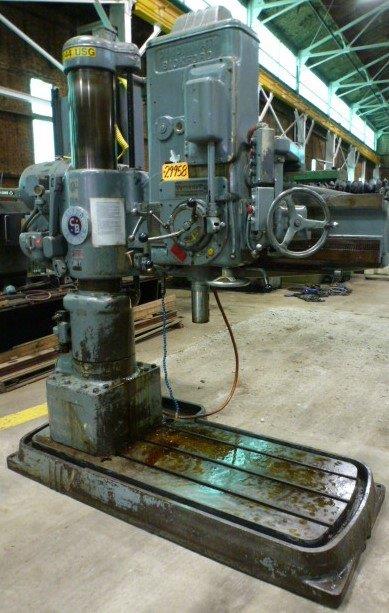

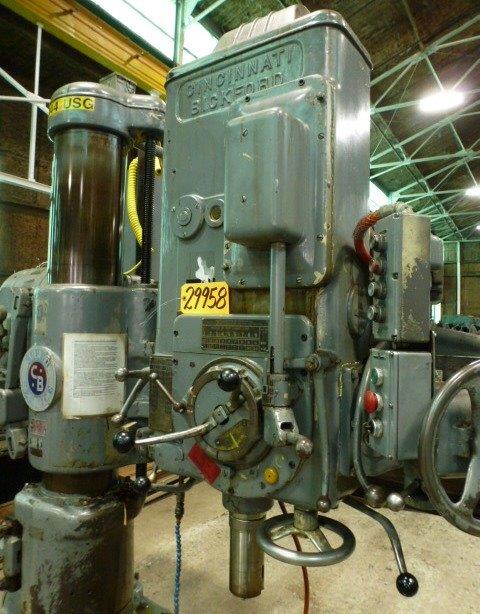

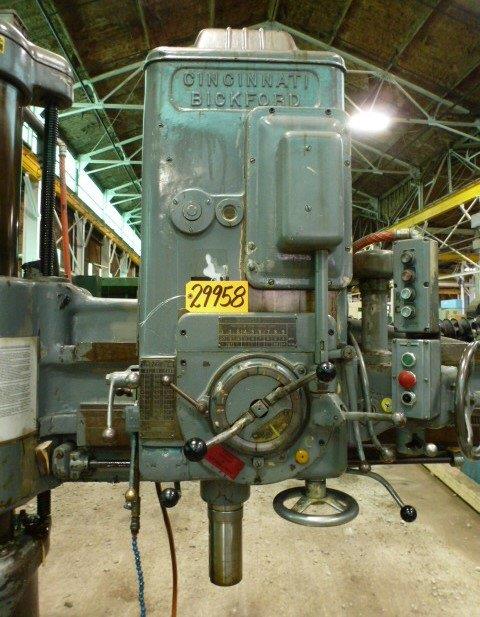

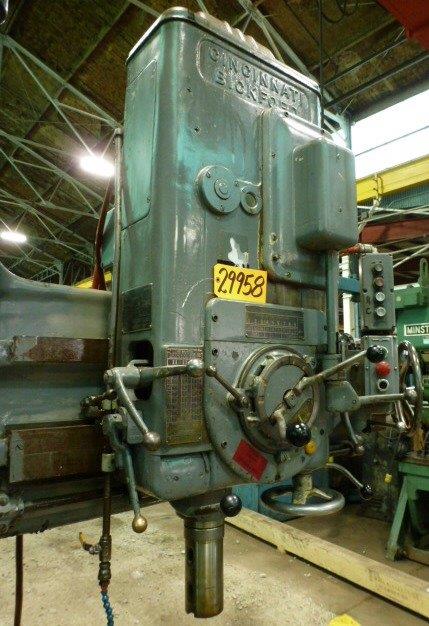

CINCINNATI BICKFORD RADIAL DRILL
MODEL: Super Service
SERIAL NUMBER: 2E-717
GENERAL SPECIFICATIONS
Arm Length: 4'
Column Diameter: 11"
Drills In Plane Of Base To Center Of Circle: 8'
Distance From Center Of Column To Face Of Column: 9-1/8"
Minimum Distance Face Of Column To Spindle: 12-1/8"
Horizontal Traverse Of Head On Arm: 33-3/8"
Vertical Traverse Of Arm On Column: 25"
Spindle Speeds: (36) 14 to 1500 RPM
Spindle Feeds: (18) .004 to .125 IPR
Tap Leads: (6) 8 to 27 TPI
Spindle Stroke: 16"
Spindle Taper: No. 5 M.T.
Working Surface Of Base: 59" x 36"
EQUIPPED WITH
7-1/2 HP Motor
12" Riser Block For Extra Height Capacity
Power Column Clamping
Power Elevation
Coolant
Approximate Weight: 11,500 Lbs.
F.O.B. Cincinnati. Ohio 45223
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: Super Service
SERIAL NUMBER: 2E-717
GENERAL SPECIFICATIONS
Arm Length: 4'
Column Diameter: 11"
Drills In Plane Of Base To Center Of Circle: 8'
Distance From Center Of Column To Face Of Column: 9-1/8"
Minimum Distance Face Of Column To Spindle: 12-1/8"
Horizontal Traverse Of Head On Arm: 33-3/8"
Vertical Traverse Of Arm On Column: 25"
Spindle Speeds: (36) 14 to 1500 RPM
Spindle Feeds: (18) .004 to .125 IPR
Tap Leads: (6) 8 to 27 TPI
Spindle Stroke: 16"
Spindle Taper: No. 5 M.T.
Working Surface Of Base: 59" x 36"
EQUIPPED WITH
7-1/2 HP Motor
12" Riser Block For Extra Height Capacity
Power Column Clamping
Power Elevation
Coolant
Approximate Weight: 11,500 Lbs.
F.O.B. Cincinnati. Ohio 45223
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
Get Your Price from C.W. Wood Machinery Inc!
